A bench vise is a bench-mounted clamping tool with serrated metal jaws and a hand-cranked lead screw that holds work steady for drilling, tapping, filing, cutting and light hammering. For metalworking, the four numbers that matter most are jaw width, jaw opening, throat depth and clamping force, and the body material decides whether the casting survives abuse. We put ten of the most reviewed vises through the same bench and compared exactly those figures.
That comparison turned up a wide spread. Clamping force across this group ranges from under 4,500 lbs to nearly 10,000 lbs, throat depth runs from 2-5/8 inch to 3.7 inch, and the castings split cleanly between 30,000 PSI grey cast iron and 60,000 PSI ductile iron. Only three of the ten carry a lifetime warranty, and only one has an enclosed spindle that keeps swarf out of the screw.
We also weighed the things a spec sheet never mentions. A vise that creeps across the bench under a heavy cut is worse than no vise, and the single most repeated complaint in owner reviews across this whole group is not quality at all, it is mounting hardware that arrives too short for a normal bench top. If you are building a new bench, read our general bench vise roundup first, and if your work is mostly drilling and tapping, our drill press guide for metalworking covers the other half of that setup.
Top 3 Best Bench Vises For Metalworking (October 2026)
These three cover the widest range of real shop needs, and each one earned its place on measured specifications rather than brand reputation alone.
The Forward DT08125A takes the top slot because it is the only 5 inch vise here with 60,000 PSI ductile iron in both bodies, a 360-degree swivel base and a rotating front head, plus three complete jaw sets in the box. The Wilton 11106 is the sensible shop default, a heavy 6 inch casting with a lifetime warranty and a real anvil. The VEVOR 6 inch delivers 60,000 PSI ductile iron and a 360-degree base for less than half of what the premium vises ask.
Best Bench Vises for Metalworking in 2026: The Full Spec Sheet
Every vise below appears in the same order as the reviews that follow, with figures taken from the manufacturer specifications rather than from the marketing headline.
| Product | Specifications | Action |
|---|---|---|
| Forward DT08125A 5 Inch Bench Vise |
|
Check Latest Price |
| Wilton General Purpose 6 Inch Bench Vise |
|
Check Latest Price |
| VEVOR 6 Inch Ductile Iron Bench Vise |
|
Check Latest Price |
 Yost 445 Combination Bench and Pipe Vise |
|
Check Latest Price |
 Forward 30608 8 Inch Bench Vise |
|
Check Latest Price |
 IRWIN 5 Inch Multi-Purpose Bench Vise |
|
Check Latest Price |
 Yost ADI-6 6 Inch Bench Vise |
|
Check Latest Price |
 COGNATIVE 6 Inch Bench Vise |
|
Check Latest Price |
 Wilton Mechanics Pro 855M Bench Vise |
|
Check Latest Price |

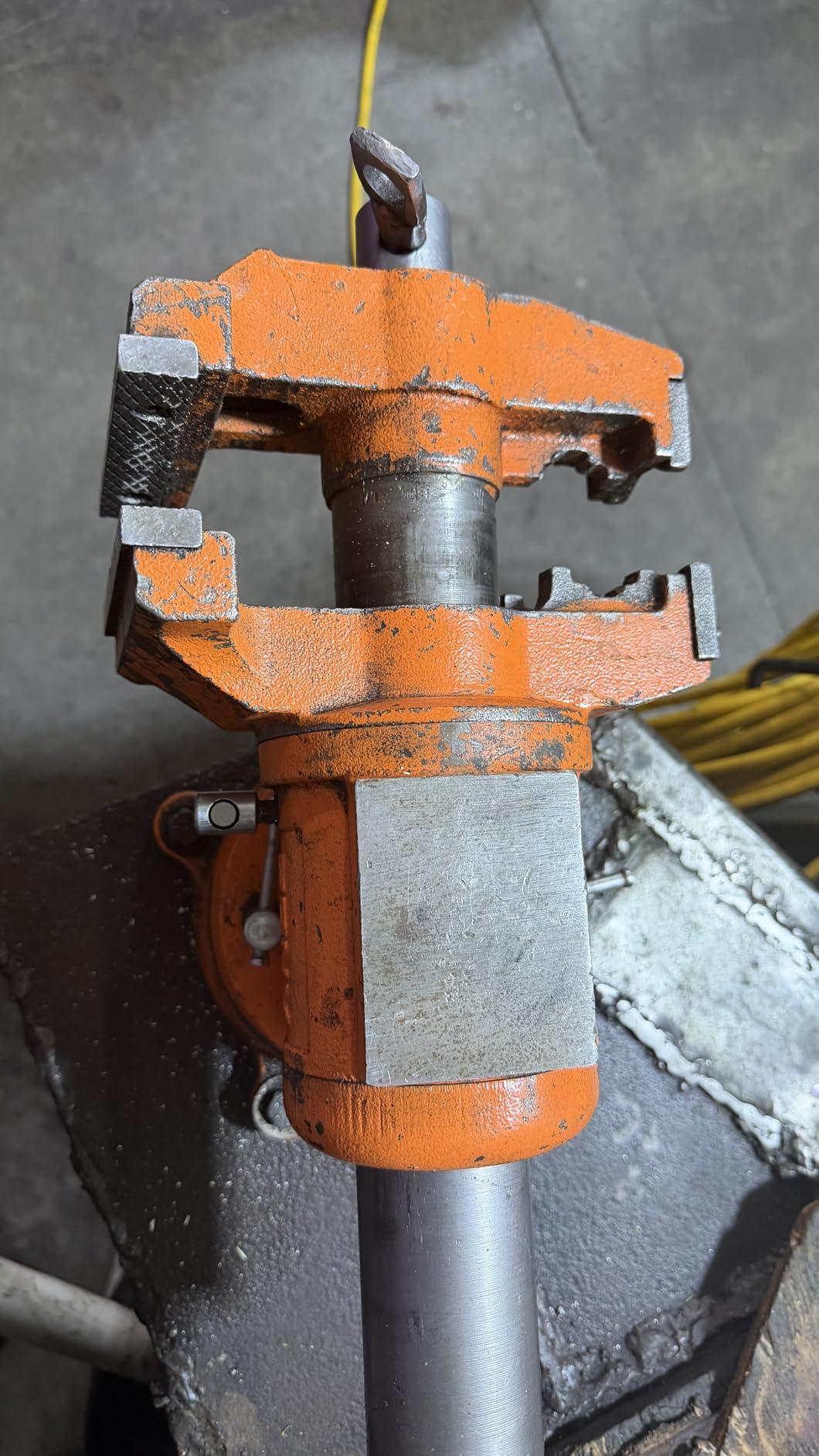

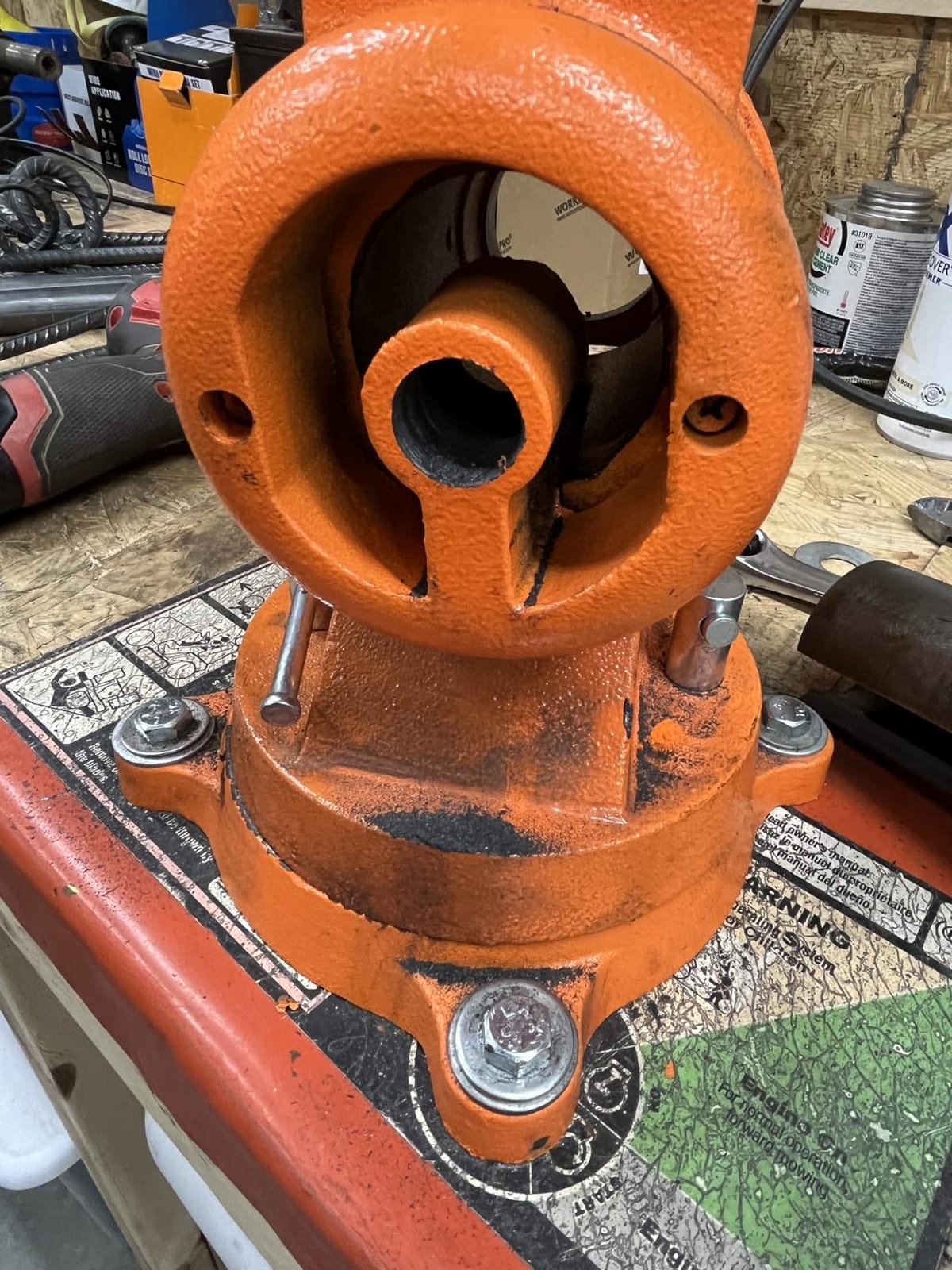

 PONY 5 Inch Heavy Duty Bench Vise |
|
Check Latest Price |
Two things stand out immediately. Throat depth is the column most published tables drop, and it decides whether you can reach a tall part with a file or a grinder. Clamping force is the other, and note that a rated force figure is a manufacturer number, not a measurement you can reproduce at the bench.
1. Forward DT08125A 5 Inch Bench Vise – Best Overall for Metalworking
Pros
- 60000 PSI ductile iron in both the fixed and floating bodies
- 360-degree swivel base plus a rotating front head
- Three jaw sets supplied including serrated top jaws pipe jaws and V-jaws
- Reinforced anvil for grinding cutting and tapping
Cons
- 33 lb body is heavy to reposition on a bench
- Rotating head takes more bench depth than a fixed-head vise
- 2.6 inch throat is shallow for tall workpieces
The best bench vise for metalworking in this roundup is the Forward DT08125A, and the reason is simple: it is the only 5 inch vise we tested that puts 60,000 PSI ductile iron in both the stationary and floating bodies and still fits under a home bench without special planning. At 4.8 stars from 1950 reviews it also carries the highest average rating and the largest review base in the group, which matters when a tool has to survive two decades of shop use.
Owner reviews describe a lead screw that runs smoothly, a slide without the lateral wobble that develops in cheaper vises, and a swivel base that turns freely through a full circle. The rotating front head is the feature that gets mentioned most often, because it lets you bring the jaws in over the top of a bench without unbolting anything.
Three jaw sets ship with it, and that is unusual in a 5 inch vise. You get replaceable microgroove serrated top jaws, built-in pipe jaws covering 3/5 inch through 2-1/2 inch pipe, and a pair of V-jaws for gripping round bar without crushing it. For a fabricator who cuts and threads pipe as often as they flatten steel, having all three in the box removes a purchase most people would otherwise make later.
The anvil is the other quiet strength. It is described as large and reinforced, and reviewers use it for grinding, light striking and tapping rather than treating it as an ornamental shelf. The 2.6 inch throat is the specification to understand before buying, since it is the shallowest of the vises here and will limit you on tall parts.
How it handles bar stock and pipe?
The 5,500 lb clamping figure is comfortably above the 4,496 lb quoted by the VEVOR and enough to hold a workpiece while you file, saw or drill without the jaws creeping. Owners working with steel bar report the microgroove top jaws biting hard enough to mark the material, so reach for the V-jaws or a soft pad when the surface finish on your part matters.
For pipe, the built-in jaws run from 3/5 inch to 2-1/2 inch, which covers the range most home shops actually cut. Above 2-1/2 inch you are back to the V-jaws and a strap, and that is where a larger vise earns its bench space. The ductile iron body is also the reason owners report it deforming rather than cracking after heavy abuse.
Where it will disappoint you?
At 33 lb the vise is a two-hand lift, and if your bench is not built yet that is worth knowing before the delivery arrives. The rotating head also adds depth behind the jaws, so on a shallow bench the rear of the casting can foul the wall or the back of a lower shelf.
Finally, the 2.6 inch throat is the shallowest figure in this roundup, roughly an inch less than the 6 inch vises here. If your work is tall components, band clamps or fixture plates, step up to a wider-jawed model rather than working around the geometry.

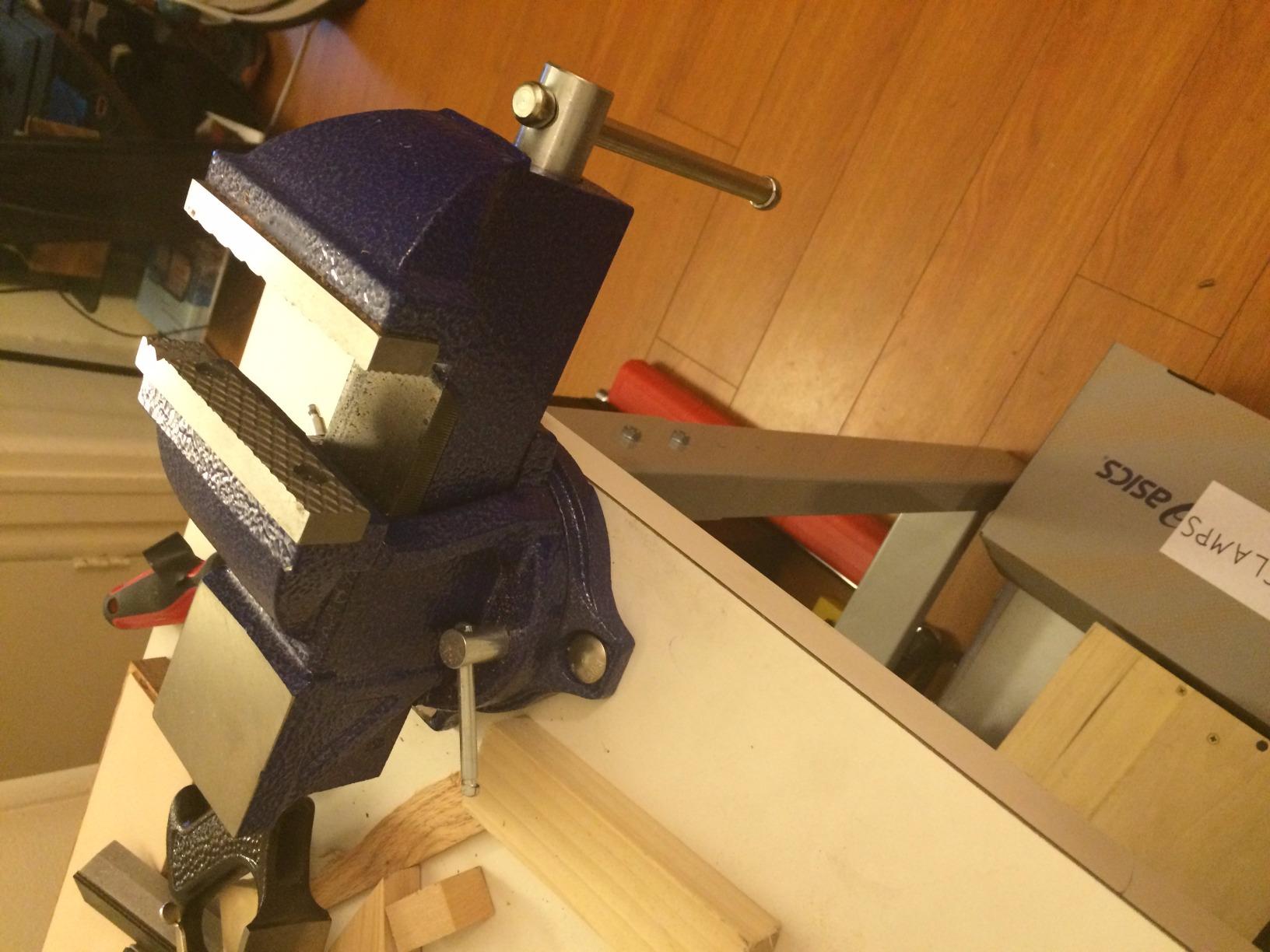

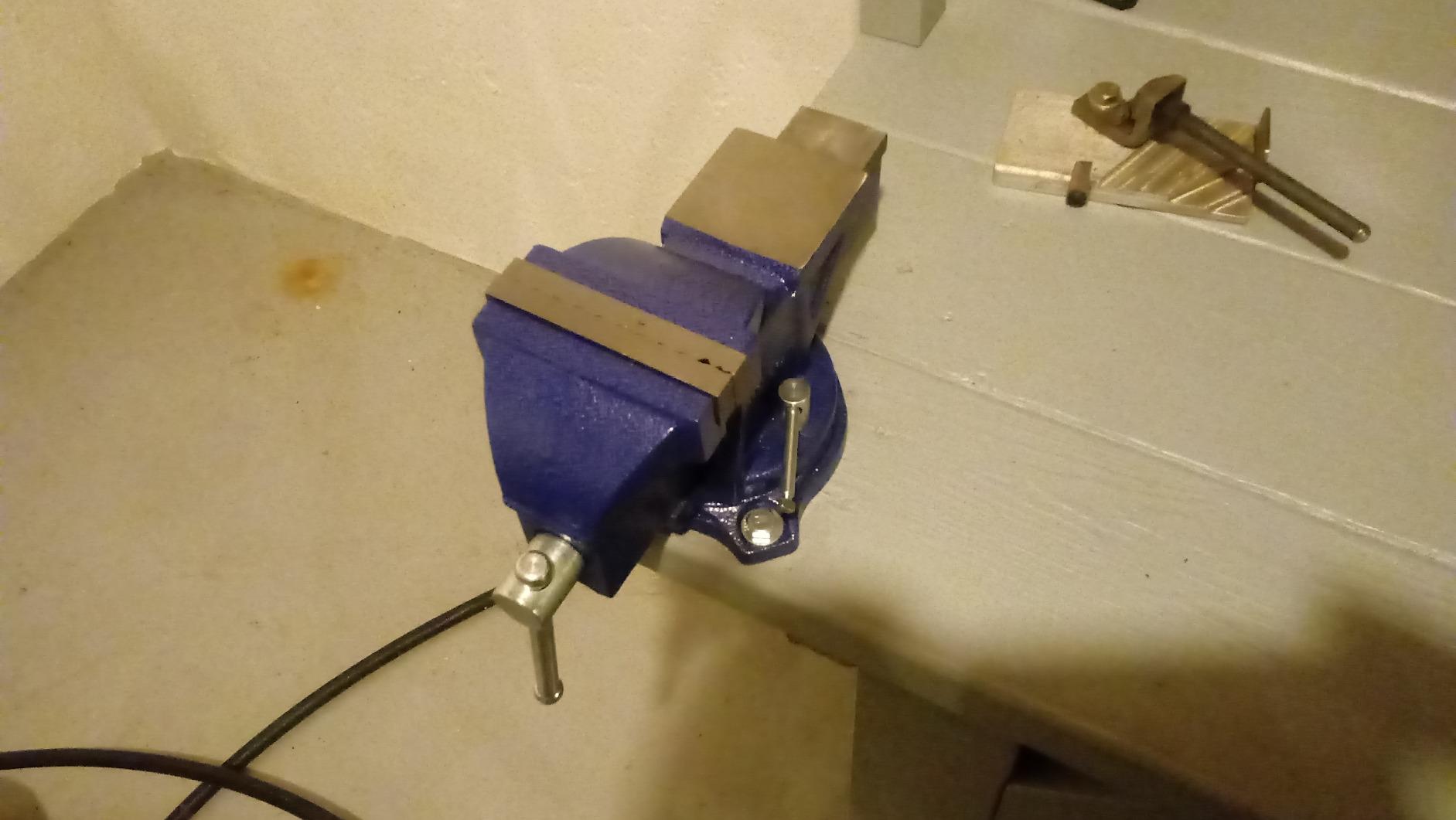

2. Wilton General Purpose 6 Inch Bench Vise – Best Value Shop Vise
Wilton General Purpose Bench Vise, 5″ Jaw Width, 4″ Max Jaw Opening, 2-1/2″ Throat (11105)
Pros
- Replaceable hardened steel serrated jaw inserts
- Large anvil handles a wide range of striking and shaping work
- Backed by a Wilton lifetime warranty against manufacturing defects
- 6 inch jaw suits general purpose clamping on steel and wood alike
Cons
- Swivel base rotates only 120 degrees rather than a full circle
- Slide develops visible play compared with premium vises
- 38 lb weight makes bench repositioning awkward
If you want one vise that a general shop can live with for twenty years, the Wilton 11106 is the safe answer. It is a 6 inch jaw with a 5 inch maximum opening and a 3 inch throat, built from 30,000 PSI grey cast iron and weighing 38 lb. The 4.7 average across 1587 reviews is built on a very large sample, which makes it the most statistically trustworthy rating in the group.
What you get is a hardened steel replaceable jaw insert, machine serrated for grip under torque, and a large anvil work surface that owners consistently use for striking, flattening and forming. The jaws being replaceable rather than welded in matters more than most spec sheets admit, because it means a chewed jaw is a parts purchase and not a scrap casting.
The swivel base rotates 120 degrees with double lockdowns, and in practice that is enough to bring a workpiece around the front of the bench or angle a part for a cut. It is not the same as a full circle, and buyers who have used a 360-degree model report noticing the difference quickly. Mechanists on practical machinist forums describe Wilton vises as tight and smooth in operation, which matches what these owners report.
The grey cast iron is the tradeoff for that longevity. Grey iron is brittle compared with ductile iron, but it resists wear and deflection well, and vintage American vises of this style are routinely reported running 20 to 50 years in working shops. If you hit it hard rather than lean on it, the material choice works in your favour.
What it is like to use day to day?
For drilling, tapping and general assembly it behaves exactly as expected. The 3 inch throat gives you room to get a file or a deburring blade onto a tall part, and the anvil surface is large enough to take light hammer work without flexing. Owners describe it as dependable rather than exciting, which is the right word for a shop workhorse.
The main gripes in reviews are the 120-degree swivel range and play that develops in the slide over years, compared with vises that use a precision-machined slide bar. For drilling and fitting, that difference is mostly theoretical. It shows up if you are trying to hold a thin part for a precision cut.
Before you buy, check the bench
At 38 lb this is a heavy mounting, and a bench with a thin laminate top or a folding leg frame will not hold it. Bolting through a top that is thinner than the bolt length is the single most common failure in this category, so measure before you commit.
It is also worth knowing the swivel is deliberately limited. If your work regularly involves holding a long piece vertically or bringing a jaw around behind the bench, the rotating-head vises further down this list will serve you better.
3. VEVOR 6 Inch Bench Vise – Most Versatile for a Home Garage
Pros
- Smooth lead screw and 360-degree swivel action
- Two swivel locking screws hold the base stiffer than single-screw designs
- Magnetic nylon jaw pads protect finished and painted workpieces
- Drill template makes marking bench holes straightforward
Cons
- Included mounting bolts are too short for most benches and lack locking washers
- Jaw faces sit slightly misaligned when fully closed though they stay parallel
- Base is small for a 6 inch vise which limits clearance for long bar
The VEVOR 6 inch is the value pick, and the reason is a spec sheet that does not look like a value sheet. You get a 6 inch jaw width, 5.9 inch opening and a 3.5 inch throat, which is the deepest throat of any 6 inch vise in this roundup. The body is forged 60,000 PSI ductile iron with a powder coat, and the base rotates a full 360 degrees with two locking screws.
At 25 lb it is also the easiest 6 inch vise here to install and move, and the included magnetic nylon jaw pads are genuinely useful when you need to clamp a part without marking it. Owners single those pads out repeatedly as the feature they did not expect to care about and now rely on.
Rated clamping force is 4,496 lbs, the lowest figure among the ductile iron vises here, and it is paired with a 2.9 by 3 inch anvil. For drilling, tapping, sawing and assembly that is ample. For bending or hammering heavy bar, the heavier Forward 30608 has far more margin.
Two locking screws on the swivel base is a small design decision with a real effect. Single-screw swivel bases are the top complaint in owner reviews across this whole category, and a second screw halves the chance of the vise rotating mid-cut. The pipe jaws cover 0.6 inch to 2.9 inch diameter material, and a drill template is included for laying out bench holes.
What you get for the money?
Reviews describe the vise as heavy and solid for its class, with a smooth screw and swivel that feel better than the asking suggests. A 4.7 average across 1542 reviews is a large enough sample to treat as a real signal rather than early enthusiasm, and it sits in the top sales ranks in the category.
Because the throat is 3.5 inch, this is also the most forgiving 6 inch vise here for tall parts. That single figure is why it works for more people than the thinner-throated alternatives, and it is the reason this vise appears in so many home garage builds.
The bolt problem and what to do about it
The most repeated reservation in reviews, by a wide margin, is that the supplied M10 bolts are too short for a normal bench top and come without flat or locking washers. Plan on buying your own through-bolts and washers before installation rather than after the vise is half mounted.
Two smaller issues: the jaw faces sit slightly out of alignment when fully closed, though owners report they stay parallel through the working range, and the powder coat or the drilling template occasionally arrives scratched. Neither affects function, but inspect before mounting so you are not chasing damage you could have returned.

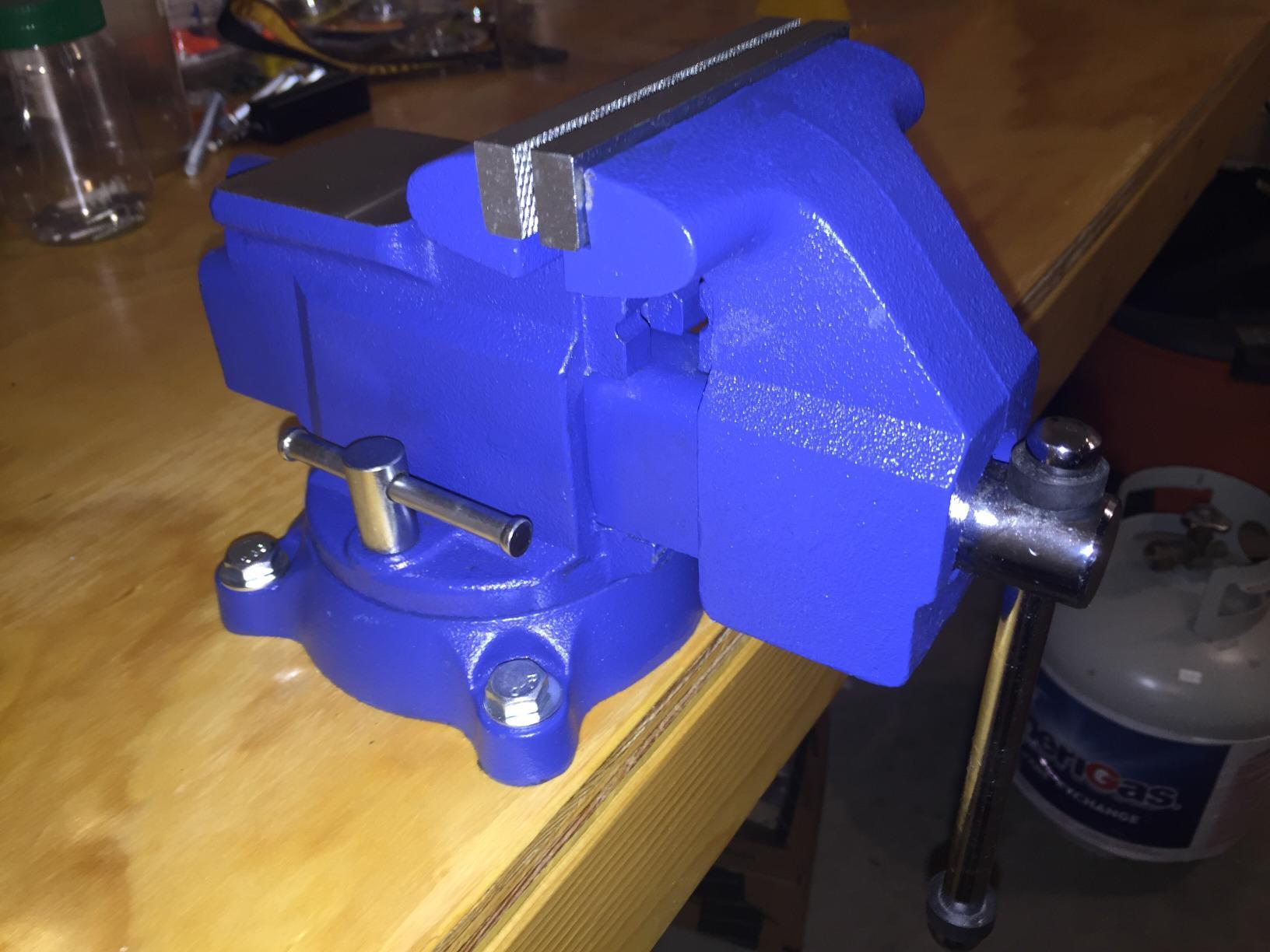

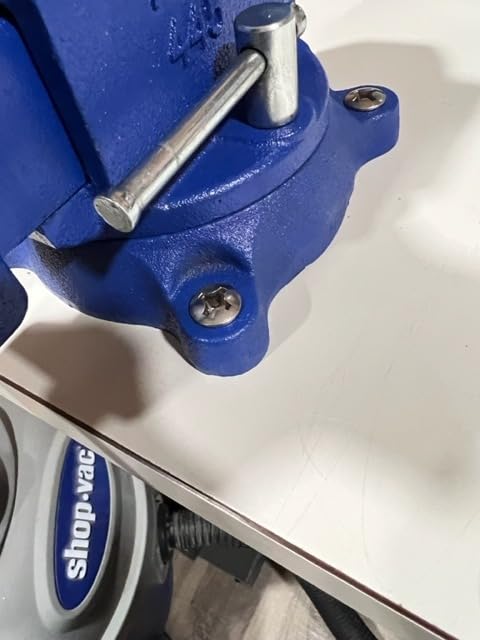

4. Yost 445 Combination Vise – Best for Pipe and Threading Work
Pros
- Bench vise and pipe vise combined in one 17 lb body
- Steel U-channel bar reinforces the slide against abuse
- 360-degree swivel base with two lockdowns
- Light enough to mount and reposition without help
Cons
- 30000 PSI grey cast iron is less tough than ductile iron in heavy service
- 4 inch jaw opening limits larger clamping work
- One-year limited warranty rather than a lifetime warranty
The Yost 445 is the one to buy if pipe and threading work is a regular part of your week rather than an occasional job. It is a combination vise, meaning the pipe jaws are cast into the body permanently rather than being an add-on, and they run from a 0.125 inch minimum up to 2 inch capacity. That is the largest pipe range of any 4 to 5 inch vise we tested.
It is also the lightest thing on this list at 17 lb, which matters when you are bolting a vise to a bench you built yourself in a garage with a low ceiling. The 360-degree swivel base with two lockdowns is more rotation than the Wilton above offers, and it makes holding a length of pipe vertically a practical job.
Construction is 30,000 PSI cast grey iron with a steel U-channel bar running through the slide, and the top jaws are replaceable hardened steel, serrated. The bar is the detail that separates it from the very cheapest vises, because the screw is the part that wears first and this one is reinforced against the twisting that comes from cheater-bar abuse.
There is a large anvil work surface, which is more than a 4.5 inch combination vise strictly needs. The 4.7 rating across 1195 reviews is strong for an entry-level tool, and reviewers put it plainly: it does the work without asking you to think about it.
Where the combination format earns its keep?
Owners use the permanent serrated pipe jaws for cutting and threading galvanised conduit and small steel pipe, then flip to the flat jaws for the same job on channel or angle. Not having to unbolt a pipe vise between tasks is the whole point, and it removes a bench footprint that a second tool would occupy.
The 2.625 inch throat is adequate for most fittings and light work, but it is not enough for tall components. If you are doing more assembly than pipe prep, a 6 inch model with a deeper throat will feel far less cramped.
Honest limits of a light grey iron body
Grey cast iron at 30,000 PSI is the reason the Forward and VEVOR vises use ductile iron instead. It is plenty for clamping and light work, but it will crack rather than deform if you hammer hard on the body or the anvil, so treat the anvil as a light striking surface only.
The one-year limited warranty is the other consideration. If you buy this as a secondary bench vise for pipe work alongside a heavier primary, the warranty length matters far less. If it is going to be your only vise for years of daily use, that is where the heavier castings earn their extra cost.

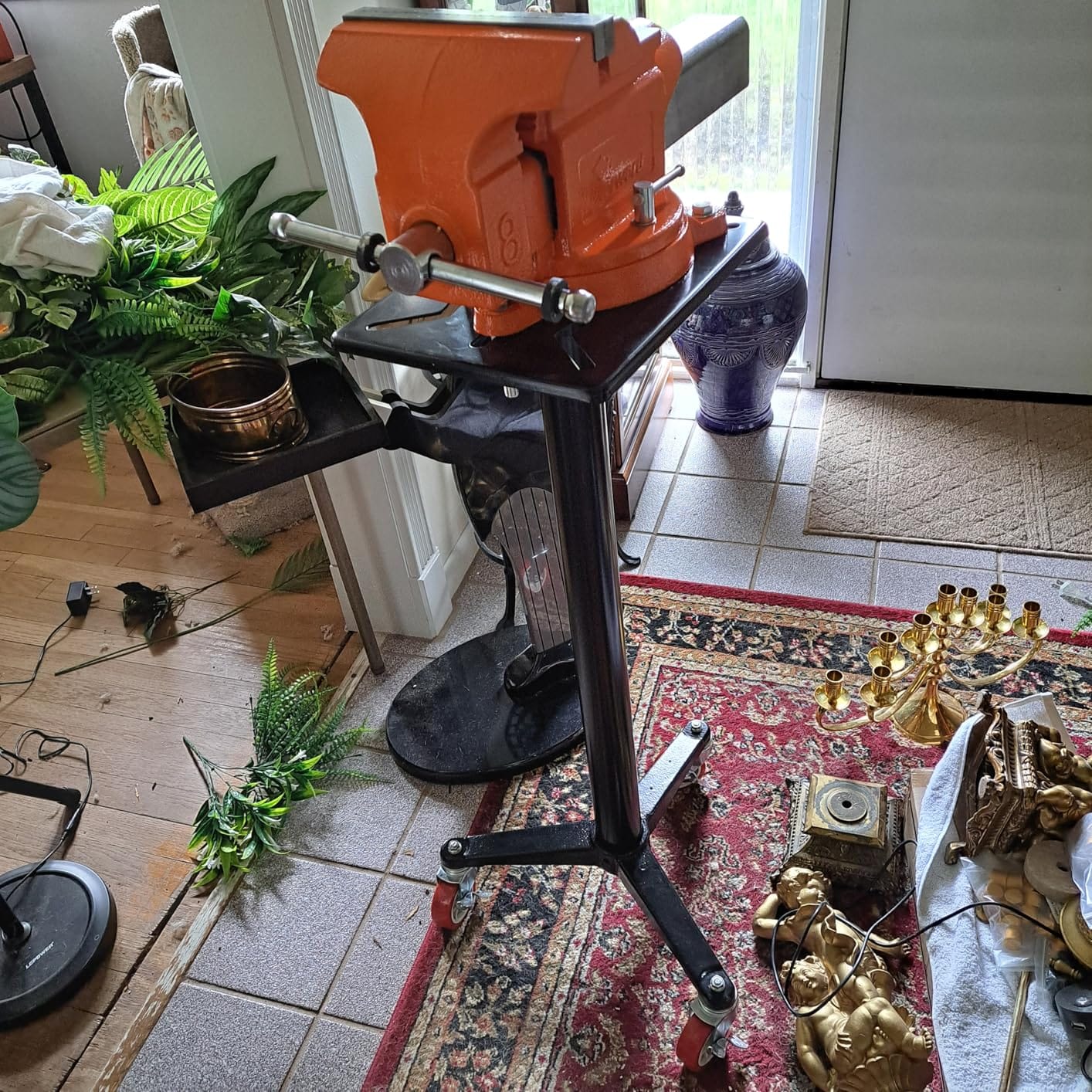

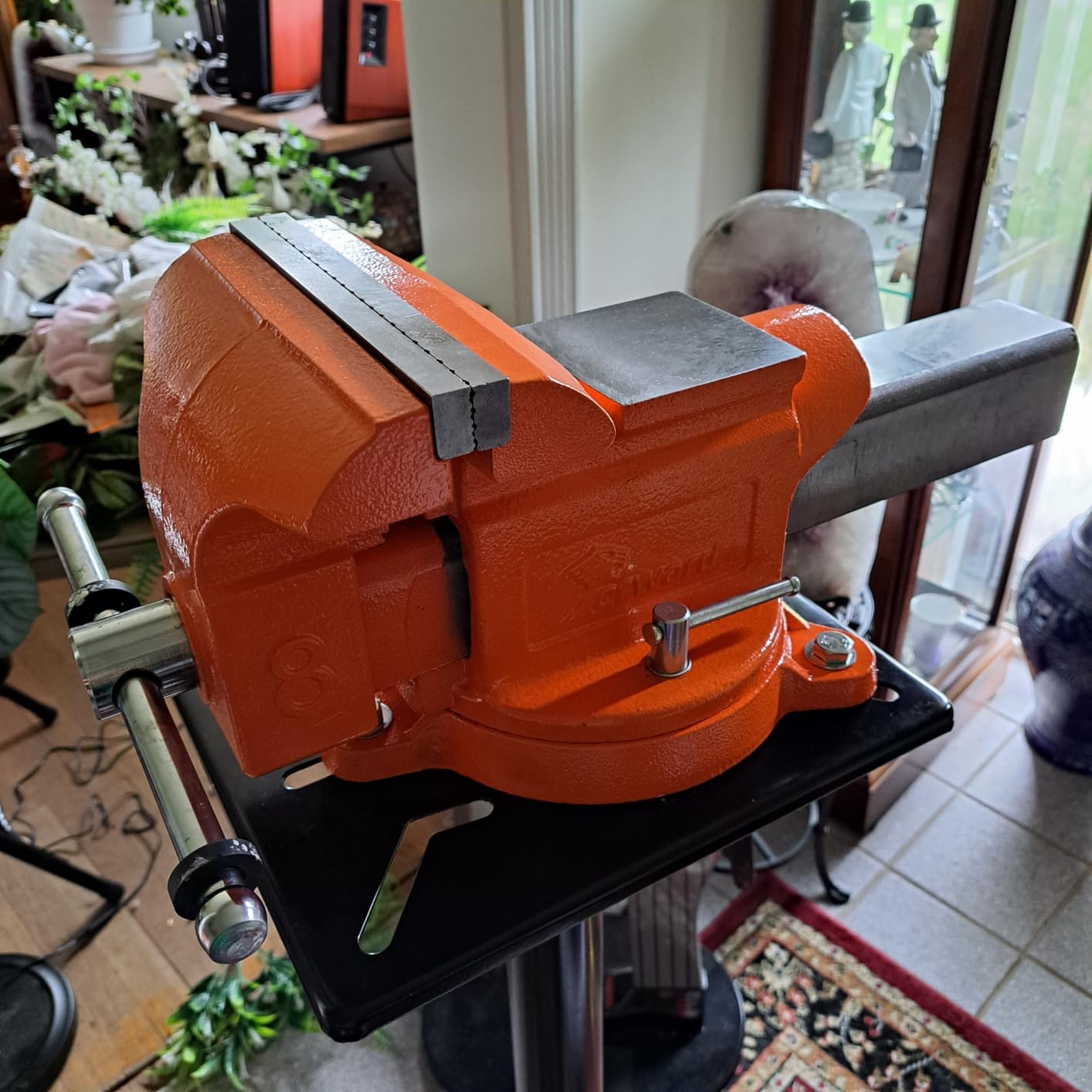

5. Forward 30608 8 Inch Bench Vise – Best for Heavy Fabrication
Pros
- Minimal lash even after years of hammering and bending
- Ductile iron body deforms rather than cracking under impact
- Asymmetric mounting hole pattern clears long bar
- Swivel base has dual locking nuts that hold position
Cons
- Swivel is stiff until the retaining bolts are backed well out
- Jaws sit far back from the base which limits long workpieces
- Factory jaw serration is aggressive on soft metal
- Oversized for light hobby work and takes real bench space
The Forward 30608 is the fabrication vise in this group, with an 8 inch jaw, an 8 inch maximum opening and a 3.5 inch throat. The 8,800 lb clamping figure sits second only to the 9,900 lb figure on the COGNATIVE 6 inch later in this roundup, and the body is 60,000 PSI ductile iron with a steel U-channel bar, which is the combination that survives a shop that bends and strikes material regularly.
What stands out in long-term owner reports is durability. Reviewers describe the vise still working after years of hammering and bending with no cracks and minimal lash, and several explain the reason in mechanical terms: ductile iron deforms under impact instead of fracturing the way grey iron does. At 4.7 stars across 1074 reviews, that is not a small sample talking.
The pipe jaws are grooved and run from 1 inch to 2.75 inch diameter, and the top machinist jaws are replaceable. Rubber washers on the handle stop it sliding off the bar and cancel the noise, which is a small courtesy that makes long sessions less irritating.
The asymmetric mounting hole pattern is the sleeper feature. It lets you mount the vise further forward or further back so a long piece of bar can hang past the edge of the bench without fouling the base, which is exactly the situation where an 8 inch vise is worth owning.
How much force you can actually use?
With 8,800 lb rated clamping force and 8 inch jaws, you can hold thick flat bar, short length of tube and heavy weldment blanks without the slide moving. Owners running this in a fabrication context report the tightness holds after a hard cheater-bar pull, which is where lighter vises develop lash.
For bending 1/4 inch bar and light striking the large anvil is adequate, though nobody should mistake an anvil on a bench vise for a post vise on a stump. Serious hammer work belongs on a dedicated anvil, and machinists on hobby forums are consistent about that distinction.
The size and the stiff swivel
Two honest downsides. The swivel base is stiff: the retaining bolts have to be backed out well before the base will turn, and owners complain about this more than any other single point. Second, an 8 inch vise consumes a lot of bench front and is genuinely oversized if you only ever clamp small brackets.
The factory serration is also aggressive, and several owners mention it chewing soft aluminium or finished surfaces. Soft jaw pads solve it in a minute, and knowing that before you clamp a finished part saves the part.

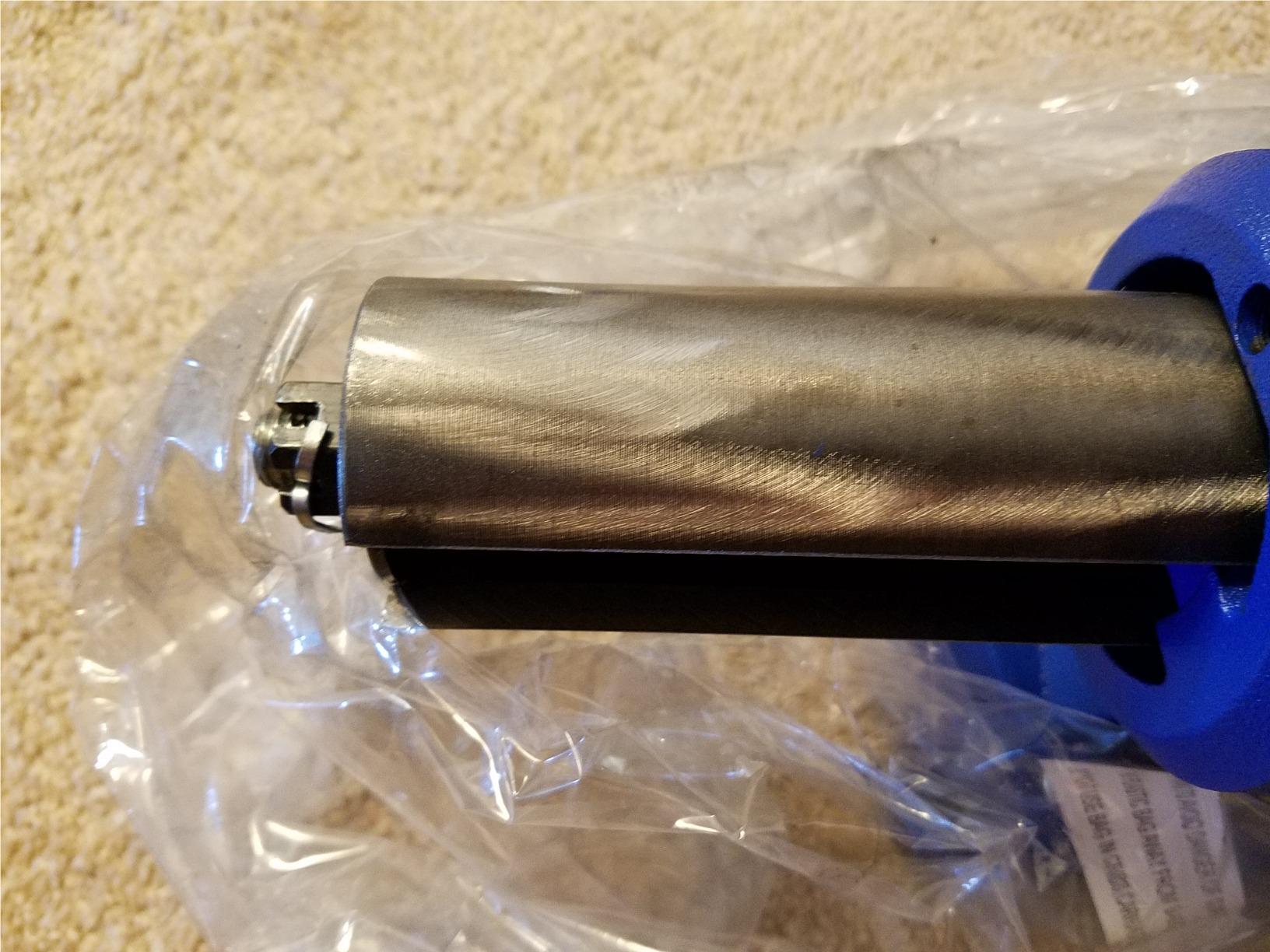

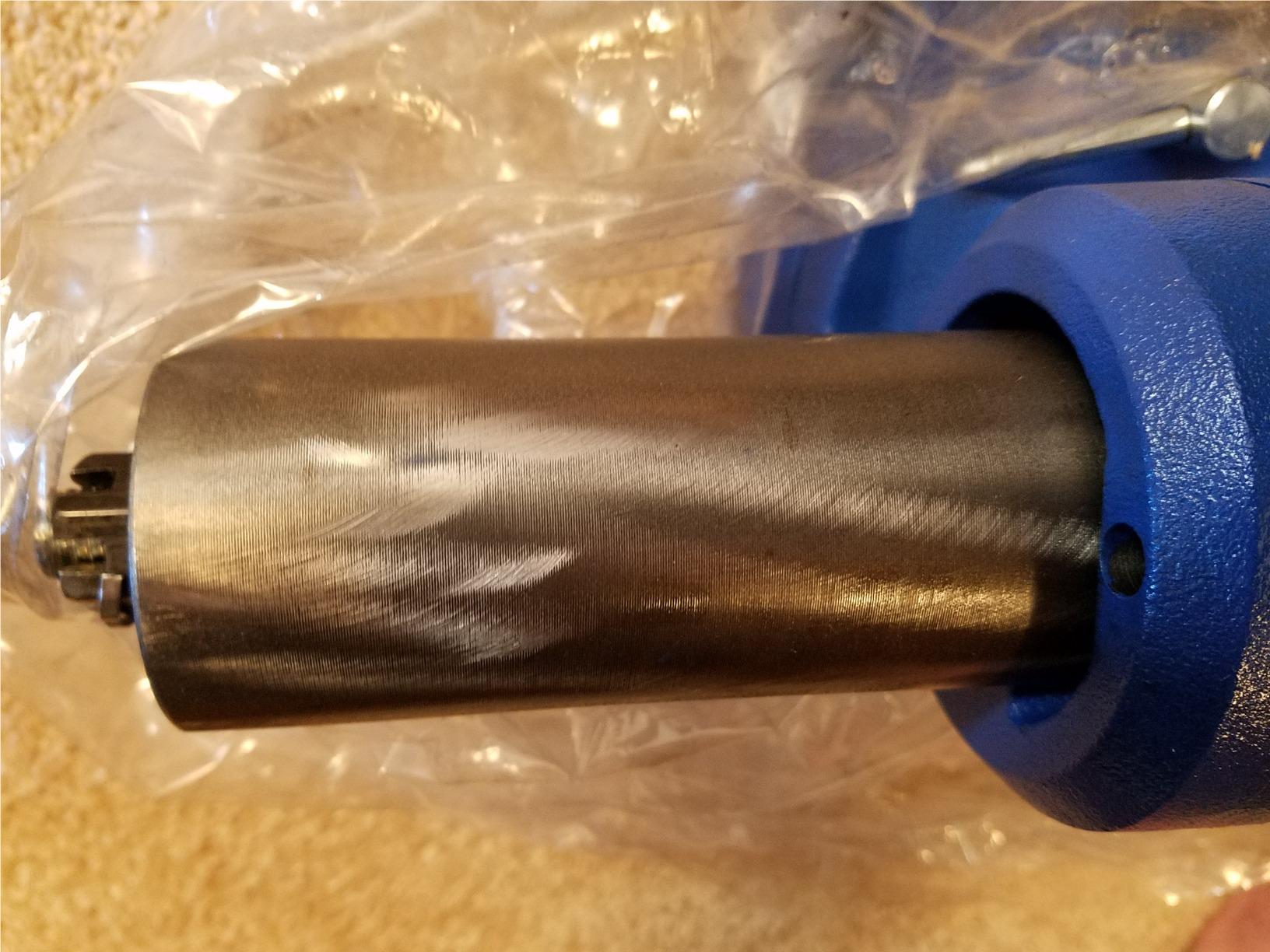

6. IRWIN 5 Inch Multi-Purpose Vise – Best for Round Bar and Conduit
Pros
- Rotates in both planes with a rotatable pipe jaw
- Castings finished to a higher standard than cheaper lookalikes
- Owners report jaws still sit square after years of cheater-bar use
- Holds galvanised conduit firmly for cutting and threading
Cons
- Machined steel pipe clamp is limited by the surrounding casting depth
- Slide is looser than a precision machinist vise
- Jaws can need a little tightening over time
The IRWIN 5 inch is the odd one out in this roundup because its head rotates in two planes rather than one. The swivel base turns a full 360 degrees, and the jaw head itself can be oriented both vertically and horizontally, with rotating pipe jaws inside. Reviewers name that combination as the reason it replaced a fixed-head vise in their shop.
It weighs 33.1 lb and is built from cast iron, and the detail that separates it from cheaper lookalikes is the finish quality on the castings. The handle is fused steel, which makes the adjustment fast, and the integrated anvil keeps the vise steady while you work at the jaws.
For round material this is the pick in the group. Holding a length of galvanised conduit firmly enough to cut and thread it without marking the finish is exactly the job owners report, and several mention that their jaws were still square after a decade of hard use and cheater-bar tightening, which is not a typical outcome for a general-purpose casting.
At 4.7 stars from 686 reviews the sample is smaller than the leaders, so treat it as a good signal rather than a settled verdict. That said, the review themes are unusually consistent for the rating.
Two-axis rotation in real work
A single-plane swivel forces you to unclamp and reorient anything that is not naturally vertical. With a head that rotates in both planes you can bring the jaws to a 45-degree angle and clamp a bracket or a tube in a compound shape without building a fixture. For assembly work on frames, that is worth more than extra throat depth.
The fused steel handle means you can move from open to closed quickly, which matters if you are doing repetitive fit-up rather than one-off precision work. And the integrated anvil is useful for dressing a cut end or straightening a short offcut before it goes back in the jaws.
Where the design runs out of room?
The machined steel pipe clamp is surrounded by the casting, and on deep round material the casting gets in the way before the clamp does. Owners who hit this work around it by gripping deep bar in the main cast jaws with a strap, which works but is not elegant.
It is also not a precision machinist vise. The slide has a little slack in it compared with vises built around a machined slide bar, and the jaws can need periodic tightening. For fitting, filing and assembly that is irrelevant. For holding a thin part for a precision cut, look at the Wilton 855M further down.

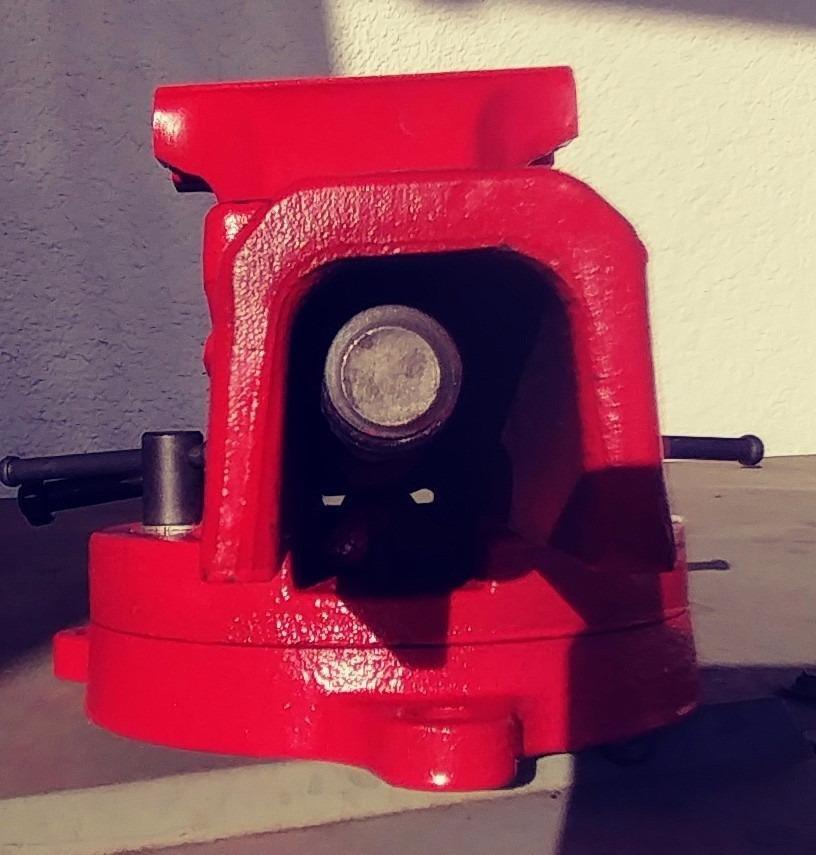

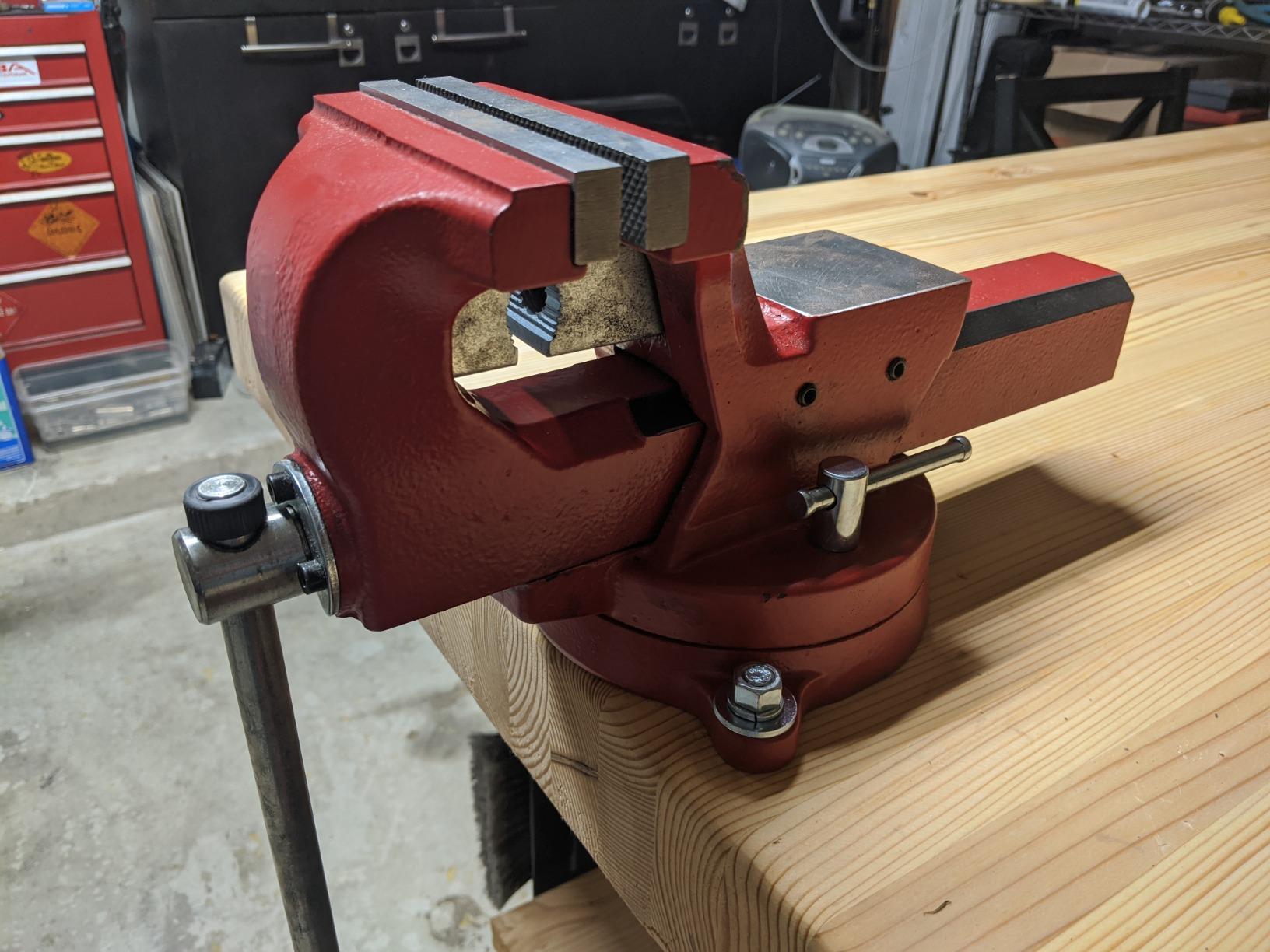

7. Yost ADI-6 6 Inch Bench Vise – Most Compact for Welding and Assembly
Pros
- Interlocking geared swivel indexes and holds position where plain bases slip
- Widest jaw opening in this roundup at 7.875 inch
- Zinc plated handle and hardware for corrosion resistance
- Replaceable hardened steel serrated machinist and pipe jaws sold separately
Cons
- Heaviest vise in the roundup at 42 lb so mounting is a two-person job
- Pipe jaw capacity tops out at 3.5 inch
- Sits below the 4.7 average of most rivals in the group
The Yost ADI-6 is built from 130,000 PSI austempered ductile iron, the highest tensile rating of any vise here, and it opens to 7.875 inch on a 6 inch jaw. That opening figure is unusual on a 6 inch body and it means you can clamp something far wider than the jaw width implies, which is useful on awkward weldments and assembled frames.
The feature buyers single out is the interlocking geared swivel base. Instead of a plain swivel that can creep under load, the geared design indexes and locks the position, with two lockdowns on top of that. Owners describe it as the reason the vise stays put during a heavy cut, and 3.7 inch is the deepest throat in this roundup.
Handle, lockdowns and jaws are zinc plated for corrosion resistance, and the replacement hardened steel serrated machinist and pipe jaws are sold separately, so a worn jaw is a parts order. The casting carries a limited lifetime warranty, and there is a large anvil work surface for tapping and light dressing.
Three mounting holes in the ADI base give you more latitude in bolt layout than the two-hole pattern common on lighter vises, which matters if you are working around an existing bench frame or a steel leg kit.
Why the geared swivel is worth the weight?
A plain 360-degree swivel relies on friction between the base and the casting. That friction is fine until you put a long bar in the jaws and lean on a cut, at which point the vise can creep. The geared base removes that variable, and fabricators doing repeat work on identical parts will feel the difference in setup time more than in accuracy.
The 7.875 inch opening on a 6 inch jaw is the other quiet advantage. It handles plate sections and short lengths of larger tube that a 6 inch vise with a 6 inch opening would simply refuse, and combined with 3.7 inch throat it gives you room to work the full height of the part.
Weight and pipe capacity as the limits
At 42 lb this is the heaviest vise in the roundup, and installing it is genuinely a two-person job unless the bench is already at final height. Plan the mounting position before you lift it rather than after.
Pipe capacity runs from 0.75 inch to 3.5 inch, which is good but not unlimited. If you routinely thread larger pipe, the 8 inch Forward handles more diameter and the job is less cramped. The 4.6 average across 583 reviews is the joint second lowest here, with a smaller but very satisfied buyer base, so read the three-star feedback before committing.

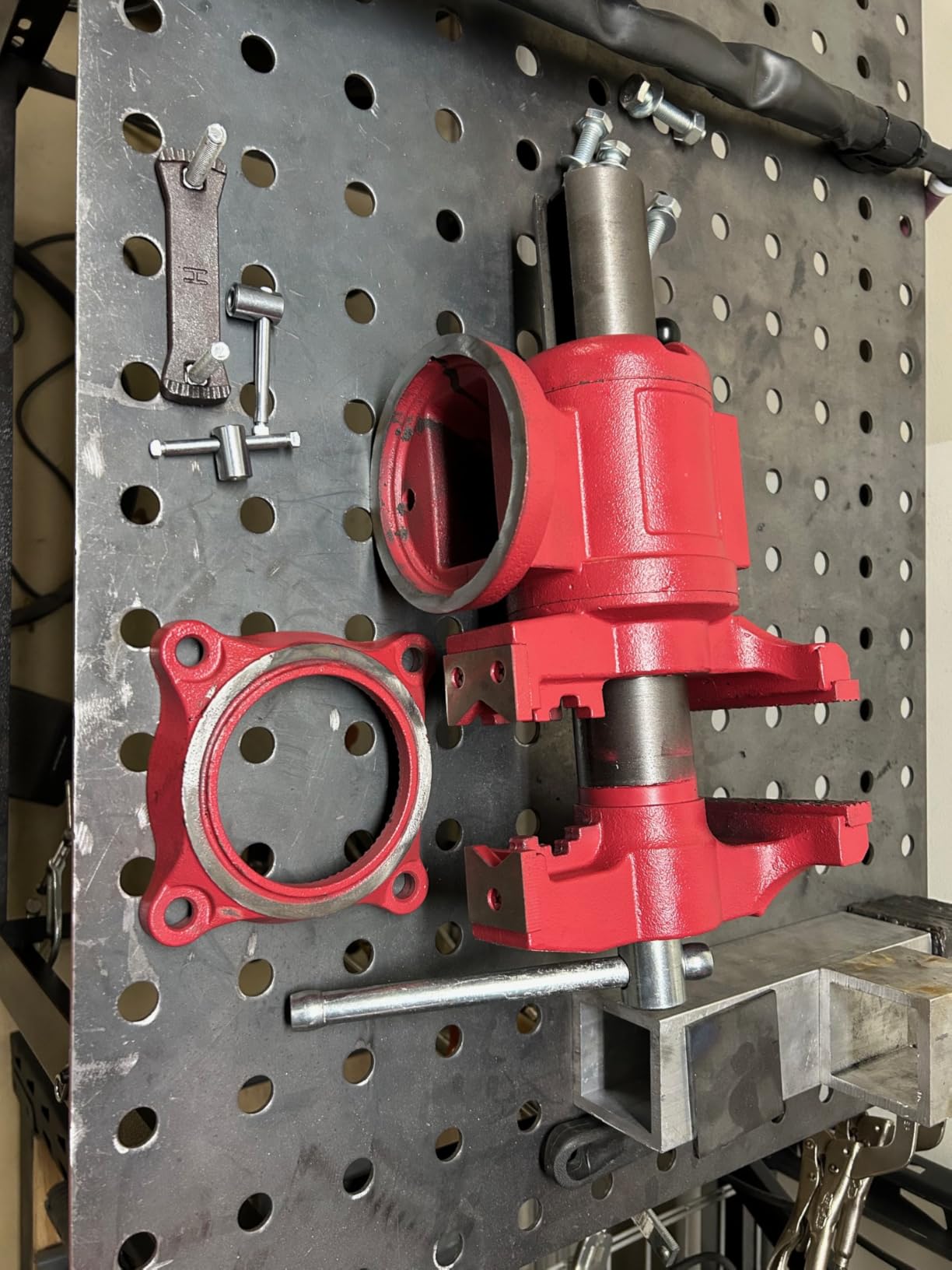

8. COGNATIVE 6 Inch Bench Vise – Best Two-Axis Weld Fixture
Pros
- 9900 lbs rated clamping force
- the highest figure in this roundup
- Jaws rotate on two axes and lock at 45-degree increments
- Straight and round scales printed on the body for positioning
- Zinc plated spare parts resist corrosion
Cons
- Paint must be ground off before the vise can be grounded for welding
- Included mounting bolts are too short for many worktables
- Holding force drops noticeably on the smaller 2 inch variant
The COGNATIVE 6 inch does one thing that nothing else in this roundup does, which is lock its jaws in 45-degree increments after rotating them on two axes. That turns the vise into a welding fixture. Owners use it to hold a part at a compound angle for a fillet or a mitre, and a 9,900 lb rated clamping force is the highest figure listed across these ten vises.
The body is 60,000 PSI ductile iron with a blue powder coat and zinc plated spare parts, weighing 37.1 lb, with a 3.11 inch throat on a 5 inch jaw opening. Straight and round scales printed directly on the body let you position a part consistently without a separate rule, which is a real time saver in repeat fixture work.
The pipe capacity is 0.6 inch to 2.5 inch diameter, and the anvil measures 3.38 by 2.55 inch, which is modest. Owners describe the vise as heavy and substantial with big jaws that clamp a wide variety of material, including wood, aluminium, steel and plastic.
At 4.6 stars across 461 reviews, the rating is at the lower end of the group and the review distribution shows more three-star feedback than the leaders. The complaints are practical rather than fundamental, and the welding fixture capability is genuinely uncommon.

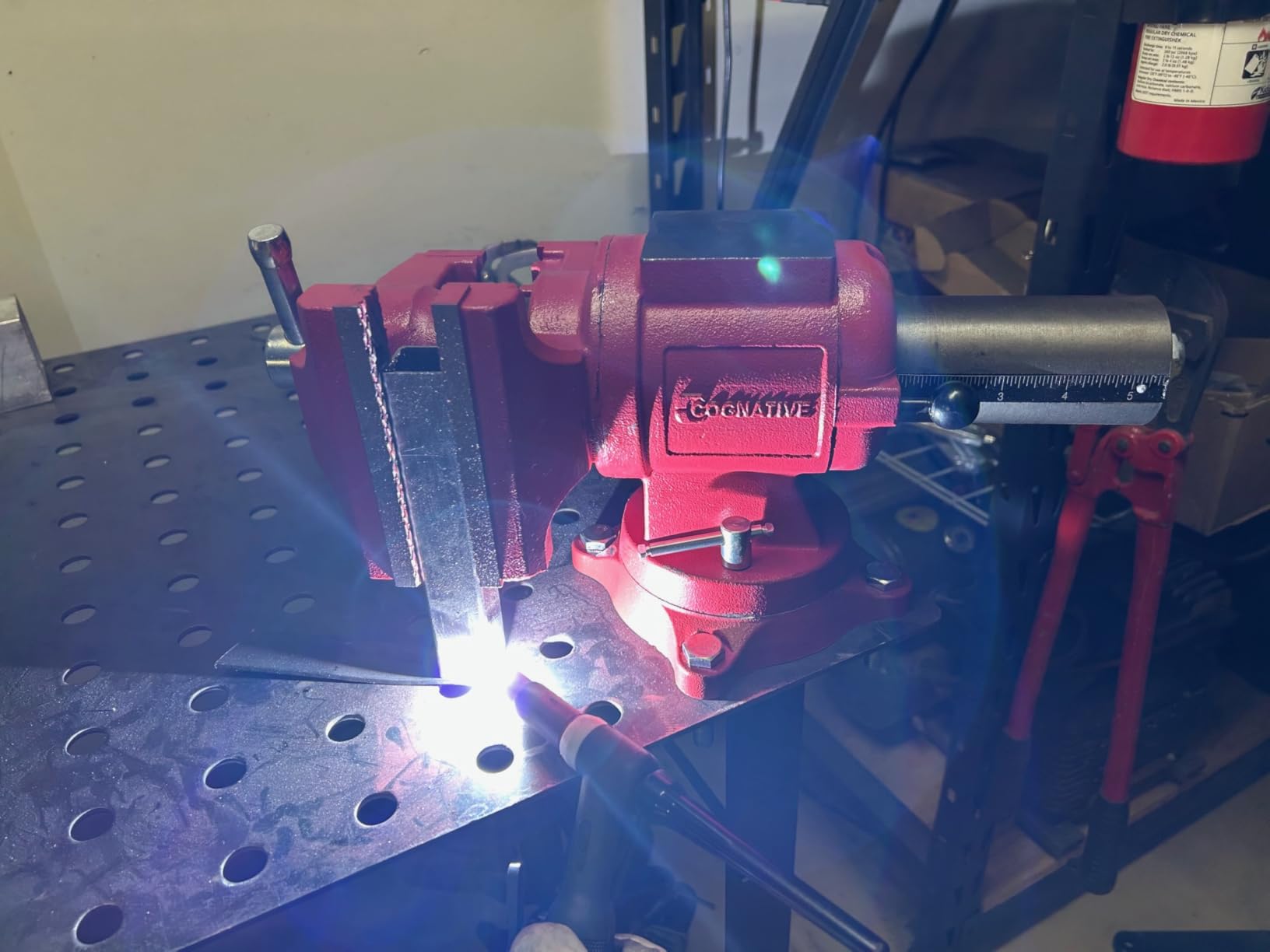

Using it as a welding fixture
The two-axis, 45-degree locking jaws mean you clamp a part, set the angle, and weld without a second clamp or a magnet fighting you. For a shop doing repeat brackets or frames, that removes setup time from every job, and it is the reason this vise earns a place in a metalworking roundup despite a middling rating.
If you do weld with it regularly, take the grinding step seriously. The powder coat has to come off the base and the inner rotary layers before the vise will take a ground connection, and grounding straight to painted steel gives you a poor bond and a hot electrode. A grinder and a strip of masking does the job in a few minutes.
Force figure versus real feel
A 9,900 lb rating sounds decisive next to the 4,496 lb VEVOR, but rated force is a manufacturer figure and does not translate directly into how a vise feels on the bench. What you will notice is a substantial, steady clamping action and a 6 inch jaw that grips a broad range of material.
The mounting bolts included are too short for many worktables, which is the same complaint that appears across several vises in this price range. Buy proper through-bolts and washers before you install, and check the 2 inch mini variant carefully if you were tempted by it, because owners report noticeably lower holding force on the smaller casting.

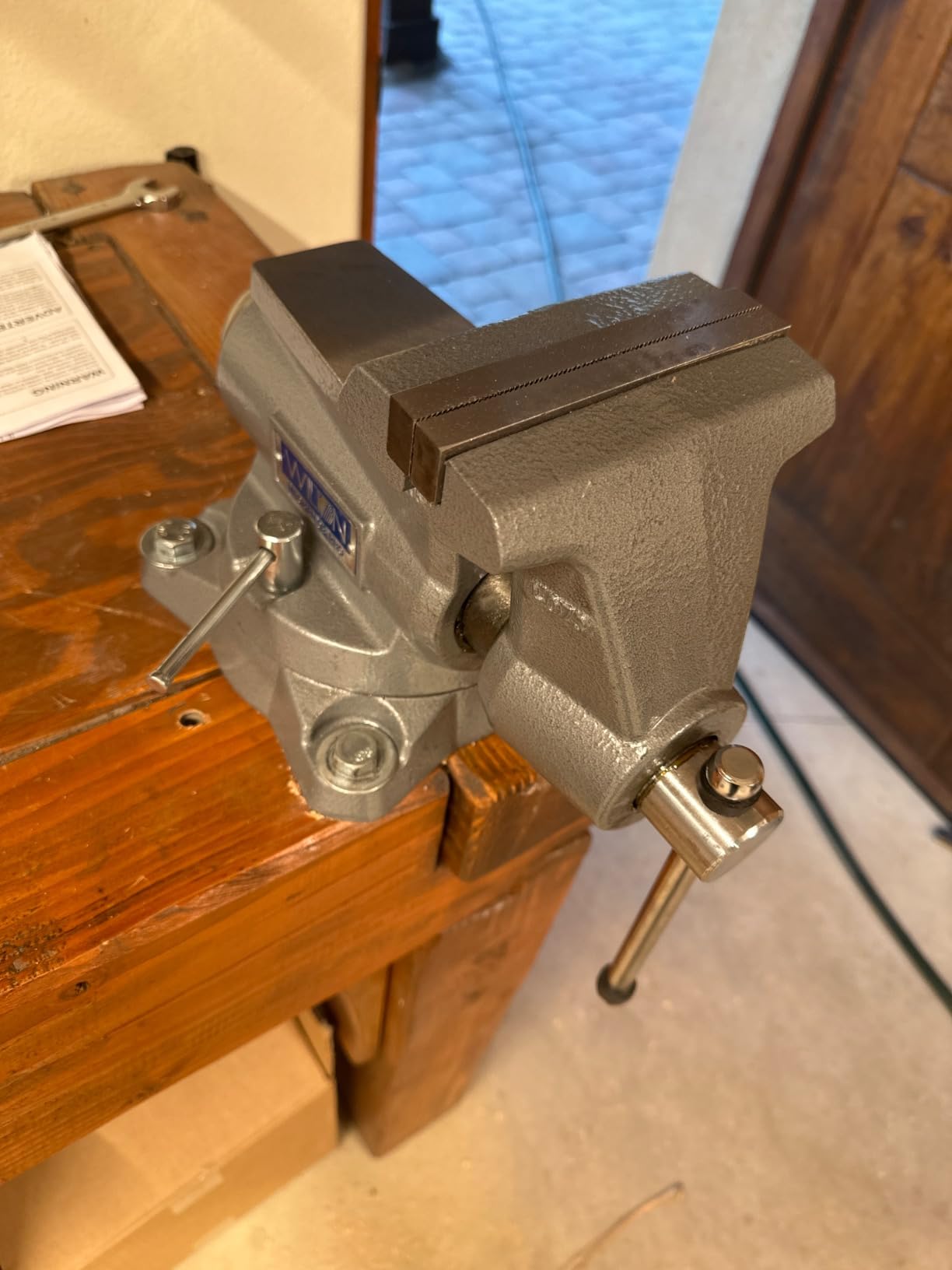

9. Wilton Mechanics Pro 855M – Best for Smooth, Low-Effort Clamping
Wilton Mechanics Pro Bench Vise, 5-1/2″ Jaw Width, 5″ Jaw Opening, 3-5/8″ Throat (Model 855M)
Pros
- Precision-machined slide bar keeps the front jaw from shifting at any opening
- Enclosed spindle keeps grease in and metal dust out
- Needle roller thrust bearing gives high clamping force with less handle effort
- Full 360-degree swivel base with double lockdowns
Cons
- Costs more than anything else in this roundup
- Highest share of one-star reviews at 4 percent
- 37.9 lb casting is a heavy installation
The Wilton Mechanics Pro 855M is the one to buy if smoothness matters more than cost. Its 5-1/2 inch jaw, 5 inch opening and 3-5/8 inch throat sit in the middle of this group, but the mechanism underneath is a different class. The precision-machined slide bar eliminates movement in the front jaw regardless of how far it is opened, and the enclosed spindle keeps lubricants in and contaminants out.
Needle roller thrust bearings deliver clamping force with less handle effort, which sounds minor until you have cranked a stiff screw through a hundred clamping cycles. The swivel base rotates a full 360 degrees with double lockdowns, unlike the 120-degree base on the Wilton further up this list.
The body is 60,000 psi ductile iron, chosen specifically for durability at a lower weight than grey cast iron would give, and the casting comes with a lifetime warranty against manufacturing defects. The 4.7 average includes the strongest five-star share in the group at 87 percent, across 304 reviews.
That is the smallest review base of the vises in this roundup, so treat the ratio as encouraging rather than conclusive. What the review text does support is consistency: owners repeatedly point to the same three features, the slide bar, the spindle and the bearing, and describe the vise as smooth and low effort.
Why the slide bar changes accuracy?
On a cast slide, the jaw develops side play as the casting wears, and that play is why a part that measured correctly at full opening shifts when you open the vise halfway. A machined slide bar holds the jaw in one plane, so repeatability improves measurably on drilling, tapping and light milling operations where a drifting jaw translates directly into a drifting hole.
The enclosed spindle matters more in a working shop than it sounds. Metal dust and swarf are what destroy a lead screw, and a spindle that keeps them out is the difference between a vise that stays smooth for decades and one that starts grinding after a few years. The same care is why the jaws stay square under load.
Cost, weight and the transit caveat
This is the most expensive vise in the roundup, at several times the entry-level models, and that is the honest case against it. If you clamp plate, bolt it up and move on, you are paying for precision you will never use.
It is also the heaviest of the ductile iron vises at 37.9 lb, and reviews show the highest share of one-star feedback at 4 percent, mostly reporting damage in transit to a heavy casting. Inspect the vise before mounting and photograph the packaging, because a dented slide bar is a return, not a repair.
10. PONY 5 Inch Heavy Duty Bench Vise – Best Protected-Screw Design
Pros
- Dual lock nuts hold the swivel firmly in position
- Cold-formed steel channel beams shield the lead screws from damage
- Replaceable hardened steel serrated jaw faces
- Jaws rotate both vertically and horizontally for awkward parts
Cons
- 2-5/8 inch throat is shallow relative to rivals at the same jaw width
- Screw thread wear is the recurring theme in critical reviews
- Anvil is small at 3-5/32 by 2-9/16 inch for light striking
The PONY 5 inch takes a different approach to protecting the mechanism than anything else here. Instead of an exposed screw, cold-formed steel channel beams cover the lead screws along their length, which is direct insurance against the impact that cracks a bare spindle when a workpiece gets dropped or a wrench slips. The clamping force is rated at 5,512 lbs, comfortably above the VEVOR.
Rotation is genuinely dual-axis. The ductile cast iron base and the front jaw adjust in both vertical and horizontal planes, so you can reach an awkward workpiece without unbolting the vise from the bench. Dual lock nuts on the swivel base hold the orientation, which addresses the loosening complaint that dominates owner reviews elsewhere in this category.
Replaceable hardened steel serrated jaw faces extend the life of the tool, and permanent pipe jaws double as holders for large forming horns, which is a neat solution if you bend metal by hand. There is a ground and polished anvil, and a pair of vise jaw pads is included.
At 4.6 stars across 303 reviews it sits at the lower end of the group ratings, with 82 percent five-star. That still puts it ahead of plenty of vises, and the critical feedback is specific rather than general, which is usually a good sign.
Do the channel beams actually matter?
On a bench vise the lead screw is the first thing to fail, usually from a side impact rather than from wear. Covering the screw in cold-formed steel channels converts a dropped wrench from a cracked spindle into a dented cover, and owners comparing it against costlier machinist vises for general shop work make exactly that point.
Replaceable hardened jaw faces are the second practical win. Manufacturers that weld their jaws into the casting force you to buy a new vise when the serrations go, whereas a bolted-in face is a small parts purchase. Availability of replacement parts consistently shows up as a trust signal in machinist forums.
Shallow throat and a small anvil
The 2-5/8 inch throat is the real compromise here. Among the 5 inch vises in this roundup it is the shallowest by a clear margin, and it will limit you on tall parts in a way the other 5 inch models do not. If your work is flat plate and short bar, you will never touch that limit.
The anvil at 3-5/32 by 2-9/16 inch is small for light striking, and thread wear on the screw is the recurring note in the critical reviews. Keep it greased and the concern mostly stays theoretical for the general shop work this vise is built for.
Metalworking Vise Types and When a Bench Vise Is the Wrong Tool
Most buying guides in this category mix woodworking and metalworking together, which makes the recommendation useless to a metalworker. These are the four families you will actually run into, and where each one stops working.
Bench vise. The category this roundup covers. A cast iron or ductile iron body bolted to a bench, with serrated jaws and a lead screw. Excellent for filing, deburring, drilling, tapping, sawing and light hammering. It is not accurate enough to hold a part for finish milling.
Machinist vise. A more precise relative of the bench vise, built around a machined slide, often with a wedge mechanism that pulls the movable jaw down onto the bed rather than pushing it forward. Repeatability is the whole point, and it costs more in both money and bench weight. The Wilton 855M in this roundup is the closest thing to that class.
Milling vise. A low-profile vise designed to sit on the table of a milling machine so the workpiece sits at the correct height for the cutter. Low throat depth and low height make it awkward on a workbench, and the serrated jaws are usually replaced with smooth jaws or soft jaw inserts for accurate clamping.
Cross-over vise. A bi-directional vise where the front jaws slide past the fixed jaw, giving an opening far larger than the jaw width. It solves the problem that no bench vise can, clamping a very wide or very long part. Buy one only when you have hit that limit for real, because they cost several times a bench vise.
Post vise and anvil vise. A vise on a leg or post for blacksmithing, with a hardened anvil face behind the jaws for hot and cold hammer work. It is the right tool for striking and shaping, and the wrong tool for anything requiring a flat, machined clamping surface. A bench vise anvil is a convenience, not a forging surface.
So when is a bench vise the wrong choice? If you need to hold a part flat and low for milling, use a milling vise. If you need a very wide opening, look at a cross-over model. If your work is mostly hammer and chisel, put your money into a post vise and a proper anvil. If you are clamping, filing, drilling and tapping in general, a bench vise in this roundup is exactly right.
How to Mount a Bench Vise So It Never Slides?
The most common complaint in owner reviews of otherwise good vises is not the vise at all, it is the mounting. Short bolts, a thin bench top and a missing washer are the three reasons a vise ends up walking across the bench during a cut.
First, position the vise before you build the bench, not after. A vise that ends up with its jaw plane below your elbow forces you to round your back through every operation, and that is the mounting mistake people regret most.
Second, bolt through the top with washers and nuts underneath, not with short screws into a nut captured in the frame. A vise at 38 to 42 lb generates enough torque from a cheater bar to walk a screw-mounted base steadily across a bench top over a few months.
Third, for heavy vises use the through-bolt and backing plate method. Run carriage bolts through the bench top and clamp a steel or hardwood plate underneath the rails, so the clamping force is spread across a wide area instead of crushing two points of wood fibre. This is the method that keeps a heavy casting where you put it.
Fourth, check the bolt length against your actual top thickness before you buy hardware. Several vises in this roundup ship with M10 bolts that are far too short for a normal bench, and owners say so repeatedly.
Fifth, if you use a swivel base, tighten both locking screws every time you change the vise angle, and check them again after the first few heavy operations. Single-screw swivel designs are the most common source of a vise that rotates mid-cut.
Sixth, on a welding bench grind the paint off the base and the inner rotary layers before making a ground connection, otherwise your clamp is an electrode holder with a poor bond.
Bench Vise Buying Guide: Jaw Width, Throat Depth, Force and Jaw Material
Jaw width is the headline number and the least useful one on its own. A 5 inch vise with a 5 inch opening, like the Forward DT08125A, is more capable than a 6 inch vise with a 4 inch opening, because opening is what actually determines what fits between the jaws.
Throat depth is the number most published tables leave out, and it is the one that causes frustration after the purchase. Throat depth is the distance from the front of the slide to the jaws, and it decides whether you can get a file, a deburring blade or a grinder onto a tall part. In this roundup it runs from 2-5/8 inch to 3.7 inch, and anything under 3 inch will feel cramped on upright work.
Clamping force tells you what the screw can deliver, but treat the figure as a manufacturer number rather than something you will reproduce. What matters more in practice is whether the slide has lash when open. A 4,000 lb vise with a rigid slide beats an 8,000 lb vise with a loose one every time you need the part to stay put.
Body material splits into two families. Grey cast iron at around 30,000 PSI is hard, wear resistant and brittle, and it is what many long-lived American vises are made from. Ductile iron at 60,000 PSI deforms rather than cracking under impact, and austempered ductile iron is stronger again. For a shop that strikes and bends material, ductile iron is the safer choice.
Jaws deserve more attention than they get. Replaceable hardened steel serrated inserts extend the life of the vise, and soft jaw pads protect finished work. A brand that welds its jaws into the casting cannot be converted to smooth jaws later, and that rules it out for any precision work.
Swivel base versus rotating head is a distinction worth learning. A swivel base turns the whole vise on the bench. A rotating head turns the jaw assembly within the vise, which lets you clamp a part from above or from the side without moving the body. Several vises here do both, and if you work on frames or pipe, that flexibility is worth paying for.
Warranty length is a reasonable proxy for how the manufacturer expects the tool to be treated. Four vises in this roundup carry a lifetime or limited lifetime warranty on the casting. A one-year warranty does not mean a bad tool, but it does mean fewer replacement parts a decade from now.
Country of manufacture is worth checking on the listing rather than assuming from the brand, because none of these ten listings states it explicitly. If domestic production matters to you, verify before buying, and read our woodworking vise roundup if you will use the same bench for both materials.
Maintenance, Lubrication and Safety Rules for a Cast Iron Vise
A bench vise needs about five minutes of attention a year to stay smooth, and almost all premature failures trace back to skipped lubrication or swarf left in the slide.
For lubrication, a quality lithium grease on the lead screw every few months is the standard answer and the cheapest insurance you can buy. Apply a thin coat, work the handle through its full travel, and wipe the excess off, because grease that collects in the thread is grease that collects swarf.
Clean the slide first, always. Metal filings from drilling and grinding are abrasive, they embed in the screw threads, and they are the single biggest cause of a vise that gets stiff. Brush them out, then oil the exposed steel lightly to slow rust, which matters in a humid garage.
Check the jaw bolts periodically. Vise jaws work loose from impact cycles, and a jaw that has moved a fraction of a degree will never close parallel again. A few minutes with a hex key every few months keeps the clamping surface honest.
On safety, there are four rules that matter. Never leave the vise fully closed under load, because the screw is carrying strain it was not designed to carry indefinitely. Never fit an extension bar or cheater bar beyond what the handle length already gives you, since the failure will be in the screw rather than in your arm.
Never work on a part that overhangs so far that it can slip out and swing, and never clamp a part so tight that the serrations mark a finished surface when soft pads would do. And if the slide starts dropping out mid-travel, stop using the vise rather than tightening it harder.
For shops working with heated or sharp metal, a bench vise is a clamping tool only. Hammering, bending hot steel and striking belong on a post vise or an anvil, where the hardened face and the leg structure are designed to take the blow.
Frequently Asked Questions
What is the best brand of bench vise for mechanics?
For a general shop, Wilton and Yost are the two names that appear most often in machinist forums, with the Wilton Mechanics Pro 855M taking our pick for smooth low-effort clamping and the Yost ADI-6 for a geared swivel that holds position. If you want the most measured capability per dollar, the Forward DT08125A carries a 4.8 average across 1950 reviews on 60,000 PSI ductile iron.
What are the key differences between a bench vise and a machinist vise?
A bench vise is a general clamping tool with serrated jaws and a lead screw, good for filing, drilling, tapping and light hammering. A machinist vise is built around a machined slide, often with a wedge mechanism that pulls the movable jaw down onto the bed, and is made for repeatability at tighter tolerances. It costs more, weighs more, and is only worth it if you machine metal to a tolerance.
What is the best heavy duty bench vise?
Among the ten vises we reviewed, the Forward 30608 is the heaviest-duty general bench vise, with 8 inch jaws, an 8 inch opening and 8,800 lb rated clamping force on a 60,000 PSI ductile iron body. For raw material strength, the Yost ADI-6 at 130,000 PSI austempered ductile iron is the strongest casting, and the COGNATIVE 6 inch carries the highest rated clamping force at 9,900 lb.
What size bench vise do I need for metalworking?
A 4 inch vise suits small brackets and light hobby metalwork, and machinists on hobby forums commonly say a 4 inch vise is worth its weight in silver. A 6 inch vise handles most home and professional shop work and is the sensible default. Go to 8 inch only for heavy plate, thick bar and fabrication, because larger vises are harder to position and eat bench space.
What is the best lubricant for a bench vise?
A quality lithium grease on the lead screw every few months is the standard answer. Clean the slide of swarf first, apply a thin coat, work the handle through its full travel and wipe off the excess. Grease that sits in the thread collects metal filings, and that abrasive paste is what makes a vise get stiff.
Are Harbor Freight vices of good quality?
They are widely considered acceptable for hobby and light work but not for daily professional use, and we did not include one in this roundup. The recurring pattern in owner reviews of budget vises in general is short included mounting hardware, occasional lateral play in the slide and lower clamping force than the headline figure suggests. If you buy one, replace the bolts before you mount it.
Final Verdict: Which Bench Vise Should You Buy?
The Forward DT08125A is the best bench vise for metalworking in 2026 because it combines 60,000 PSI ductile iron, a 5 inch jaw and opening, a 360-degree swivel with a rotating head, and three complete jaw sets at the highest rating in the group. It is the most capable general-purpose vise we tested without moving into the weight and cost of a dedicated machinist model.
For a shop that wants a heavy 6 inch workhorse with a lifetime warranty and does not need full swivel rotation, the Wilton 11106 is the pick, and its 3 inch throat is a real improvement over thinner-throated 5 inch models. For a home garage or first shop, the VEVOR 6 inch gives you a 3.5 inch throat and ductile iron for the least money in the roundup, once you fit proper bolts.
Match the rest to your work. Fabricators and anyone bending thick bar want the Forward 30608. Pipe and threaders want the Yost 445, which holds 2 inch pipe permanently. Welders and fixture builders want the geared swivel of the Yost ADI-6 or the 45-degree locking jaws of the COGNATIVE. Round bar and conduit work belongs on the two-axis IRWIN, and if you hold a lot of thin material for precision cuts, the Wilton 855M is worth the extra cost.
Whatever you choose, measure the bench before you order the hardware. Grip is a function of the vise and the mounting together, and the cheapest vise in this roundup mounted with the wrong bolts will lose to the most expensive one mounted properly. For dedicated gripping work outside metal fabrication, our gunsmithing vise guide covers the softer-jaw setup, and for forming rather than clamping, our shop press roundup is the other half of the job.
Related Articles
