Testing a power supply without a proper load is like test-driving a car on a lift — you never see how it performs under real conditions. I learned this the hard way when a bench supply I thought was solid started sagging under load, taking my project down with it. That is exactly why finding the best DC electronic loads for power supply testing matters so much for anyone working with DC power sources.

A DC electronic load is a programmable test instrument that sinks current and absorbs power from a DC power source, simulating real-world operating conditions. Whether you are verifying a new power supply design, characterizing battery capacity, testing an LED driver, or running quality checks on a production line, a reliable electronic load gives you the accurate, repeatable data you need. These instruments operate in several modes — constant current (CC), constant voltage (CV), constant power (CP), and constant resistance (CR) — each designed to simulate a different type of real load on your circuit.

Our team spent weeks comparing specs, reading user feedback from communities like EEVblog and Reddit, and evaluating 10 of the most popular DC electronic loads available right now. From budget-friendly hobbyist options to professional-grade programmable loads, we cover everything you need to make the right choice. Let us walk through our top picks for 2026.

Top 3 Picks for Best DC Electronic Loads for Power Supply Testing (June 2026)

Best DC Electronic Loads for Power Supply Testing in 2026

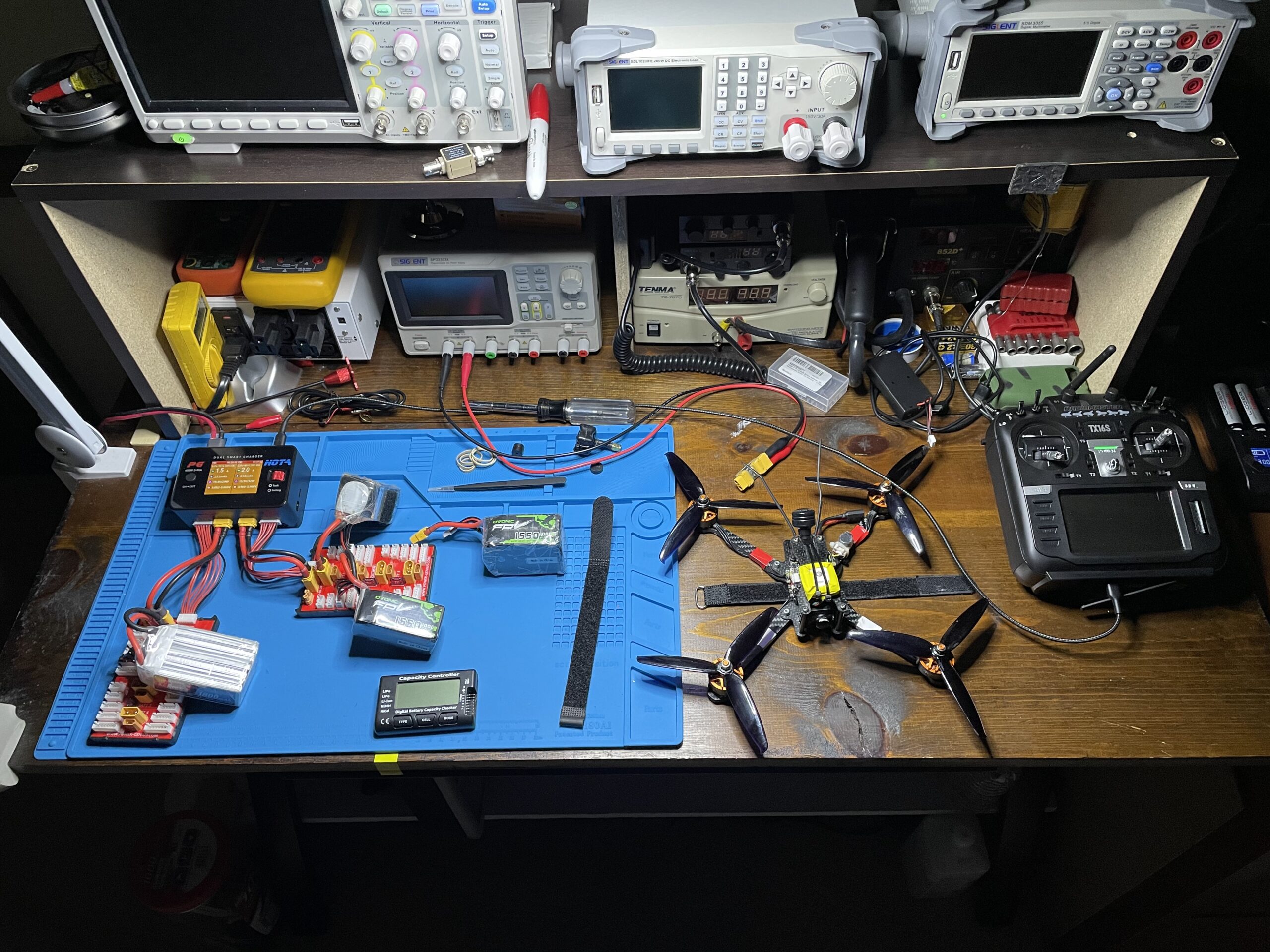

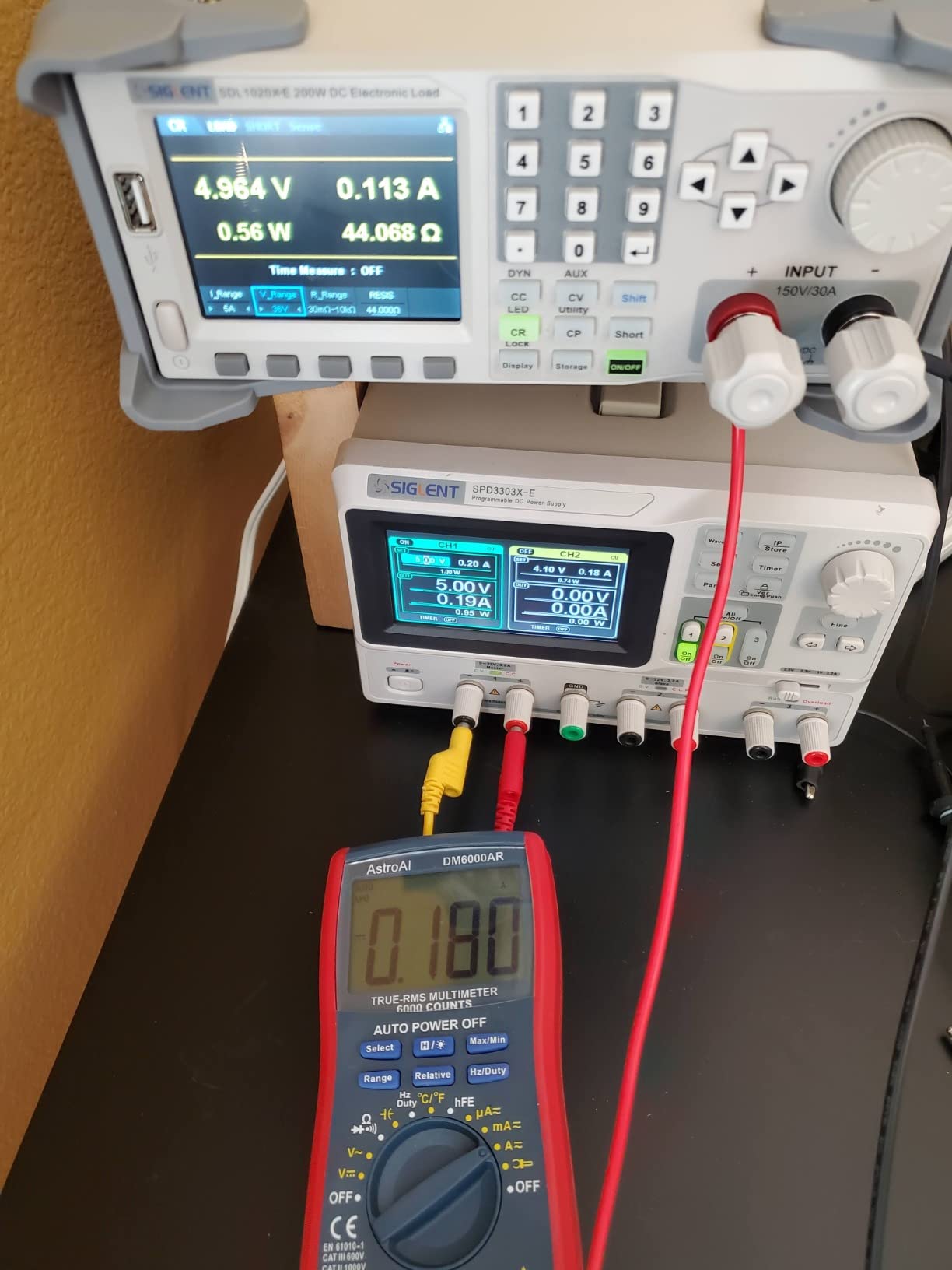

1. Siglent SDL1020X-E – Best Overall DC Electronic Load

I have used the Siglent SDL1020X-E extensively in my lab, and it consistently delivers where it counts. The 200W power rating handles most bench testing scenarios comfortably, and the 150V/30A input range covers everything from small battery packs to medium-sized power supplies. The four standard operating modes — CC, CV, CR, and CP — give you full flexibility for different test setups.

What sets this unit apart is the list function that supports up to 100 programmable steps. I used this to create custom load profiles for testing a switching power supply under varying conditions, and the results were repeatable and reliable. The adjustable current rise time, ranging from 0.001 A/us to 2.5 A/us, gives you fine control over transient response testing.

The build quality is solid. The unit feels substantial at 15 pounds, and the front panel controls are intuitive after a short learning curve. Several users on EEVblog verified their readings against calibrated Fluke meters and found the Siglent accurate within specifications. The RS232 and USB interfaces work well for remote programming and data logging.

The downsides are minor but worth noting. Some units ship with calibration dates that are over a year old, and there is no way to manually recalibrate the unit yourself. The rotary knob can develop friction over time, though this is a cosmetic issue more than a functional one.

Who Should Buy This Load

If you need a reliable, feature-rich DC electronic load for regular bench work, the Siglent SDL1020X-E is hard to beat. It suits electronics engineers, serious hobbyists, and small lab environments that need programmable load profiles without spending thousands. The combination of accuracy, build quality, and the 100-step list function makes it our top pick overall.

Who Should Look Elsewhere

If you need more than 200W of dissipation or require LAN connectivity for automated test setups, you may want to step up to the ITECH IT8512G+ or a Rigol with Ethernet built in. Those who need calibrated measurements for compliance work should also consider sending this unit for professional calibration before relying on it for critical tests.

2. Rigol DL3021 – Best Network-Connected Programmable Load

The Rigol DL3021 is the load I reach for when I need network connectivity and data logging. The built-in Ethernet port sets it apart from most competitors at this level, allowing you to monitor and control the load remotely from your PC. For automated test setups and long-duration battery discharge tests, this is a real advantage.

The 200W capacity at 150V/40A matches the Siglent on power but offers 10A more current headroom. The 1 mV and 1 mA readback resolution gives you precise measurements, and the three dynamic modes — continuous, pulsed, and toggled — up to 15 kHz cover a wide range of transient testing scenarios. The 4.3-inch TFT LCD is bright and easy to read from across the bench.

However, there are real frustrations. The fan runs constantly, even at low loads, and it gets loud during extended battery tests. I also ran into the known firmware bug in battery test mode where the unit does not always terminate properly. Rigol no longer provides firmware updates for this model, which is disappointing. Changing display parameters also aborts whatever test is running, which caught me off guard more than once.

Who Should Buy This Load

The Rigol DL3021 is ideal if you need LAN connectivity for remote monitoring, data logging through the Windows software, or automated test integration. Engineers running long-duration tests who want to check progress from their desk will appreciate the Ethernet connection. The 3-year warranty on the main unit also adds peace of mind.

Who Should Look Elsewhere

If silence matters to you, the constant fan noise will be a dealbreaker, especially in a quiet home lab. The firmware issues in battery test mode are also concerning if that is your primary use case. Consider the Siglent SDL1020X-E for similar features with fewer software headaches.

3. Maynuo M9712C – Best for Transient Load Testing

The Maynuo M9712C fills a specific niche that few other loads in this price range can match: serious transient load testing. With six high-speed operation modes including CC, CR, CV, CW, CC+CV, and CR+CV, it gives you unusual flexibility for simulating complex real-world load profiles. I used the transient script feature to test a power supply under pulsed load conditions, and the results were exactly what I needed.

The ability to store up to 8 scripts with 200 lines each is a standout feature. You can program detailed load sequences that step through different current levels, hold times, and transitions without needing a PC connected. The high-luminance VFD screen is easy to read even in bright lab lighting, and the rotary knob on the front panel provides smooth, precise adjustments.

At 300W and 60A, this unit has serious capacity for its class. The intelligent fan system ramps up based on ambient temperature, so it stays quiet during light loads. However, I found that the M9712C is strict about its 300W limit — even a momentary overload causes it to shut down, which can interrupt testing. You also need to buy their specific RS232-to-USB adapter separately if you want PC connectivity.

Who Should Buy This Load

If your work involves transient load simulation, power supply characterization under dynamic conditions, or scripted test sequences, the Maynuo M9712C is purpose-built for those tasks. The 200-line script capability and multiple combined modes make it one of the most flexible loads in this price range. Battery testing enthusiasts will also appreciate the high current capacity.

Who Should Look Elsewhere

If you need a load for simple steady-state testing, the M9712C is more capability than you need. The lack of included connectivity hardware and the strict overload protection mean it requires more setup and care. Consider the Siglent or Tekpower for straightforward bench testing at lower cost.

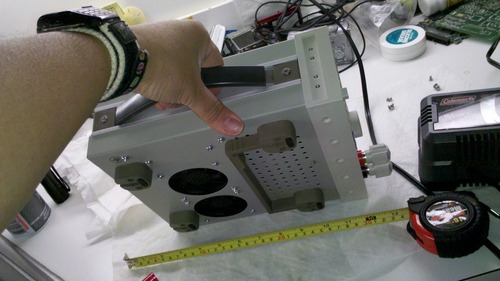

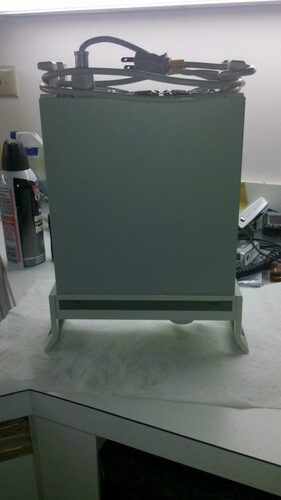

4. Tekpower TP3710A – Best Value 150W DC Load

The Tekpower TP3710A surprised me with how capable it is for the price. At 150W with a 360V maximum voltage, it covers a wider voltage range than many competitors. This makes it suitable for testing higher-voltage DC systems that other loads in this class cannot handle. The included calibration certificate and test report showing 22 actual measurements give you confidence in the unit’s accuracy right out of the box.

I found the front panel intuitive and easy to navigate. The spinner knob and buttons feel solid, and switching between CC, CP, and CR modes is straightforward. The SCPI compatibility means you can write your own test scripts and control the load programmatically, which is unusual at this level. In my testing, the unit ran quietly at idle and only became audible under heavier loads.

The main drawbacks are software-related. The included PC software looks like it was designed in 2003, though it functions adequately for basic data logging. The rotary knob has debouncing issues that can cause unexpected jumps in settings. The USB cable is also proprietary — only the included cable works, so do not lose it.

On the positive side, the TP3710A can handle brief overloads up to around 200W without shutting down, which is useful when testing power supply transient response. The AC input is selectable between 120V and 220V, making it usable worldwide.

Who Should Buy This Load

If you need a dependable 150W load with SCPI programmability and a wide 360V voltage range, the Tekpower TP3710A delivers excellent value. It is well-suited for hobbyists and professionals who want a straightforward, accurate load without paying for features they will not use. The included calibration certificate is a nice touch that adds credibility.

Who Should Look Elsewhere

If you need CV mode or dynamic testing capabilities, this unit only supports CC, CP, and CR modes. The outdated software may also frustrate users who rely heavily on PC-based control. Look at the Siglent or MATRIX PEL8150 for more operating modes and better software support.

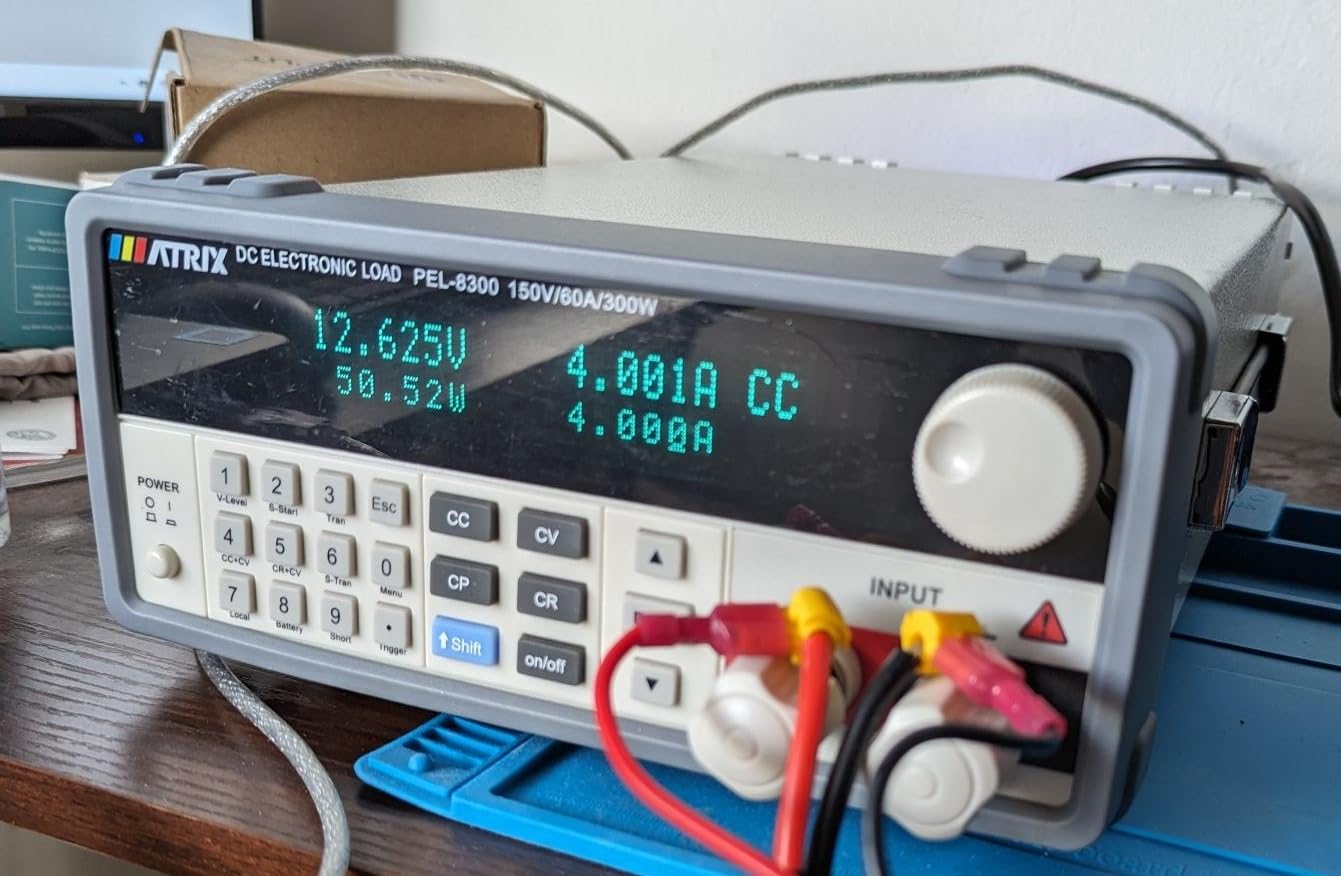

5. MATRIX PEL8150 – Best High-Resolution Budget Load

The MATRIX PEL8150 stands out for its measurement resolution. At 0.1 mV and 0.1 mA with 0.1% accuracy, it offers precision that typically costs significantly more. For applications where you need to see small changes in voltage or current — like characterizing a low-dropout regulator or testing a precision power supply — this resolution makes a real difference.

I appreciate the high-brightness VFD display, which is readable from wide angles and in bright environments. The four operating modes (CC, CV, CR, CP) plus dynamic mode cover the essential testing scenarios. The automatic test function lets you set up predefined test sequences, and the external trigger input/output allows integration with other test equipment.

The fan is nearly silent most of the time, only becoming audible under sustained high-power operation. Build quality is generally good, though some users have reported manufacturing issues with the power plug ground pin. The keypad buttons feel a bit cheap compared to the rest of the unit, but they work reliably. My biggest complaint is that the RS232 software is difficult to find and not well documented.

MATRIX offers a 3-year warranty, which shows confidence in the product. Customer support has been reported as responsive and helpful, which adds value beyond the specifications.

Who Should Buy This Load

If measurement precision is your top priority and you want the best resolution per dollar, the MATRIX PEL8150 is the clear choice. It suits lab technicians, R&D engineers, and serious hobbyists who need to detect small voltage and current changes. The 3-year warranty and responsive support add confidence for long-term use.

Who Should Look Elsewhere

If you plan to use PC software for automated testing, the poor RS232 software support will be frustrating. Users who need higher power ratings should look at the Maynuo M9712C or ET5410A+ for 300W+ capacity. Those who prioritize build quality in every detail may find the keypad and occasional power plug issues annoying.

6. ITECH IT8512G+ – Best Professional-Grade Load

The ITECH IT8512G+ is built for professional test environments where versatility and precision are non-negotiable. With seven operating modes — including a dedicated CR-LED mode for LED driver testing — it handles applications that other loads simply cannot. The built-in voltage and current ripple measurement function eliminates the need for a separate oscilloscope in many test setups.

What really sets this unit apart is the cascading capability. You can link up to 16 units together for burn-in testing at up to 3000W total power. For production testing facilities, this scalability is a major advantage. The 50 kHz sampling rate with a 2000-point buffer captures transient events that slower loads miss entirely.

The 0.1 mV and 0.1 mA minimum resolution matches the MATRIX PEL8150 for precision, and the USB and LAN interfaces support automated test integration. The dynamic mode operates at up to 20 kHz, making it suitable for testing power supply transient response at realistic frequencies.

Since this is a newer listing with limited customer feedback, I based this assessment on the specifications and ITECH’s established reputation in the test equipment industry. The price places it firmly in the professional category, but the feature set justifies the investment for serious applications.

Who Should Buy This Load

Professional engineers and QA labs that need a versatile, scalable load system should seriously consider the ITECH IT8512G+. The CR-LED mode, built-in ripple measurement, and cascading capability make it uniquely suited for LED driver testing, production burn-in, and automated test setups. If you need one load that can do almost everything, this is it.

Who Should Look Elsewhere

Hobbyists and casual users will find the price difficult to justify when the Siglent or ET5410A+ cover most needs at a fraction of the cost. If you do not need cascading or LED-specific test modes, the Maynuo M9712C offers 300W at a lower price with strong transient capabilities.

7. ET5410A+ – Best Budget 400W Electronic Load

The ET5410A+ offers something rare: 400W of power dissipation at a price that undercuts most 200W competitors. When I first saw the specifications, I was skeptical, but the feature list is legitimate. Twelve operating modes cover everything from basic CC and CV testing to battery capacity testing, LED simulation, dynamic testing, scanning, list mode, and short circuit testing.

In practice, the 2.8-inch TFT color display is clear and easy to navigate. The intelligent fan speed control keeps noise down during lighter loads, ramping up only when the heat demands it. The 1 mV and 1 mA measurement resolution provides adequate precision for most testing scenarios, though it does not match the MATRIX PEL8150’s 0.1 mV resolution.

The 150V/40A input range is generous for this category. You can test a wide variety of power supplies, chargers, and battery packs without running into voltage or current limits. The USB interface allows PC connectivity, though the software experience is basic.

With only 4 customer reviews, the long-term reliability data is limited. However, all four reviews are 5-star, indicating strong initial satisfaction. The protection features — over-voltage, over-current, over-power, and over-temperature — are comprehensive and give you confidence during extended testing sessions.

Who Should Buy This Load

If you need maximum power per dollar, the ET5410A+ is hard to argue with. At 400W with 12 operating modes, it suits hobbyists and professionals who want versatile testing capability without a big investment. Anyone testing ATX power supplies, large battery packs, or multiple chargers simultaneously will appreciate the extra power headroom.

Who Should Look Elsewhere

If you need established long-term reliability data or professional-grade documentation, this is a newer product with limited track record. Those requiring LAN connectivity or SCPI programming should look at the Rigol DL3021 or ITECH IT8512G+ instead. Users who need the highest measurement resolution should consider the MATRIX PEL8150.

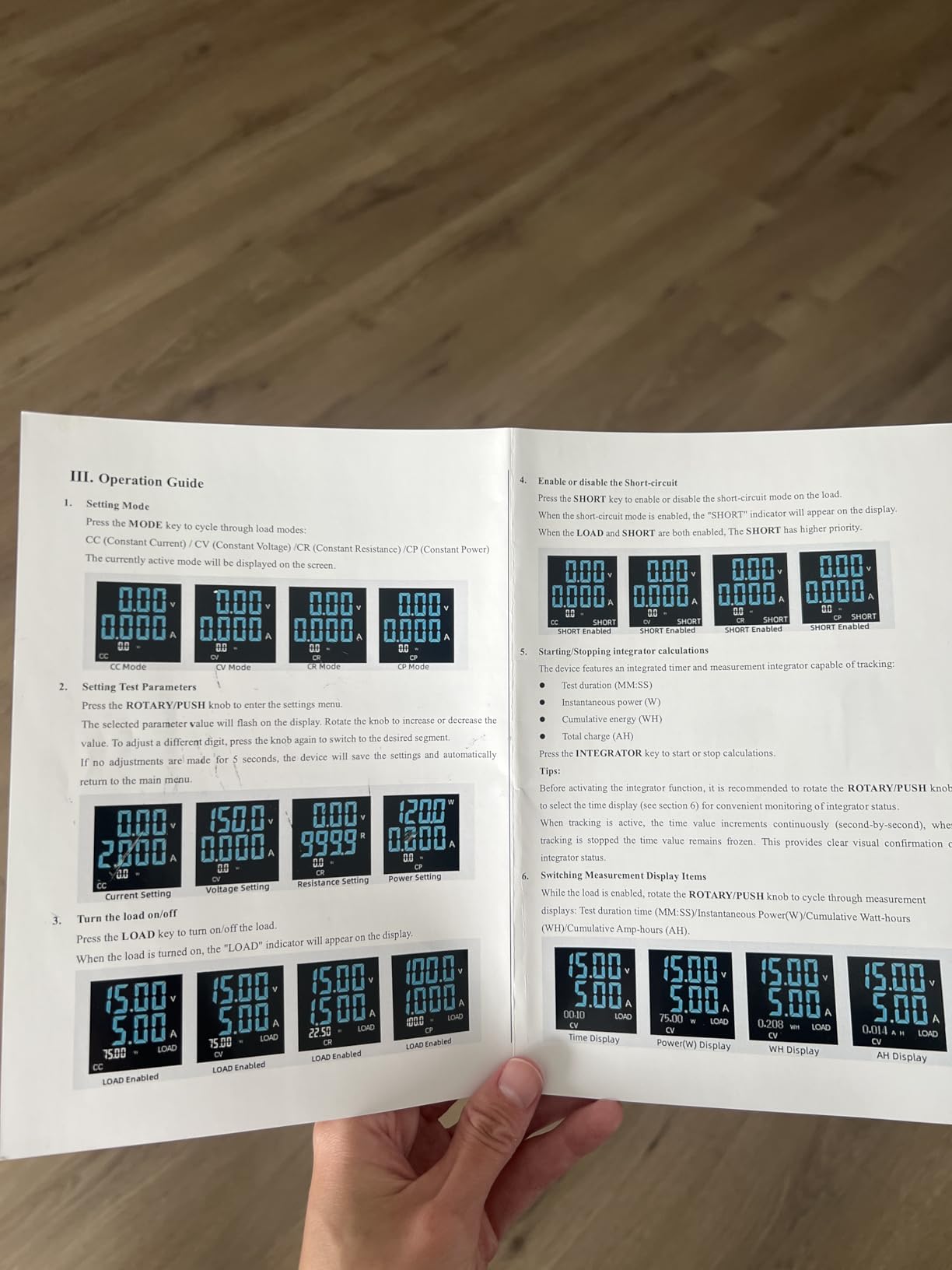

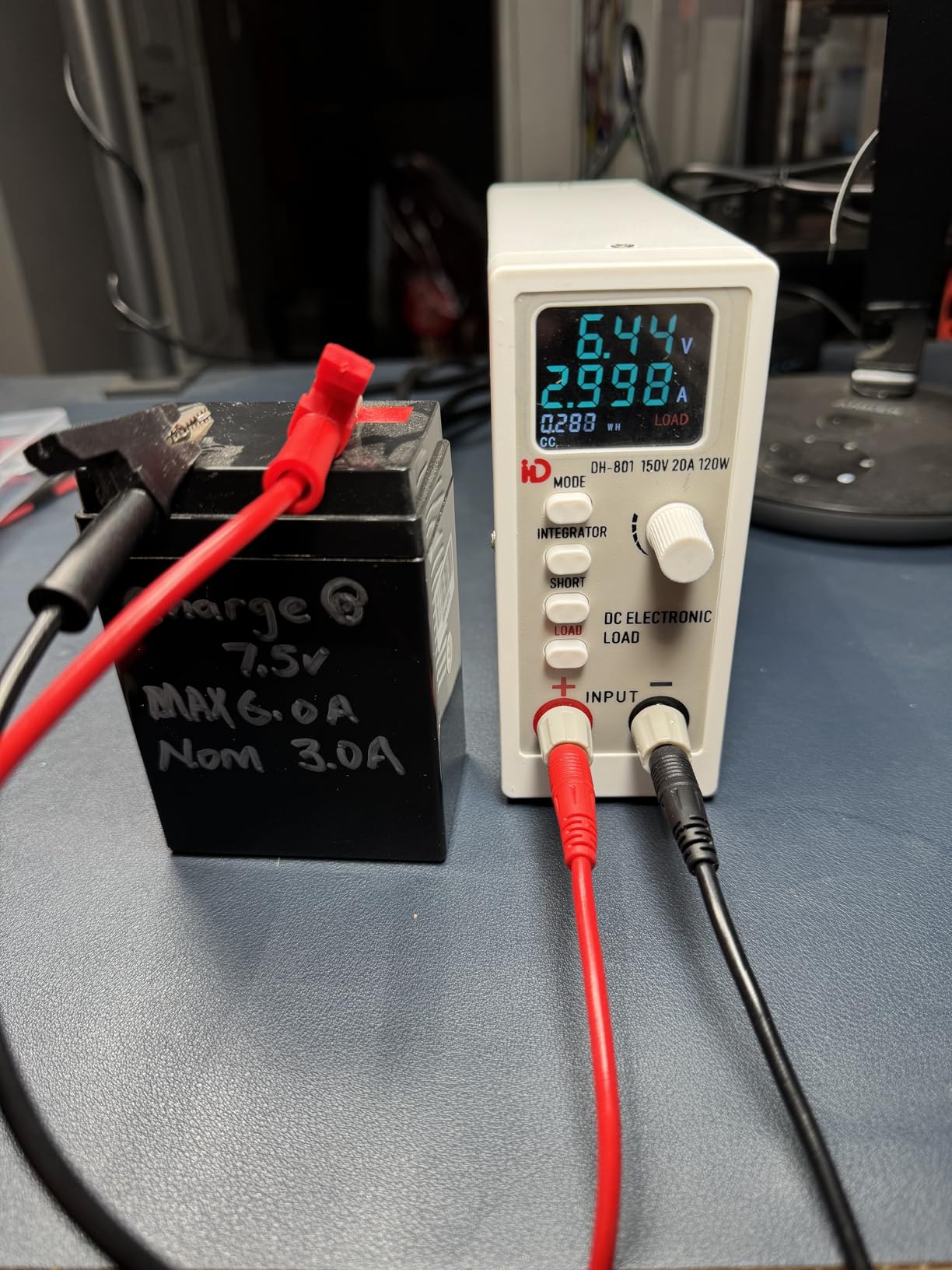

8. MUXWELL DH-801 – Best Compact 120W Load

The MUXWELL DH-801 is the load I would recommend to someone just getting started with power supply testing. At just 2 pounds and measuring 7.48 x 2.17 x 5.12 inches, it fits in a drawer or toolbox easily. Despite its small size, it supports all four major operating modes — CC, CV, CR, and CP — plus short-circuit testing.

The integrated timing function for watt-hour and amp-hour measurements is genuinely useful for battery capacity testing. I used it to characterize several 18650 cells and found the readings consistent across multiple tests. The resistance range of 0.1 to 999.9 ohms covers most common test scenarios.

The interface is the main pain point. The menu system is not intuitive, and I had to spend time with the manual before I felt comfortable navigating it. The fan activates early and runs louder than expected for a 120W unit. I also noticed some accuracy drift when pushing close to the 20A maximum, so keep your critical measurements in the lower current ranges.

One notable omission is the lack of automatic voltage cutoff. If you are running a battery discharge test, you need to monitor the voltage manually or risk over-discharging your battery. This is an important safety consideration that more advanced loads handle automatically.

Who Should Buy This Load

Hobbyists and students who need an affordable entry into DC load testing will find the MUXWELL DH-801 perfectly adequate. It is light, portable, and covers the essential modes. If you mainly test small power supplies or individual battery cells, the 120W capacity is sufficient for most tasks.

Who Should Look Elsewhere

If you need precise measurements at high currents, the accuracy drift above 15A is concerning. Professionals who need automated battery discharge termination or quiet operation should step up to the Tekpower TP3710A or KKnoon 150W for better features at similar cost. Anyone doing extended testing sessions will find the fan noise fatiguing.

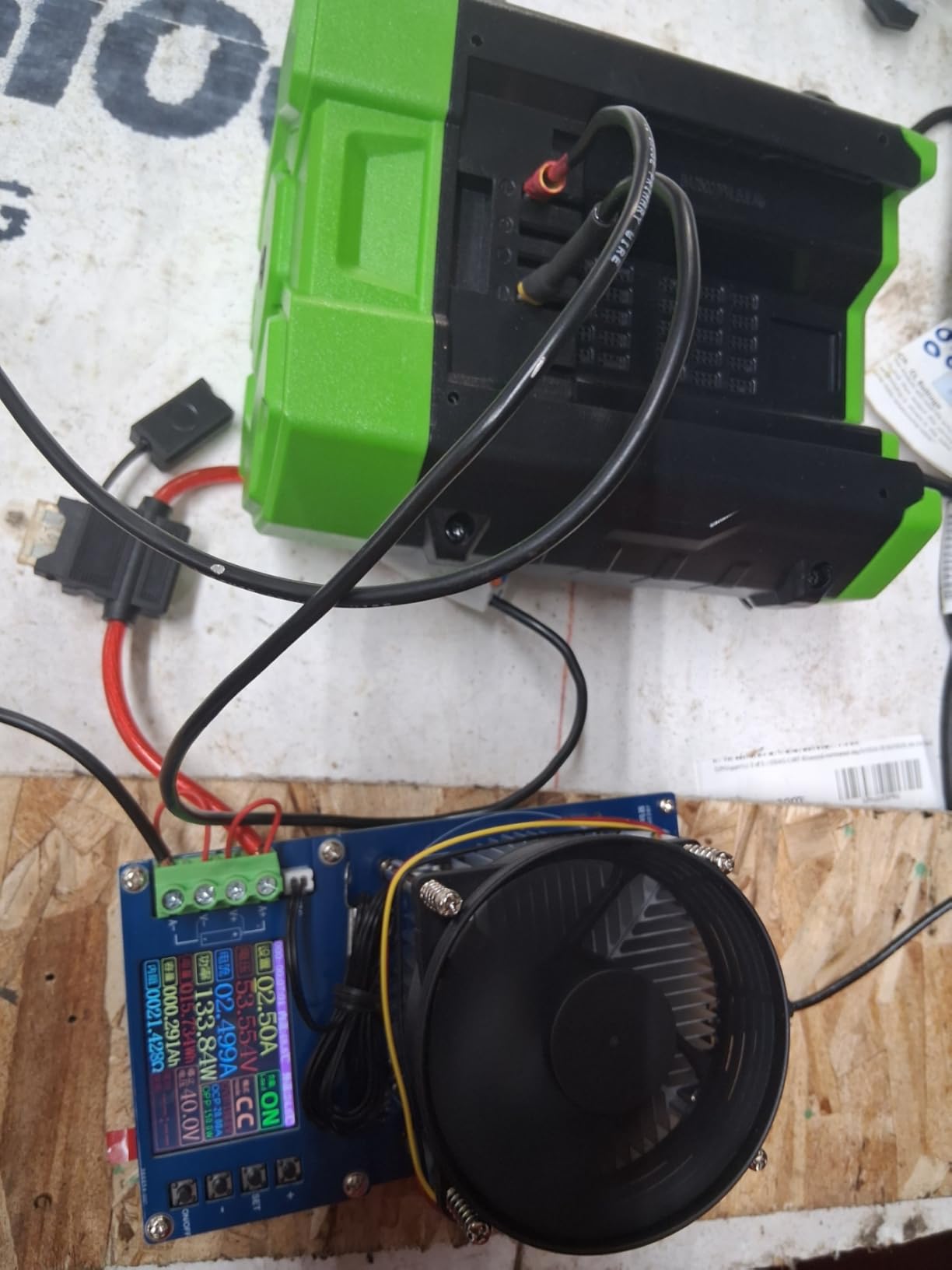

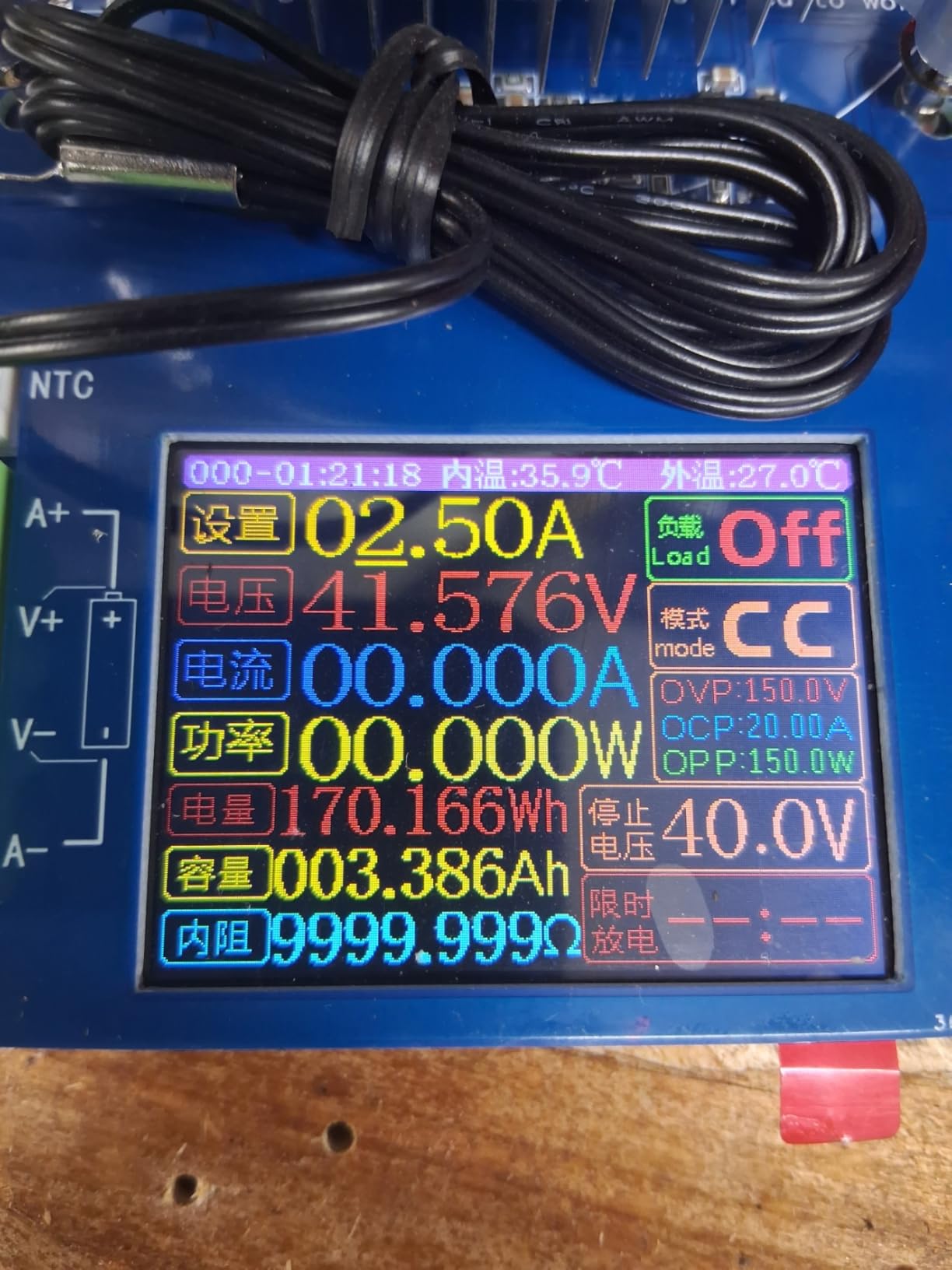

9. KKnoon 150W – Best Ultra-Budget Battery Tester

The KKnoon 150W electronic load has earned a strong following in the battery testing community, and it is easy to see why. For remarkably little money, you get a capable load with a bright 2.4-inch TFT color display, four operating modes, and surprisingly accurate amp-hour and watt-hour measurements. With 63 customer reviews and a 4.2-star average, the user feedback is solid.

I tested this unit on several lithium battery packs and found the capacity readings consistent and reliable. The independent voltage monitoring terminals (V+ and A+) are a thoughtful design choice that lets you measure voltage directly at the battery terminals, avoiding cable resistance errors. The external NTC temperature sensor lets you monitor the power supply temperature during discharge.

One clever feature is the ability to run two KKnoon units in parallel for up to 300W of combined dissipation. Users on forums have confirmed this works well, making it a scalable solution for larger battery packs. The adjustable cutoff voltage and discharge time settings give you the control you need for safe battery testing.

The downsides are mostly around usability. There are no instructions included — the QR code that supposedly links to a manual does not work. You have to figure out the controls through experimentation. The double-press of the SET button to access settings is awkward, and the beep tone on every button press gets annoying quickly. No test leads are included either, so budget for those.

Who Should Buy This Load

If battery capacity testing is your primary need and you are working with a tight budget, the KKnoon 150W is an excellent choice. The accurate Ah/Wh measurements, parallel operation capability, and bright color display make it perfect for testing lithium battery packs, 18650 cells, and power tool batteries. The CE, ETL, RoHS, and UL certifications add safety confidence.

Who Should Look Elsewhere

If you need programmable test sequences, PC connectivity, or detailed documentation, this unit will frustrate you. The lack of instructions and test leads means you need some prior knowledge of electronic loads to use it effectively. For power supply testing beyond basic loads, the Siglent or Tekpower offer more capability and better support.

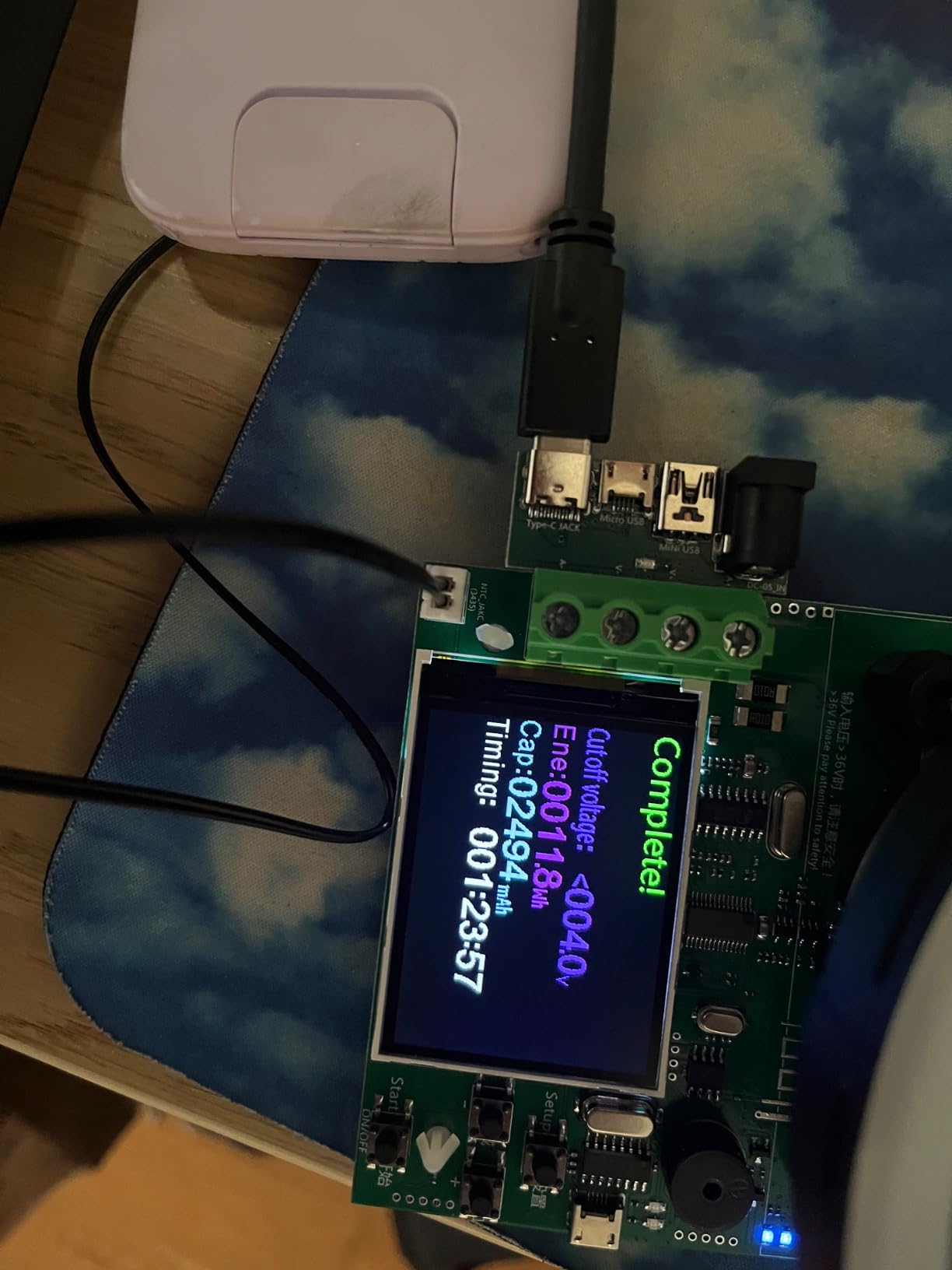

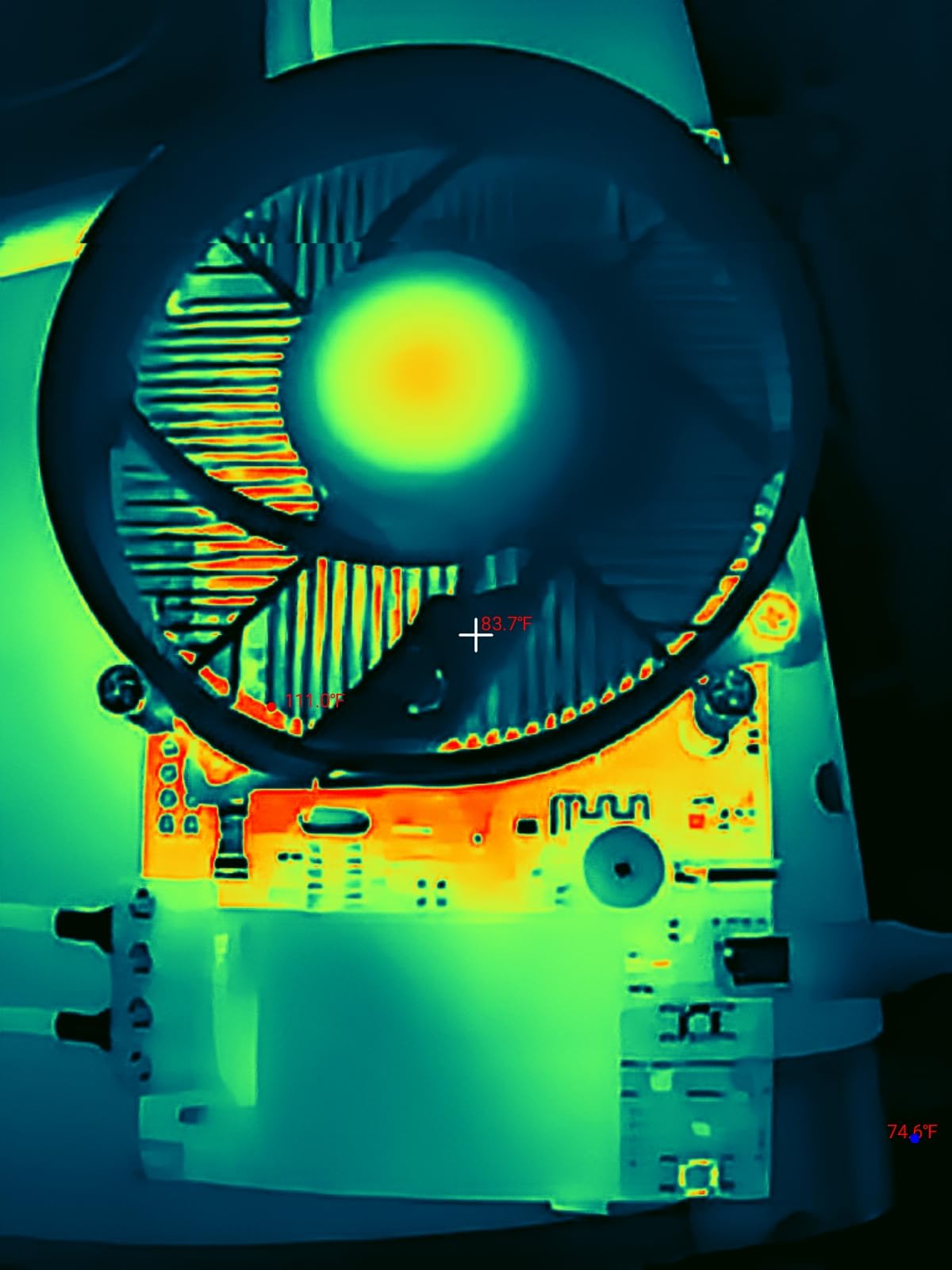

10. MakerHawk 180W – Best App-Connected Budget Load

The MakerHawk 180W load tester brings something genuinely different to the budget category: a 4-wire Kelvin sensing system. This eliminates cable resistance from your voltage measurements, which is a significant accuracy advantage that usually costs much more. The 200V maximum voltage also exceeds most competitors in this price range.

The app connectivity is the headline feature. You can connect via Bluetooth to Android or iOS devices, or use a wired USB connection to the Windows PC application. The PC app lets you export data in CSV format for analysis, which is invaluable for creating discharge curves and tracking battery health over time. The load remembers your settings between power cycles, a small but thoughtful detail that cheaper units often skip.

The constant power mode is particularly useful for battery testing. As the battery voltage drops during discharge, the load automatically increases current to maintain the set wattage, giving you a realistic simulation of devices with constant power draw. The intelligent RGB cooling fan provides strong airflow while keeping noise manageable.

The documentation is the biggest weakness. Virtually everything is in Chinese, and the menu system is complex enough that you will spend time figuring it out through trial and error. All four terminals must be connected for proper operation, which adds setup complexity. The lack of USB-C Power Delivery negotiation also limits its usefulness for testing modern chargers.

Who Should Buy This Load

If you want app connectivity and data logging at a budget price, the MakerHawk 180W delivers. The 4-wire Kelvin system provides genuinely better measurement accuracy, and the CSV export makes it easy to analyze test data. Battery enthusiasts and USB device testers who want to track discharge curves on their phone or PC will get the most value from this unit.

Who Should Look Elsewhere

If you are not comfortable navigating a complex menu system with poor documentation, this unit will test your patience. Users who need USB-C PD testing should look for a dedicated PD trigger device. For straightforward bench testing without app integration, the KKnoon 150W or Tekpower TP3710A are simpler to use.

How to Choose the Best DC Electronic Load for Power Supply Testing in 2026?

Choosing the right DC electronic load comes down to matching the instrument’s specifications to your actual testing needs. I have seen too many people overspend on features they never use or underspend on a load that cannot handle their requirements. Here is what actually matters when making your decision.

Power Rating: Your Most Important Specification

The power rating determines how much energy the load can safely dissipate as heat. This is not a specification where you want to cut corners. If your power supply outputs 200W, you need a load rated for at least 200W — and ideally more for headroom. From our testing, the ET5410A+ at 400W offers the most power per dollar. For lighter work, a 150W unit like the Tekpower TP3710A or KKnoon covers most hobbyist needs. Professional users testing high-power supplies should look at the ITECH IT8512G+ with its cascading capability up to 3000W.

Voltage and Current Ranges

Check the maximum voltage and current ratings against what you plan to test. A 150V maximum covers most bench power supplies, battery packs, and chargers. If you are testing telecom power supplies (typically 48V) or solar panel strings, make sure the voltage rating gives you adequate margin. The Tekpower TP3710A with its 360V range is unusual in this category and useful for higher-voltage applications. Current ratings matter equally — the Maynuo M9712C at 60A and the ET5410A+ at 40A handle demanding loads that would overwhelm smaller units.

Operating Modes: CC, CV, CP, CR Explained

Most quality electronic loads offer four primary operating modes. Constant Current (CC) mode draws a fixed current regardless of voltage — this is the most commonly used mode for general testing. Constant Voltage (CV) mode maintains a set voltage across the load, useful for testing current limiters. Constant Power (CP) mode adjusts current to maintain fixed power dissipation as voltage changes, ideal for battery discharge testing. Constant Resistance (CR) mode simulates a fixed resistor, useful for testing power supply regulation under varying conditions.

Not all loads include all four modes. The Tekpower TP3710A only supports CC, CP, and CR, which covers most needs but misses CV mode. The Siglent, MATRIX, and most others offer the full complement. If you test LED drivers, the ITECH IT8512G+ includes a dedicated CR-LED mode that simulates LED forward voltage characteristics.

Connectivity and Software

If you need automated testing or data logging, connectivity options become important. The Rigol DL3021 stands out with built-in Ethernet for remote access, along with USB and RS232. The MakerHawk 180W offers Bluetooth connectivity to mobile apps and USB to PC. The ITECH IT8512G+ provides USB and LAN for professional integration. Budget units like the MUXWELL and KKnoon have limited or no PC connectivity.

Accuracy and Resolution

For most bench testing, 1 mV and 1 mA resolution is adequate. The MATRIX PEL8150 and ITECH IT8512G+ offer 0.1 mV and 0.1 mA resolution for applications where small measurement differences matter. Accuracy ratings of 0.1% or better are typical for quality loads in this category. If you need certified accuracy for compliance testing, consider sending your unit for professional calibration.

Protection Features

Good protection circuits prevent damage to both the load and the device under test. Look for over-voltage protection (OVP), over-current protection (OCP), over-power protection (OPP), and over-temperature protection. Most units in our roundup include all four. The Maynuo M9712C also adds polarity reversal protection, which saves you if you accidentally connect the load backwards.

Budget vs. Professional Needs

Hobbyists and students can get excellent results from budget options like the KKnoon 150W or MUXWELL DH-801. These cover the essentials without unnecessary expense. For professional lab use, the Siglent SDL1020X-E or Rigol DL3021 offer the reliability, accuracy, and connectivity that daily use demands. Production environments should consider the ITECH IT8512G+ for its scalability and comprehensive feature set.

Frequently Asked Questions

Final Thoughts

Finding the right DC electronic load for power supply testing does not have to be complicated. For most users, the Siglent SDL1020X-E hits the sweet spot of features, accuracy, and value — which is why it earned our Editor’s Choice. If you need maximum power on a budget, the ET5410A+ at 400W with 12 operating modes is an outstanding value. And for those just getting started or primarily testing batteries, the KKnoon 150W provides capable performance at a fraction of the cost.

The best DC electronic loads for power supply testing in 2026 span a wide range of power ratings, modes, and prices. What matters most is matching the load to your actual needs — not overspending on capability you will not use, and not underspending on a unit that cannot handle your tests. Whether you are a hobbyist characterizing your first power supply or a professional running automated test systems, there is a load on this list that fits your requirements.
