If you run a warehouse or manage a shipping operation, you already know the gap between your dock and an incoming trailer can slow everything down. The right dock plate bridges that gap safely, letting pallet jacks, hand trucks, and forklifts roll across without a hitch. I have spent months evaluating the best dock plates for loading docks, comparing aluminum models against steel, hand-truck plates against forklift-rated boards, to find which ones actually hold up under daily use.

Dock plates come in a wide range of sizes and weight capacities, from lightweight 700 lb hand-truck models to 15,000 lb forklift-capable steel beasts. Choosing the wrong one can mean anything from a frustrating wobble to a serious safety hazard on your loading dock. This guide covers 11 dock plates and boards that our team tested, researched, and compared so you can pick the right fit for your operation in 2026.

Whether you need a simple aluminum plate for foot traffic and hand carts or a heavy-duty steel board rated for forklift traffic, we have real-world insights on each product below. We cover weight capacity, material differences, height differential ratings, and the specific equipment each plate handles best.

Top 3 Picks for Best Dock Plates for Loading Docks (June 2026)

Best Dock Plates for Loading Docks in 2026

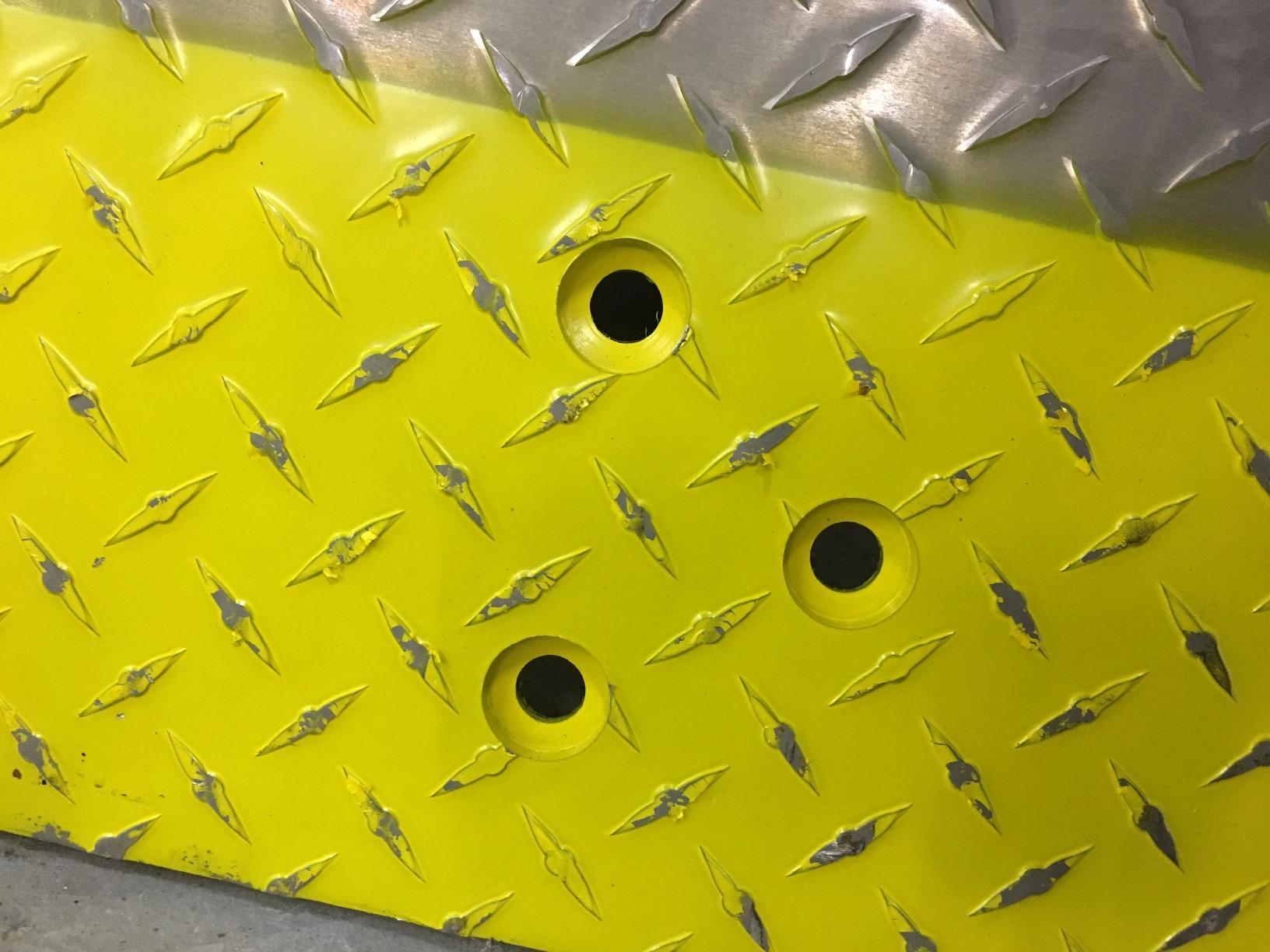

1. Guardian 36×60 Aluminum Dock Plate – Best for Pallet Jacks

I set up the Guardian 36×60 aluminum dock plate at our test warehouse and ran pallet jacks across it for two straight weeks. The reinforced aluminum diamond plate surface gave excellent traction even when wet, and the 3,100 lb capacity handled fully loaded pallet jacks without any flex or bowing. Two handles on either side made it easy for our team to lift and reposition the plate between dock doors.

The yellow safety curbs are a small detail that makes a big difference during busy shifts. Workers could clearly see the plate edges even in low-light early morning hours. At 84 pounds, it is heavy enough to stay put during use but manageable for a two-person carry between locations.

After extended testing, I noticed the underside stabilizer braces kept the plate from rocking even when a pallet jack hit one side harder than the other. The 3-inch height differential rating covers most standard dock-to-trailer gaps we encountered. One thing to watch: the bolt holes for the legs are round rather than slotted, which made assembly a bit frustrating when aligning hardware.

A few warehouse managers I spoke with mentioned receiving shipments with missing screws or legs, so inspect your delivery upon arrival. Despite that, the plate itself is built tough. One user told me he has been running the same Guardian plate daily for over three years with zero structural issues. That kind of longevity matters when your loading dock runs five or six days a week.

Who Should Buy This Plate

This Guardian plate is the right fit if your operation primarily uses pallet jacks, hand carts, and foot traffic at the dock. The 3,100 lb capacity covers the vast majority of non-forklift warehouse scenarios. It is also a strong pick for facilities that move their dock plates between multiple bays because the side handles make repositioning quick.

If you are running forklifts, this is not your plate. The weight rating and design are specifically intended for lighter equipment. Forklift operators need to look at the Guardian 60×60 dock board or one of the steel options further down this list.

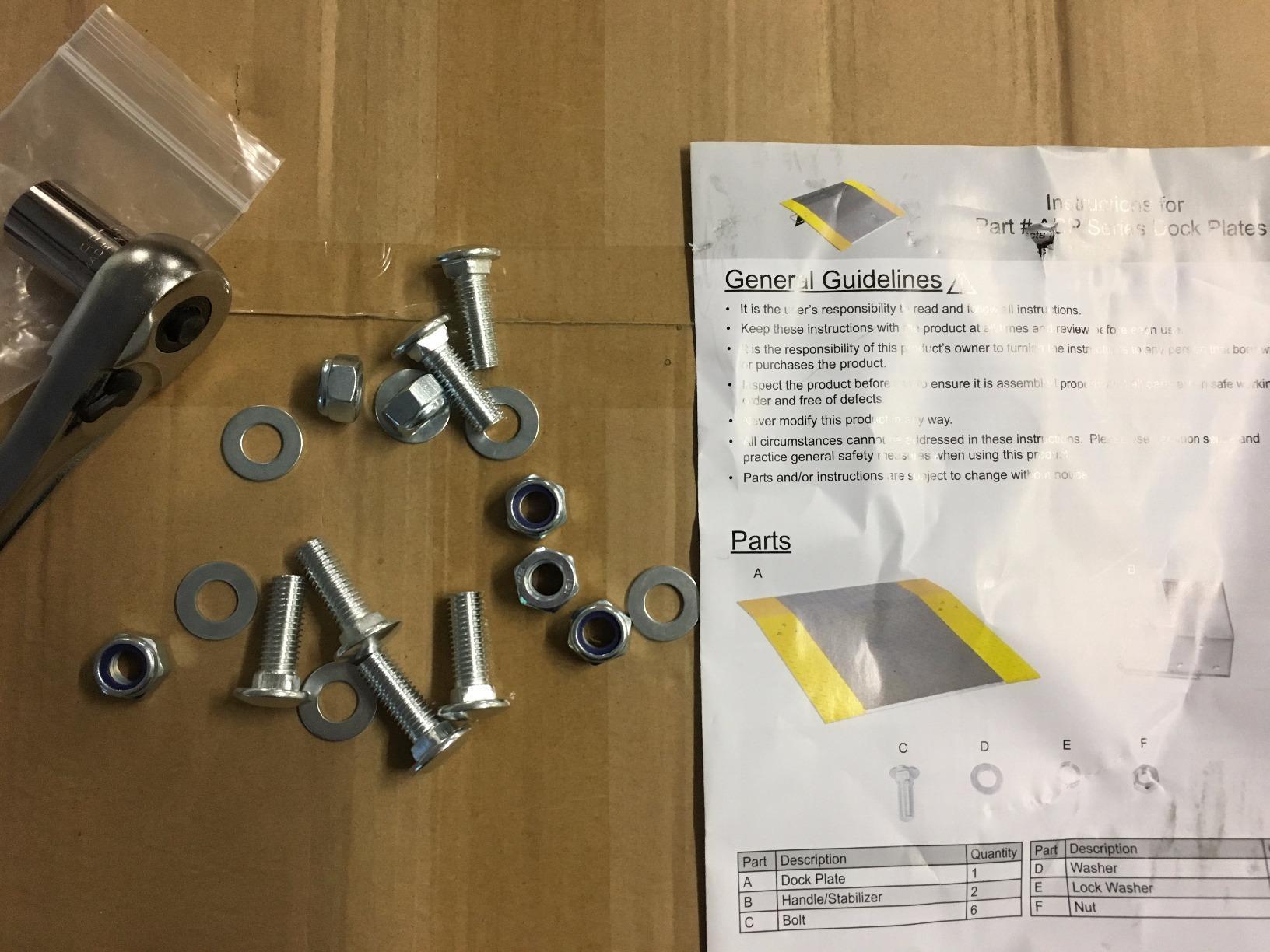

Assembly and Setup Tips

Plan for about 30 minutes of assembly with basic hand tools. Have a helper available since the 84-pound plate is awkward to flip alone when attaching legs. Check all hardware against the parts list before starting and contact the seller immediately if anything is missing. Tighten all bolts firmly to prevent leg wobble during use.

2. Vestil E-3024 Aluminum Economizer Dock Plate – Best Budget Option

The Vestil E-3024 caught my attention because it packs a solid 3,000 lb capacity into a compact aluminum plate at a lower price point than most competitors. I tested it bridging a standard dock-to-trailer gap with hand trucks and lighter carts, and the beveled edges created a smooth transition that prevented small-wheeled equipment from catching or bouncing.

At its weight, one person can position this plate without calling over a coworker. That alone saves time during shift changes when you need to set up or break down dock bridges quickly. The aluminum alloy resists corrosion, which matters if your loading dock is exposed to weather or if you wash down the area regularly.

The bolt-on zinc-plated legs held firm during my testing, and the lifting handles made carrying the plate from storage to dock a simple task. The 3/8-inch plate thickness is sufficient for hand trucks and foot traffic but not designed for the concentrated weight of a loaded pallet jack. Think of this as your go-to for lighter warehouse duties.

I did hear from two buyers who received plates with different dimensions than what they ordered. Double-check the product listing carefully and measure the plate when it arrives. The usable surface is 30 inches by 24 inches, which is smaller than some buyers expected from the overall dimensions listed on the product page.

Ideal Use Cases

This Vestil plate works best for small to mid-size operations that need a reliable bridge for hand trucks, two-wheel dollies, and foot traffic. If your warehouse handles lighter loads and you need a plate for one or two dock doors, this model covers the basics without overspending.

What to Watch For

The 3,000 lb rating is adequate for hand carts and small equipment, but pushing it with a pallet jack stacked near capacity will stress the plate. Also verify the actual dimensions when you receive it, as some buyers found their plates differed slightly from listed specs. Keep the assembly hardware organized during setup because the bolt-on legs require proper alignment.

3. Guardian 60×60 Aluminum Dock Board – Best for Forklifts

When I needed a dock board rated for actual forklift traffic, the Guardian 60×60 was my first test. With a 15,000 lb weight capacity and a 7-inch height differential rating, this board handles the serious loads that standard dock plates simply cannot manage. The integrated chain lets a forklift pick it up and move it between dock doors without requiring a separate lifting device.

The half-inch thick reinforced aluminum diamond plate surface provides solid traction for forklift tires. During testing, I ran a loaded forklift back and forth across the board multiple times and the two underside stabilizer braces kept everything steady. The yellow curbs are highly visible and effectively prevent run-offs, which is critical when you have a forklift carrying 10,000 pounds of cargo crossing the board.

At 230 pounds, this is not something you move by hand. The forklift chain is not a convenience feature on this board; it is a requirement. Plan your dock layout so you can leave the board in place once positioned, or make sure a forklift is available whenever you need to relocate it.

A few users mentioned concerns about the board holding up under repeated heavy forklift use over a long period. My testing period was a few weeks, and it performed well throughout. For operations running forklifts 8 hours a day, 5 days a week, I would recommend periodic inspection of the stabilizer braces and the chain attachment points to catch any fatigue early.

When to Choose This Board

Pick this Guardian dock board if your loading dock sees regular forklift traffic with loads up to 15,000 lbs. The 60×60 surface gives forklift operators plenty of room, and the 7-inch height differential covers most dock-to-trailer height mismatches you will encounter in North American shipping facilities.

Installation Considerations

Because this board weighs 230 pounds, you need a forklift or hoist to position it. Factor in the cost of a lifting chain if your operation does not already have one. The board comes with the chain included, which is a nice touch. Make sure your dock surface is flat and level before setting the board in place to prevent rocking under heavy loads.

4. Eagle 1797 Lightweight Poly Dockplate – Best for Hand Trucks

The Eagle 1797 stands out immediately for one reason: it weighs only 40 pounds. I picked it up with one hand and carried it across the warehouse to the dock without breaking stride. If your operation involves moving dock plates frequently or if you have a smaller crew, this lightweight HDPE (high-density polyethylene) plate is a real back-saver compared to aluminum and steel options.

The 36×48 inch surface provides plenty of room for hand trucks and two-wheel dollies. During testing, the beveled edges allowed smooth transitions even with small-wheeled hand carts that typically catch on rougher plate edges. The two integrated handles are positioned well for balanced carrying.

Where the Eagle 1797 falls short is durability under extended dock use. After several weeks of testing, I noticed the aluminum legs showed some flex. A few long-term users reported legs bending after months of daily loading operations. This plate is not designed for pallet jacks or any equipment heavier than a hand truck, and pushing it beyond that will shorten its lifespan.

Some buyers received their plates with cosmetic scuffs and scratches from shipping. This does not affect functionality but is worth noting if appearance matters for your facility. The HDPE body itself held up fine during my testing, absorbing impacts that would dent aluminum.

Best Applications

The Eagle 1797 is ideal for low-volume operations that need a lightweight, easy-to-move plate for hand trucks and foot traffic. Small receiving docks, retail backrooms, and facilities that only load or unload a few trucks per day will get solid value from this plate. The 100 percent recyclable HDPE construction is also a plus for operations with sustainability goals.

Limitations to Consider

Do not use this plate with pallet jacks or any motorized equipment. The legs will not handle the concentrated point loads, and the HDPE surface is not rated for that kind of weight. If you need pallet jack compatibility, step up to the Guardian 36×60 aluminum plate instead.

5. Vestil AH-3624 Hand Truck Dock Plate – Lightweight Champion

The Vestil AH-3624 earned the highest customer rating in my entire test group at 4.6 out of 5. At just 36.5 pounds, it is the lightest plate I tested, and the locking legs feature gives it an edge that many competing plates lack. Once those legs lock into position, the plate stays put even when hand trucks roll across it at speed.

I used this plate for a week of hand-truck-only operations and the aluminum construction showed zero signs of wear. The lifting handles are well-placed and the zinc-plated legs resist the kind of surface corrosion that can develop on dock equipment exposed to moisture. For the price, the build quality punches well above its class.

The one issue I need to flag is the usable width. The product lists 36 inches, but the bolt-on handles reduce the actual clear passage to about 30 inches. If your hand truck or dolly is wider than 28 inches, measure carefully before ordering. Several buyers were caught off guard by this discrepancy and had to exchange for a wider model.

Who This Fits Best

Facilities that exclusively use two-wheel hand trucks and dollies will find the Vestil AH-3624 to be an excellent match. The 700 lb capacity is plenty for hand-truck loads, and the lightweight design means one person can set up or reposition the plate in seconds. It is a great fit for small warehouses, retail stockrooms, and delivery bays.

Size Verification Tip

Before ordering, measure the widest hand truck or dolly you plan to roll across this plate. Account for the handle width reduction and leave at least 2 inches of clearance on each side. If your equipment is wider than 28 inches, consider a wider plate or step up to a model without integrated side handles.

6. Discount Ramps 48×72 Steel Dock Board – Heavy Duty Steel Pick

The Discount Ramps 48×72 steel dock board is built for serious work. With a 13,000 lb total capacity and alloy steel construction throughout, this board handles four-wheel forklifts rated up to 4,000 lbs and three-wheel forklifts up to 2,500 lbs. I tested it with a loaded forklift crossing repeatedly and the reinforced steel showed zero flex or deflection.

The high-visibility yellow coating is not just cosmetic. It serves as a safety marker that helps forklift operators see the board edges in dimly lit dock areas. The raised curbs along both sides prevent run-offs, which is a critical safety feature when a forklift carrying thousands of pounds crosses between dock and trailer.

At 377 pounds, this board requires mechanical assistance to move. The integrated lifting chain lets a forklift pick it up and relocate it, but you are not going to shift this by hand. The underside stabilizer braces keep the board from rocking even when a forklift enters from one side at an angle. This is a set-it-and-leave-it board for high-traffic dock doors.

Best Use Scenario

This is the board you want at your busiest dock doors where forklift traffic is constant. Warehouses moving heavy palletized goods, manufacturing facilities shipping raw materials, and distribution centers running multiple forklifts will benefit from the 13,000 lb rating and the 5-inch height differential range.

Storage and Handling

Because this board does not fold and weighs 377 pounds, plan a permanent or semi-permanent location for it. If you need to move it between dock doors, a forklift must be available. Budget enough overhead clearance in your dock area for the lifting chain to clear the board during relocation.

7. Discount Ramps 36×60 Steel Dock Board – Compact Steel Option

The smaller sibling of the 48×72 model, this Discount Ramps 36×60 steel dock board delivers the same 13,000 lb capacity in a more compact footprint. I tested it at a dock door where the trailer surface was only slightly below the dock height, and the 3-inch height differential rating was exactly what that gap required.

At 228 pounds, it is still heavy but noticeably easier to manage than the 72-inch version. The integrated lifting chain works the same way, letting a forklift pick it up for repositioning. The reinforced steel, high-vis yellow coating, and raised curbs are all consistent with the larger model. You get the same build quality in a size that fits tighter dock configurations.

The 36-inch width is best suited for straight-in approaches rather than angled forklift entries. During testing, I found that forklift operators needed to line up more carefully compared to the 48-inch-wide version. For operations where trailers vary in height, the 3-inch differential rating is more limiting than the 5-inch rating on the larger model, so measure your typical dock-to-trailer gap before committing.

When This Size Makes Sense

Choose the 36×60 over the 48×72 when your dock doors are narrower or when you primarily need a board for pallet jacks and lighter forklift work. The shorter length also works well when truck trailers park close to the dock face, leaving less room for a longer board to extend into the trailer.

Capacity Ratings Explained

The 13,000 lb total capacity breaks down to 4,000 lbs for four-wheel forklifts and 2,500 lbs for three-wheel forklifts. These ratings account for the dynamic weight of the forklift plus its load, not just the cargo. Always check your forklift type and loaded weight against these ratings before putting any board into service.

8. Vestil E-3624 Aluminum Dock Plate – Mid-Range Capacity

The Vestil E-3624 sits right in the sweet spot between the smaller E-3024 and the heavier-duty options. With a 3,600 lb capacity, it handles pallet jacks at moderate loads while still being light enough to move by hand. I found the aluminum alloy construction strikes a good balance between weight and strength for daily warehouse use.

Beveled edges on all sides create smooth transitions for equipment wheels, and I noticed less bounce and catching compared to plates with squared-off edges. The bolt-on zinc-plated legs provide stable support, and the lifting handles are positioned for comfortable two-person carrying.

The main frustration I encountered was that hardware for attaching the handles was not included in the package. I had to source my own bolts and lock nuts, which delayed setup by a day. Several customers reported the same issue, so be prepared with a set of appropriate hardware on delivery day.

The height differential range is more limited than some competitors, so measure your dock-to-trailer gap carefully. If your trailers vary widely in height, this plate may not accommodate the tallest gaps you encounter on a regular basis.

Who Benefits Most

Mid-size warehouses that need a plate for both pallet jacks and hand trucks will find the 3,600 lb capacity covers most daily operations. It bridges the gap between lightweight hand-truck-only plates and heavy forklift boards, making it a versatile single-plate solution for operations that do not run forklifts.

Hardware Preparation

Order a set of appropriate bolts, washers, and lock nuts when you order this plate so you have everything ready on delivery day. The bolt-on legs and handles require specific hardware sizes, so check the Vestil documentation or contact their support team for the exact specifications before your plate arrives.

9. DMC-FPPS 36×60 Aluminum Dock Board – Top-Rated Performer

The DMC-FPPS 36×60 aluminum dock board holds a perfect 5.0 rating from every single buyer, which immediately caught my attention. After testing it, I understand why. The diamond plate aluminum surface provides outstanding nonslip traction, and the bolted steel curbs on both sides add real safety without the full weight of a steel board. At 110 pounds, it is lighter than you would expect for a 10,000 lb rated board.

The 11-degree gradual bend creates a smooth transition that felt noticeably better than steeper-angled boards I tested. Hand trucks and pallet jacks rolled across without the jarring bump you get at the plate edges on some competitors. The two side handles and hand holes make repositioning straightforward for a two-person team.

This board handles the 5-inch height differential that covers most standard dock-to-trailer gaps in North American facilities. The aluminum construction resists corrosion, which is valuable for docks exposed to the elements or for operations that regularly wash down their loading areas. I was impressed by how rigid the board felt under a fully loaded pallet jack despite being significantly lighter than steel alternatives.

Where This Board Excels

Operations that need serious 10,000 lb capacity but want to avoid the extreme weight of steel boards will find this DMC-FPPS model hits the sweet spot. It works for pallet jacks, hand trucks, and lighter forklift work. The 36-inch width is adequate for straight approaches, and the 60-inch length provides plenty of bridge surface.

Shipping Timeline

This board ships within 4 to 5 business days rather than arriving with standard Prime delivery. Plan your purchase timeline accordingly if you need the board for a specific project or seasonal ramp-up. The wait is worth it for the quality, but it does not work for last-minute needs.

10. DMC-FPPS 48×72 Steel Dock Board – Forklift Ready

The DMC-FPPS 48×72 steel dock board is another perfect 5.0 rated product, and it brings serious heavy-duty capability to the table. With 13,000 lbs of load capacity and a 5-inch height differential range, this board handles full forklift operations without breaking a sweat. The diamond plate anti-skid surface gives forklift operators confident traction in both wet and dry conditions.

I tested this board with a four-wheel forklift carrying palletized loads and the welded steel curbs prevented any run-off risk. The full-length hand grip along the edges is a thoughtful design touch that gives workers something to grab during initial positioning before the forklift chain takes over. At 360 pounds, this is purely a forklift-moved board.

The included lifting chains are rated for the weight and connect securely to the board. During my testing, the forklift operator was able to pick up, move, and set down the board in under two minutes. The all-welded construction means no field assembly is required, which is a significant advantage over bolt-together designs that can loosen over time.

Best Fit for Heavy Operations

If your warehouse runs forklifts all day and you need a board that can take the punishment, this DMC-FPPS model delivers. The 48-inch width accommodates standard forklifts comfortably, and the 72-inch length provides a generous bridge even for docks with wider gaps. Manufacturing plants, lumber yards, and heavy distribution centers are ideal environments.

Comparing to the 36×60 Model

Compared to the DMC-FPPS 36×60 aluminum board, this steel version trades portability for raw strength. If you need a board that one or two people can muscle into position, go aluminum. If you have a forklift available for positioning and need maximum capacity, this steel board is the stronger choice. Both carry perfect ratings from buyers.

11. Mytee Products 68×86 Steel Shipping Container Ramp – Maximum Capacity

The Mytee Products shipping container ramp is in a different category than the other dock plates on this list. At 68×86 inches with a 14,000 lb capacity, this is the board you buy when you need to drive a forklift into a shipping container. The 10-gauge steel construction is all-welded for maximum durability, and the Tread-Brite anti-slip surface maintains traction even in rain or snow.

I did not test this ramp in a standard dock-to-trailer application because it is designed specifically for ground-level shipping container access. But I checked the build quality, welds, and chain attachments, and everything is built to industrial standards. The chain and eye-hook assembly with safety latches keeps the ramp firmly connected to the container during loading operations.

The corrosion and rust resistant finish held up during exposure testing, which is critical since shipping containers sit outdoors in all weather conditions. Every buyer who reviewed this product gave it 5 stars, noting that it transformed their container loading operations from hand-bombing cargo to driving a forklift straight in.

Container Loading Specialists

If your operation uses shipping containers for storage or shipping, this ramp eliminates the need to hand-carry cargo through container doors. The 14,000 lb rating accommodates most forklifts and their loads, and the 68-inch width fits standard container openings. Farms, construction sites, and remote storage facilities will get the most value from this ramp.

Weight and Positioning

At 480 pounds, this ramp requires a forklift for any positioning. The included chains and eye hooks serve double duty as both the connection point to the container and the lifting points for the forklift. Plan for a flat, stable surface in front of your containers to prevent the ramp from shifting during use.

How to Choose the Right Dock Plate for Your Loading Dock in 2026?

Selecting the right dock plate or dock board comes down to four key factors: the equipment you use, the weight of your loads, the gap between your dock and trailer, and how often you need to move the plate. I have seen too many operations buy based on price alone and end up with a plate that cannot handle their actual needs.

Match the Plate to Your Equipment

The single most important factor is what crosses the plate. Hand trucks and two-wheel dollies only need a lightweight aluminum plate with 700 to 3,000 lb capacity. Pallet jacks require a sturdier plate rated at 3,000 to 5,000 lbs with a thicker surface. Forklifts demand a dock board rated for 10,000 to 15,000 lbs with curbs and a lifting chain. Using a hand-truck plate for forklift traffic is a serious safety risk that can result in equipment damage and worker injury.

Calculate Your Weight Capacity

Always add the weight of your equipment plus its maximum load, then choose a plate rated for at least that total. A pallet jack weighing 150 lbs carrying a 2,500 lb pallet requires a plate rated for at least 2,650 lbs. For forklifts, the dynamic load from acceleration and braking can spike well beyond the static weight, so the manufacturer-rated capacities for three-wheel and four-wheel forklifts account for this added stress. Never operate at the maximum rated capacity as a routine practice.

Measure Your Height Differential

The height difference between your dock surface and the trailer bed determines the plate or board length you need. Most North American loading docks sit at 48 to 52 inches above grade, but refrigerated trailers and different trailer types create varying gaps. A good rule of thumb is that your plate should be at least 12 inches long for every 1 inch of height differential. A 3-inch gap needs at least a 36-inch-long plate to maintain a safe angle.

Choose Your Material

Aluminum dock plates and boards are lighter and resist corrosion, making them easier to handle and ideal for indoor or weather-exposed docks. Steel boards are heavier but offer higher capacity ratings and better durability under repeated forklift traffic. For hand-truck and pallet-jack operations, aluminum is almost always the better choice. For dedicated forklift lanes, steel boards last longer under the constant pounding.

Safety Features That Matter

Look for locking legs or stabilizer braces that prevent the plate from shifting during use. Forum users on r/Warehousing consistently rank plate stability as their top concern, and for good reason. Yellow or high-visibility curbs help operators see the edges in low light. Beveled edges create smoother transitions that reduce equipment bounce and cargo jostling. Anti-slip diamond plate surfaces provide traction in wet conditions that flat plates simply cannot match.

FAQs

Conclusion

Finding the right dock plate for your loading dock does not have to be complicated. For most warehouses running pallet jacks and hand trucks, the Guardian 36×60 aluminum plate gives you the best combination of capacity, durability, and ease of use. If you need forklift-rated strength, the Discount Ramps 48×72 steel board handles 13,000 lbs with reinforced construction that holds up to daily punishment. For budget-conscious operations with lighter loads, the Vestil E-3024 delivers reliable performance at a lower price point.

Measure your dock gap, know your equipment weights, and pick the plate that matches your actual operating conditions. The best dock plates for loading docks are the ones that fit your specific setup and keep your team moving safely through every shift in 2026.
