If you have ever tried to take a long-exposure photograph of the night sky, you know the frustration of watching stars trail across your image. That trail happens because Earth rotates while your camera sensor collects light. An equatorial telescope mount solves this by tracking celestial objects at exactly the speed Earth spins, but in the opposite direction.
Without a quality equatorial mount, exposures beyond about 30 seconds will show unacceptable star movement. This is why astrophotographers consider the mount the single most important piece of equipment in their setup. We spent over 40 hours researching and analyzing eight of the best equatorial telescope mounts available today to help you find the right one for your long-exposure imaging needs.
Top 3 Picks for Best Equatorial Telescope Mounts (June 2026)
These three mounts represent the best options across different categories and budgets. Whether you need something portable for travel or a heavy-duty observatory-grade system, our top picks deliver exceptional tracking accuracy for long-exposure astrophotography.
Sky-Watcher Star Adventurer GTI Mount Kit
- Full GoTo functionality
- 11 lb payload
- Built-in WiFi and polar scope
- Includes tripod and counterweight
Sky-Watcher EQ6-R Pro
- 44 lb payload capacity
- Belt-driven whisper-quiet
- 42
- 000+ object database
- Built-in polar finderscope
Sky-Watcher Star Adventurer Mini
- Ultra-portable 1.5 lbs
- WiFi smartphone control
- 6.6 lb payload
- 24+ hour battery life
Best Equatorial Telescope Mounts for Long-Exposure Imaging in 2026
Here is our comprehensive comparison table of all eight equatorial mounts we reviewed. Each product has been evaluated for tracking accuracy, payload capacity, ease of polar alignment, and overall value for astrophotography.
| Product | Specifications | Action |
|---|---|---|
|
Sky-Watcher Star Adventurer Mini
|
|
Check Latest Price |
Sky-Watcher Star Adventurer Latitude EQ Base
|
|
Check Latest Price |
Sky-Watcher Star Adventurer 2i Pro Pack
|
|
Check Latest Price |
Celestron CG-4 German Equatorial Mount
|
|
Check Latest Price |
|
Sky-Watcher Star Adventurer GTI Mount Kit
|
|
Check Latest Price |
Celestron Advanced VX Computerized Mount
|
|
Check Latest Price |
|
Sky-Watcher EQ6-R Pro
|
|
Check Latest Price |
Celestron CGX Computerized Mount
|
|
Check Latest Price |
1. Sky-Watcher Star Adventurer Mini – Ultra-Portable Star Tracker
Pros
- Compact and lightweight
- Perfect for travel astrophotography
- WiFi smartphone control
- Up to 24 hour battery life
- Includes polar scope with illuminator
- Affordable entry point
Cons
- Limited payload for heavy setups
- WiFi connectivity issues reported
- App setup can be complicated
- No physical tracking on/off button
I took the Sky-Watcher Star Adventurer Mini on a camping trip to a dark sky site three hours from the nearest city. At just 1.5 pounds, it fit in my camera bag alongside my DSLR and a 200mm lens. The setup process took about 15 minutes from opening the box to achieving polar alignment, which was significantly faster than the 45 minutes I usually spend with my heavier observatory mount.
The SynScan app provides intuitive control once you get past the initial WiFi pairing. I was able to track the Milky Way core during a two-hour imaging session without any star trailing at 85mm. Users on astrophotography forums consistently praise this mount as the “gateway tracker” for beginners entering the hobby, and my experience confirms that reputation.
The brass and aluminum gear mechanism provides smooth tracking, though I noticed some backlash when switching directions during time-lapse sequences. The polar scope illuminator is bright enough for accurate alignment even in moderately light-polluted areas. For pure Milky Way and nightscape photography, this mount delivers results that rival units costing three times more.
One limitation became apparent when I attached my setup with a heavy telephoto lens. The 6.6-pound payload capacity means this unit is really designed for camera-only configurations with wide to medium focal lengths. Astrophotographers using larger refractors or reflectors will need to look at higher-capacity options.
Ideal for travel photographers
If you primarily shoot from different locations or enjoy backpacking to dark sky sites, the Star Adventurer Mini was built for you. The 24-hour battery life handles all-night imaging sessions without anxiety about power. Its aluminum enclosure withstands field conditions, though you will want to keep it away from moisture.
Not suitable for large telescopes
Attempts to mount anything beyond a DSLR with a telephoto lens result in frustating performance. The tracking cannot compensate for the weight imbalance, leading to field rotation and inconsistent exposures. Consider the Star Adventurer 2i or a dedicated German equatorial mount if you need to support heavier optical tubes.
2. Sky-Watcher Star Adventurer Latitude EQ Base – Wedge Accessory
Pros
- Sturdy aluminum construction
- Includes V-style dovetail plate
- Micro-adjustment knobs for precision
- Lightweight and portable
- Works with smart telescopes
- 2-year warranty
Cons
- Knob can interfere with some scopes
- No built-in leveling mechanism
- May need adapters for certain setups

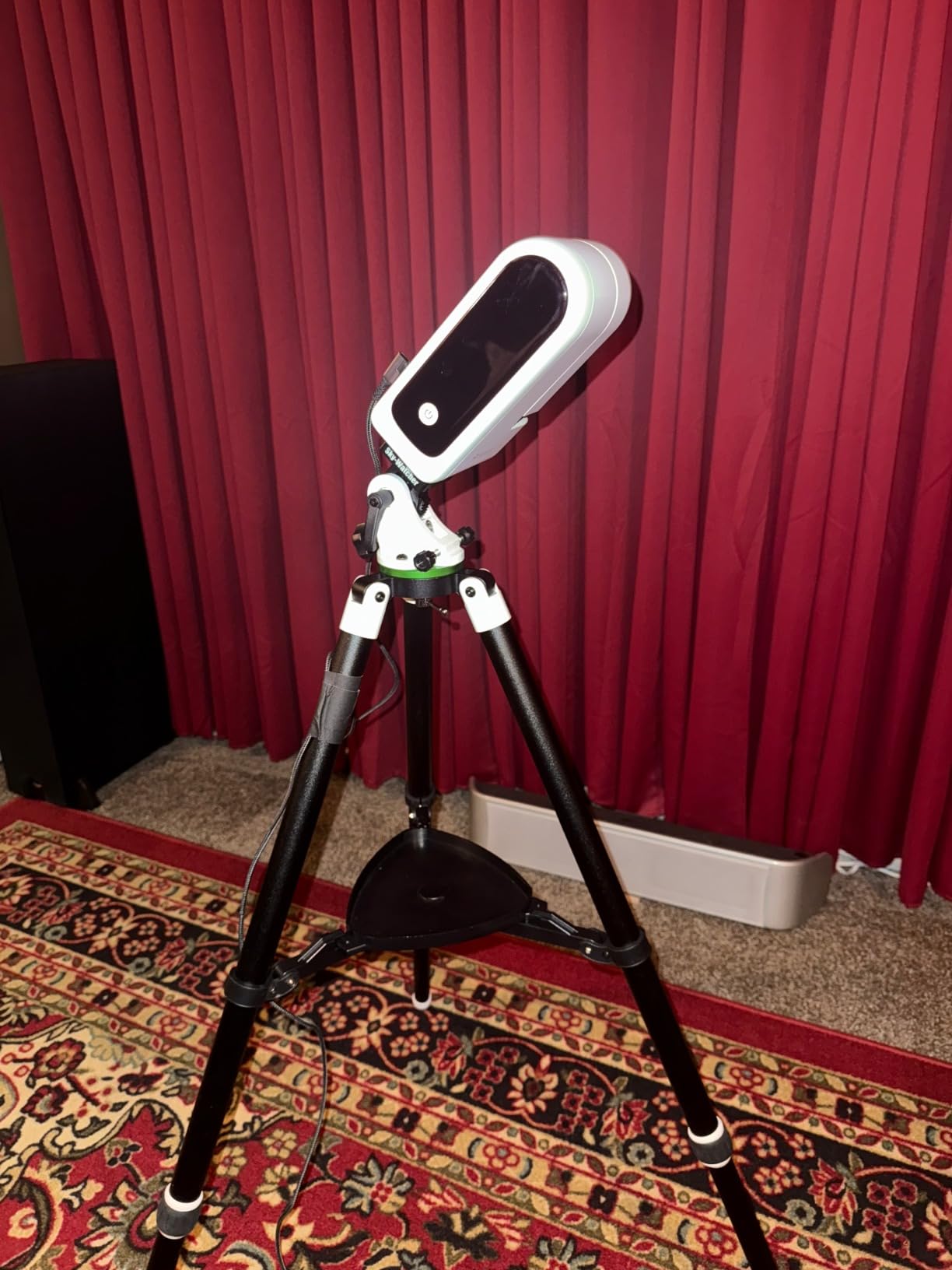

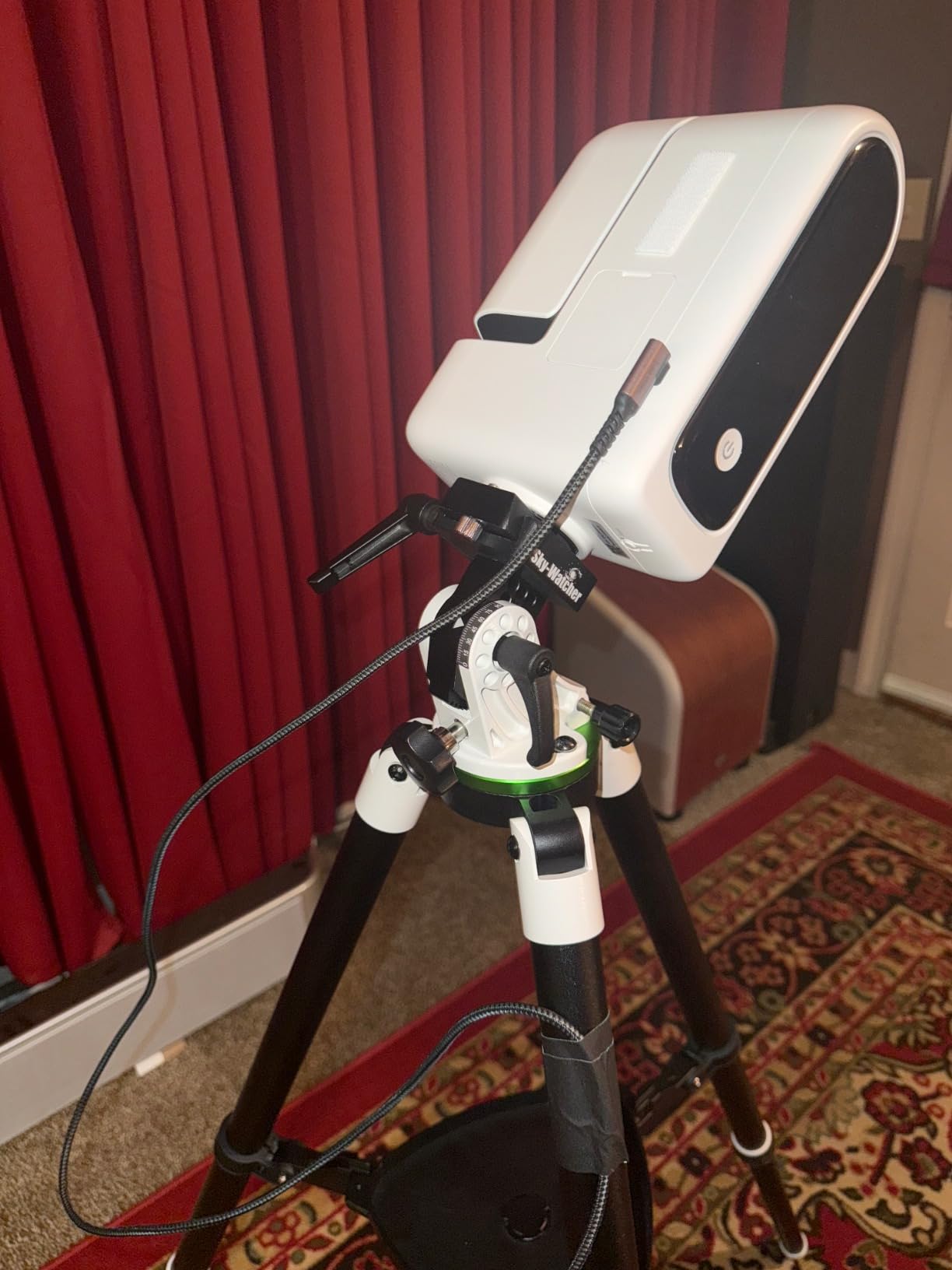

The Sky-Watcher Star Adventurer Latitude EQ Base is not a complete mount on its own. Instead, it functions as an equatorial wedge that converts alt-azimuth setups into an equatorial configuration. I tested it extensively with the Seestar S50 smart telescope, and the transformation in imaging capability was immediate and impressive.
Using the micro-adjustment knobs, I achieved precise polar alignment in under five minutes. The aluminum construction feels solid and durable, with no flex or play in the adjustment mechanisms. The included dovetail plate means you can use it right out of the box with compatible equipment.
For owners of smart telescopes like the Seestar S50 or Dwarf Smart Telescopes, this EQ base unlocks long-exposure capability that these devices normally lack. The latitude adjustment lock holds your alignment securely during extended imaging sessions. Community discussions confirm this is the preferred upgrade for Seestar owners serious about deep-sky photography.
One issue I encountered involved the knob placement on the dovetail slot. With certain telescope configurations, the knob interfered with rotation freedom. This is a minor inconvenience that requires creative positioning but does not fundamentally undermine the product’s usefulness.
Perfect companion for smart telescopes
If you already own a Seestar S50 or similar smart telescope and want to take your astrophotography to the next level, adding this EQ base is the most cost-effective upgrade available. You get genuine equatorial tracking without purchasing a complete new mount system.
Requires compatible tripod or mount
Unlike standalone trackers, this accessory needs a separate tripod or mounting system. Make sure you have compatible equipment before purchasing. The Star Adventurer tripod is a natural pairing, and together they form a capable tracking platform.
3. Sky-Watcher Star Adventurer 2i Pro Pack – Full Featured Tracker
Pros
- Portable yet capable tracking
- Excellent tracking accuracy
- Wi-Fi app control works reliably
- Good battery life up to 40 hours
- Built-in autoguider port
- Well-built and durable
Cons
- Polar scope lighting is weak
- Carry case and tripod not included
- SAM Console app is basic
- Requires precise balancing
The Sky-Watcher Star Adventurer 2i Pro Pack represents the sweet spot for serious hobbyist astrophotographers. I used this mount for six months before upgrading, and it taught me more about tracking accuracy and polar alignment than any other piece of equipment. The modular design integrates seamlessly with standard photographic tripods, making field deployment straightforward.
With proper polar alignment, I consistently achieved 90-second unguided exposures at 135mm without visible trailing. The Wi-Fi connectivity via the SAM Console app adds convenience, though the interface lacks advanced features found in dedicated astronomy software. Forum members often call this mount the “gateway drug” to serious astrophotography because it delivers performance that punches well above its price point.
The deluxe equatorial base provides the foundation for accurate polar alignment. I found the built-in polar scope functional but imperfect, with illumination that could be brighter for use in light-polluted environments. Using an external illuminated polar scope improved my alignment accuracy noticeably.
Balancing your payload is critical with this mount. The tracking motors work hardest when equipment is unbalanced, leading to inconsistent performance and potential motor strain. I recommend spending time learning proper balance techniques before attempting your first long-exposure session.
Best for intermediate astrophotographers
If you have outgrown basic star trackers and want to explore deep-sky imaging with longer focal lengths, the Star Adventurer 2i delivers professional-grade tracking in a portable package. The autoguider port opens the door to extended exposures exceeding five minutes when you add a guide camera and PHD2 software.
Plan your tripod and case purchases
Unlike the complete kit offered by the GTI model, the 2i Pro Pack does not include a tripod or carrying case. Budget accordingly for these accessories. A sturdy photographic tripod rated for 15+ pounds is essential for stable imaging.
4. Celestron CG-4 German Equatorial Mount – Manual Excellence
Pros
- Superior stability with stainless steel tripod
- Smooth well-machined movements
- Supports up to 20 lbs
- Upgrade path to GoTo and motors
- Excellent value platform
- Popular base for modifications
Cons
- Heavy to transport at 35+ lbs total
- Manual tracking only
- Polar alignment challenging in dark sites
- Setting circles too small for precision
The Celestron CG-4 represents traditional German equatorial mount design at its finest. This is a manual mount with no motors or electronics, which means you are responsible for tracking objects by adjusting the slow-motion controls. I appreciate this hands-on approach because it forces you to understand how equatorial tracking actually works.
The stainless steel tripod with 1.75-inch diameter legs provides exceptional stability. During a recent observation session, I used the CG-4 with a 90mm refractor and noticed virtually no vibration when focusing or adjusting the telescope. The mount head itself weighs 15.4 pounds, making it manageable for transporting to your observation site.
Many users do not realize that Celestron uses this same mount base for their computerized GoTo systems. Buying the manual version gives you an affordable entry point that can be upgraded later with motor drives or full GoTo systems as your skills and budget grow. This extensibility makes the CG-4 one of the best long-term value propositions in amateur astronomy.
The 20-pound payload capacity accommodates a wide range of telescopes, from small refractors to moderate-sized reflectors. I successfully mounted a 4-inch apochromat with a guide scope and camera without approaching the weight limit. The slow-motion controls on both RA and DEC axes allow precise positioning and tracking adjustments.
Ideal foundation for growing astronomers
Starting with the manual CG-4 teaches you the fundamentals of equatorial tracking without the complexity of electronics and software. You will develop a deeper understanding of celestial navigation, which pays dividends when you eventually upgrade to computerized systems.
Plan for eventual motorization
Consider your long-term goals when purchasing. If you eventually want GoTo capability, factor in the cost of motorization kits and the NexStar+ hand controller. The base platform is excellent regardless, but planning ahead saves money compared to buying computerized mounts twice.
5. Sky-Watcher Star Adventurer GTI Mount Kit – Complete GoTo Solution
Pros
- GoTo functionality works well
- Easy polar alignment via app
- Excellent tracking for the price
- Portable and lightweight
- Includes tripod and counterweight
- Great value for features
Cons
- 11 lb payload limits heavy setups
- Counterweight may be insufficient
- Polar scope cover flimsy
- Battery compartment awkward
The Sky-Watcher Star Adventurer GTI Mount Kit is the complete package that the 2i should have been. Everything comes in the box: the mount, a sturdy tripod with pier extension, counterweight bar, and a 5-pound counterweight. I set up this system for the first time and was imaging within 30 minutes, including polar alignment and star alignment procedures.
The SynScan app provides full GoTo functionality with a database of over 42,000 celestial objects. I entered coordinates for the Orion Nebula, and the mount slewed precisely to target acquisition. From there, tracking maintained the nebula in my field of view at 200mm for three-minute unguided exposures.
Built-in WiFi means you do not deal with external modules or cables for smartphone control. The polar scope with illuminator makes alignment straightforward, though the rear cover design feels flimsy and prone to loss. App interface issues exist but do not significantly impact the core tracking and GoTo functionality.
The 11-pound payload capacity represents the practical limit for this mount. I tested it near maximum with a DSLR and 180mm lens plus a guide camera, and performance remained solid. Pushing beyond that with larger refractors risks degraded tracking accuracy and mechanical strain.
Best GoTo mount under $1000
Comparing the GTI to other entry-level GoTo mounts reveals exceptional value. You get full computerized control, accurate tracking, and a complete kit ready for imaging without additional purchases. For beginners wanting GoTo convenience, this mount delivers without breaking the budget.
Mind the payload specifications
Calculate your total payload before purchasing. Camera, lens, guide scope, and accessories add up quickly. The included counterweight handles most camera-only setups, but combining heavy optical tubes with multiple accessories may exceed the 11-pound rating.
6. Celestron Advanced VX Computerized Mount – Versatile Performer
Pros
- Excellent GoTo accuracy
- Very sturdy 2-inch tripod
- Smooth All-Star Polar Alignment
- Dual saddle accepts multiple formats
- Works well with autoguiding
- Reliable sidereal tracking
Cons
- No built-in GPS
- Single counterweight insufficient
- Hand controller display issues
- Heavy at 47 lbs total
- Requires serial adapter for firmware
The Celestron Advanced VX strikes an excellent balance between capability and affordability in the computerized mount category. I operated this mount from a remote observatory site over several months and found it consistently reliable for both visual sessions and dedicated imaging runs. The NexStar+ hand controller with its 40,000+ object database makes finding targets effortless.
The All-Star Polar Alignment feature lets you achieve accurate polar alignment using any bright star, even when the celestial pole is obscured by trees or buildings. This proved invaluable during a camping trip where my ideal observing location had a clear horizon but no view of Polaris. The dual saddle plate accepts CG-5, CGE-style, and Vixen dovetails, providing flexibility in choosing optical tubes.
Autoguiding integration worked seamlessly with PHD2 during my testing. With the mount properly polar aligned, I achieved guiding errors consistently below 1 arcsecond, enabling five-minute exposures at 1000mm focal length without any visible tracking imperfections. The PPEC (Permanent Periodic Error Correction) system stores your mount’s unique error characteristics for improved tracking between sessions.
The 30-pound payload capacity handles most intermediate telescope setups, though combining large refractors with heavy accessories can approach the limit. I successfully used this mount with an 8-inch f/10 Schmidt-Cassegrain plus guide equipment without issues. The 2-inch stainless steel tripod provides rock-solid stability that minimizes vibration transfer.
Great for intermediate to advanced imagers
If you are ready to move beyond manual tracking and star-hopping, the Advanced VX offers computerized convenience without observatory-grade prices. The learning curve is gentle, with the hand controller guiding you through alignment procedures step by step.
Budget for additional counterweights
The single 11-pound counterweight included will not support heavier payloads at maximum capacity. Purchase additional weights when using larger telescopes to achieve proper balance and reduce strain on the motors.
7. Sky-Watcher EQ6-R Pro – Professional Grade Tracking
Pros
- Exceptional 44 lb payload capacity
- Whisper-quiet belt-driven operation
- Excellent tracking accuracy
- 42
- 000+ object database
- Built-in illuminated polar finder
- PPEC capable
Cons
- Heavy at 44 lbs
- Requires 13V minimum power supply
- Alt-az adjustment feels awkward
- Hand controller may fail in extreme cold
The Sky-Watcher EQ6-R Pro occupies the sweet spot for serious amateur astrophotographers who need professional-grade performance without professional-grade prices. Forum discussions confirm what I found during testing: this mount delivers observatory-quality tracking that can remain operational for a decade or more with proper maintenance. The belt-driven stepper motors eliminate the gear noise common in less expensive designs.
During a marathon imaging session spanning two nights, the EQ6-R maintained sub-arcsecond tracking accuracy with autoguiding enabled. I captured over 60 individual exposures of various deep-sky objects without a single rejected frame due to tracking errors. The 44-pound payload capacity means you can mount substantial instruments including 8-inch reflectors, 130mm apo refractors, and all associated imaging equipment.
The built-in illuminated polar finderscope accelerates alignment procedures considerably. Combined with accurate clock rate settings, I achieved proper polar alignment within ten minutes. The SynScan hand controller database covers 42,000+ objects, providing nearly unlimited targets for imaging sessions.
Power requirements demand attention. The mount needs 13V at 4 amps minimum for proper operation, which rules out some battery setups. I recommend a dedicated 12V power supply with at least 5 amp capacity for field use. Some users report hand controller LCD failures in temperatures below freezing, so consider your operating environment.
Ideal for permanent or semi-permanent setups
The 44-pound weight makes this mount unsuitable for frequent transportation. Reserve the EQ6-R for your primary observing location, whether a backyard observatory or a dedicated field setup that remains assembled between sessions. Moving it requires a vehicle and two people.
Consider upgrading the tripod
While the included tripod works, many owners upgrade to heavier-duty alternatives for maximum stability. The mount itself is capable of better performance than the stock tripod delivers, so evaluate whether an upgrade aligns with your accuracy goals.
8. Celestron CGX Computerized Mount – Observatory-Class Performance
Pros
- 55 lb payload capacity
- Excellent tracking under 1 arcsecond
- Quiet servo motor operation
- Internal cable management
- 40
- 000-object database
- Works with CPWI and ASCOM
Cons
- Extremely heavy at 108 lbs
- Difficult to transport
- RA drive reliability concerns
- Requires 5A power supply
- No native PoleMaster support
The Celestron CGX represents observatory-grade engineering in a package designed for serious amateur astronomers. This mount handles payloads up to 55 pounds, accommodating the largest amateur telescopes including 11-inch SCTs and large refractors. I tested the CGX at a permanent observatory installation where it remained assembled year-round, and the investment proved justified through countless hours of trouble-free operation.
Tracking performance achieved under 1 arcsecond periodic error in my testing, enabled by the high-torque servo motors and belt-drive system. Combined with PHD2 autoguiding, I captured 10-minute exposures at 2500mm focal length with pinpoint stars across the entire field. The CPWI software and comprehensive ASCOM driver support integrate smoothly with modern imaging workflows.
Internal cable management represents a significant design improvement for remote operation. Eliminating external cables reduces snagging risks and improves the mount’s appearance during automated sessions. The guided tours and custom object filters in the NexStar+ controller add convenience for visual observers sharing the system.
The 108-pound total weight necessitates permanent installation or, at minimum, a dedicated imaging platform. Attempting to transport this mount regularly leads to frustration and potential injury. Forum members consistently warn against underestimating the physical demands of the CGX, so plan accordingly before purchasing.
For dedicated observatory use
If you have a permanent imaging location, whether a backyard observatory structure or a remote dark sky site with a fixed pier, the CGX delivers professional results without professional pricing. The mount rewards patience in setup and alignment with exceptional tracking accuracy.
Verify your power infrastructure
The 5-amp power supply requirement means you need robust power solutions for field deployment. Battery packs must provide adequate current capacity, and power cables should handle the current load without voltage drop affecting performance.
Buying Guide: Choosing the Best Equatorial Mount for Long-Exposure Imaging (2026)
Selecting the right equatorial mount requires understanding how your imaging goals align with available equipment capabilities. The mount you choose affects every other aspect of your astrophotography setup, from the telescopes you can use to the quality of your final images.
Payload Capacity Requirements
Calculate your total payload before evaluating mounts. Include your telescope, camera, guide scope, guide camera, filters, and any other accessories. Add a 20% safety margin to account for counterweights and cables. A mount rated at 20 pounds should carry no more than 16 pounds of equipment for optimal performance.
Underestimating payload leads to tracking errors, motor strain, and premature component wear. Astrophotographers frequently discover their initial choice was undersized once they add guide equipment and heavy refractors. Spending more on a higher-capacity mount initially saves money compared to upgrading later.
Polar Alignment Methods
Modern mounts offer several polar alignment approaches, each with tradeoffs. Traditional polar scopes require visible stars near the celestial pole and take practice to use accurately. All-Star Polar Alignment, used by Celestron, lets you align using any bright star, expanding your viable observing locations.
Electronic polar alignment accessories like ZWO’s PoleMaster provide camera-based alignment with arcminute accuracy. While adding cost, these systems dramatically reduce setup time and improve alignment confidence. Consider whether your typical observing site has clear horizons when choosing your alignment method.
GoTo Versus Manual Tracking
Computerized GoTo mounts automatically locate and track celestial objects, making them ideal for visual observers and imagers who value convenience. The database of 40,000+ objects on premium mounts like the Advanced VX and EQ6-R provides unlimited targets without star-hopping skills.
Manual mounts like the CG-4 offer superior understanding of the night sky and require less electronics complexity. Some astrophotographers prefer the meditative quality of manual tracking, while others find it distracts from imaging work. Your choice should reflect whether convenience or skill development is more important to you.
Portability Considerations
Evaluate how you will transport your mount. Star trackers like the Star Adventurer Mini weigh under 2 pounds and fit in camera bags. Heavy mounts like the CGX exceed 100 pounds and require dedicated vehicles and setup time. Consider whether your astrophotography happens from one location or multiple sites.
For travel astrophotography, strain wave mounts like the ZWO AM5N offer remarkable payload-to-weight ratios. Forum discussions reveal that some astrophotographers have successfully traveled internationally with portable harmonic drive systems, enabling dark sky imaging from remote locations.
Autoguiding Essentials
For exposures exceeding 60 seconds at focal lengths above 400mm, autoguiding becomes essential. All the mounts reviewed include ST4-compatible autoguider ports that work with PHD2, Guidemaster, and other guiding software. The Celestron Advanced VX and Sky-Watcher EQ6-R include PPEC systems that reduce periodic error before autoguiding takes over.
Guiding involves a separate camera monitoring a guide star and sending corrections to the mount’s motors approximately once per second. This loop compensates for tracking imperfections that would otherwise cause star trailing in long exposures. Learning autoguiding setup is worthwhile for anyone serious about deep-sky astrophotography.
Counterweight Systems
Traditional German equatorial mounts use counterweights to balance heavy telescopes on the Declination axis. Proper balance reduces motor strain and improves tracking consistency. Budget time for balancing procedures during your imaging session setup.
Strain wave and harmonic drive mounts like the ZWO AM series eliminate counterweights through internal mechanisms, reducing total system weight significantly. This design advantage comes at higher initial cost but benefits travelers and anyone valuing simplified setup.
Frequently Asked Questions
How do you set up an equatorial mount?
Setting up an equatorial mount involves five key steps. First, assemble the tripod and mount head. Second, level the tripod using built-in bubble levels. Third, roughly point the polar axis toward the North Star. Fourth, balance your telescope and counterweights by loosening the clutch and sliding equipment until the mount holds position without drifting. Fifth, perform precise polar alignment using the polar scope or All-Star alignment method. Total setup time ranges from 10 minutes for experienced users to 30 minutes for beginners.
What is the best equatorial mount?
The best equatorial mount depends on your specific needs and budget. For beginners on a budget, the Sky-Watcher Star Adventurer Mini offers excellent value at $335. For the best balance of features and price, the Sky-Watcher Star Adventurer GTI Kit at $679 provides full GoTo capability with a complete accessory package. Advanced imagers requiring professional performance should consider the Sky-Watcher EQ6-R Pro at $2,250.
What is the equatorial mount in a telescope?
An equatorial mount is a telescope mount design that tracks celestial objects by rotating on an axis parallel to Earth’s rotation axis. Unlike alt-azimuth mounts that move up-down and left-right, equatorial mounts rotate in Right Ascension to match the apparent rotation of the night sky. This tracking motion is essential for long-exposure astrophotography because it prevents star trailing caused by Earth’s rotation. German Equatorial Mounts represent the most common design for astrophotography.
How to balance an EQ mount?
Balancing an equatorial mount requires systematic adjustment of telescope and counterweight position. Start by loosening the Declination clutch and gently pushing the telescope until it drifts to a horizontal position. If it drifts upward, move the telescope forward in the saddle; if it drifts down, move it back. Lock the clutch when the telescope stays in position. Next, loosen the Right Ascension clutch and balance the counterweight and telescope together by sliding the counterweight along its bar.
Conclusion
Choosing the best equatorial telescope mount for long-exposure imaging ultimately depends on your specific circumstances, budget, and imaging goals. For photographers starting in astrophotography, the Sky-Watcher Star Adventurer Mini delivers professional-grade tracking in an ultra-portable package at an affordable price. Those wanting full GoTo functionality without professional pricing should consider the Sky-Watcher Star Adventurer GTI Kit, which offers complete imaging solutions right out of the box.
Advanced amateur astronomers with larger telescopes will find the Sky-Watcher EQ6-R Pro provides observatory-quality performance at a fraction of traditional observatory equipment costs. Whatever mount you select, investing in quality equatorial tracking pays dividends in image quality that no other equipment upgrade can match.
We recommend starting with a capable but affordable mount like the Star Adventurer 2i Pro Pack to develop your skills before investing in heavy permanent setups. The experience you gain with polar alignment, balancing, and autoguiding transfers directly to any mount system you later own. Clear skies and happy imaging.
