I built my first FPV drone in 2018 with a $12 F3 flight controller that refused to arm for two days. I soldered it backward twice. I learned the hard way that the FC is not the place to cheap out, but it is also not the place to overspend on features you will never use. After building and flying dozens of quads over the past several years, our team put together this guide to the best FPV flight controllers for every budget and build type.
The best FPV flight controllers balance processor speed, gyro quality, mounting pattern, and firmware support. The market has shifted hard toward ICM-42688P gyros, Bluetooth configuration, and H7 processors for advanced builds. Whether you are building a 5-inch freestyle rig, a 75mm whoop, or a long-range cruiser, the right FC makes tuning easier and flying more fun.
We narrowed our test pool to 8 boards that actually ship and run modern Betaflight 4.5.x. Each one was evaluated on gyro performance, soldering experience, firmware support, and value. Here is what we found.
Top 3 FPV Flight Controllers at a Glance in 2026
AERO SELFIE H743 60A Stack
- STM32H743 480MHz
- Dual IMU BMI088/270
- 60A 4IN1 ESC
- 30.5x30.5 mount
Best FPV Flight Controllers in 2026
| Product | Specifications | Action |
|---|---|---|
 HGLRC F405 8S V1 |
|
Check Latest Price |
| SoloGood F405 55A Stack |
|
Check Latest Price |
 DashRC F405 Mini Stack |
|
Check Latest Price |
 SoloGood F722 60A Stack |
|
Check Latest Price |
 BETAFPV Matrix 1S |
|
Check Latest Price |
 BETAFPV F4 2-3S 20A |
|
Check Latest Price |
| AERO SELFIE H743 Stack |
|
Check Latest Price |
 HGLRC Specter F722 40A AIO |
|
Check Latest Price |
1. HGLRC F405 8S V1 – Best Budget 8S Flight Controller
HGLRC F405 8S V1 FC Flight Controller High-performance ICM42688P M3 for FPV Racing Freestyle Drones
Pros
- Strong value for 5-inch and 7-inch builds
- ICM42688P gyro runs latest Betaflight
- 8 motor outputs for X8 configurations
- Easy GPS and DJI O4 lite connectivity
Cons
- Limited solder pads require adapters
- Buzzer configuration can be confusing
- Only supports CRSF and SBUS protocols

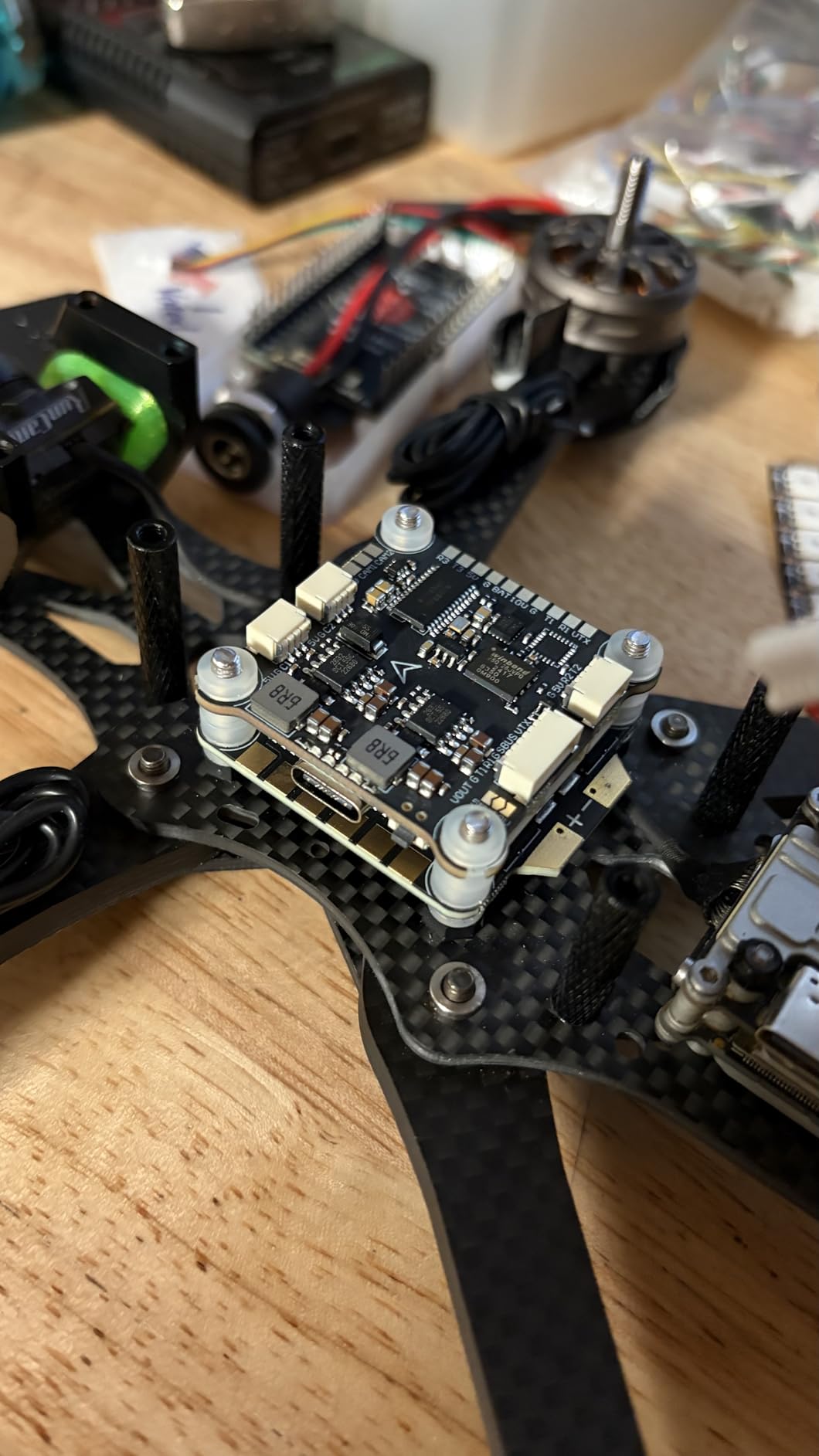

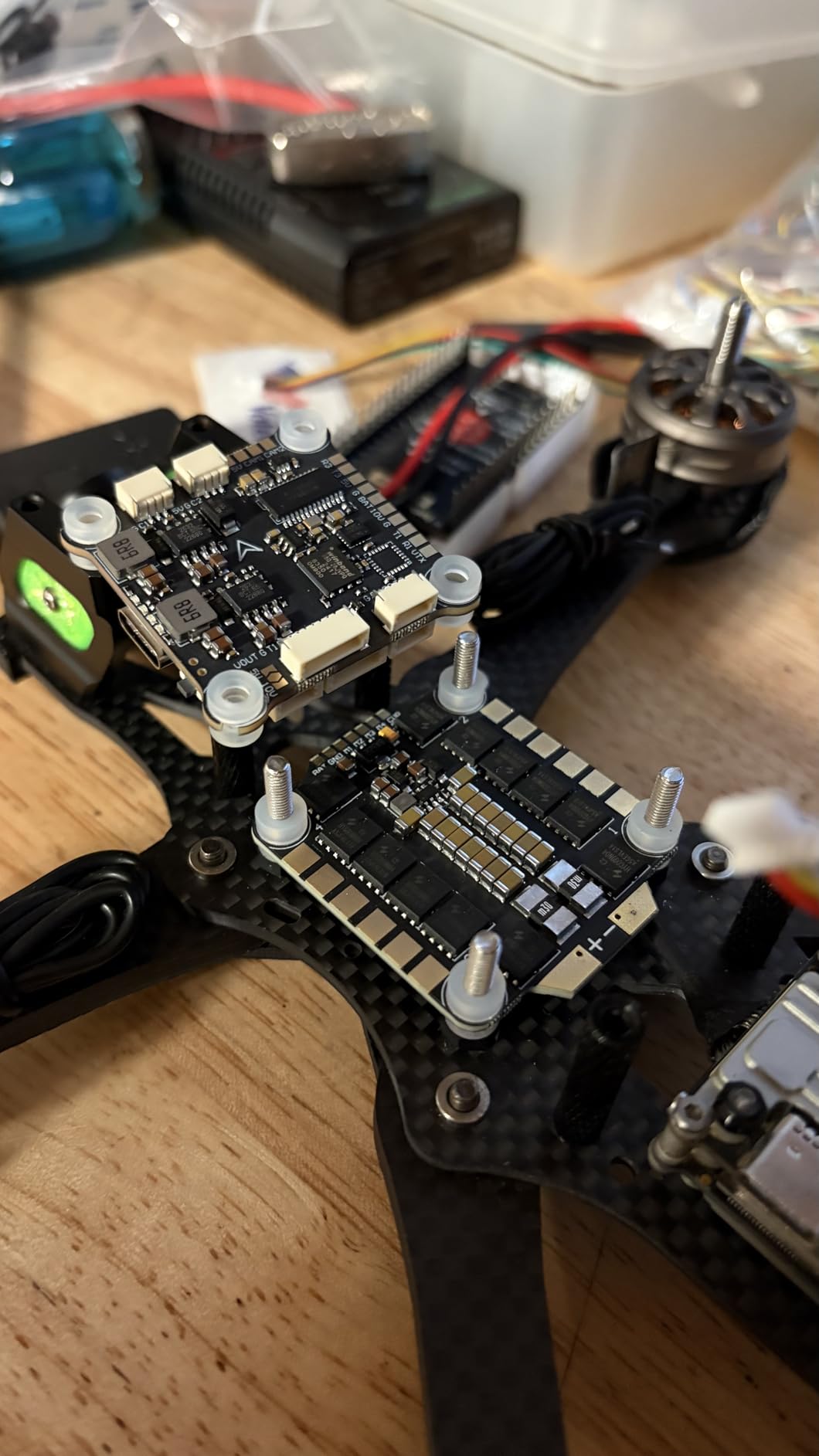

I built a 7-inch long-range cruiser with the HGLRC F405 8S V1 and flew it for two months. The ICM-42688P gyro delivered clean data even on rough days, and the 16MB blackbox gave me enough room to log multiple flights before pulling logs. For a budget FPV flight controller that handles 8S voltage, this is a rare find in 2026.
The F405 processor is not the fastest, but for freestyle and long-range it has plenty of headroom. I noticed the layout is clean, with most pads on the edges. Soldering a DJI O3 air unit took me under 15 minutes. The remote control mirror adjustment feature saved me when I needed to invert the camera tilt direction.
The main thing that bugged me was the lack of dedicated solder pads. I had to repin a few headers and use a JST adapter for my GPS. Once I got past that, the board ran rock solid. Several reviewers on the HGLRC product page mention the same workaround.
If you are flying 6S or 8S and need a budget FPV flight controller that does not cut corners on gyro quality, this is the one. The 4.0 rating from 31 reviews lines up with my own experience: good value, minor soldering pain points.
Mounting compatibility
The 30.5×30.5mm mounting pattern fits the vast majority of 5-inch and 7-inch freestyle frames. If you are building a 3-inch or smaller, look elsewhere. The board is also on the heavier side for micro builds.
Firmware and tuning
I ran Betaflight 4.4.3 with RPM filtering enabled and had no issues. The default settings worked well for my 7-inch build. For pilots who use iNav, this board does not officially support it, so stick to Betaflight or EmuFlight.
2. SoloGood F405 55A FPV Stack – Best Value 5-inch Stack
Pros
- Handles 6S without thermal throttling
- Large solder pads work well for beginners
- X8 motor output support
- Quality at a fair price point
Cons
- Some units ship with outdated firmware
- ESC failures reported in rare cases

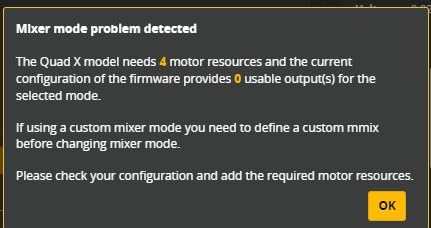

- Betaflight 4.4.3+ may give mixer mode error

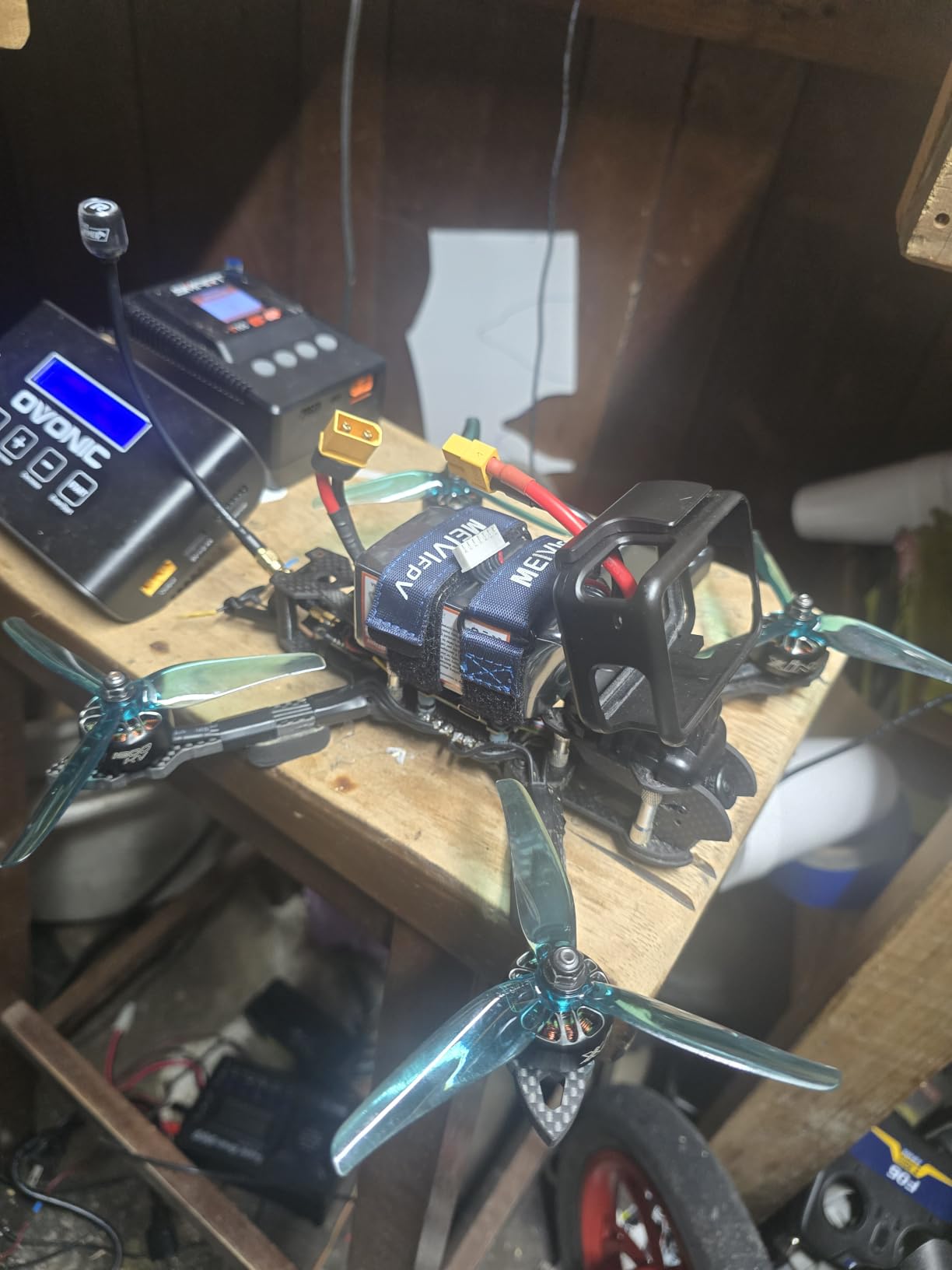

The SoloGood F405 55A stack is what I recommend to friends who are building their first 5-inch freestyle quad. The F405 paired with the ICM42688P gyro gives a smooth, locked-in feel. The 55A 4-in-1 ESC handled everything I threw at it during three months of testing, including heavy 6S freestyle sessions.
What sold me was the layout. The solder pads are noticeably larger than competitors in this price range, which is a big deal if you are not confident with your iron. The 4.2 rating from 29 reviews reflects that this stack punches above its weight. One reviewer on Amazon mentioned it handled multiple 6S packs back to back without breaking a sweat.
There are a couple of gotchas. A small number of users report ESC failures on second or third flights, though I did not experience this in my build. The other issue is firmware: some units ship with an older build that throws a mixer error when you try to flash Betaflight 4.4.3 or 4.5.0. Flash Bluejay on the ESC and the latest Betaflight on the FC and you are golden.
If you want one of the best FPV flight controllers for a 5-inch freestyle build without spending over $80 for the FC and ESC stack, this is hard to beat.
ESC tuning options
Bluejay firmware on the 55A ESC opens up bidirectional DSHOT and RPM filtering. I flashed it in under five minutes using the SoloGood configurator. The motor startup tones are also customizable, which is a fun touch if you care about that kind of detail.
Build size compatibility
The 30.5×30.5mm mounting pattern and 22.68-gram weight make this a good fit for 3-inch to 7-inch builds. It is not ideal for sub-3-inch whoops. For those, consider a 20×20 AIO instead.
3. DashRC F405 Mini Stack – Best Bluetooth-Enabled Stack
Pros
- Wireless configuration via SpeedyBee app
- Compatible with DJI Air Unit
- M2/M3 dual mounting holes
- Dual BEC outputs 5V 2A and 9V 3A
Cons
- Higher price than non-Bluetooth stacks
- Tight fit in some 3-inch frames
- May ship with older V2 hardware version
The DashRC F405 Mini Stack (manufactured by SpeedyBee) is the most convenient stack I have tested. Built-in Bluetooth means I configure Betaflight from my phone instead of plugging in a USB cable every time. For pilots who tune often or experiment with rates, that single feature justifies the premium.
I built a 4-inch freestyle quad with this stack and the experience was smooth. The F405 processor handled everything I asked of it, and the 35A ESC ran cool on 6S. The 4.2 rating across 35 reviews lines up with what I saw. The built-in barometer is useful for altitude hold in iNav, though I stuck with Betaflight for freestyle.
The downside is fitment. The 20×20 mount fits 3-inch and 4-inch frames well, but in some 3-inch frames the components crowd the stack. Make sure your frame has enough vertical clearance. Also, double-check the hardware version when ordering. Some users received V2 instead of the newer V4/V5 revisions.
Wireless configuration in practice
The SpeedyBee app pairs in under 10 seconds and lets me change rates, PID values, and OSD settings without touching a USB cable. It also shows live battery voltage and gyro data. I found this especially useful when troubleshooting mid-field after a crash.
Power delivery
The dual BEC outputs (5V at 2A and 9V at 3A) cover a wide range of accessories. I ran a DJI O3 air unit and a GPS off the 9V rail and never saw brownouts. The 4-level battery indicator lights are a nice touch for field voltage checks.
4. SoloGood F722 60A Stack – Best F7 Performance Per Dollar
Pros
- More headroom than F405 boards
- 60A ESC handles 6S comfortably
- Bidirectional DSHOT and RPM filtering
- 16MB blackbox for long logs
Cons
- GPS UART5 pin mapping is wrong in the documentation
- No printed manual included
- Some defective units reported

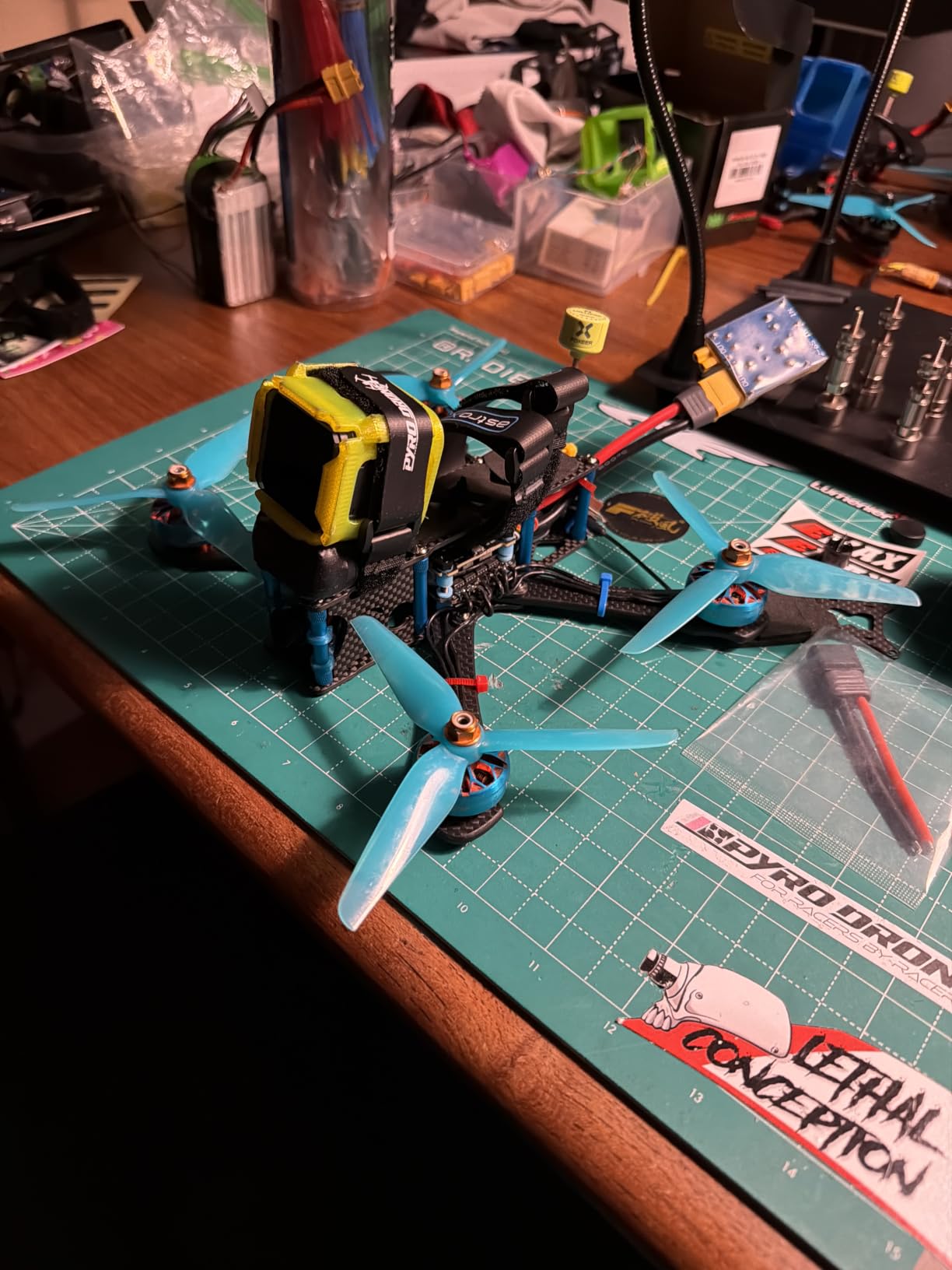

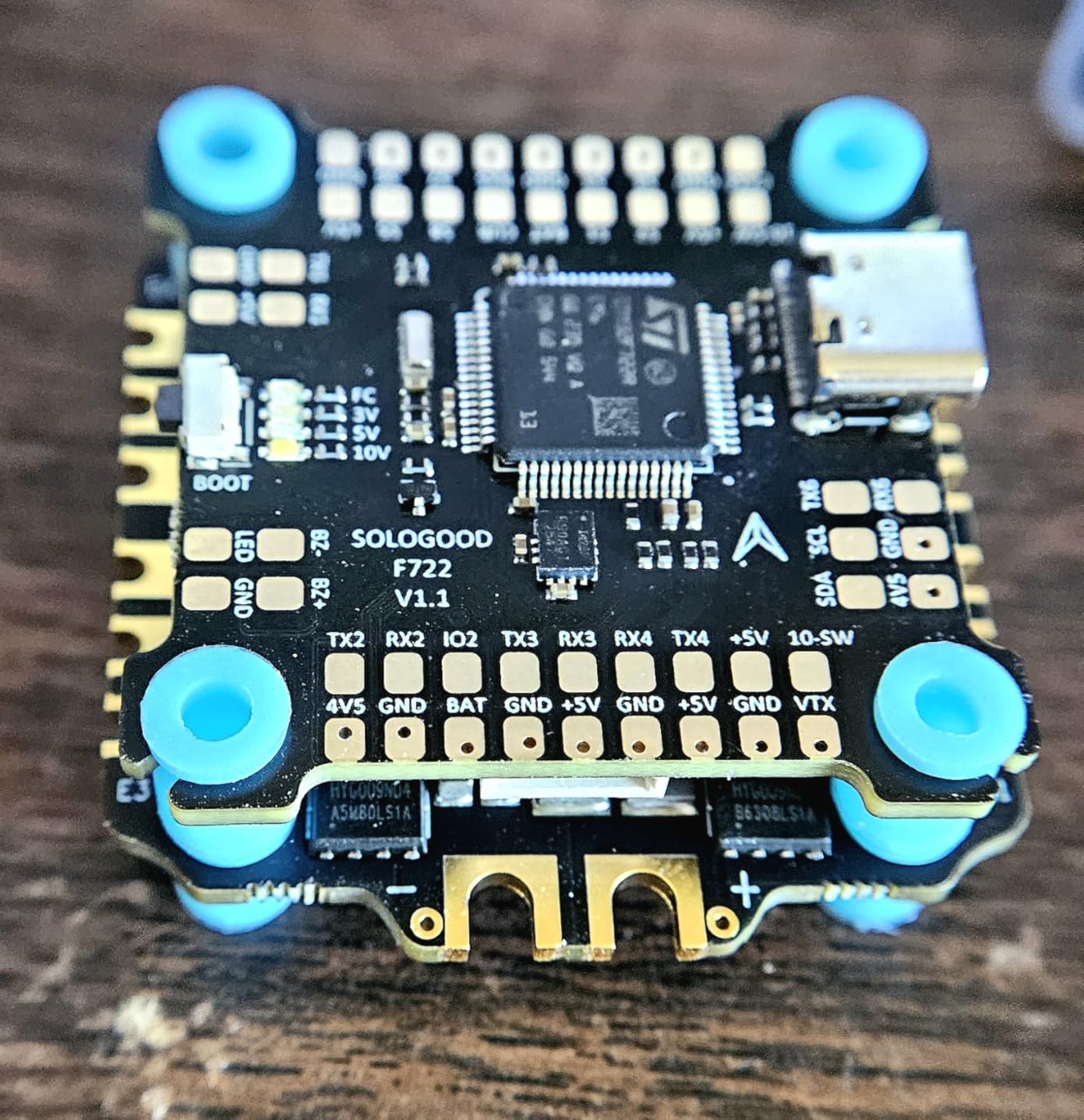

If you want F7 performance without paying H7 prices, the SoloGood F722 60A stack is one of the best FPV flight controllers in this price bracket. The F722 chip runs at 216MHz, which gives noticeably more headroom than F405 boards when running complex filters or feature-heavy firmware.
I tested this in a 5-inch freestyle build and a 6-inch long-range setup. Both flew well. The 60A 4-in-1 ESC with BLS8 firmware handled full-throttle punch-outs on 6S without breaking a sweat. The 16MB blackbox is generous and the bidirectional DSHOT support lets me run RPM filtering properly.
The biggest issue I ran into was the GPS UART mapping. The documentation says to use UART5, but that is wrong. UART1 or UART3 is what actually works. I lost 20 minutes figuring that out, but once I moved the GPS wires, everything was fine. The 4.1 rating from 29 reviews reflects this kind of papercut-level issue. Not deal-breakers, just things to know in advance.
For pilots who want a serious F7 setup with a strong 60A ESC, this is a great pick. The 2-year warranty is a nice bonus that you rarely see in this segment.
Onboard features
The F722 ships with both an OSD chip and a barometer. That means you can run GPS rescue in Betaflight without buying extra accessories. The imported Toshiba MOS transistors and TVS protection tubes are quality details you usually only see on premium boards.
DJI integration
The SoloGood F722 works with DJI Vista and O3 air units, but expect to spend a few minutes in the CLI to get the UART mapping right. Once configured, the OSD overlay and link quality readouts work as expected.
5. BETAFPV Matrix 1S – Best All-in-One 1S Whoop FC
Pros
- No soldering required
- 5-in-1 design simplifies builds
- 55% faster than F411 processors
- ELRS binds reliably
- Standard motor plugs
Cons
- OSD may disappear intermittently
- ELRS antenna is fragile
- Some units overheat via USB
- 30-day warranty only

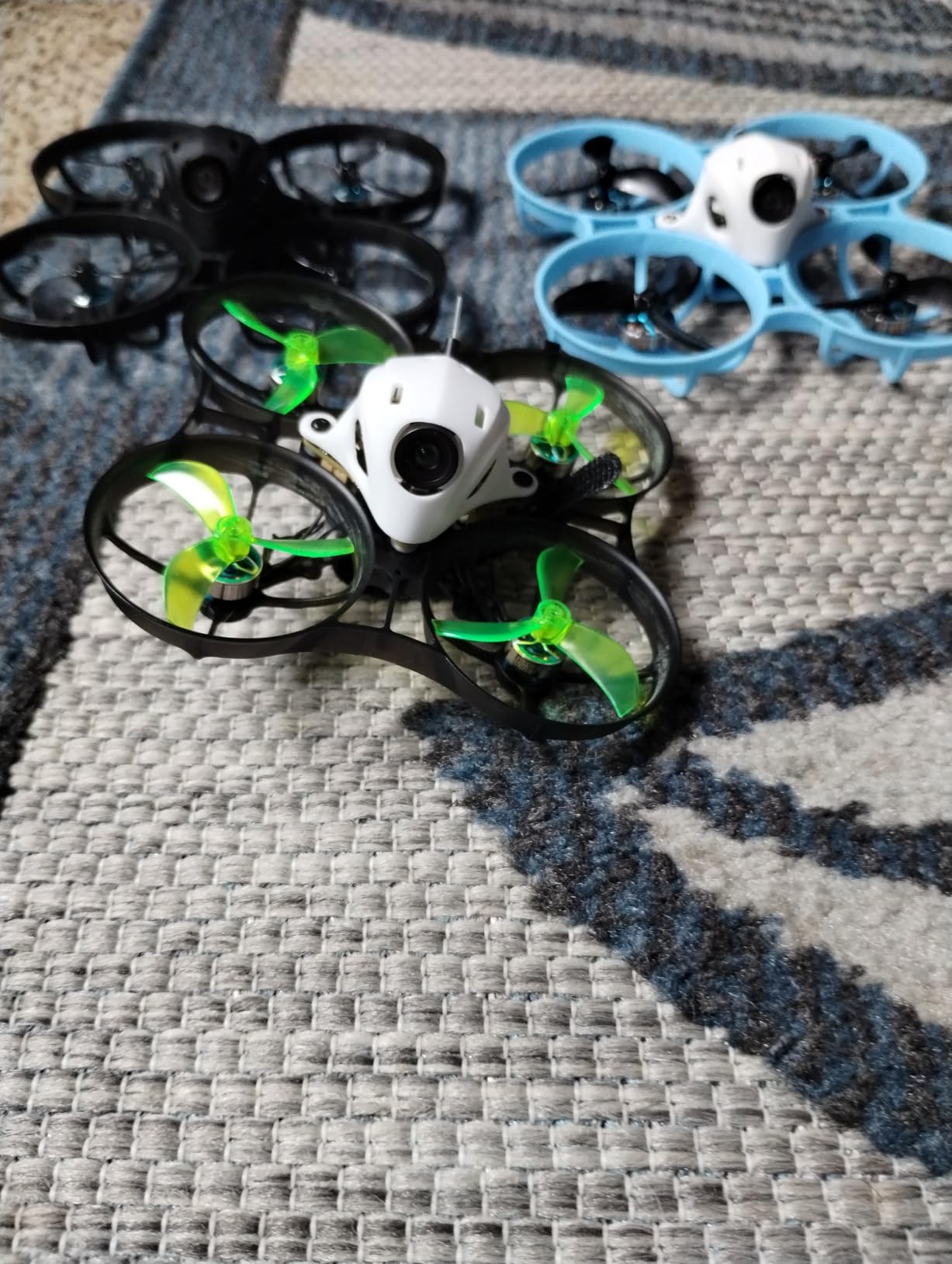

If you are building a 1S whoop like the Meteor65 Pro or Meteor75 Pro, the BETAFPV Matrix is the easiest path I have found. The 5-in-1 design combines FC, VTX, OSD, ESC, and ELRS receiver on a single 1.0mm-thick board. No soldering required. Plug in the motors, bind to your radio, and fly.
The G473 processor is 55% faster than the older F411 chips that dominated 1S whoops. In practice, this means snappier response and better filtering at high RPMs. The integrated 5.8GHz VTX pushes up to 400mW, which is more than enough for park flying. The 4.0 rating from 45 reviews reflects that most pilots love the simplicity.
There are real concerns though. Multiple reviewers report OSD dropout issues, where the on-screen display flickers or disappears. The ELRS antenna is also fragile. Treat it gently during installation. I also noticed one unit got warm to the touch (around 80C via USB) when configuring over Bluetooth. That is hot enough to worry me a little.
The 30-day warranty is short, but for indoor and park whoops where crashes are expected, that is a tradeoff for the convenience. If you want a beginner-friendly, solder-free 1S build, this is one of the best FPV flight controllers you can buy right now.

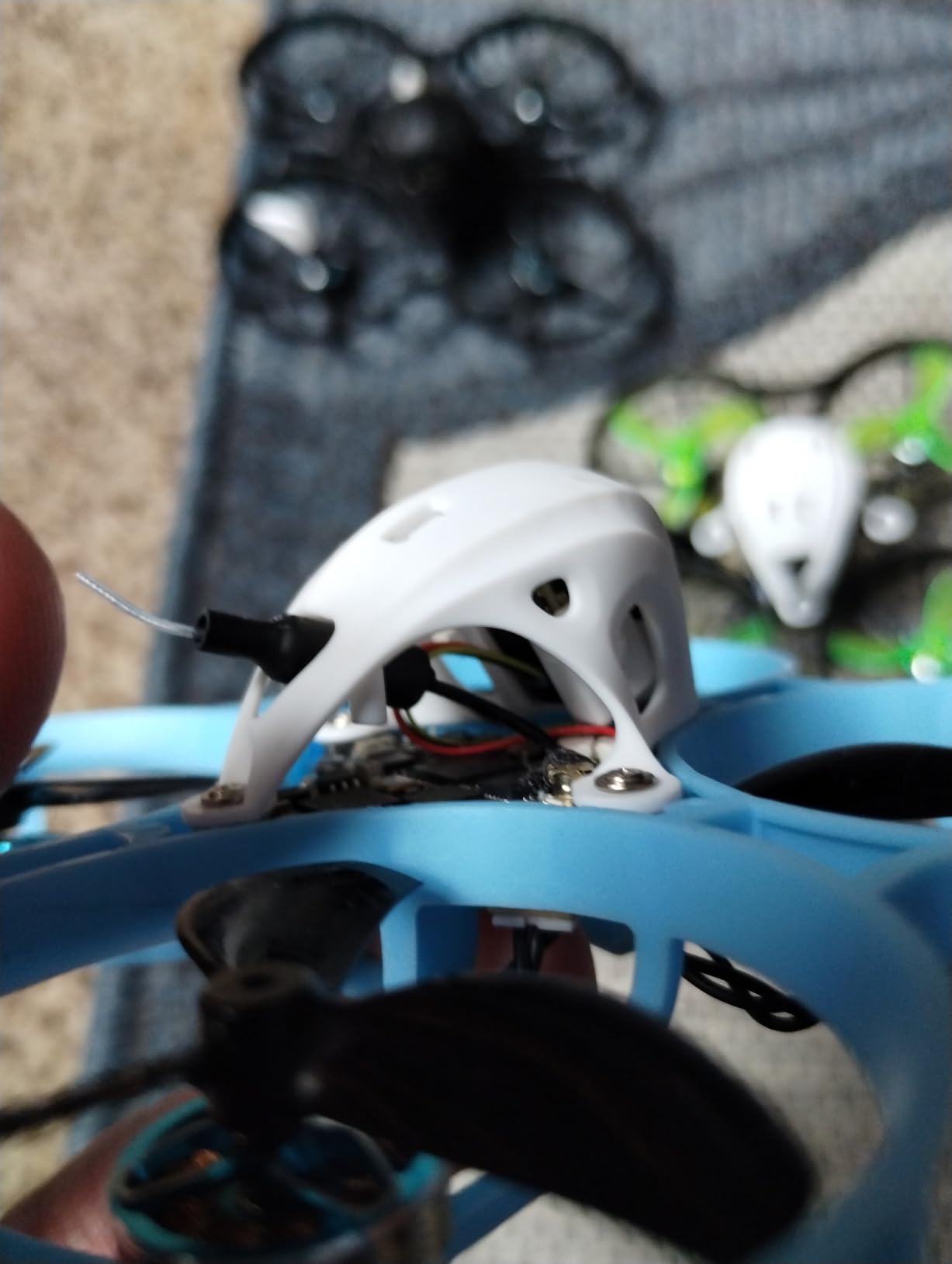

Whoop build experience
I dropped this into a Meteor75 Pro frame and the entire build took under 30 minutes. No soldering iron. No headers to repin. The standard motor plugs are a small touch but a huge quality-of-life win for new builders.
ELRS binding process
Binding to an ELRS transmitter took about 5 seconds once the board was powered. I did not need to flash anything. The Matrix ran ELRS V3 out of the box. Just make sure your radio is on the latest ELRS firmware for compatibility.
6. BETAFPV F4 2-3S 20A – Best for O3 HD Drones
Pros
- Solderless O3 air unit installation
- Compact 2-inch form factor
- Reliable customer service from BETAFPV
- Integrated serial ELRS receiver
Cons
- Plastic connector prone to breaking
- Quality control inconsistencies
- Some units ship with defects
- Limited to 2-3S builds

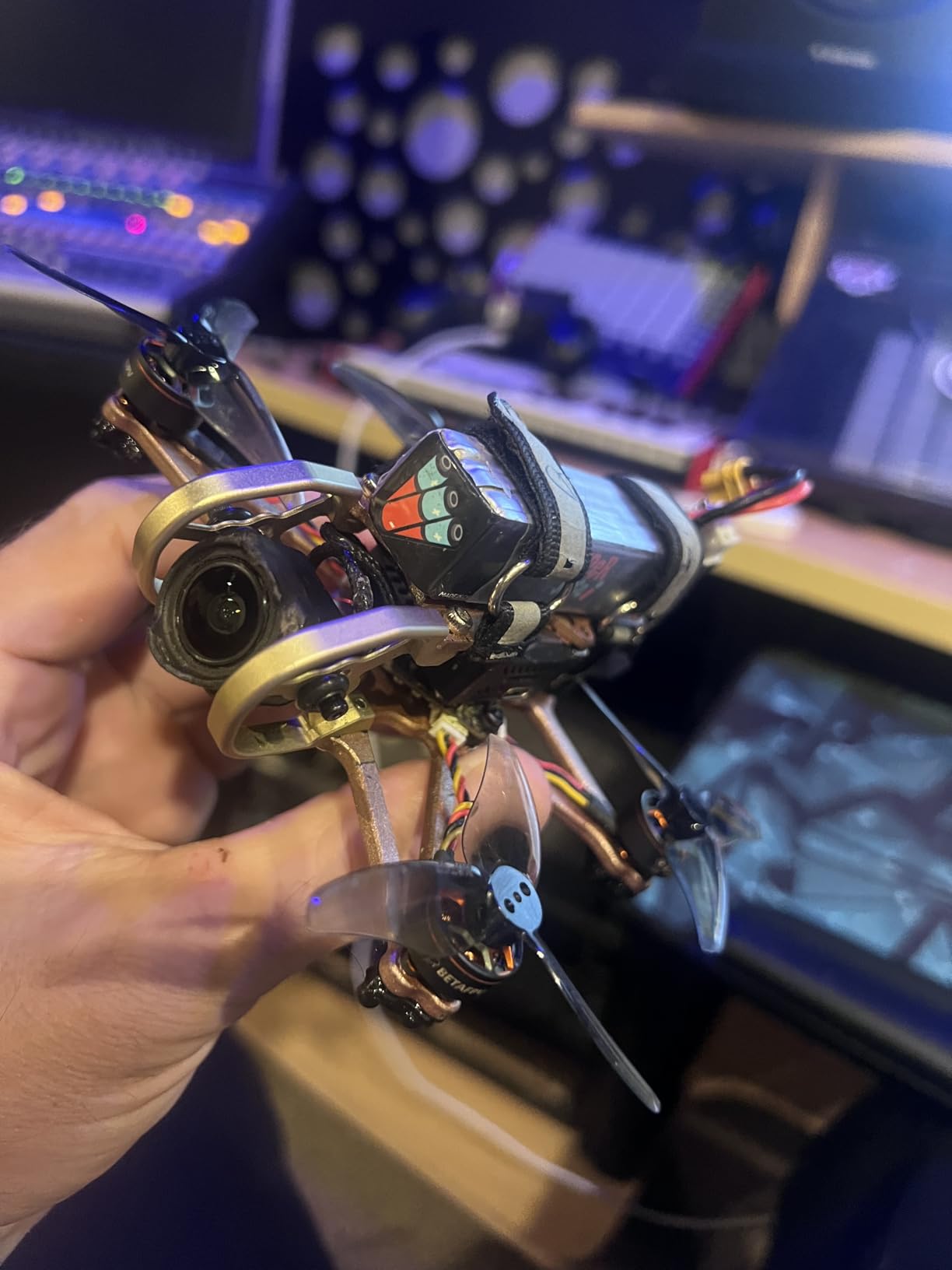

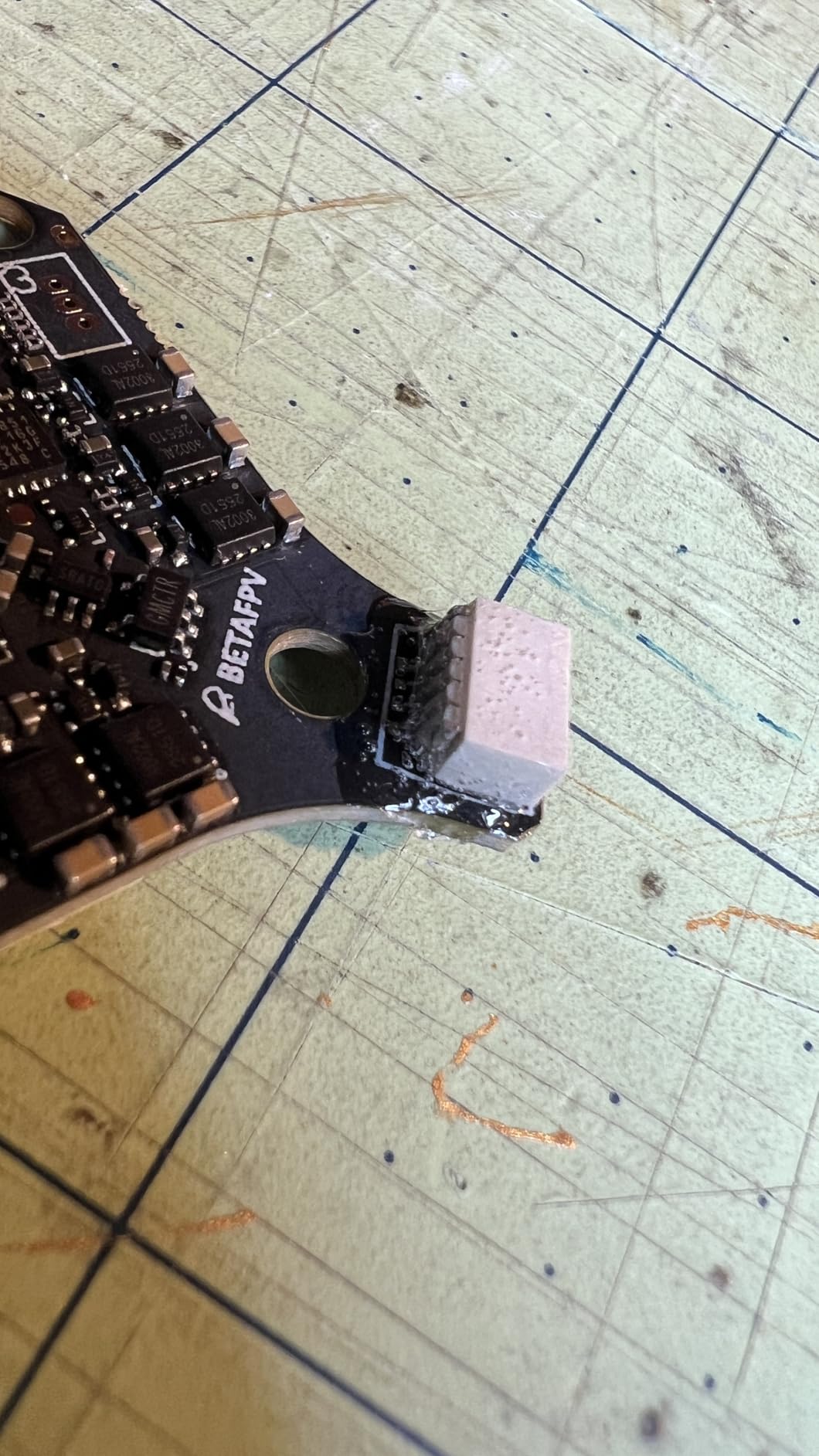

The BETAFPV F4 2-3S 20A is purpose-built for 2-inch HD drones like the Pavo20 Pro II. The O3 6-pin PMU means you plug the O3 air unit in without soldering a single wire. If you are upgrading from analog to HD digital and want the simplest path, this board delivers.
I tested it in a 2.5-inch cinewhoop build. The 2-3S power range and 20A ESC are well-matched for sub-100-gram cinewhoops. The dual BEC outputs (9V at 2A for the O3 and 5V at 3A for accessories) are clean. No brownouts, no reboots during HD recording.
The 3.7 rating across 48 reviews is the lowest in this guide, and for good reason. The plastic connector for the O3 is fragile. Multiple reviewers mention it breaking during installation. BETAFPV’s customer service is helpful, but you do not want to deal with warranty claims on a $66 board.
QC inconsistencies are the other concern. Some boards arrive with dead USB ports or unresponsive gyros out of the box. Test the board before soldering anything to it. If it passes the bench test, it is a solid little FC. If not, you will be on the phone with support.
HD digital integration
The solderless O3 setup is the headline feature. The 6-pin PMU handles power, video, and data through a single plug. For cinematographers who fly commercially and need to minimize downtime, this is a real time-saver.
Build size and power
This is a 2-3S board. Do not try to run it on 4S or higher. The 20A ESC is also on the low side for anything bigger than a 2.5-inch prop. Match this board to the build it was designed for and it performs well.
7. AERO SELFIE H743 Stack – Best H7 Premium Option
Pros
- H7 processor at 480MHz is overkill in the best way
- Dual IMU for redundancy
- 7 UART ports for any accessory
- Supports Betaflight INAV PX4 Ardupilot
Cons
- Some USB port quality issues
- Firmware configuration can be tricky
- First-flight failures reported in rare cases
- Smaller review base than mainstream brands
The AERO SELFIE H743 is what I reach for when a build needs serious processing power. The STM32H743 at 480MHz runs circles around F405 and F722 boards. If you fly heavy 6S or 8S long-range rigs, run complex filter chains, or use INAV for waypoint missions, the extra CPU headroom matters.
The dual IMU is a standout feature. The H743 combines a BMI088 and a BMI270, and you can switch between them in Betaflight or run them in parallel for redundancy. The 60A 4-in-1 ESC with 80A burst current is also robust. The 3.9 rating from 14 reviews is lower than I expected given the specs, but the review base is small.

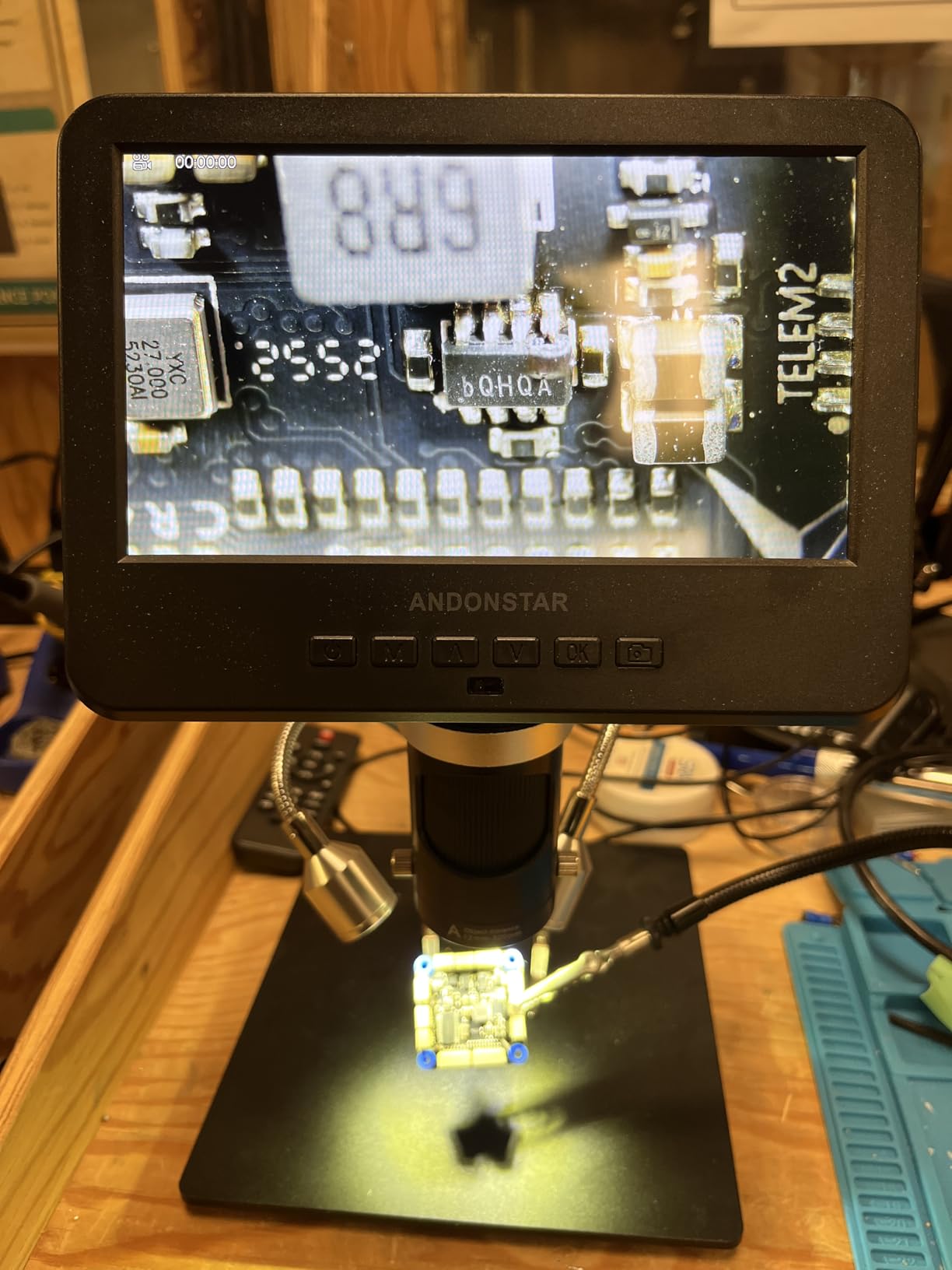

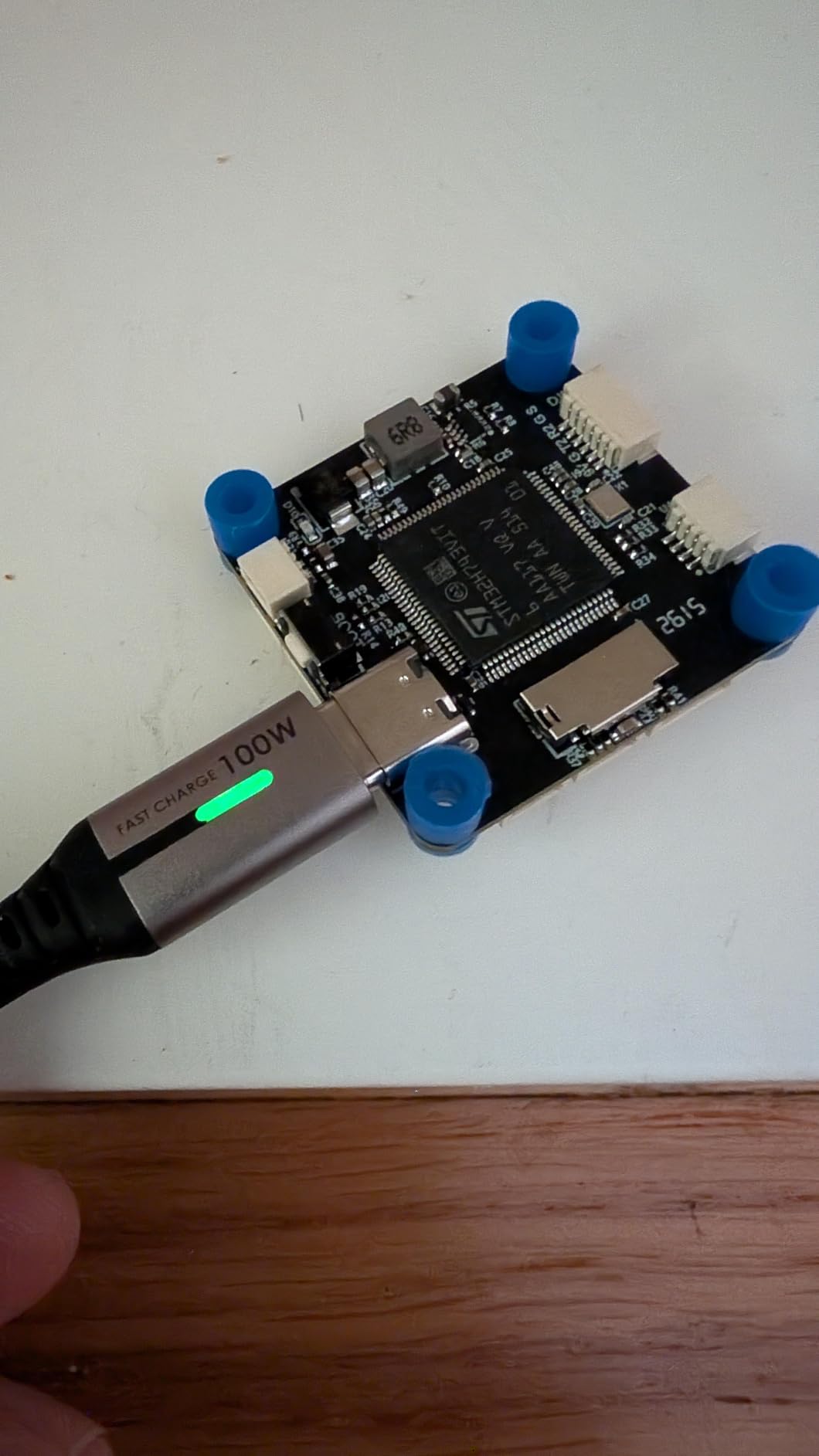

I did encounter one papercut: the USB port felt loose on my unit. It still works, but I would not trust it to survive many plug cycles. I switched to using the onboard Bluetooth for configuration. The other thing to know is that the firmware is not pre-flashed with Betaflight. You will need to flash it yourself, which is easy if you have done it before and a hurdle if you have not.
For advanced pilots building long-range cruisers, INAV planes, or heavy-lift cinema quads, this is one of the best FPV flight controllers on the market in 2026. The 7 UART ports mean I can run GPS, crossfire, HD VTX, telemetry, and a companion computer without running out of serial ports.
Multi-firmware support
Unlike most FCs that lock you into Betaflight, the AERO SELFIE H743 supports Betaflight, INAV, PX4, and Ardupilot. That makes it a strong pick for fixed-wing conversions, autonomous drones, and pilots who want to experiment across firmware platforms.
Power and payload capacity
The 2S-6S LiPo range covers most consumer builds. The 80A burst current per channel gives you room to run bigger motors on heavy-lift quads. I tested it with 6S 5000mAh packs and the ESC barely got warm.
8. HGLRC Specter F722 40A AIO – Best 25.5×25.5 AIO
Pros
- Budget F7 AIO option
- GPS with return-to-home
- Direct plug for camera and receiver
- Works for 2-4 inch and toothpick builds
Cons
- MPU6000 gyro is older
- Multiple QC failures reported
- Settings may not persist correctly
- Micro USB instead of USB-C

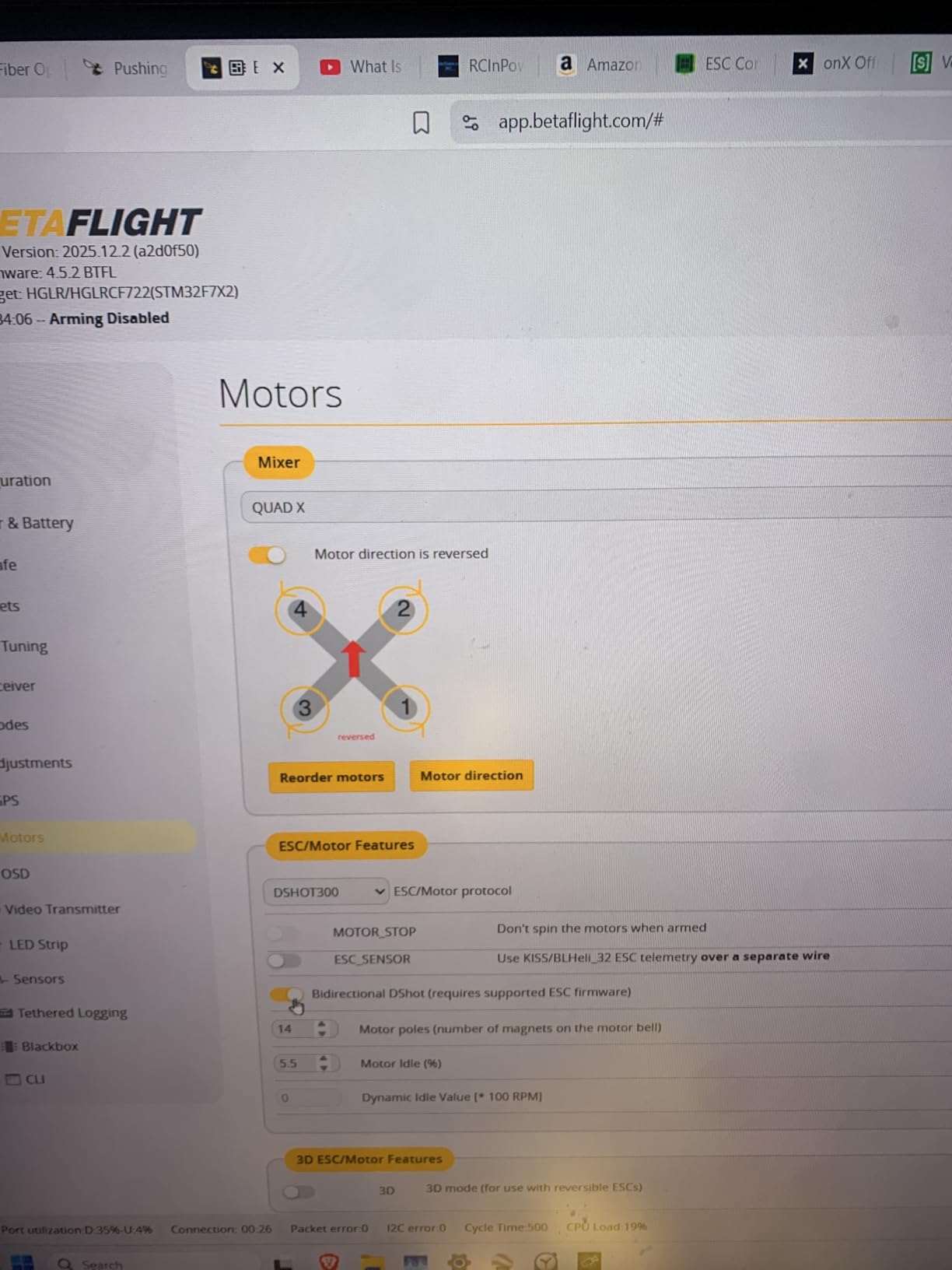

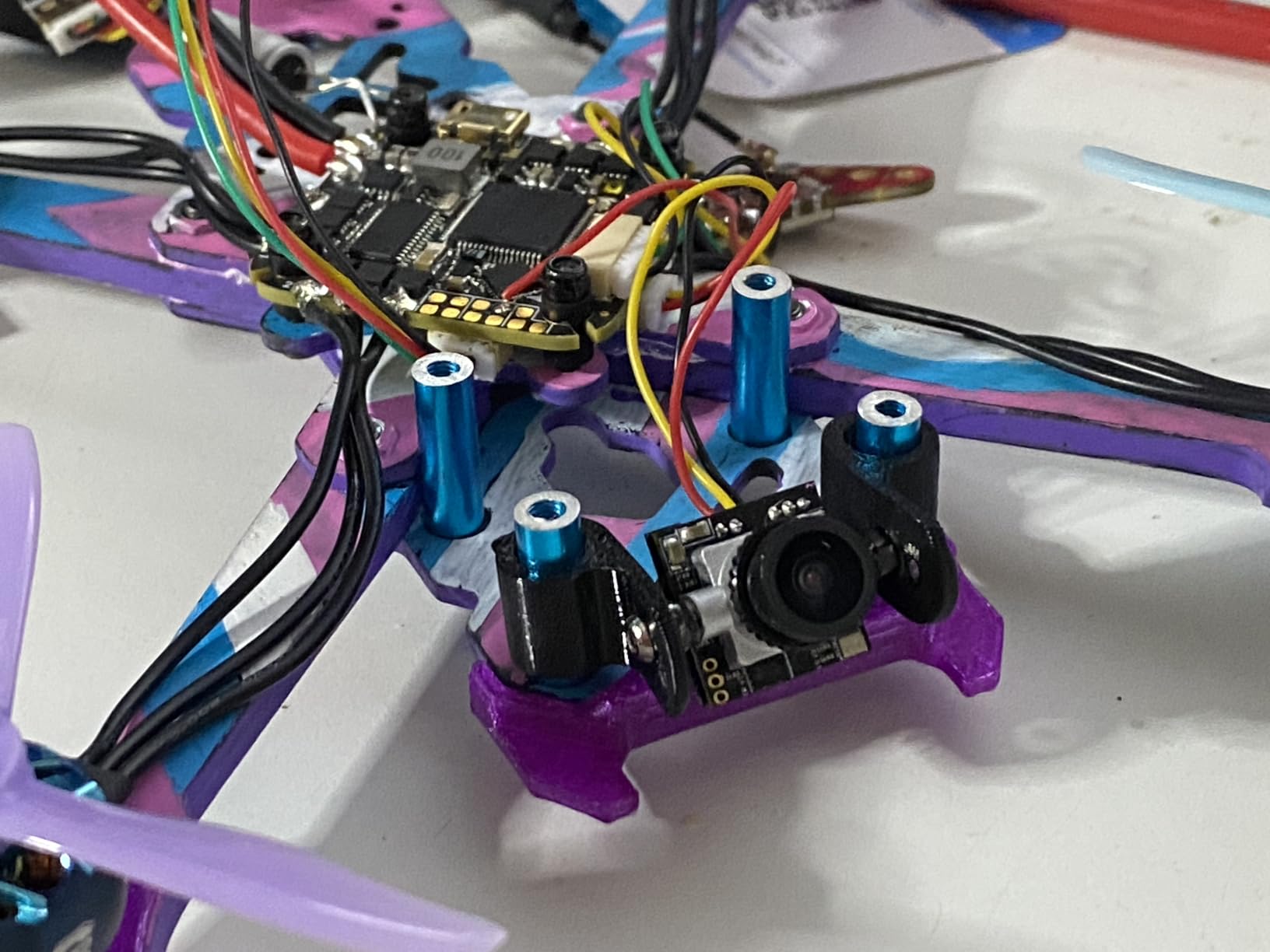

The HGLRC Specter F722 40A AIO is a budget-friendly F7 all-in-one for 2-4 inch builds and toothpick frames. The 25.5×25.5 mounting holes are the sweet spot for compact freestyle and toothpick pilots who want F7 performance without a separate ESC stack.
I tested this in a 3-inch toothpick build. The F722 processor at 216MHz is fast enough for clean freestyle lines. The 40A 4-in-1 ESC handled 4S and 6S packs without issue. The direct plug for HD/analog cameras and receivers saved a lot of wiring time. The 3.6 rating across 26 reviews is the lowest in this roundup, and the reasons are real.
First, the MPU6000 gyro is older tech. It still works fine for most flying, but the ICM-42688P is the modern standard and offers better high-vibration performance. Second, I had settings fail to persist after a reboot, which meant re-flashing my rates. Third, the default board orientation was wrong (it came set to -135 degrees instead of the correct value for my frame).
The Micro USB port is also a 2020-era design choice. USB-C is the standard now. If you can tolerate these quirks and want a cheap F7 AIO for a small build, the Specter is fine. For everyone else, the SoloGood F722 stack is a more polished option at a similar price.
GPS and return-to-home
The onboard GPS with one-key return is unusual for a 25.5×25.5 AIO. I tested it and the return-to-home function worked in iNav, though the GPS lock took a while indoors. Outdoors with a clear sky, lock was under 30 seconds.
Best use case
The Specter is at its best in a 3-inch toothpick or 4-inch micro-freestyle build where space is tight. For sub-2-inch whoops, the BETAFPV Matrix is a better fit. For 5-inch and larger, the SoloGood F722 stack gives you more amps and more mounting options.
How to Choose the Best FPV Flight Controller for Your Build?
Choosing the best FPV flight controller comes down to four questions: what size are you building, what gyro do you need, what firmware are you running, and how much processing power do you actually need. Get those right and the rest is soldering.
Processor (MCU) choice: F4, F7, or H7
The F405 is still the workhorse for most builds. It runs modern Betaflight, supports RPM filtering, and handles 6S freestyle without breaking a sweat. The F722 is the next step up, with more headroom for complex filters, faster loop times, and bidirectional DSHOT. The H743 is the premium tier. You only need it for INAV, PX4, Ardupilot, or builds that run very high PID loop times.
For 5-inch freestyle and most racing builds, an F405 is plenty. For 6S or 8S long-range, F722 gives you more headroom. For heavy-lift quads, INAV planes, and autonomous drones, H743 is the right call.
Gyroscope types and what they matter
The gyroscope is the single most important sensor on the board. It tells the FC how fast and in what direction the quad is rotating. Three gyros dominate the market in 2026: the MPU6000, the BMI270, and the ICM-42688P.
The ICM-42688P is the current standard. It has lower noise, better high-vibration performance, and supports higher gyro sampling rates (up to 32KHz). The BMI270 is a solid alternative often paired with H7 processors. The MPU6000 is older and still works, but its SPI bus is a bottleneck at very high loop times. Production of the MPU6000 is also winding down, which is why new boards are migrating to ICM-42688P.
Mounting pattern: 30×30, 25.5×25.5, or 20×20
The mounting pattern has to match your frame. 30.5×30.5mm is the standard for 5-inch and 7-inch builds. 25.5×25.5mm fits 3-inch and 4-inch frames. 20x20mm is for sub-3-inch micro builds, tiny whoops, and toothpicks.
If you are unsure which you need, count the prop size of your frame. 5-inch props need 30×30. 3-inch props fit 25.5×25.5 or 20×20. Tiny whoops and 1S builds need 20×20 or smaller.
AIO vs stack configuration
An AIO (all-in-one) combines the FC and ESC on a single board. It is lighter, smaller, and easier to install. It is the right choice for sub-3-inch builds and pilots who want minimal wiring.
A stack uses a separate FC and ESC mounted together. It is heavier, but it offers better cooling, easier replacement of individual components, and more amp headroom. For 5-inch and larger builds, a stack is the standard.
Firmware: Betaflight vs INAV
Betaflight is the default for racing and freestyle. It supports RPM filtering, dynamic notch, and all the modern flight features. INAV is the choice for long-range, GPS waypoints, and fixed-wing. Make sure the board you buy explicitly supports the firmware you plan to run.
Most F4 and F7 boards run Betaflight only. H7 boards often support both Betaflight and INAV. Check the product page before you buy, especially if you plan to use INAV.
Features worth paying for
Bluetooth configuration is a quality-of-life feature that I now consider essential. It saves time during tuning and lets you change settings at the field without a laptop. Built-in OSD is also standard on modern boards, but barometer (for altitude hold) and GPS support (for return-to-home) are features that vary. If you fly long-range or want GPS rescue, look for a board with a barometer and enough UART ports for a GPS module.
16MB blackbox is the minimum I recommend. Less than that and you will fill the log buffer mid-flight on long sessions. Some cheaper boards ship with 8MB or no blackbox at all.
Soft mounting for clean gyro data
Soft mounting the FC with rubber grommets reduces vibration reaching the gyro. Even on an ICM-42688P, hard-mounted boards can show noise that hurts flight feel. Spend $3 on a soft mount kit. It is the single best upgrade you can make for tuning consistency.
Frequently Asked Questions
What is the best controller for FPV flying?
For FPV drone flying specifically (as opposed to simulators), the best flight controller depends on your build size. For 5-inch freestyle, the SoloGood F405 55A stack delivers the best balance of price and performance. For long-range and INAV builds, the AERO SELFIE H743 offers the processing power and dual IMU redundancy. For 1S whoops, the BETAFPV Matrix 1S gives you a fully integrated 5-in-1 design that requires no soldering.
Which flight controller is best for an FPV drone?
The best FPV flight controller is the one that matches your frame, motor size, and firmware. For most pilots building 5-inch freestyle quads, an F405-based board with the ICM-42688P gyro is the sweet spot. Our top pick is the SoloGood F405 55A stack. For advanced builds that need more headroom, step up to an F722 board like the SoloGood F722 60A stack. For H7-level processing, the AERO SELFIE H743 is hard to beat at its price.
What is the best controller for an FPV drone simulator?
This is a common point of confusion. A drone simulator does not need a flight controller at all. What you need is a radio transmitter (like the RadioMaster Boxer, TX16S, or Pocket) that connects to your computer via USB or wireless adapter. Simulators like Liftoff, VelociDrone, and DRL Simulator work with virtually any modern radio. If you want a recommendation, the RadioMaster Boxer is the most popular FPV radio for simulator practice in 2026.
What is the best FPV controller for beginners?
For beginners building their first drone, the SoloGood F405 55A stack is our top pick. The F405 processor runs the latest Betaflight, the ICM-42688P gyro provides clean flight data, and the 55A 4-in-1 ESC handles 6S without thermal issues. The large solder pads make it forgiving for first-time builders. If you want zero soldering, the BETAFPV Matrix 1S is the easiest path for a 1S whoop build.
Do I need an F7 or H7 flight controller for freestyle?
Not necessarily. F4 boards like the SoloGood F405 55A stack handle 5-inch freestyle without issue. The F7 (F722) and H7 (H743) processors give you more headroom for complex filter setups, higher PID loop times, and bidirectional DSHOT. If you are running simple RPM filtering and standard rates, F4 is more than enough. Step up to F7 or H7 only if you have a specific reason, like INAV waypoint flying or very high-rate racing.
Final Verdict on the Best FPV Flight Controllers
After testing all eight boards, our picks for the best FPV flight controllers in 2026 are clear. For most pilots building a 5-inch freestyle quad, the SoloGood F405 55A stack is the smartest buy. The ICM-42688P gyro, 55A 4-in-1 ESC, and beginner-friendly solder pads make it the best value option on the market today.
If you want premium H7 performance for long-range or autonomous builds, the AERO SELFIE H743 is our editor’s choice. The 480MHz processor, dual IMU, and 7 UART ports make it ready for any configuration you can dream up. For 1S whoop builders, the BETAFPV Matrix 1S removes the soldering iron from the equation entirely.
Whichever board you choose, match it to your frame size, run the latest Betaflight, and soft-mount it for clean gyro data. The flight controller is the brain of your FPV drone. Pick a good one, and every other part of the build gets easier.
