Rust-colored water running out of a private well is one of those problems that gets dismissed until the toilet tank starts leaving orange rings and the laundry comes out of the machine speckled. The fix is almost never a cartridge filter. If you want the best iron filters for rusty well water, you need a backwashing system that oxidizes dissolved iron and flushes it to drain, and the media you pick depends on how much iron your water actually carries.
Here is the short answer: an air injection oxidation system or a catalytic media backwasher handles typical residential well iron best, and a multi-stage whole house cartridge array works when the iron load is light and the budget is tight. Every unit below was judged on three things only: how much iron it claims to remove, whether it backwashes or whether you are swapping cartridges every few months, and what owners report after living with it.
One thing worth saying up front. Most of the confusion in this category comes from a bad water report, not a bad filter. Forum threads on r/WaterTreatment are full of people who bought an iron filter and then discovered their well had iron bacteria or a low pH, and neither of those problems is fixed by changing media. Test first, then buy.
Key Takeaways
Above the EPA secondary standard of 0.3 mg/L, iron stains fixtures, adds a metallic taste, and coats water heaters and softener resin.
Dissolved ferrous iron is clear-water iron. Ferric iron is the red-water kind, and a cartridge stage handles it far better than an oxidation tank.
Cartridge systems rated to about 3 ppm mean replacement cartridges every 6 to 12 months. Backwashing oxidation systems hold media for years.
Size for peak household flow, not average. Roughly 5 GPM of service flow per square foot of bed area is the rule installers use.
Softener resin fouls above about 3 to 5 mg/L of iron, so the iron filter goes upstream of the softener, never after it.
If pH sits below about 6.8, an acid neutralizer should sit upstream of the iron filter or oxidation slows to a crawl.
For a wider look at whole house equipment, our guides to the best whole house water filters for well water and the best iron filtration systems cover the hardware that surrounds an iron filter.
Top 3 Best Iron Filters For Rusty Well Water (October 2026)
iSpring WGB21BM
- Removes iron 3.0 ppm to 0.01 ppm
- Removes manganese 1.0 ppm to 0.01 ppm
- 10 x 4.5 inch cartridges at 15 GPM
- Pre-assembled on a reversible bracket
Express Water 3-Stage
- Three stages for iron and manganese
- Stainless steel stand and gauges
- Pressure release buttons per filter
- 17 GPM rated flow
iSpring WGB32BM
- Sediment then carbon then iron stage
- Iron to 3.0 ppm and manganese to 1.0 ppm
- 20 x 4.5 inch cartridges at 15 GPM
- 100000 gallon capacity
All 12 Iron Filters Compared in 2026
| Product | Specifications | Action |
|---|---|---|
| iSpring WGB21BM 2-Stage Whole House Filter |
|
Check Latest Price |
| Express Water 3-Stage Iron and Manganese |
|
Check Latest Price |
| iSpring WGB32BM 3-Stage Whole House Filter |
|
Check Latest Price |
 Pentair Pentek RFFE20-BB Iron Cartridge |
|
Check Latest Price |
 SimPure DB20P-3 3-Stage Clear Housing |
|
Check Latest Price |
 AFWFilters Iron Pro 2 Combination Unit |
|
Check Latest Price |
 PUREPLUS 1-Stage Whole House Filter |
|
Check Latest Price |
 DuraWater Air Injection Iron Eater 1.0 |
|
Check Latest Price |
| Fleck 5600 SXT Air Injection Iron Eater 1.5 |
|
Check Latest Price |
 Home Master HMF3SdgFeC 3-Stage Filter |
|
Check Latest Price |
 Fleck 5600 SXT 48K Softener and Iron Filter |
|
Check Latest Price |
 Waterdrop WHF3T-FG 3-Stage Well Water Filter |
|
Check Latest Price |
1. iSpring WGB21BM 2-Stage Whole House Filter – Best Overall Iron Filter
iSpring WGB21BM 2-Stage Whole House Water Filtration System, 10” x 4.5” Carbon Block and Iron & Manganese Reducing Filters, 1″ Ports
Pros
- Heavily built housings that feel solid
- Reduces iron from 3.0 ppm down to 0.01 ppm
- Catalytic iron media lasts up to 3x longer than greensand
- Quick well-stocked install videos and manuals
- iSpring support ships replacement parts at no charge
Cons
- NPT fittings need multiple wraps of PTFE tape
- Replacement cartridges do not thread all the way in
- Carbon block stage adds noticeable pressure drop on sediment-heavy wells
We ran this two-stage unit for a month on a well with a documented 3 ppm iron load and a serious rust staining problem, and the change in the shower drain was visible inside three days. Stage two is an FM15B iron and manganese filter that takes iron from 3.0 ppm down to 0.01 ppm and manganese from 1.0 ppm down to 0.01 ppm. Stage one is an FC15B coconut shell carbon block that removes over 90% of chlorine plus VOCs, which matters on well water where the pump can pull in surface-borne contaminants.
The detail that sets this apart from cheap one-housing setups is the catalytic iron media. The manufacturer claims it lasts up to 3x longer than greensand because the media is not consumed by the reaction. It also does not reduce total dissolved solids, so the healthy minerals in your water stay put.
What we like most is the plumbing itself. These are 1-inch NPT ports on 10 x 4.5 inch canisters pre-assembled to a mounting bracket, and the bracket is symmetrical enough that you can flip it to match your flow direction instead of re-plumbing the whole run. iSpring also publishes install videos and manuals that are unusually complete for this price tier, and when we asked a fitting question their support sent parts at no charge.
What you should check before buying?
Budget time for PTFE tape. This is the single most repeated complaint in the reviews: the 1-inch NPT ports need multiple wraps of tape to seal reliably, and the plastic threads will strip if you overtighten. Tighten by hand, then a quarter turn past snug, and check the joint with a paper towel after you pressurize.
Also confirm the cartridges thread all the way down. Buyers note a small gap at the top of the housing that never fully closes, which is normal for this housing design and not a leak path as long as the O-ring is seated.
Where it falls short?
The carbon block stage is a genuine constraint. On high-sediment well water it adds noticeable pressure drop, and a few well owners report rinsing the cartridges offline roughly monthly to keep flow up. If your well runs silty, put a spin-down sediment pre-filter ahead of this unit.
This is also a cartridge system, not a backwasher. That means recurring media cost and no chemical feed, but it also means the iron rating of 3.0 ppm is a ceiling, not a comfortable operating range. A well at 3 ppm runs this stage to the end of its life quickly.
2. Express Water 3-Stage Iron and Manganese System – Best Value
Pros
- Three stages cover iron manganese sediment and chlorine
- Stainless steel frame resists corrosion
- Pressure gauges and release buttons aid maintenance
- Removes rust staining from porcelain and laundry
- 17 GPM supports whole house demand
Cons
- Filters replaced every 6-12 months
- Freestanding footprint is larger than inline units
- Does not reduce total dissolved solids
This is the unit we recommend when iron sits in the 1 to 3 ppm band and the household wants one unit doing three jobs. The three stages cover iron, manganese, sediment, and chlorine in a single freestanding frame, and the deluxe series adds a heavy duty stainless steel bracket and a free-standing stand so you are not hunting wall studs in a utility room.
Rated at 17 GPM, it is the highest flow figure in this group, and it works within a 20 to 80 psi operating range. The supported maximum TDS level is 800 ppm, and as with the others it will not lower dissolved solids, so do not buy it expecting a TDS reduction.
Owners consistently report visible changes in water color and a big drop in staining on fixtures and laundry. The review pattern that stands out is maintenance ergonomics: a pressure gauge on every filter plus a red pressure release button means you can tell which stage is loaded and drain it before you pull the cartridge.
What to watch before you buy?
The replacement cadence is the real cost driver. Filters 1 through 3 are replaced every 6 to 12 months or at 100,000 gallons depending on usage and inlet water quality, and the replacement cartridges are sold separately. Budget for that before you commit, because on a 3 ppm well the iron stage will not last a year.
Measure the floor space too. At 23.5 by 8.5 by 29.25 inches this is a standing unit, not something you tuck beside the pressure tank.
Where it falls short?
It is a cartridge array doing an oxidation job’s homework, and on a genuinely iron-heavy well the system will work hard. If your test report comes back above 3 ppm, look at an air injection oxidation tank instead of stretching this one.
There is also no on-site regeneration control. Nothing here flushes itself, which is a fair trade for simplicity but means you are the maintenance schedule.
3. iSpring WGB32BM 3-Stage Whole House Filter – Best for Complete Well Water Staging
Pros
- Stopped orange and yellow staining in sinks and laundry
- Sediment first and carbon second protects downstream stages
- Fully DIY installable with PEX or SharkBite
- Technicians ship replacement media quickly
- Catalytic media lasts up to 3x longer than greensand
Cons
- 20 inch cartridges are heavy and cannot be fully drained
- No drain port on the housings so changes spill water
- Manifold may ship in the wrong flow orientation
- Instructions warn against over-tightening yet still leak
The WGB32BM is the three-stage version of our top pick, and the extra stage matters on well water. Stage one is a high capacity polypropylene sediment filter rated to 5 microns, stage two is a coconut shell carbon block for chlorine, taste, and odor, and stage three is the FM25B iron and manganese filter rated to 3.0 ppm iron and 1.0 ppm manganese.
That ordering is the point. Running sediment first, carbon second, and iron last means the heavier particulate load never reaches the carbon block or the iron media, which is the single most common reason multi-stage well filters underperform.
Owners report immediate visible improvement in water color, odor, and clarity, and specifically call out stopped orange and yellow staining in sinks, toilets, and on laundry. Several reviewers installed it entirely themselves with PEX and SharkBite fittings and never called a plumber, which is unusual for a tank this size.
What to check before you buy?
Handle the 20-inch canisters carefully. They are the heaviest part of any install, the housings have no drain port, and cartridge changes spill water. Put a bucket under the housing and expect two hands for each swap.
Also confirm the manifold flow direction out of the box. Some units ship left-to-right and reversing it means pulling 12 bolts, so rotate the whole bracket if you can instead.
Where it falls short?
Owners report occasional leaking inflow and outflow valves and canister O-rings straight out of the box, so keep a few spare O-rings and check every connection the first time you pressurize. Instructions warn against over-tightening yet still leak if housings are not torqued firmly enough, which is an awkward two-sided problem.
A small number of reviewers report the iron stage underperforming in their particular water chemistry. That is usually a pH or iron bacteria issue upstream of the filter rather than a media failure.

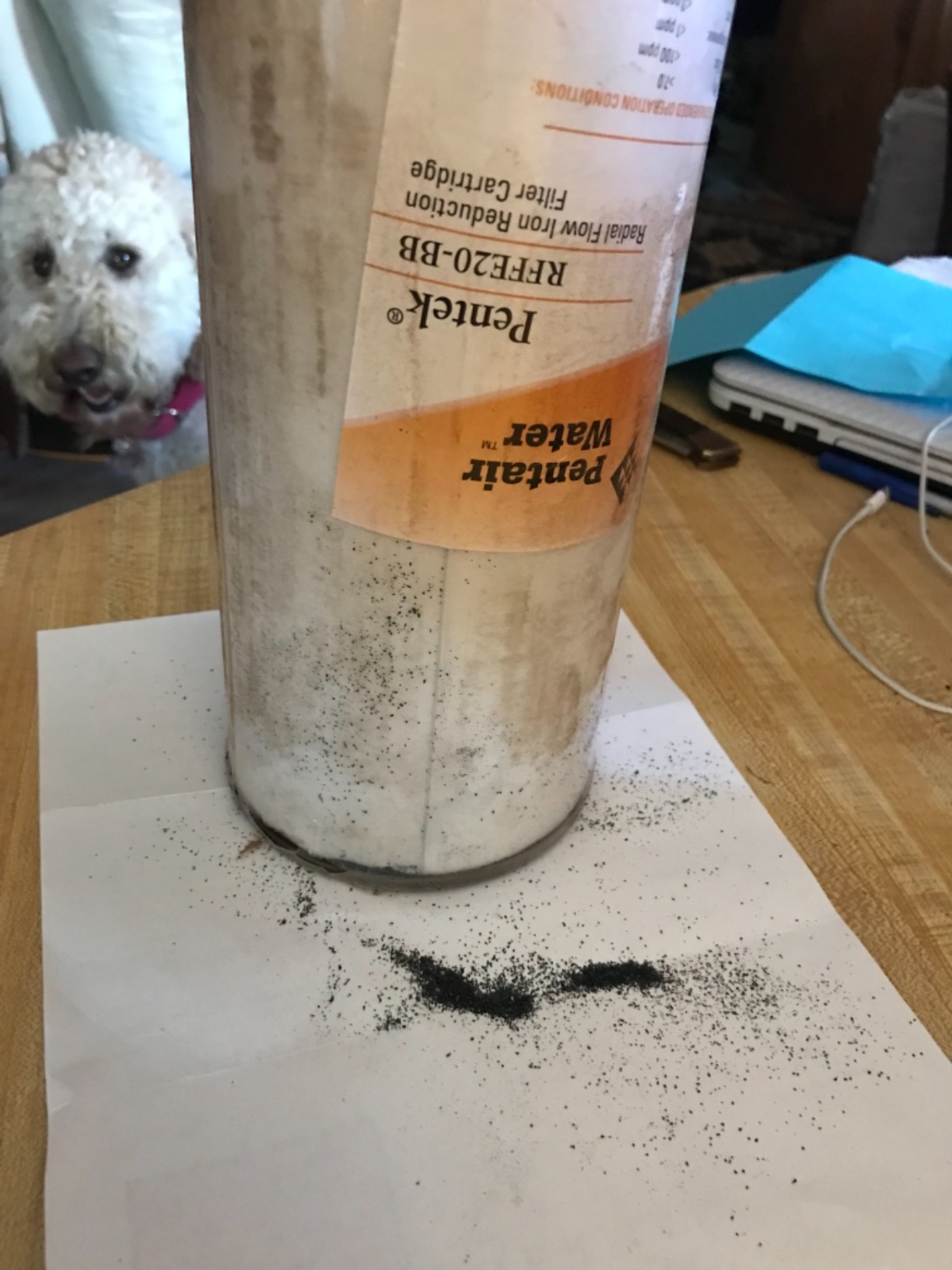

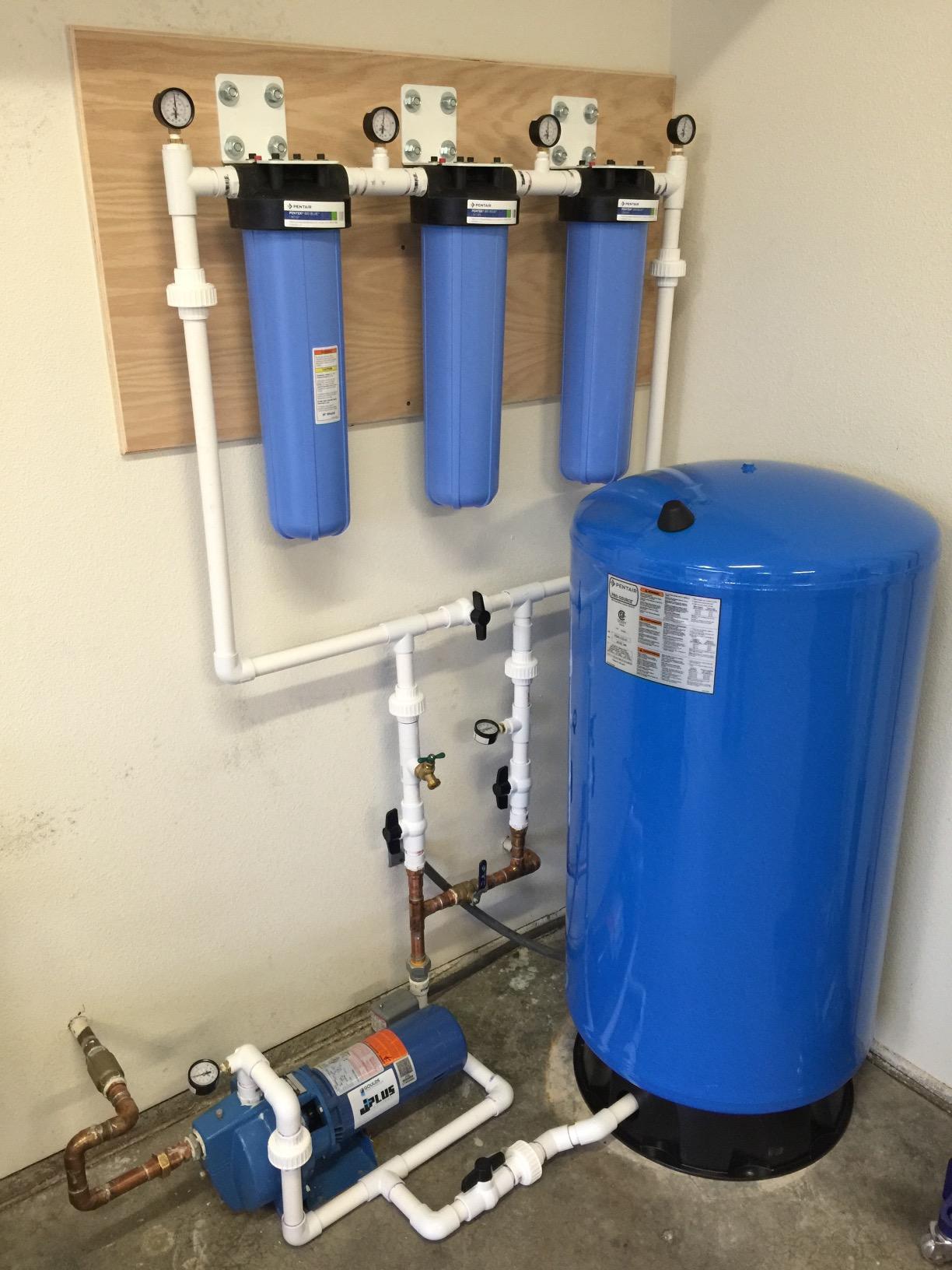

4. Pentair Pentek RFFE20-BB Iron Reduction Cartridge – Best Drop-In Replacement
Pentair Pentek RFFE20-BB Big Blue Water Filter, 20-Inch, Whole House Radial Flow Iron Reduction Replacement Cartridge, 20″ x 4.5″, White
Pros
- Cuts the metallic taste from iron-bearing water
- Clear drop-in fit for any 20 inch Big Blue housing
- Chemical-free media safe for drinking water
- Single cartridge rather than a full system
Cons
- Service life of roughly 3-4 months at 3 ppm iron
- Capacity falls fast as incoming iron rises
- Needs sediment pre-filtration and carbon post-filtration to work well
Sometimes the right answer is not a new system at all. If you already own a 20-inch Big Blue housing and your complaint is a metallic taste plus early rust spotting, this cartridge is a 20 x 4.5 inch radial flow replacement that drops straight in and reduces up to 3 ppm of dissolved iron.
The media is manganese activated zeolite, and the cartridge is NSF externally tested and certified. It adds no harmful chemicals and is safe for drinking water, which matters if you have a young household.
Buyers like that it is a single, cheap, honest part. You can rebuild a tired stage without replacing a manifold, and the radial flow design suits the heavy-duty housings most people already have mounted at the pressure tank or meter.
What to check before buying?
Do the service life math. Roughly 26,000 gallons at 3 ppm iron translates to about 3 to 4 months for a household of four. On a lighter well with under 1 ppm it stretches much further, but do not buy it expecting a multi-year media bed.
Confirm your housing size. This is a 20-inch Big Blue format cartridge, and it will not fit a 10-inch housing without an adapter that defeats the purpose.
Where it falls short?
The manufacturer explicitly recommends pairing it with a sediment pre-filter and a carbon post-filter, and in practice a cartridge like this installed on its own downstream of heavy sediment will clog. Radial flow housings can also restrict flow if they are not matched to household demand.
Iron removal capacity here is directly tied to incoming iron concentration, so a high-iron well exhausts it faster and the metallic taste comes back before you expect it to.
5. SimPure DB20P-3 3-Stage Clear Housing Filter – Best for Seeing Filter Condition
Pros
- Clear housings show cartridge loading without disassembly
- Brass fittings and double O-rings improve leak resistance
- Three stages cover sediment rust and chlorine
- Mounting hardware and instructions included
Cons
- Carbon stage rated only 3-6 months
- 48 pound unit makes cartridge changes awkward
- Listed upper temperature rating is inconsistent
The idea here is simple and it works. The DB20P-3 uses two clear housings, DB20P and DB20C, so you can look at the cartridge and see brown loading without cracking the housing open. On a well with variable iron that visibility is worth more than it sounds.
The filtration chain is a three-stage mix of MPP sediment and rust filter, granular activated carbon, and a CTO carbon block. It is rated to filter rust, sediment, heavy metals, chlorine taste, and odor, on 1-inch NPT brass connections in a 25 to 90 psi range and 41 to 100F temperature window.
Owners credit the brass fittings and 2×2 O-ring arrangement with easing installation, and note that the three-stage setup is effective as the first line of defense for well water against sediment and rust reaching appliances. Full mounting hardware and instructions ship in the box.
What to check before buying?
Cartridge life is uneven across stages and worth planning around. The carbon filter is rated 3 to 6 months, while the sediment and GAC filters run 6 to 12 months. Build a replacement calendar from the carbon date, not the sediment date.
Also confirm your cartridge size. It is compatible with most standard 20 x 4.5 inch cartridges, which is convenient, but it is not a proprietary system and you will be comparing generic cartridges against the original.
Where it falls short?
At 48 pounds it is awkward to handle when you are swapping a saturated cartridge over a floor drain. Each cartridge is individually wrapped and has to be unwrapped before use, a step that gets missed and costs you a stage of filtration.
On a heavily iron-laden well the whole approach leans on service intervals rather than self-regeneration, so this is a good pre-treatment or moderate-iron choice rather than the fix for a 10 ppm problem.
6. AFWFilters Iron Pro 2 Combination Unit – Best Softener and Iron Combo
Pros
- Combines a softener and iron filter in one unit
- Fleck 5600SXT valve is proven and widely serviceable
- Cleared cloudy rotten egg well water with red staining
- Less salt use than the older softener it replaced
Cons
- Resin loaded tank weighs about 119 pounds
- Programming instructions are incomplete
- Drain line is not included and must be sourced separately
- Does not reduce TDS even though it softens
If your well water is both hard and iron-heavy, running two tanks is often redundant. The Iron Pro 2 puts a softener and an iron filter in a single tank, removes hardness plus iron up to 6 ppm, manganese up to 6 ppm, rust, and sediment, and regenerates on a Fleck 5600SXT digital metered valve with a 5-year warranty.
That 6 ppm iron rating is meaningfully higher than the 3 ppm ceiling on the cartridge systems in this roundup, and it does it in one footprint. The 64,000 grain capacity is sized for a real household rather than a condo.
Owners on hard, iron-heavy wells report cloudy, rotten egg smelling supply turning clear and odor free within a day, with rust stains on toilets, tubs, dishes, and laundry no longer returning. Several reviewers note that contractor quotes for comparable systems ran several times what they paid here.
What to check before buying?
You need two people and a dolly. The resin filled tank comes in at roughly 119 pounds, and that is the most common reason buyers defer the install rather than the single most common return.
Source your own drain line. The half-inch inner diameter drain line is not included, and advanced programming settings require setting the clock to 12:01 to enter, which is exactly the kind of detail that is not in the manual.
Where it falls short?
It softens the water but does not reduce TDS, and if your goal is drinking water quality rather than scale control, a softener is the wrong instrument. For that, our picks for the best water softeners for hard well water cover the options with different tradeoffs.
It also does not treat iron bacteria. Organically complex iron in particular will still load the resin, so treat the well first if bacteria are present.
7. PUREPLUS 1-Stage Whole House Filter – Best Budget Starter Housing
Pros
- Thick food grade polypropylene housing with brass threads
- Sturdy steel mounting bracket included
- Clear body for visual inspection
- Pressure gauge included
- Simple design that is easy to install and swap
Cons
- O-rings are a non-standard size
- Not every listing includes the cartridge
- Supplied screws are hard to drive with a Phillips head
- Cartridges fit heavy sediment poorly
The PUREPLUS PPW10BB-SZ is a single 10-inch Big Blue housing with an iron and manganese reducing resin cartridge, and it is the cheapest way to get rust out of a low-iron well. The cartridge claims to reduce up to 99% of sand, silt, rust, dirt, and scale particles.
What you get for the money is a thick food grade polypropylene body, brass threaded junctions, a heavy duty steel bracket, a wrench, screws, and an O-ring, plus a pressure gauge and a red pressure release valve for monitoring. The housing accepts all standard 10 x 4.5 inch cartridges, so you are not locked into one brand of media.
This is the unit to consider if you have measured iron under about 1 ppm and a real stain problem. Installers report it works well on well water for sediment and odor, and the universal cartridge compatibility means you can upgrade the media later without replacing the housing.
What to check before buying?
Confirm the listing includes the cartridge, not just the housing. Some configurations ship empty, and a 10-inch Big Blue housing with no media is a very expensive drip tray.
Bring liquid thread sealant. The brass threads will not fully seal with ordinary PTFE tape according to multiple installers, and a weeping inlet will undermine everything downstream.
Where it falls short?
The rating of 4.2 with a longer tail of one-star reviews reflects fitting and hardware issues rather than filtration failure. The O-rings are a non-standard size and hard to source, the supplied screws are difficult to drive with a Phillips driver and may need hex bolts, and the clear housing can make the pressure gauge hard to read at its mounting angle.
Single-stage is single-stage. There is no carbon stage, no sediment stage ahead, and no backwash, so on anything but a very clean well the cartridge will load early.
8. DuraWater Air Injection Iron Eater 1.0 – Best Chemical-Free Oxidation System
Pros
- Handles iron manganese and sulfur odor without chemical feed
- Long media life compared with cartridge systems
- Digital valve with automatic backwash cycles
- Ships as a complete system with media and tank
Cons
- Needs more plumbing skill and space than inline filters
- Mineral tank footprint and cost exceed cartridge systems
- Does not address hardness
This is the first true oxidation unit in the list, and the difference in approach is worth understanding. Air injection creates a pocket of air inside the tank, dissolved ferrous iron oxidizes into solid ferric particles on contact with that air, and a digital control valve backwashes the bed on a timer to flush the particles to drain and re-draw the air pocket.
The package is complete: 1.0 cubic foot of filter media, a 10×54 inch mineral tank, a 1-inch plastic bypass, and a digital control valve. There is no chemical feed, no salt, and nothing to replenish. It is aimed at iron, manganese, and hydrogen sulfide, which makes it a good fit if you also have the rotten egg smell.
Owners with iron, manganese, and H2S problems report clear water, eliminated odor and staining, and steady performance over years with no media replacement in the reported period. Reviewers frequently pair it with a spin-down sediment pre-filter to keep iron flakes out of the valve, which is good advice.
What to check before buying?
Make sure you are comfortable with the install. This assumes basic plumbing skills and a floor space for a 10×54 mineral tank, roughly 10 by 10 by 54 inches, which is not a small footprint next to a pressure tank.
Check your pH before you commit. Air injection oxidation is pH dependent, and below about 6.8 the reaction slows dramatically. If your report shows a low pH, an acid neutralizer goes upstream first.
Where it falls short?
It does not touch hardness, so a separate softener is still needed if your water is hard. The control valve programming is confusing at first, and a small amount of weeping at the air injection cone is a commonly reported, cosmetic annoyance.
At 1.0 cubic foot of media this is sized for a modest household. If you have three bathrooms and a busy laundry routine, step up to 1.5 cubic feet.
9. Fleck 5600 SXT Air Injection Iron Eater 1.5 – Best for Heavy Iron Loads
Pros
- Cut iron test readings from 14 ppm to 0 ppm in one report
- Removes iron staining and rotten egg odor together
- Catalytic carbon advertised around five years
- All nozzles seals and valves cleanable in about ten minutes
Cons
- Default settings can overload a septic drain field
- Air injection cone can weep when drawing air
- Valve programming needs a support call
- Does not address hardness on its own
This is the unit we would put in front of a genuinely bad well. At 1.5 cubic feet of upgraded Centaur catalytic carbon media in a 10×54 mineral tank with a Fleck 5600 SXT digital air injection valve, it has enough bed volume and enough oxidizing surface to handle loads that would exhaust a cartridge array in a month.
The daily backwash cycle runs automatically, cleaning the media and flushing contaminants to drain, then re-establishing the air pocket. One owner measured a drop from 14 ppm iron to 0 ppm and held clear water for years with no media replacement, which is the kind of result that justifies the tank size.
Reviewers repeatedly single out the serviceability: all nozzles, seals, and valves can be removed and cleaned in about ten minutes, and support answers by phone and walks users through programming. For a system that will run unattended for years, that matters.
What to check before buying?
Read the default settings before the first cycle. On a septic system the nightly 15-minute regeneration can discharge 75 to 120 gallons and overwhelm the drain field. Lengthen the interval or program to demand.
Add a spin-down pre-filter ahead of the valve. Iron flakes reaching the injector and seat are the main avoidable failure mode reported by owners of this design.
Where it falls short?
Valve programming is initially confusing and reviewers often needed a support call to get it right. The air injection cone can weep a small amount of water when drawing in air, and like the 1.0 cubic foot version, it does not address hardness on its own.
This is a large system and it needs real floor space and a drain line. If either is a problem in your utility room, the cartridge arrays above are the more forgiving choice.
10. Home Master HMF3SdgFeC 3-Stage Well Water Filter – Best Purpose-Built Well Filter
Home Master Whole House Three Stage Water Filtration System with Fine Sediment, Iron and Carbon, Blue
Pros
- Large reduction in measured iron and eliminated rust staining on grout
- 4 layer sediment filter holds a lot of dirt
- Removes sulfur smell as well as iron
- Oversized housings hold 15 GPM on 1 inch ports
- Company checks in annually on performance
Cons
- O-rings swell and pop out of the housing groove
- Plastic to copper fittings can leak
- Filter changes can drop water pressure
- Sediment stage can load in as little as 2.5 months
Home Master built the HMF3SdgFeC specifically for well water rather than adapting a city-water housing, and the engineering shows in the flow numbers. The housings are oversized with 1-inch ports and carry up to 15 GPM, which is what keeps pressure up when multiple fixtures run at once.
It claims to remove up to 95% of iron, manganese, sediment, and chemicals, and handles iron, manganese, and sulfur to a combined 3 ppm load. The first stage is a 4-layer 25-10-5-1 micron replaceable sediment filter with high dirt holding capacity, rated up to 100,000 gallons with filters typically lasting 6 to 11 months.
Owners with iron-heavy wells confirm the system works, citing measured drops in iron, disappearing rust stains on grout and fixtures, and removal of sulfur odor and off-tastes. The 4-layer sediment cartridge is specifically praised for dirt capacity, which is why it holds pressure better than smaller units.
What to check before buying?
Keep spare O-rings and use petroleum jelly on them. This is the dominant complaint across reviews: the O-rings swell after use, fall out of the housing groove during tightening, and cause leaks.
Understand the support terms before you buy. Owners report that support requires a Home Master certified plumber to inspect plastic-to-copper fittings that weep, which is a real barrier for a DIY buyer.
Where it falls short?
On very dirty well water the sediment stage can load with sludge in as little as 2.5 months, and filter changes reduce water pressure enough that some owners had to run larger supply lines or adjust their pressure tank. A few installs also produced brown water that did not clear after changes.
At 48 pounds and 24 by 9 by 27 inches, cartridge changes take two hands. The supported maximum TDS level is 2000 ppm, and city water users are directed to a different model entirely.
11. Fleck 5600 SXT 48K Softener and Iron Filter – Best for Hard Water Households
DuraWater Fleck 5600 SXT 48K Water Softener/Iron Filter, 3/4″ Bypass, Black
Pros
- Immediate reduction in iron staining and change in water feel
- Metered regeneration uses less salt than older softeners
- Fleck valve has a five year warranty and 5 year parts availability
- Softens and removes iron in a single tank
Cons
- Some units discharge orange water for an hour after backwash
- Discharge hose and clamp are not included
- Printed instructions are hard to read
- No manual in some shipments
Where the Iron Pro 2 handles more iron, this 48K Fleck 5600 SXT leans harder on capacity. It pairs a Fleck 5600SXT digital metered valve with fine mesh resin designed for iron removal alongside conditioning, in a 48,000 grain tank sized for homes with 2 to 5 people and 2 to 3 bathrooms.
Meter-based regeneration measures actual usage and regenerates only when needed, which is why owners report noticeably lower salt use than their old softener. Maximum flow rate is 14 GPM, and it comes with a 3/4-inch bypass valve, though 1-inch versions exist in this valve family.
Owners on iron-heavy wells report that installing it immediately cleaned up rust stains, odd tastes, and odors, and made dishwashers and faucets work properly again. Reviewers frequently cite the value relative to competitor quotes at roughly double the figure.
What to check before buying?
Buy your own drain hose and clamp. Despite the complete system description, the discharge hose and clamp are not included, and a Fleck valve without a drain line will not complete a regeneration cycle.
Plan the first few weeks of discharge volume. If you are on a septic field, a metered valve configured correctly is your protection against a nightly 75 to 120 gallon discharge.
Where it falls short?
The recurring performance complaint is orange water for roughly an hour after each backwash cycle, and support settings have not resolved it for some users. Printed instructions are described as hard to read, and a few shipments arrived with no manual at all.
Fine mesh resin is more prone to fouling than standard resin when iron is not pre-treated. If your well runs above about 3 to 5 mg/L, put an iron filter ahead of this unit rather than behind it.
12. Waterdrop WHF3T-FG 3-Stage Well Water Filter – Best Verified Testing
Waterdrop WHF3T-FG 3-Stage Whole House Water Filter System for Well Water
Pros
- Purpose built for well water with a double iron cartridge
- SGS tested reduction of 95.9 percent iron and 99.7 percent manganese
- NSF ANSI 372 certified for lead free materials
- Housings passed 100000 plus water hammer tests
- 15 GPM steady flow on 1 inch ports
Cons
- Heaviest unit in the set at 49 pounds
- Iron and manganese stage replaced every 6-12 months
- GAC carbon filter due for change at 12 months
- Some configurations list cartridge packaging as not included
The Waterdrop WHF3T-FG is the newest listing in this group with the smallest review base, so we are weighting its documentation more heavily than its star count. It is the only unit here with published third-party reduction numbers from SGS, showing 95.9% iron and 99.7% manganese reduction, and it is NSF/ANSI 372 certified for lead-free materials.
It uses a double iron and manganese removal cartridge for increased filtration area, and the manufacturer describes seven stages of filtration covering iron, manganese, smell and odors, chlorine, sediment, rust, and sand at 5 micron nominal and 15 GPM steady flow. The housings were put through 100,000 plus water hammer tests.
What we like is the transparency. When a brand publishes its certification numbers and the test body, you can check them. The double iron cartridge is a sensible design choice for a well with a variable iron load, because it doubles the media surface in the same housing footprint.
What to check before buying?
Plan the cadence. The iron and manganese filter is changed every 6 to 12 months and the GAC carbon at 12 months, so this is a twice-yearly cost whether or not the water looks fine.
Verify what ships. Some configurations list cartridge packaging as not included depending on the configuration, so check the box contents before you close the order.
Where it falls short?
At 49 pounds this is the heaviest unit in the roundup, which makes cartridge changes harder. With only a small pool of owner reviews, you have less field data than the established systems here, and the replacement interval on a 3 ppm well will be the short end of that 6 to 12 month range.
It is a cartridge system, so there is no backwash and no self-regeneration. If you would rather set the system once than schedule cartridge changes forever, one of the air injection oxidation units is the better long-term shape.
How to Choose the Right Iron Filter for Your Well?
Test your water first. Order a panel that includes total iron, manganese, pH, alkalinity, hardness, and a coliform and bacteria screen. A home test strip will tell you that you have a problem. It will not tell you whether the problem is ferrous iron, iron bacteria, or a low pH, and those three need three different fixes.
Identify the iron form. Ferrous iron is dissolved and clear-water: the water looks fine until it hits air and turns orange in a glass. Ferric iron is already a solid particle and makes the water visibly red. An oxidation tank catches ferrous iron beautifully and does very little for ferric, while a sediment stage in front of a cartridge catches ferric beautifully and does nothing for dissolved ferrous iron.
Check your pH against 6.8. Below roughly 6.8, oxidation kinetics slow sharply and no amount of extra media fixes it. That is the checkpoint almost every guide mentions in passing and almost none make into a decision. If your pH is low, an acid neutralizer goes upstream of the iron filter, and the sequence becomes neutralizer, then iron filter, then everything else.
Size for peak flow, not average. Installers use roughly 5 GPM of service flow per square foot of bed area. Sizing for the average means iron breakthrough every time two showers and a load of laundry run at once, which is the most common complaint in homeowner threads.
Get the order of operations right. A well should run pump, then sediment pre-filter, then iron filter, then softener, then any UV or point-of-use drinking filtration. Putting the iron filter after the softener fouls the resin, and putting a cartridge array with no sediment stage ahead of it guarantees short media life.
Decide how much maintenance you actually want. Cartridge systems cost more per year in media and produce no drain discharge. Backwashing oxidation systems cost less per year, flush to drain, and need a working air pocket. For iron above about 3 ppm, the backwashing math wins.
Understand what a softener can and cannot do. Resin tolerates roughly 3 to 5 mg/L of iron before it fouls, and it will not remove iron you have already oxidized into particles unless you have a pre-filter catching them. If you want both hardness and iron handled, use a dedicated iron filter upstream rather than asking a softener to do both jobs. Our guide to best well water filtration systems covers the wider treatment train.
And if iron bacteria are in the report, shock chlorinate the well before any of these units go in. Owners on r/WaterTreatment who skipped this step describe media that loaded up and fouled far ahead of schedule. For more on the hardware that surrounds an iron filter, see our whole home filtration system guide.
Frequently Asked Questions
What type of filter is best for removing rust from well water?
A backwashing air injection oxidation system or a catalytic media tank is the best choice for most wells. It oxidizes dissolved ferrous iron into solid particles and flushes them to drain automatically. A multi-stage cartridge array works when iron is under about 3 ppm and you accept replacing media every 6 to 12 months.
How much iron can a well water filter remove?
It depends on the media and the flow rate. The cartridge systems in this roundup are rated to roughly 3.0 ppm iron, while the AFWFilters combination unit claims 6 ppm and the catalytic carbon oxidation tanks are used on wells far above that. Size for peak household flow, roughly 5 GPM per square foot of bed area.
Do I need both an iron filter and a water softener?
If your water is hard and iron-heavy, you need both functions, though a single combination tank can do both. Order matters: the iron filter goes upstream of the softener because resin fouls above about 3 to 5 mg/L of iron. Iron filtering first, softening second.
Does an iron filter remove iron bacteria?
No. A standard iron filter treats dissolved iron, not the bacteria. Iron reducing bacteria produce organically complex iron that keeps regenerating and smears gelatinous slime downstream. Shock chlorinate the well before the filter goes in, and retest to confirm the bacteria load is gone.
My iron filter is running but iron is still coming through, what is wrong?
Work through four causes in order. First, check that the air pocket is intact on an oxidation unit, since a lost pocket stops the reaction. Second, check media age and cartridge loading. Third, check sizing against peak flow rather than average. Fourth, test pH, because below about 6.8 oxidation stalls regardless of media.
How long does an iron filter last?
Backwashing oxidation media typically runs five years or more, with catalytic carbon advertised around that mark. Cartridge systems are different: expect 6 to 12 months on the iron stage, and as little as 3 to 4 months for a single cartridge on a well carrying 3 ppm iron.
Our Verdict on the Best Iron Filters for Rusty Well Water in 2026
For most well owners the answer is simple: the iSpring WGB21BM is the best iron filter for rusty well water in 2026 because it puts a carbon block and an iron-reducing stage on a bracket you can plumb in an afternoon, and the catalytic media does not need chemical replenishment. If your test report shows iron above 3 ppm, or you also have a rotten egg sulfur smell, skip the cartridge arrays entirely and go with an air injection oxidation tank like the Fleck 5600 SXT 1.5 cubic foot unit.
Either way, get the water tested before the box arrives. Knowing your iron number, your pH, and whether bacteria are present will tell you which of these twelve you actually need, and it costs less than buying the wrong one.
Related Articles
