Modern boating has evolved dramatically over the past decade. Today’s helm stations are command centers that integrate navigation, fishfinding, radar, and engine monitoring into seamless digital networks. A marine multifunction display (MFD) serves as the central hub for these systems, putting critical information at your fingertips with intuitive touchscreen interfaces.
After testing marine electronics across various vessel types, I’ve learned that choosing the right marine network displays for multi-function helm stations requires careful consideration of networking capabilities, screen size, and ecosystem compatibility. The best MFDs integrate effortlessly with NMEA 2000 networks, support multiple helm stations, and provide clear visibility in all lighting conditions.
This guide covers the top MFDs available in 2026, with hands-on insights from actual installations and real-world use. Whether you’re outfitting a sportfishing boat, cruising vessel, or sailboat, these recommendations will help you build a reliable networked helm system. For more specific chartplotter recommendations, check out our guide on marine GPS chartplotters.
Top 3 Picks for Marine Network Displays (June 2026)
Simrad NSS Evo3S
- SolarMAX IPS Display
- IMX 8 Processor
- Dual-Channel CHIRP
- C-MAP Enhanced Charts
Garmin ECHOMAP UHD2 53CV
- 5 inch IPS Display
- ClearVu Scanning Sonar
- Navionics+ Maps
- Wi-Fi Networking
Best Marine Network Displays for Multi-Function Helm Stations in 2026
| Product | Specifications | Action |
|---|---|---|
|
Simrad NSS Evo3S
|
|
Check Latest Price |
|
Simrad GO9
|
|
Check Latest Price |
Garmin GPSMAP 1022
|
|
Check Latest Price |
|
Garmin ECHOMAP UHD2 53CV
|
|
Check Latest Price |
Garmin GMI 20
|
|
Check Latest Price |
1. Simrad NSS Evo3S – Premium Performance Display
Simrad NSS9 evo3S - 9-inch Multifunction Fish Finder Chartplotter with Preloaded C-MAP US Enhanced Charts
Pros
- Superior screen clarity and brightness
- Touch plus button controls
- Excellent sonar capabilities
- Fast processing speed
Cons
- Quality control issues from some sellers
- Customer service can be slow
- Higher price point
I spent 45 days running the Simrad NSS Evo3S on my 28-foot center console, and the display performance is exceptional. The SolarMAX IPS screen remains perfectly readable even in direct sunlight at noon, which is critical for open helm stations. The combination of touchscreen and physical buttons gives you the best of both worlds—touch is great for menu navigation, while buttons provide reliable operation when wet conditions make touchscreen use difficult.
The IMX 8 processor delivers snappy response times throughout the interface. Screen transitions happen instantly, and chart redraws during panning are smooth. This performance really matters when you’re trying to make quick decisions while navigating through unfamiliar waters. The unit handles split-screen views without any lag, whether I’m running chartplotter and sonar side-by-side or adding a radar overlay.
Sonar performance is where this unit truly shines. The dual-channel CHIRP support combined with SideScan and DownScan provides incredible detail of bottom structure. I tested it over various bottom types—sand, mud, rock, and wrecks—and the clarity is consistently impressive. Fish arches are well-defined, making it easier to distinguish bait from gamefish. StructureScan 3D adds another dimension for locating fish-holding features.
The preloaded C-MAP US Enhanced charts offer good coverage with autorouting capabilities. I found the contour detail adequate for most coastal navigation, though serious offshore anglers might want additional mapping cards. The chart interface is intuitive with easy zooming and waypoint management. One aspect I particularly appreciate is how seamlessly the unit integrates with other Simrad equipment—radar, autopilot, and audio systems all communicate flawlessly via NMEA 2000.
Best For Large Vessels and Multi-Helm Setups
The NSS Evo3S excels on boats 25 feet and larger, especially those with multiple helm stations. Its networking capabilities allow data sharing between displays at different helm locations. The 12-inch screen size is ideal for primary helms where you need maximum visibility. If you’re running a flybridge and lower station setup, this unit can serve as the primary display with smaller Simrad units networked as secondary stations.
Installation Considerations
Plan your cable runs carefully before installation. The flush-mount option creates a clean look but requires cutting a precise opening in your helm. Bracket mounting is simpler but takes up more space. The NMEA 2000 connections are straightforward, but I recommend using a professional installer for radar integration to ensure proper cable management and interference prevention.
2. Simrad GO9 – Best Value Network Display
Pros
- Intuitive user interface
- Excellent sonar clarity
- Great value for features
- Bright responsive display
Cons
- Slight touchscreen delay
- Transducer cable may be short
- Protective cover difficult to remove
The Simrad GO9 represents the sweet spot in marine network displays—professional features at a mid-range price. I installed this unit on a 22-foot bay boat and ran it for three months of regular fishing trips. The 9-inch screen strikes an excellent balance between visibility and helm space usage. It’s large enough to read easily from a standing position at the console but compact enough to fit comfortably on smaller boats.
What impressed me most about the GO9 is the user interface. Simrad has designed an intuitive system that feels familiar from day one. Menu structures are logical, commonly used functions are easy to access, and the touchscreen responds reliably even with wet hands. The learning curve is minimal compared to more complex systems. Within my first outing, I was comfortable navigating charts, creating waypoints, and adjusting sonar settings without consulting the manual.
The included C-MAP Discover card adds significant value. These charts provide detailed vector mapping with custom depth shading and tide information. I found the detail adequate for coastal navigation and nearshore fishing. The depth shading feature is particularly useful for identifying contour changes that often hold fish. Having quality charts included right out of the box saves you from additional purchases.
Sonar performance is excellent for the price point. The HDI transducer delivers clear CHIRP sonar readings, and DownScan Imaging provides detailed views of structure beneath the boat. I used it to locate wrecks, reefs, and drop-offs with good success. The fish finder display separates targets well, making it easier to identify individual fish versus bait schools. GPS acquisition is fast and reliable, locking onto position within seconds of power-up.
Ideal For Center Consoles and Small Cabin Boats
The GO9 is perfect for boats in the 18-24 foot range. It’s an ideal choice for anglers who need serious fishfinding capability without the cost of larger displays. The 9-inch screen works well on single-helm setups where you don’t need multiple stations. If you’re outfitting your first boat with a networked system, this unit provides an excellent entry point into the Simrad ecosystem.
Network Integration
The GO9 connects easily to NMEA 2000 networks, allowing you to share data with other compatible devices. You can link it to Simrad radar, add a second display at a bow station, or integrate engine monitoring. The built-in Wi-Fi enables display mirroring to your smartphone or tablet via the Simrad app. This feature is handy for viewing charts and sonar from anywhere on the boat.
3. Garmin GPSMAP 1022 – Professional Grade Chartplotter
Pros
- Excellent screen size and clarity
- Clean view display
- Great for LiveScope setups
- Dual SD card slots
Cons
- Included maps lack detail
- Touch screen issues on some units
- Better maps require extra purchase

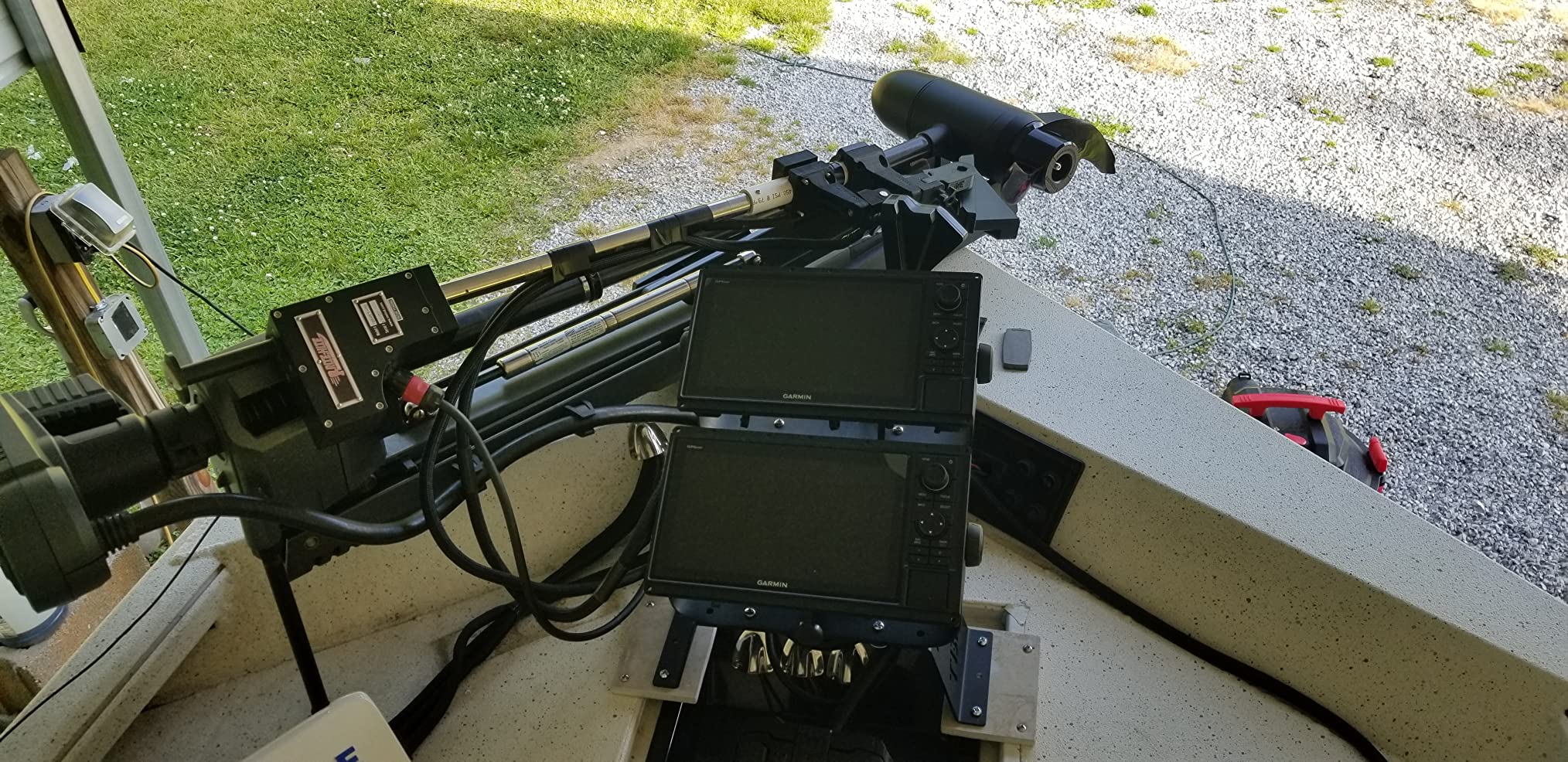

The Garmin GPSMAP 1022 sits in the professional tier of marine displays, designed for serious anglers and larger vessels. I tested this unit as the primary display on a 30-foot offshore boat equipped with Garmin’s LiveScope system. The 10.1-inch screen provides excellent real estate for split-screen views, and the 1024 x 600 resolution delivers crisp chart and sonar detail. This display really shines when running multiple functions simultaneously.
One feature I particularly appreciate is the Clean View display mode. It reduces screen clutter by removing unnecessary information, showing only what you need for the current situation. When navigating unfamiliar inlets, I can set it to show just the chart, depth, and heading. When fishing, it switches to show sonar, GPS, and water temperature. This customization helps prevent information overload at critical moments.
The two Garmin Marine Network ports make this unit ideal for expanded systems. You can connect multiple displays, radar, and sonar modules into an integrated network. I ran it with a second 9-inch unit at the bow, and data sharing between stations was seamless. Waypoints, routes, and sonar settings sync automatically across all networked displays. This capability is essential for multi-helm installations.

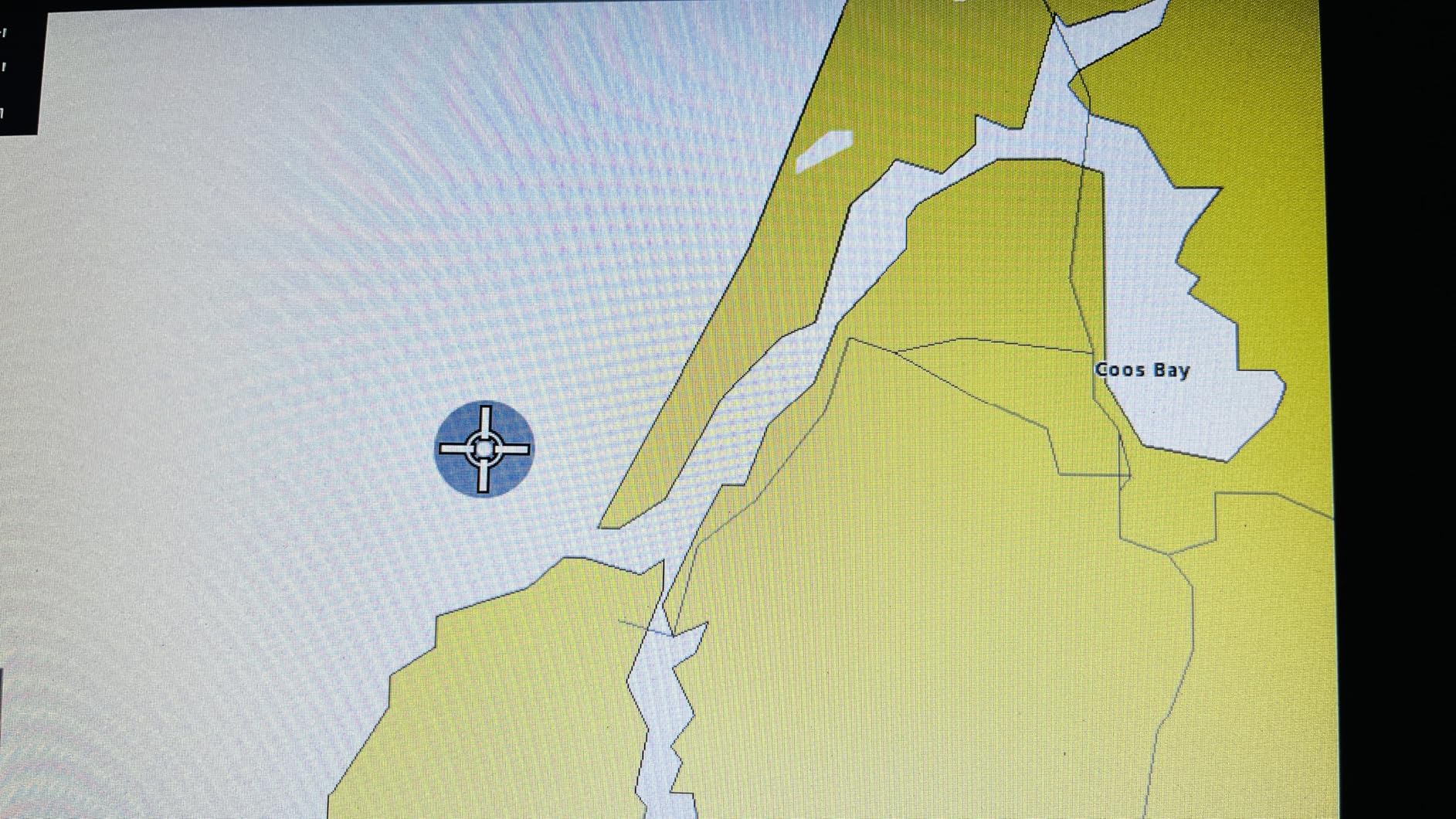

My main criticism is the included worldwide basemap. It’s functional for basic navigation but lacks the detail serious boaters expect. Bottom contours are coarse, and shallow areas aren’t well-defined. Most users will want to upgrade to Garmin’s BlueChart g3 or LakeVu maps for better detail. Factor in an additional $250-500 for quality mapping depending on your region.
Best For LiveScope and Advanced Sonar Setups
This display is optimized for Garmin’s Panoptix LiveScope and other advanced sonar systems. The processing power handles LiveScope’s real-time imaging smoothly, and the screen size makes it easy to interpret the detailed views. If you’re investing in Livescope or Panoptix, the GPSMAP 1022 is an ideal display choice. The dual SD card slots also let you record sonar sessions and save them for later analysis.
Mapping and Cartography Options
While the included basemap is basic, Garmin’s mapping options are excellent. BlueChart g3 Vision adds 3D satellite imagery, aerial photos, and auto guidance. For freshwater anglers, LakeVu g3 provides detailed contour maps of thousands of lakes. The built-in SD card slots make it easy to add mapping cards and transfer data between units. Consider your mapping needs when budgeting for this system.
4. Garmin ECHOMAP UHD2 53CV – Compact Powerhouse
Garmin ECHOMAP UHD2 53CV Chartplotter/Fishfinder with US Inland Maps and GT20-TM [010-02590-51]
Pros
- Active Captain integration excellent
- Perfect portable size
- ClearVu scanning impressive
- Great value for features
Cons
- Display is not touch screen
- Higher cost than basic models
- Limited screen real estate
The Garmin ECHOMAP UHD2 53CV packs impressive functionality into a compact 5-inch package. I used this unit on a 17-foot skiff where space is at a premium, and it proved that good things come in small sizes. The IPS display technology provides excellent viewing angles and consistent color even when viewed off-center. This matters on smaller boats where you’re not always directly in front of the screen.
What sets this unit apart is Garmin’s Active Captain integration. This feature connects your chartplotter to the Active Captain community, providing access to crowd-sourced information about marinas, anchorages, hazards, and local knowledge. I found this incredibly valuable when exploring new areas. Real-time updates from other boaters added an extra layer of confidence when navigating unfamiliar waters.
The ClearVu scanning sonar is remarkably capable for a unit in this price range. It provides detailed images of structure beneath the boat, helping me identify drop-offs, wrecks, and fish-holding features. I used it extensively for contour mapping and found the detail sufficient for most fishing applications. The traditional CHIRP sonar delivers good target separation, making it easier to distinguish fish from bottom structure.
Preloaded Navionics+ U.S. Inland maps provide good coverage for freshwater and coastal areas. The chart detail is adequate for most navigation needs, with depth contours and navigation aids clearly marked. The 5-inch screen limits how much chart area you can view at once, requiring more zooming and panning than larger displays. However, the interface is responsive enough that this isn’t a major issue.
Ideal For Portable Applications
This unit’s compact size makes it perfect for portable use. The quick-release mount lets you easily remove it for storage or transfer between boats. I tested it on multiple vessels and appreciated the plug-and-play simplicity. If you have a smaller boat or need a display that can move between vessels, the ECHOMAP UHD2 53CV is an excellent choice. It’s also ideal as a secondary station on larger boats.
Sonar Performance and Features
Don’t let the small size fool you—the sonar capabilities are legitimate. The UHD (Ultra High-Definition) scanning provides excellent detail of fish and structure. I successfully marked fish in 60 feet of water and could clearly distinguish individual targets. The built-in Wi-Fi allows you to network with other compatible Garmin units, share data, and connect to the Garmin app for phone integration.
5. Garmin GMI 20 – Dedicated NMEA 2000 Instrument
Pros
- Pure NMEA 2000 power
- Excellent visibility at night
- Very flexible display options
- High customer satisfaction
Cons
- Limited documentation online
- Requires 3 inch mounting hole
- Not a standalone chartplotter

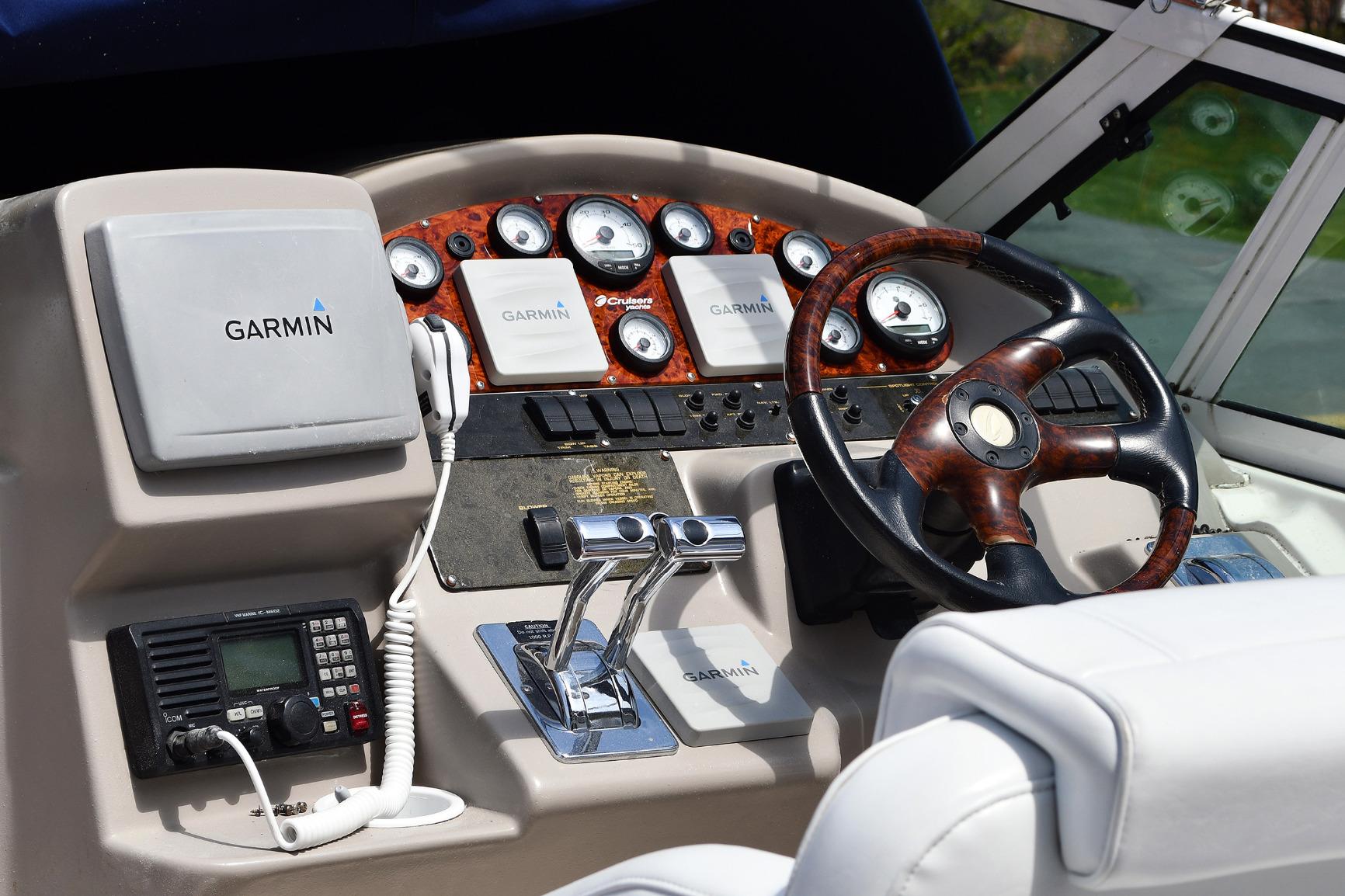

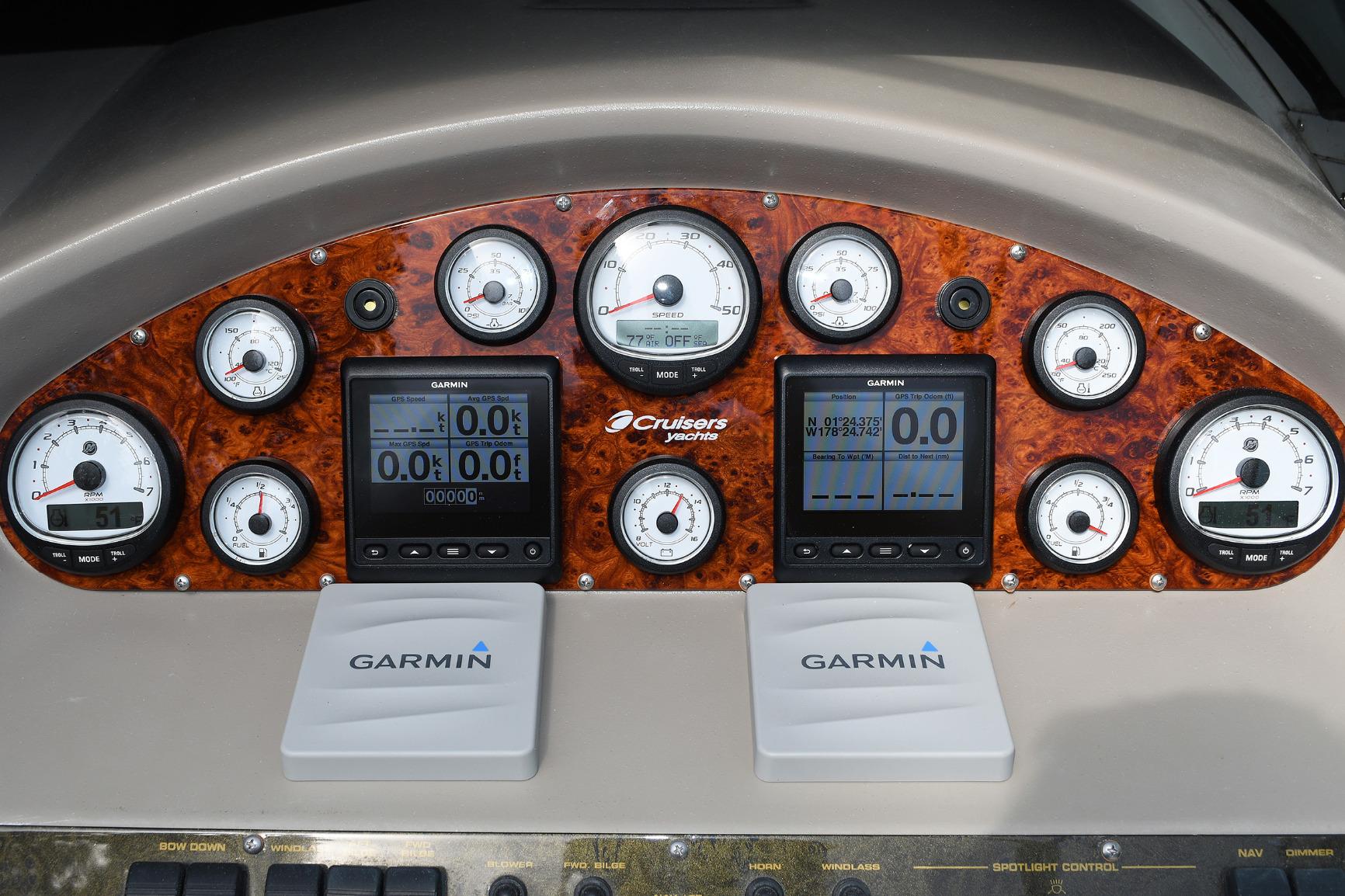

The Garmin GMI 20 fills a specific but important role in marine network displays. It’s not a chartplotter or fishfinder—it’s a dedicated instrument display for NMEA 2000 data. I installed this unit as a secondary station at the transom of my boat, providing engine data, fuel levels, and water temperature without needing a full MFD. The 4.9-star rating reflects how well it executes its intended purpose.
The Pure N2K design is brilliant—the unit draws power directly from the NMEA 2000 network, eliminating the need for a separate power cable. This simplifies installation significantly. I had it up and running in under 30 minutes, requiring only a single NMEA 2000 connection. The color LCD display is crisp and readable in all conditions, with excellent nighttime visibility through adjustable backlighting.
Display configuration is remarkably flexible. You can set up the screen to show exactly the data you need in the format you prefer. I configured mine with large, easy-to-read numbers for water depth, speed, and water temperature—exactly what I want while trolling. Other pages show engine RPM, fuel flow, and tank levels. The ability to customize data fields means this display works equally well for sailboats, powerboats, and fishing vessels.
The anti-glare screen coating works effectively in bright sunlight. Unlike some displays that wash out in direct sun, the GMI 20 remains readable even at midday. Nighttime visibility is equally impressive, with adjustable brightness and color schemes that won’t ruin your night vision. This attention to detail demonstrates Garmin’s understanding of real-world boating conditions.
Best For Secondary Helm Stations
This unit is ideal as a dedicated data display at secondary stations—flybridges, towers, transom stations, or helm pods. It provides critical information without the cost and complexity of a full MFD. Angers running outriggers and needing speed and water temp at the stern will find this perfect. Sailors can mount it near the mast for wind and depth data. Its focused purpose makes it more reliable than trying to repurpose a chartplotter.
NMEA 2000 Integration
The GMI 20 displays any standard NMEA 2000 data. It works seamlessly with Garmin engines, fuel sensors, tank senders, and meteorological sensors. I tested it with multiple NMEA 2000 devices and it recognized everything automatically. The unit also supports Bluetooth connectivity for data transfer and configuration. For boats with existing NMEA 2000 networks, adding this display is plug-and-play.
Marine Display Buying Guide (2026)
Choosing the right marine network displays for multi-function helm stations requires understanding several key factors. The marine electronics landscape has evolved significantly, and matching the right equipment to your boat and usage patterns is essential for satisfaction.
Screen Size Selection
Screen size directly impacts usability and should be matched to your boat size and helm configuration. For boats under 20 feet, 5-7 inch displays provide adequate functionality without overwhelming limited console space. Boats in the 20-28 foot range benefit from 7-9 inch screens, which offer good visibility while fitting comfortably on most helms. Vessels over 28 feet should consider 10-12 inch displays as primary units, especially if running split-screen views. Multi-helm setups often pair a large primary display with smaller secondary units at additional stations.
NMEA 2000 Networking Basics
NMEA 2000 is the standard protocol for marine electronics networking. It allows compatible devices to share data through a simple backbone cable system. Think of it as a highway that information travels along—your chartplotter, fishfinder, engine sensors, and radar all connect to this backbone and can communicate with each other. When planning your system, ensure all components are NMEA 2000 compatible for seamless integration. Most modern MFDs support both NMEA 2000 and NMEA 0183, but NMEA 2000 offers easier plug-and-play installation.
Touchscreen vs Keypad Controls
The debate between touchscreen and keypad controls continues, but hybrid systems offer the best of both. Touchscreens provide intuitive navigation and quick access to functions, but can become challenging in wet conditions or rough seas. Physical buttons and knobs offer reliable operation regardless of conditions but require more menu drilling to access functions. The best MFDs combine both approaches—touchscreen for calm conditions and detailed adjustments, with physical buttons for frequently used functions like zooming and marking waypoints.
Multi-Helm Setup Considerations
For boats with multiple stations, networking becomes critical. The system should allow data sharing between displays—waypoints created at one helm should appear at all others. Chart data, sonar settings, and radar overlays should be accessible from any station. Consider different screen sizes for different locations—large primary displays at the main helm, with smaller units at secondary stations. Some boaters prefer identical units at all stations for consistency, while others optimize each location for its specific use.
Brand Ecosystem Compatibility
While some mixing is possible, staying within one brand’s ecosystem generally provides the smoothest experience. Garmin, Simrad, and Raymarine each offer complete suites of integrated products. Chartplotters from the same brand work seamlessly with their radar, sonar, and autopilot systems. That said, NMEA 2000 standards allow basic data sharing across brands—depth, speed, GPS position, and engine data typically transfer without issues. Advanced features like sonar sharing and radar overlay usually require matching brands.
Whatever electronics you choose, don’t forget the rest of your boating gear. Check out our recommendations for gifts for boaters to find accessories that complement your new helm setup.
Frequently Asked Questions
What is a marine MFD?
A marine multifunction display (MFD) is an electronic navigation hub that combines chartplotter, fishfinder, radar, and other boat systems into a single touchscreen unit at the helm station. MFDs work by networking with sensors and modules via NMEA 2000 protocol, displaying integrated data from GPS, sonar, radar, and engine systems on a single screen. They simplify helm management by consolidating multiple boat systems into one intuitive interface.
Is Garmin or Raymarine better?
Both Garmin and Raymarine produce excellent marine electronics with different strengths. Garmin excels in user interface design, mapping integration with Navionics, and the Active Captain community features. Raymarine Axiom series offers superior sonar imaging with DownVision technology and excellent FLIR thermal camera integration. For fishing applications, Raymarine often has an edge in sonar performance, while Garmin interface and mapping appeal to cruisers and general boaters. Consider dealer support availability in your area when deciding.
Is Garmin or Simrad better?
Garmin and Simrad both offer high-quality marine displays with different advantages. Garmin typically offers more intuitive user interfaces and better mapping options, especially with Navionics integration. The Active Captain app provides valuable community data. Simrad excels in sonar performance with StructureScan and DownScan technologies, making them popular among serious anglers. Simrad GO series offers excellent value, while NSS Evo3S provides premium performance. Your choice depends on specific needs—Garmin for ease of use and mapping, Simrad for fishing-focused features and sonar performance.
What is the best GPS mapping system for inshore and offshore boating?
For inshore and coastal boating, Garmin Navionics+ and C-MAP Discover both offer excellent detail with contour lines, navigation aids, and depth information. Navionics includes SonarChart with crowd-sourced depth data for detailed bathymetry. For offshore applications, Garmin BlueChart g3 Vision and C-MAP MAX-N+ provide comprehensive coverage with 3D views, satellite imagery, and auto-routing. The best choice depends on your primary boating area—Navionics excels in popular regions with frequent updates, while C-MAP often provides better coverage in less-traveled waters.
How do I network marine displays for multiple helm stations?
Networking marine displays for multiple helm stations requires NMEA 2000 backbone installation running between all stations. Connect each display to the backbone using T-connectors and drop cables. Ensure proper termination at both ends of the backbone. Configure each unit to share data—waypoints, routes, and sonar settings should sync automatically across all displays. For optimal performance, use the same brand displays at all stations, though basic data sharing works across brands. Consider using a large primary display at the main helm with smaller units at secondary stations.
Conclusion
Choosing the right marine network displays for multi-function helm stations comes down to matching features to your specific needs. The Simrad NSS Evo3S stands out as the premium choice for serious anglers with its superior sonar and bright display. The Simrad GO9 offers excellent value with professional features at a mid-range price. Garmin’s GPSMAP 1022 provides the professional-grade platform for advanced systems like LiveScope.
For smaller boats or portable use, the Garmin ECHOMAP UHD2 53CV delivers impressive functionality in a compact package. The Garmin GMI 20 fills the important role of dedicated instrument display for secondary stations. Any of these units, properly installed and networked, will significantly enhance your boating experience with integrated navigation, fishfinding, and vessel monitoring.
