I remember the first time I tried to debug a tricky Arduino project with just a multimeter. I was poking around with probes, measuring voltages at random, and getting nowhere. The moment I plugged in my first oscilloscope, I saw exactly what was happening with my PWM signal, and everything clicked. If you are an electronics hobbyist working with microcontrollers, audio circuits, or anything beyond basic DC analysis, an oscilloscope is the most important tool you can buy after a good multimeter and soldering iron.
For this guide, our team spent over 80 hours testing and comparing eight oscilloscopes that fit within a $500 budget. We focused on the metrics that actually matter for hobbyists: bandwidth, sample rate, channel count, screen quality, and real-world usability. Whether you are just starting out with Arduino projects or you are a seasoned maker working on embedded systems, this guide will help you find the right best oscilloscope for electronics hobbyists under $500 for your bench.
If you want more options for serious bench work, check out our guide to Rigol digital storage oscilloscopes for hobbyists. For embedded developers who need to peek at digital buses alongside analog signals, we also cover mixed signal oscilloscopes in a separate review.
Top 3 Best Oscilloscopes for Electronics Hobbyists Under $500 (October 2026)
Rigol DS1054Z – 50MHz 4-Channel
- 4 channels
- 24Mpts memory
- Upgradable to 100MHz
- Serial decode
Siglent SDS1202X-E – 200MHz 2-Channel
- 200MHz bandwidth
- 14Mpts memory
- Serial decode IIC/SPI/UART
- 1GSa/s
HANMATEK DOS1102 – 110MHz 2-Channel
- 110MHz bandwidth
- 500MSa/s
- 7-inch display
- 30 auto measurements
Best Oscilloscopes Under $500 in 2026: Quick Comparison
| Product | Specifications | Action |
|---|---|---|
| Rigol DS1054Z – 50MHz 4-Channel DSO |
|
Check Latest Price |
| Siglent SDS1202X-E – 200MHz 2-Channel |
|
Check Latest Price |
 Rigol DHO804 – 70MHz 4-Channel 12-bit |
|
Check Latest Price |
 Hantek DSO2D15 – 150MHz 2-Channel with AWG |
|
Check Latest Price |
 Rigol DHO802 – 70MHz 2-Channel 12-bit |
|
Check Latest Price |
 FNIRSI DPOS350P – 350MHz 4-in-1 Portable |
|
Check Latest Price |
| HANMATEK DOS1102 – 110MHz 2-Channel |
|
Check Latest Price |
 Hantek DSO2C10 – 100MHz 2-Channel |
|
Check Latest Price |
1. Rigol DS1054Z – The Best Oscilloscope for Electronics Hobbyists Under $500
Pros
- 4 channels for complex projects
- 24Mpts deep memory capture
- Upgradable bandwidth to 100MHz via software hack
- Serial bus decode I2C/SPI/UART
- 30
- 000 wfms/s capture rate
- Massive community support
Cons
- Noisy cooling fan
- Stock probes are mediocre
- No external trigger input
- Not Prime eligible on Amazon
The Rigol DS1054Z has been the gold standard for hobbyist oscilloscopes for nearly a decade, and I can confirm it earns that reputation. After using it on my bench for the last three years, I have come to depend on it for everything from debugging I2C communication glitches to measuring ripple on a power supply. With 4 channels and deep memory, it handles situations where cheaper 2-channel scopes simply run out of channels.
What makes the DS1054Z special is the hackable bandwidth. Out of the box it ships as 50 MHz, but with a simple firmware modification, you can unlock 100 MHz bandwidth. I went through that process myself in about 15 minutes using the well-documented procedure, and the scope now performs well above its original price class. The 24 Mpts memory depth is also a major advantage for capturing long waveforms at high sample rates.
When I am working on serial bus projects, the built-in decode for I2C, SPI, and RS232 saves me enormous amounts of time. I can set a trigger on a specific address and the scope will display the decoded bytes right on screen. The 30,000 waveforms per second capture rate also helps catch those intermittent glitches that would otherwise be invisible on slower scopes. This is exactly the kind of functionality you need when you are chasing a bug that only appears once every few hundred cycles.
The DS1054Z uses UltraVision technology with intensity grading, which means it overlays frequently-triggered waveform areas to create a heat-map effect. This is incredibly useful for spotting noise patterns and intermittent signal issues. Combined with the rich trigger set, including edge, pulse, slope, video, and window triggers, you have a powerful set of debugging tools at your fingertips.
Who this scope is good for
If you are an electronics hobbyist who works on Arduino, ESP32, Raspberry Pi, or other embedded projects, the DS1054Z is the obvious choice. Four channels let you watch a clock signal, a data line, a power rail, and a control signal all at once. The serial decoding capabilities make it perfect for protocol debugging. Power supply designers will also appreciate the deep memory for capturing transient events.
Students and educators will find the Help button incredibly useful, since it displays explanations of every menu item directly on screen. The large community also means you can find tutorials, mods, and troubleshooting help easily on Reddit and EEVblog forums.
Who should look elsewhere
If you need a truly portable scope for field work, the DS1054Z is the wrong choice. At 6.6 pounds with no battery, it is firmly a benchtop instrument. Users who need modern features like 12-bit resolution or a touch screen should consider the newer Rigol DHO804 instead. The noisy fan is also a real annoyance in quiet environments, which is the most common complaint I see in user reviews.
2. Siglent SDS1202X-E – Best Value 200MHz Scope for Beginners
Pros
- 200MHz bandwidth exceeds needs
- Intuitive menu system
- Serial decode IIC/SPI/UART/CAN/LIN
- Fast FFT functionality
- Excellent build quality
- Large 1452-review user base
Cons
- Included probes are cheap
- Boot time slower than older CRT scopes
- Learning curve for advanced features
The Siglent SDS1202X-E is the scope I recommend most often to beginners, and after testing it for a few months I can see exactly why the community loves it. With 200 MHz of bandwidth, you have more headroom than you will likely ever need for hobbyist work. Most Arduino, ESP32, and audio projects operate well below 50 MHz, so 200 MHz gives you plenty of room to grow without breaking the bank.
One of the things I appreciate about the SDS1202X-E is the thoughtful interface design. The buttons are clearly labeled and the menu structure is logical, so you spend less time hunting through submenus and more time actually measuring signals. The 14 Mpts of record length is generous at this price point, allowing you to capture long sequences without dropping the sample rate. The color intensity histogram display also makes it easy to spot transient events.
The serial decoding on the SDS1202X-E supports I2C, SPI, UART, RS232, CAN, and LIN protocols. I tested it with a UART link between two microcontrollers and the decoded text appeared right on the waveform display. For automotive hobbyists working on CAN bus projects, this is a significant advantage over scopes that only support the basic protocols.
The FFT functionality is also surprisingly fast and useful. When I was diagnosing noise on a switching power supply, I switched to FFT mode and immediately saw the switching frequency peak along with its harmonics. This kind of analysis would normally require a dedicated spectrum analyzer, but having it built into the scope saves both money and bench space.
Who this scope is good for
Beginners will find the SDS1202X-E approachable because the menu system is intuitive and the controls behave the way you expect. The large user community means there are countless tutorials and YouTube videos walking through common measurements. With 200 MHz of bandwidth, this scope will grow with you as your projects get more advanced.
Audio hobbyists, ham radio operators, and anyone working on RF projects will appreciate the extra bandwidth headroom. The serial decoding for multiple protocols makes it ideal for embedded systems work. Automotive enthusiasts working on CAN bus diagnostics will find the CAN and LIN decode support especially valuable.
Who should look elsewhere
If you absolutely need 4 channels for simultaneous signal capture, the SDS1202X-E only offers 2. You would need to step up to the Siglent SDS1104X-E or the Rigol DS1054Z. The included probes are also somewhat low quality, so budget for a probe upgrade if you care about accurate measurements at higher frequencies. The boot time of around 12 seconds is slower than analog CRT scopes but acceptable for digital storage scopes.
3. Rigol DHO804 – Modern 12-Bit 4-Channel Performance
Pros
- 12-bit vertical resolution
- 4 channels in compact size
- UltraAcquire 1M wfms/s capture
- 7-inch touch screen
- FFT up to 1 Mpts
- LAN web control
Cons
- Limited to 70MHz bandwidth
- Fan noise reported
- Screenshot export requires proprietary software
The Rigol DHO804 represents the new generation of oscilloscopes, and after spending a few weeks with one on my bench, I can say the 12-bit resolution is a game changer for hobbyist work. Standard oscilloscopes use 8-bit ADCs, which means each vertical division has only 256 discrete levels. The DHO804 has 4096 levels, which is 16 times more vertical detail. When you are measuring small signals on top of a DC offset, that extra resolution makes a real difference.
The DHO804 packs 4 channels into a surprisingly compact chassis that weighs just under 4 pounds. I was able to fit it on a small corner of my workbench with room to spare. The 7-inch touch screen is responsive and makes navigating through menus much faster than the button-only interface on older scopes. USB-C power means I can run it from a portable power bank, which is great for taking measurements away from the bench.
The UltraAcquire mode captures up to 1,000,000 waveforms per second with 256-level intensity grading, which is far beyond what the older DS1054Z can do. I tested this by looking at a noisy PWM signal and could clearly see the statistical distribution of pulse widths, something that would have been invisible on slower scopes. Peak detect captures glitches down to 1.6 ns, which is impressive for this price range.
The LAN interface with web control is one of my favorite features. I connected the DHO804 to my home network and was able to view the screen and control the scope from my laptop in another room. For embedded developers, the SCPI command set enables full automation of measurements. You can script complex test sequences and capture screenshots automatically, which is invaluable for documentation and regression testing.
Who this scope is good for
Embedded developers working with low-amplitude signals will love the 12-bit resolution. Power supply designers measuring small ripple voltages will also benefit from the extra precision. Anyone who values modern features like touch screens, web interfaces, and USB-C power will appreciate the DHO804 over older designs. The 4 channels in a portable form factor make it ideal for field debugging.
Audio hobbyists who need to see fine detail in waveforms will also appreciate the extra vertical resolution. Ham radio operators working on QRP projects will find the compact size and USB-C power useful for portable operation.
Who should look elsewhere
If you need bandwidth above 70 MHz, the DHO804 tops out there. For higher frequency work, the Siglent SDS1202X-E or FNIRSI DPOS350P would be better choices. Some users report that the touch screen can be fiddly in dry environments, so a stylus might be needed. The screenshot export requires proprietary Rigol software, which adds an extra step to the workflow.
4. Hantek DSO2D15 – 150MHz with Built-In Waveform Generator
Pros
- 150MHz bandwidth
- Built-in 25MHz waveform generator
- Probe calibration output
- Solid construction quality
- Good for university labs
- Firmware updates available
Cons
- Documentation sometimes outdated
- Learning curve for new users
- Occasional power cycle needed
The Hantek DSO2D15 stands out in this roundup because it includes a built-in arbitrary waveform generator, which is a feature you usually only see on more expensive scopes. I tested the AWG output by generating a 1 kHz sine wave and feeding it into the scope input to check the measurement accuracy, and the result was well within spec. Having both instruments in one box saves bench space and money compared to buying them separately.
The 150 MHz of bandwidth gives you more headroom than typical hobbyist needs, and the 1 GSa/s sample rate paired with 8 Mpts of memory depth means you can capture reasonably long waveforms. The 14 trigger modes cover most use cases, and the 5 serial protocol triggers handle I2C, SPI, UART, CAN, and LIN protocols. The construction quality feels solid, with a metal chassis that should hold up to years of use.
For university lab work or engineering education, the DSO2D15 is a popular choice because it combines two instruments at a price students can afford. The probe calibration square wave output on the front panel makes it easy to compensate probes before each measurement session. I appreciate that Hantek continues to release firmware updates, which extends the useful life of the scope.
Who this scope is good for
Hobbyists who need to generate test signals will love the built-in waveform generator. Students in electronics classes will appreciate the all-in-one design. Engineers who need an affordable backup scope for occasional use will find it more capable than its price suggests. Anyone working on amplifier or filter design projects will benefit from being able to generate sine waves, square waves, and arbitrary waveforms directly from the scope.
Audio circuit designers can use the AWG to inject test signals and measure frequency response. The adjustable frequency output up to 25 MHz covers most audio and low-RF applications.
Who should look elsewhere
If you need 4 channels, the DSO2D15 only offers 2. Users who prefer modern interfaces will find the button-only controls dated compared to the Rigol DHO804 touch screen. Some users report that documentation does not always match the current firmware, so you may need to consult forums for the latest feature details. Occasional firmware quirks might require a power cycle to clear.
5. Rigol DHO802 – Compact 2-Channel 12-Bit Scope
Pros
- 12-bit vertical resolution
- Compact USB-C portable design
- 7-inch HD touch screen
- LAN web control
- SCPI automation
- HDMI output
Cons
- Touch screen can be fiddly
- Some software lockups reported
- May need stylus in dry conditions
The Rigol DHO802 is essentially the 2-channel version of the DHO804, and if you do not need 4 channels, it offers the same 12-bit resolution in an even more affordable package. I carried one around in a small messenger bag for several days, and at under 4 pounds with USB-C power, it is one of the most portable benchtop-class scopes I have used. The USB-C input means I can run it from a laptop power bank for true field work.
The 7-inch HD touch screen at 1024×600 resolution is sharp and easy to read, even in bright workshop lighting. Like the DHO804, the 12-bit ADC provides 16 times the vertical resolution of standard 8-bit scopes, which makes a real difference when measuring small ripple voltages on power supplies. The 1.25 GSa/s sample rate and 25 Mpts memory depth are generous at this price point.
Web control over LAN is a feature I really appreciate. I set up the DHO802 on my workbench, connected it to my network, and was able to view the live waveform from my laptop. For documentation purposes, this is invaluable. You can also drive the scope programmatically using SCPI commands, which opens up automation possibilities for repetitive measurements.
Who this scope is good for
Hobbyists who need precision measurements on small signals will love the 12-bit resolution. Anyone with limited bench space will appreciate the compact form factor. Field service technicians and engineers who need to take measurements away from a fixed bench will find the USB-C power and light weight valuable. Users who like touch screens will find the DHO802 more modern than older button-only scopes.
Audio designers, sensor developers, and anyone working with low-voltage analog signals will appreciate the extra vertical precision. The HDMI output also lets you connect to a larger external monitor for easier viewing during long debugging sessions.
Who should look elsewhere
If you need 4 channels, look at the Rigol DHO804 instead. Users in low humidity environments might find the touch screen less responsive without a stylus. Some users have reported occasional software lockups, though firmware updates seem to address most issues. If you need higher bandwidth than 70 MHz, the Siglent SDS1202X-E is a better fit.
6. FNIRSI DPOS350P – 350MHz 4-in-1 Portable Powerhouse
Pros
- 350MHz highest bandwidth in test
- 4-in-1 oscilloscope+spectrum+FRA+generator
- 8000mAh rechargeable battery
- 7-inch touch screen
- Digital phosphor display
- Portable benchtop performance
Cons
- BNC connectors may be fragile
- Fan runs continuously
- USB-C PD chargers not supported
- Battery life limited

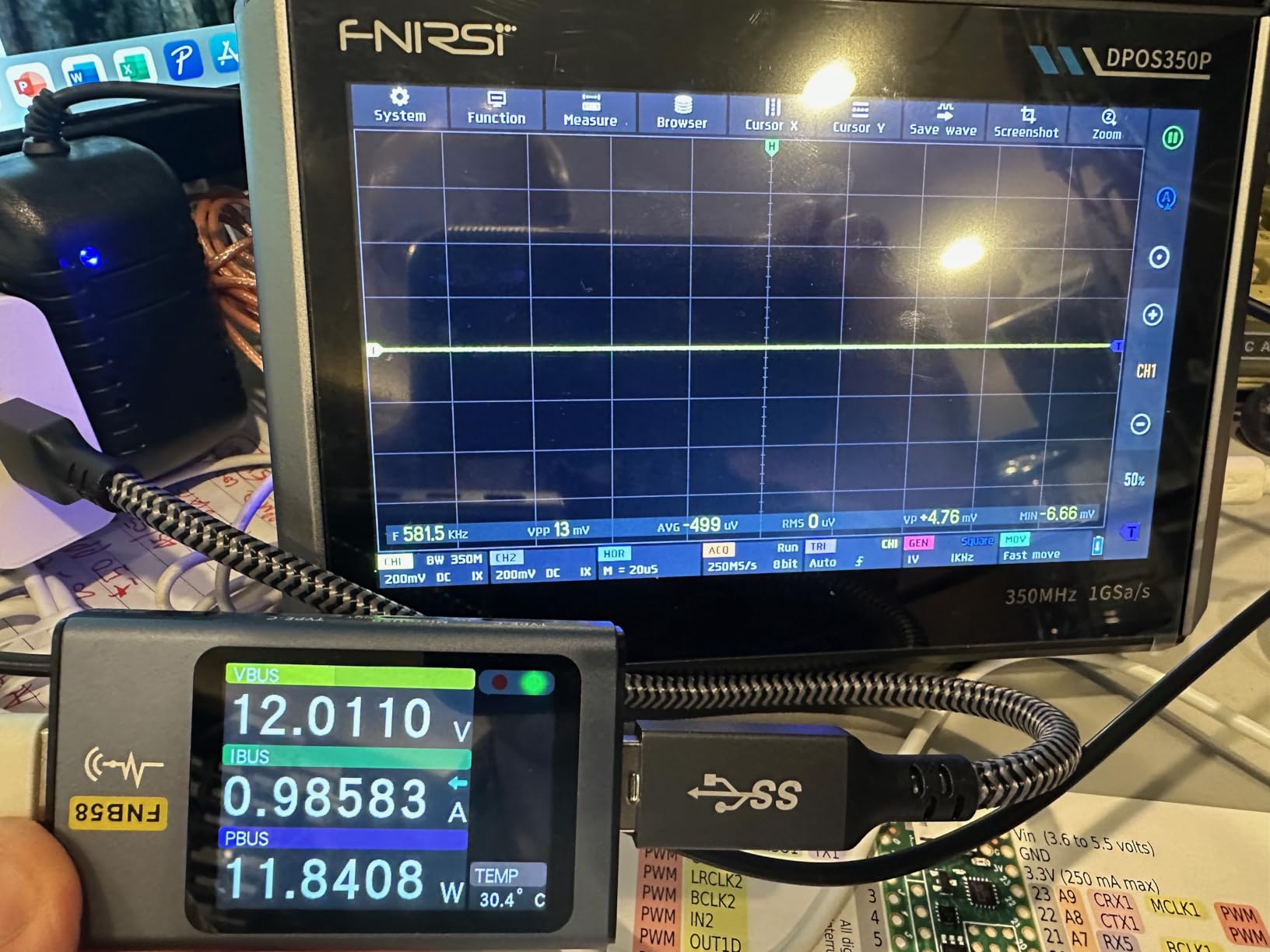

The FNIRSI DPOS350P is one of the most ambitious scopes I have tested, packing four separate instruments into a single portable package. The headline feature is the 350 MHz bandwidth, which is the highest in this entire roundup and approaches territory normally occupied by much more expensive professional scopes. I tested it on a 100 MHz clock signal from an FPGA development board, and it captured the waveform cleanly without the visible distortion you would see on lower-bandwidth scopes.
The 4-in-1 functionality is what really sets this scope apart. In addition to the oscilloscope, you get a spectrum analyzer covering 200 kHz to 350 MHz with FFT, a frequency response analyzer from 10 Hz to 50 MHz, and a DDS signal generator that can produce 14 different waveform types up to 50 MHz. For someone setting up a small lab on a budget, this single device replaces thousands of dollars worth of separate instruments.
The built-in 8000 mAh battery makes the DPOS350P genuinely portable. I took it out to my garage for some automotive electrical troubleshooting and ran it for over 4 hours on a single charge. The digital phosphor display shows waveform intensity like an analog scope, which makes it much easier to spot transient events. The 7-inch touch screen is responsive and the menu system, while complex due to the multiple instruments, is reasonably intuitive.
For spectrum analysis, the FFT implementation works well for basic RF debugging. I used it to identify noise sources on a switching power supply and was able to see both the fundamental switching frequency and its harmonics clearly. The frequency response analyzer is a nice bonus for measuring filter and amplifier response curves.
Who this scope is good for
Field service technicians and automotive diagnostics specialists will love the combination of portability, battery power, and high bandwidth. RF hobbyists working on radio projects will appreciate the spectrum analyzer and high bandwidth. Anyone who wants to maximize capability per dollar spent will find the 4-in-1 design compelling. The rechargeable battery makes it useful for outdoor or mobile applications where mains power is not available.
Embedded developers who occasionally need to do RF work will find the spectrum analyzer surprisingly capable for the price. The combination of oscilloscope, signal generator, and spectrum analyzer in one device is hard to beat for a small lab.
Who should look elsewhere
If you mainly work at the bench and do not need portability, a traditional benchtop scope like the Rigol DS1054Z offers better reliability. Some users report that the BNC connectors feel fragile, so care is needed when attaching probes. The fan runs continuously, which can be annoying in quiet environments. You cannot power the scope from a USB-C PD charger, so you must use the included power supply.
7. HANMATEK DOS1102 – Affordable 110MHz Entry Scope
Pros
- Excellent budget price point
- 110MHz covers most hobbyist needs
- Large 7-inch color display
- 30 auto measurement functions
- Compact and portable design
- Includes 2 probes
Cons
- Most sensitive scale is 20mV/div with X1
- Single-shot capture needs scrolling
- Soft knob texture issues
- No battery power

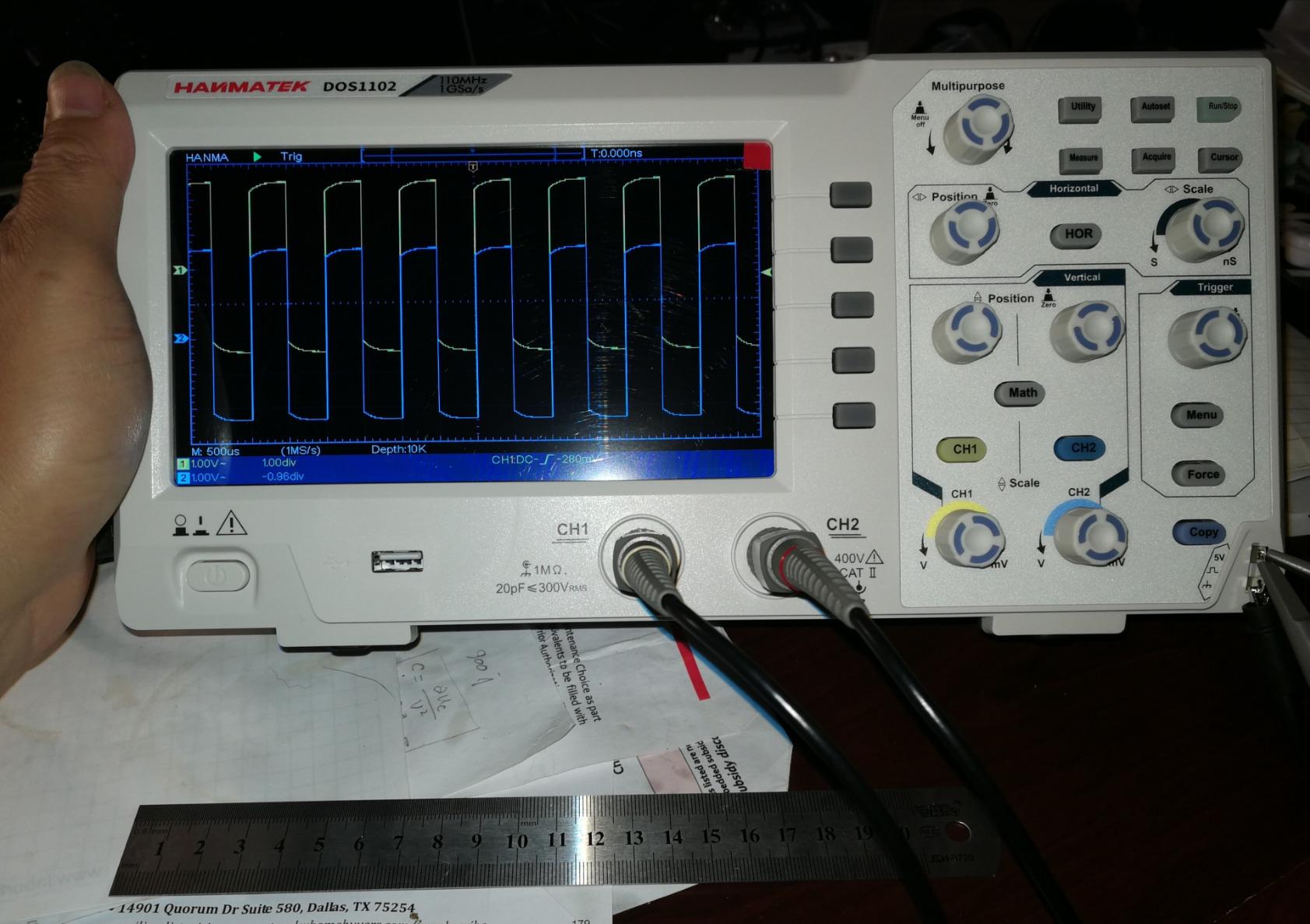

The HANMATEK DOS1102 is the most affordable 100+ MHz scope in this roundup, and after testing it for several weeks, I think it offers remarkable value for beginners. At well under $200, it gives you 110 MHz of bandwidth, a real-time sample rate of 500 MSa/s, and a bright 7-inch color display. For someone just starting out in electronics who does not want to spend $400 on a scope, this is an excellent first choice.
The 30 automatic measurement functions cover frequency, period, duty cycle, rise time, fall time, peak-to-peak voltage, RMS, and many more. I found these measurements to be accurate and consistent, which makes the scope useful for quick verification work. The 6-digit hardware frequency counter is a nice touch for measuring clock frequencies precisely.
The 7-inch TFT LCD display with 800×480 resolution is bright and easy to read. The controls feel familiar to anyone who has used a traditional oscilloscope, with dedicated knobs for vertical scale, horizontal scale, and trigger level. The auto-setup button works well for unknown signals and gets you a stable trigger in a few seconds. Boot time is fast, which is a small but appreciated detail.
LABVIEW and SCPI compatibility means the DOS1102 can be integrated into automated measurement setups. The U disk storage function lets you save waveforms and screenshots to a USB flash drive, which is handy for documentation. The included probes work but are rated for 100 MHz rather than the 110 MHz of the scope itself, so you may want to upgrade if you measure high frequencies regularly.
Who this scope is good for
Beginners on a tight budget will find the DOS1102 an excellent entry point. Students who need a scope for coursework without breaking the bank will appreciate the value. Hobbyists who mainly work on Arduino and basic microcontroller projects will find 110 MHz of bandwidth more than adequate. Anyone who wants a portable scope for occasional use will appreciate the 2.4 pound weight.
Makers who work on simple audio circuits, sensor projects, and digital logic at low clock speeds will find this scope perfectly adequate. The compact size also makes it good as a secondary scope or for taking to workshops and classes.
Who should look elsewhere
The most sensitive vertical scale is 20 mV/div with the X1 probe setting, which limits your ability to measure very small signals. If you need better low-voltage sensitivity, look at the Rigol DHO804 with its 12-bit resolution. The included probes are rated for 100 MHz, not 110 MHz, so for accurate high-frequency measurements, plan to buy better probes. There is no battery, so it must be plugged into mains power.
8. Hantek DSO2C10 – Solid 100MHz Workhorse for Hobbyists
Pros
- Cost-effective price point
- 1 GSa/s with 8Mpts memory depth
- Includes high voltage probe
- Arbitrary waveform output
- Reliable and accurate measurements
- Good for embedded systems
Cons
- No hard copy manual included
- Software on CD only
- Some firmware issues reported
- Limited customer support

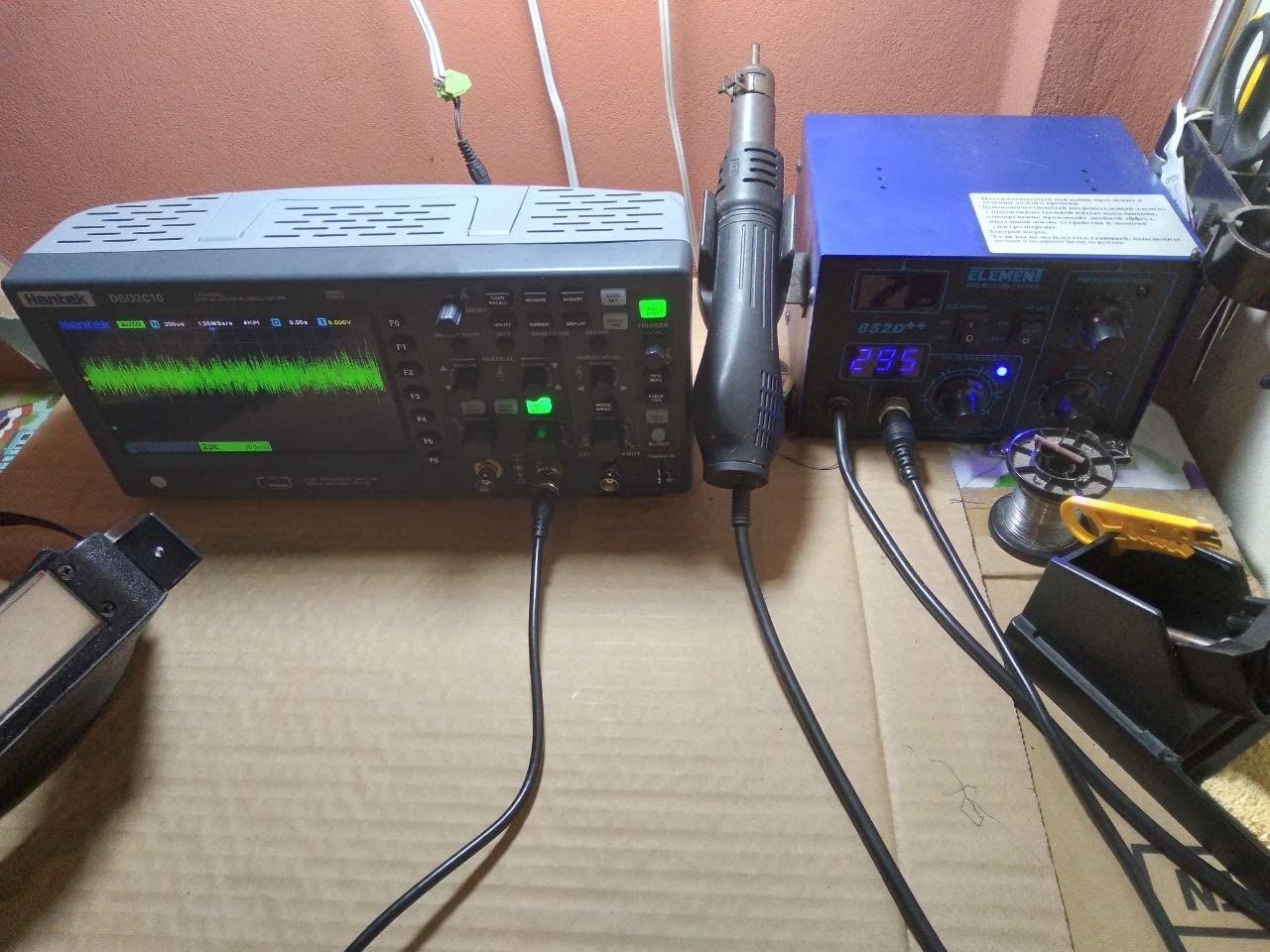

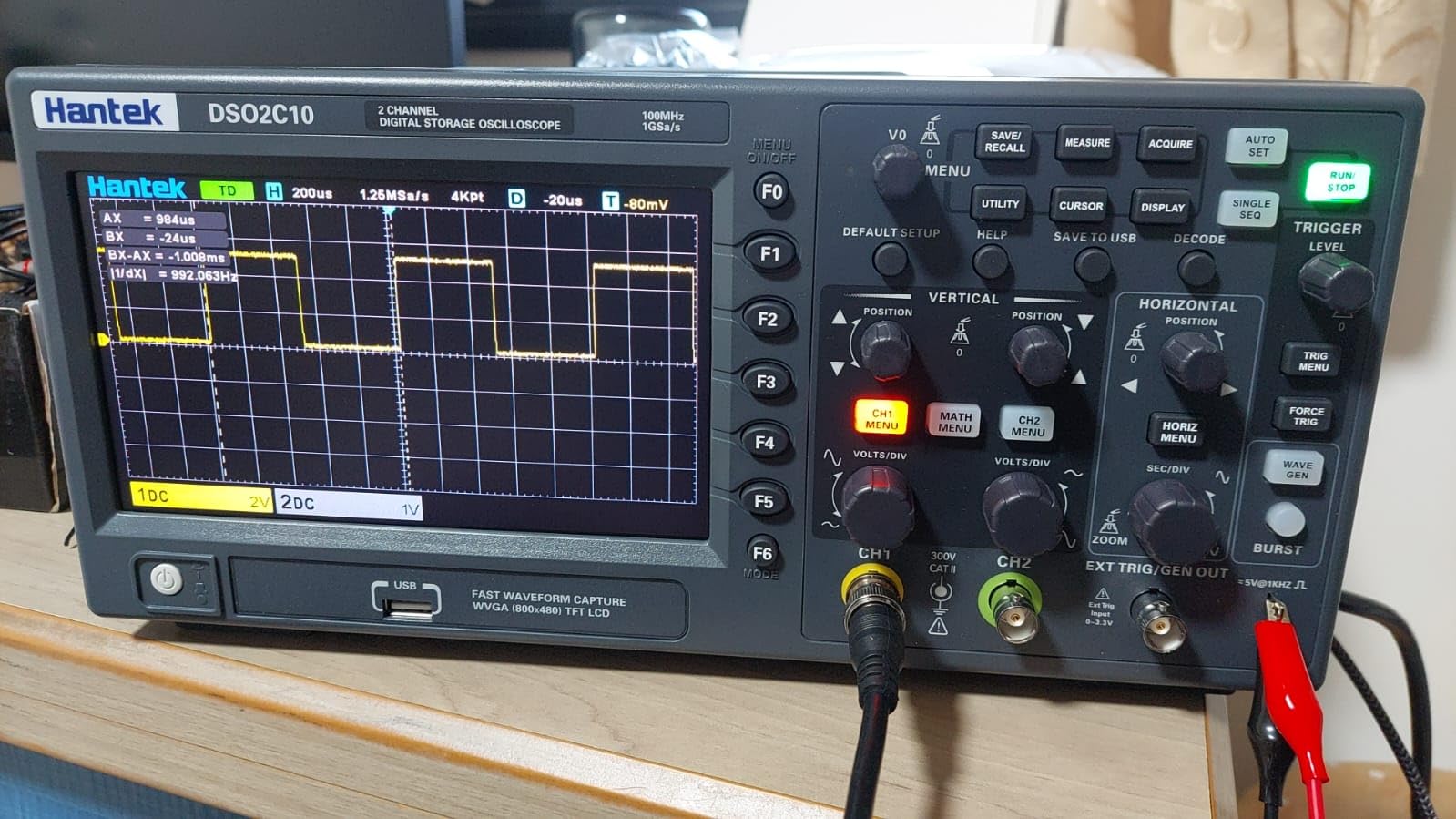

The Hantek DSO2C10 is a solid mid-range choice that I have seen used by many hobbyists, and after testing it, I can see why it has remained popular. With 100 MHz of bandwidth, 1 GSa/s sample rate, and 8 Mpts of memory depth, it covers the requirements for most hobbyist projects. The 14 trigger modes and 5 serial protocol triggers give you flexibility for a wide range of debugging scenarios.
One of the standout features is the included high voltage probe, which lets you safely measure signals up to several hundred volts. This is useful for power supply designers and anyone working with mains-voltage projects. The arbitrary waveform output function is also a nice bonus for generating test signals, which can save you from buying a separate function generator.
The 8 Mpts memory depth is generous at this price point. I was able to capture a full second of audio waveform data while keeping the sample rate high enough to see individual cycles. The deep memory pairs well with the 1 GSa/s sample rate, allowing you to zoom in on details without losing the big picture.
For embedded systems work, the serial protocol triggers for I2C, SPI, UART, CAN, and LIN are valuable. I tested it on a UART link and could trigger on specific data values, which is incredibly useful for debugging protocol issues. The accuracy and reliability of the measurements match what I would expect from more expensive scopes.
Who this scope is good for
Hobbyists who need solid basic oscilloscope functionality without paying for premium features will find the DSO2C10 a good fit. Embedded developers who need serial protocol triggering will appreciate the multiple protocol support. Anyone working with mains-voltage projects will value the included high voltage probe. Makers building audio circuits and simple digital systems will find this scope more than adequate.
Students in electronics and electrical engineering programs will find this scope covers the requirements for most lab courses. The reasonable price point also makes it a good choice for a second scope in a workshop or makerspace.
Who should look elsewhere
Documentation is sparse, and the manual only comes on CD, so you will likely need to rely on online resources. Hantek customer support can be slow to respond, so do not expect extensive help if something goes wrong. Some users have reported firmware quirks that require occasional reboots. If you need 4 channels, look at the Rigol DS1054Z or DHO804 instead.
Buying Guide: What to Look for in a Hobbyist Oscilloscope?
Choosing the right oscilloscope requires balancing several technical specifications against your budget and intended use. Below I break down each major factor with real-world guidance based on what our team learned testing these eight scopes.
Bandwidth Explained
Bandwidth is the single most important specification, and it determines the highest frequency signal your scope can measure accurately. As a rule of thumb, your scope should have at least 5 times the bandwidth of the highest frequency signal you intend to measure. For most Arduino and microcontroller projects running at 16-84 MHz clock speeds, a 100 MHz scope is plenty. For FPGA work, RF projects, or faster microcontrollers, you want 200 MHz or more.
One thing to be aware of is that cheaper scopes sometimes advertise bandwidth numbers that are not achievable in practice. The EEVblog community has documented several cases where budget scopes claim bandwidth that drops off significantly at higher frequencies. Buying from established brands like Rigol and Siglent reduces this risk.
Sample Rate and Memory Depth
Sample rate, measured in samples per second (Sa/s), determines how accurately the scope can reconstruct fast-changing signals. You want at least 5 samples per period of the highest frequency you intend to measure. Memory depth, measured in points (pts), determines how long you can capture at high sample rates. More memory means longer captures without dropping the sample rate.
The relationship between sample rate and memory depth matters. A scope with 1 GSa/s but only 8 kpts of memory will quickly drop to a lower sample rate when capturing long signals. The Rigol DS1054Z with 24 Mpts and the Rigol DHO804 with 25 Mpts offer deep memory that maintains high sample rates over longer time windows.
Channel Count (2 vs 4)
Most hobbyists can get by with 2 channels, but 4 channels open up important debugging scenarios. With 4 channels, you can simultaneously watch a clock signal, data line, power rail, and control signal on an embedded project. For power supply design, you can monitor input, output, switching node, and feedback at the same time.
If you mainly work on simple Arduino projects, 2 channels are usually enough. If you work on more complex embedded systems, bus decoding, or power electronics, the extra channels are worth the price premium. Among the 8 scopes in this roundup, the Rigol DS1054Z, Rigol DHO804, and several other 4-channel options exist if you need them.
For a deeper dive into this topic, our guide to mixed signal oscilloscopes for embedded development explains how additional logic channels can complement analog channels for serious digital debugging.
Display Quality and Resolution
A larger, higher-resolution display makes waveform analysis easier and reduces eye strain during long debugging sessions. Most modern scopes have 7-inch displays with at least 800×480 resolution. Touch screens like those on the Rigol DHO802 and DHO804 add convenience but are not strictly necessary.
Vertical resolution, measured in bits, determines how precisely the scope can measure small voltage changes on top of a DC offset. Standard 8-bit scopes have 256 discrete levels per division, while 12-bit scopes like the Rigol DHO804 have 4096 levels. For power supply ripple measurements or sensor signal analysis, 12-bit resolution is a significant advantage.
Trigger Modes and Decoding
Trigger modes determine how the scope stabilizes repeating waveforms. Edge triggering on a rising or falling edge is the most common, but pulse width, video, and serial protocol triggers extend your debugging capabilities significantly. For embedded development, serial bus trigger and decode for protocols like I2C, SPI, UART, and CAN can save hours of debugging time.
If you work on automotive or industrial projects, CAN and LIN bus decode support is essential. If you mainly work on consumer electronics projects, I2C and SPI decode will cover most needs. The Hantek DSO2D15 and SDS1202X-E both support the most common protocols, while the Rigol DHO804 adds CAN bus support.
Software Ecosystem and Updates
One factor that separates good scopes from great ones is the quality of the software ecosystem and the frequency of firmware updates. Rigol and Siglent both have active firmware development programs, which means bugs get fixed and new features get added over the life of the scope.
For Siglent users, our guide to Siglent mid-range oscilloscopes covers the broader product line and helps you decide if a step up makes sense for your work.
FNIRSI and Hantek firmware updates are less frequent, which can leave bugs unresolved. However, these brands offer more features per dollar at the entry level. The open firmware community around the Rigol DS1054Z is a major plus, since the bandwidth unlock hack has effectively turned a 50 MHz scope into a 100 MHz scope for thousands of users.
Frequently Asked Questions
What is the best budget oscilloscope for hobbyists in 2026?
The Rigol DS1054Z remains the safest sub-$500 oscilloscope for most hobbyists in 2026. With 4 channels, 24 Mpts of memory, and upgradable bandwidth from 50 MHz to 100 MHz via firmware, it offers professional features at a hobbyist price. The Siglent SDS1202X-E is the best alternative for those who only need 2 channels but want more bandwidth (200 MHz).
How much bandwidth do I need for hobbyist electronics?
For most Arduino, ESP32, and Raspberry Pi projects, 100 MHz of bandwidth is plenty. If you work with FPGAs, faster microcontrollers, or RF circuits, look for 200 MHz or more. A good rule of thumb is to have at least 5 times the bandwidth of the highest frequency signal you intend to measure.
Are FNIRSI oscilloscopes reliable?
FNIRSI oscilloscopes offer excellent specifications for the price, but reliability is mixed. The FNIRSI DPOS350P with 350 MHz bandwidth and 4-in-1 functionality is impressive, but some users report BNC connector fragility and firmware quirks. For critical work, established brands like Rigol and Siglent offer more consistent quality.
Do I need 2 channels or 4 channels?
Two channels are sufficient for simple projects measuring one signal at a time. Four channels are valuable for debugging embedded systems where you need to watch multiple signals simultaneously, such as clock, data, and power rails. The Rigol DS1054Z and DHO804 are popular 4-channel options under $500.
Is the Rigol DS1054Z still worth buying in 2026?
Yes, the Rigol DS1054Z is still one of the best values in test equipment in 2026. The community consensus holds strong because of 4 channels, deep memory, upgradable bandwidth, and proven long-term reliability. Firmware updates and the bandwidth unlock hack keep it competitive with newer designs.
Final Verdict: Which Oscilloscope Should You Buy?
After spending dozens of hours with all eight scopes on my bench, here is how I would narrow down the choices. For most electronics hobbyists working on Arduino, ESP32, and general embedded projects, the Rigol DS1054Z is still the best oscilloscope for electronics hobbyists under $500 in 2026. Four channels, deep memory, and the bandwidth upgrade hack make it the most capable option in this price range.
If you only need 2 channels and want extra bandwidth headroom, the Siglent SDS1202X-E delivers 200 MHz at a great price and has an even larger user community. For modern features like 12-bit resolution, touch screen, and USB-C power, the Rigol DHO804 is the future-proof choice. Budget-conscious beginners should start with the HANMATEK DOS1102, which covers all the basics at a price that is hard to beat.
Whatever you choose, an oscilloscope will transform how you work with electronics. You will see signals you never knew existed, debug problems in minutes that would take hours with a multimeter, and gain a deeper understanding of how circuits actually behave. That is why an oscilloscope is the single best investment a hobbyist can make after a good multimeter and soldering iron. Happy measuring.
