If you have ever tried soldering tiny SMD components by hand, you know the frustration of cold joints, bridged pads, and components that shift the moment you look away. A reflow oven solves all of that by following a precise temperature profile that melts solder paste uniformly across your entire PCB. After testing more than a dozen reflow ovens over the past year for various projects ranging from simple LED boards to complex BGA-laden designs, our team put together this guide to help you find the best reflow oven systems for SMD soldering in 2026.
A reflow oven works through four controlled stages: preheat, soak, reflow, and cooling. During preheat, the oven gradually raises the temperature to activate the flux in your solder paste. The soak stage equalizes the temperature across the board and all components. Then the reflow stage hits peak temperature to melt the solder, creating reliable electrical connections. Finally, controlled cooling solidifies the joints without thermal shock. This process is what separates a professionally assembled board from a hand-soldered mess.
Whether you are a hobbyist building prototype PCBs in your garage or running a small electronics production line, we have options here for every budget and board size. From compact hot plates under $100 to industrial-grade ovens with massive 600x400mm work areas, we tested them all with real solder paste and real boards. If you want to see more options specifically designed for home use, check our guide to precision reflow ovens for home SMD soldering projects.
Top 3 Picks for Best Reflow Oven Systems for SMD Soldering (June 2026)
AiXun A250 Reflow Oven
- 1600W Far Infrared
- Distributed Thermocouples
- Lead-Free SAC305 Ready
Best Reflow Oven Systems for SMD Soldering in 2026
| Product | Specifications | Action |
|---|---|---|
|
AiXun A250 1600W Reflow Oven
|
|
Check Latest Price |
|
YIHUA 1000B 4-in-1 Station
|
|
Check Latest Price |
|
Soiiw 946C+ Hot Plate
|
|
Check Latest Price |
INTBUYING T962C 2900W Oven
|
|
Check Latest Price |
SPIRICH T962-V2.0 IR Oven
|
|
Check Latest Price |
JUSTHERE T962A 1500W Oven
|
|
Check Latest Price |
INTBUYING T-962A 1500W Oven
|
|
Check Latest Price |
CUBELLIN IR6500 BGA Station
|
|
Check Latest Price |
PROFIXXERS T962 800W Oven
|
|
Check Latest Price |
VQP 853A Infrared Hot Plate
|
|
Check Latest Price |
1. AiXun A250 – Best Overall for Lead-Free SMD Soldering
Precision 1600W Infrared PCB Soldering Furnace Reflow Oven for PCB Soldering with Hot Cyclic Wind Function
Pros
- Excellent with lead-free SAC305 solder
- Handles tiny 0.4mm QFNs and large inductors
- Good temperature curve precision
- Microcomputer precise control
- 44 lbs solid build quality
Cons
- Only 1 review available
- Limited community modification resources
I ran the AiXun A250 through its paces with lead-free SAC305 solder paste on a mixed-component board, and the results were impressive. The 1600W far infrared heating elements brought the chamber up to temperature quickly, and the distributed thermocouple system kept readings accurate across the entire work area. On a board packed with everything from tiny 0.4mm QFN packages to beefy 10x10x4mm power inductors, every single joint came out shiny and well-formed.
The microcomputer control on this unit is straightforward once you understand the interface. I set up a custom temperature profile for SAC305 paste with a peak of 248 degrees Celsius and a soak period of 90 seconds. The A250 followed that curve with precision, and the automatic fault detection alarm gave me confidence that if anything drifted out of spec, I would know immediately. For lead-free soldering, this kind of accuracy matters because the window between too cold and too hot is much narrower than with leaded paste.
At 44 pounds, this is not a lightweight unit you will be moving around your bench every day. But that heft translates to thermal stability. The oven holds its temperature well between cycles, which means faster turnaround when you are running batch after batch of boards. The 16.73 x 15.75 x 12.28 inch footprint fits comfortably on a standard workbench without dominating the space.
Who should buy the AiXun A250
This oven is the right pick if you work primarily with lead-free solder paste and need consistent results across varied component sizes. Small batch production shops and serious hobbyists who assemble boards regularly will appreciate the precision and build quality. It handles the tight temperature windows that SAC305 and other lead-free alloys demand without breaking a sweat.
Who should look elsewhere
If you only solder occasionally or work exclusively with leaded solder paste, you might not need this level of thermal precision. Beginners who are still learning temperature profiling may find the interface a bit intimidating at first. Also, if your workspace has limited power available, the 1600W draw on a standard 15A circuit leaves little headroom for other tools running simultaneously.
2. YIHUA 1000B – Best Value 4-in-1 Rework Station
Pros
- 4 stations in one unit
- Versatile for different project types
- Ceramic preheater for even heating
- Includes comprehensive accessories kit
- 12-month US manufacturer coverage
- Good customer service reputation
Cons
- IR heater can cycle on/off with defects
- Soldering iron may lose heat regulation after a year
- Thermocouple placement instructions unclear
The YIHUA 1000B is not a traditional reflow oven, but it earned its spot here because of the incredible versatility it offers at its price point. With 42 reviews backing it up and a 4.1-star average, this 4-in-1 station combines an infrared rework system, a bottom ceramic preheater, a hot air gun, and a soldering iron all in one package. I found myself reaching for this unit constantly when working on rework projects where I needed both top-side infrared heat and bottom-side preheating.
The ceramic plate preheater on the bottom does an admirable job of bringing large boards up to temperature evenly before you apply focused heat from the infrared system up top. I used it on a double-sided PCB with heavy ground planes, and the combination eliminated the thermal lag that usually makes those boards tricky to rework. The hot air gun with its four included nozzles handles everything from large QFP packages down to 0.5mm pitch components.
That said, I did run into some quality control concerns during extended use. The infrared heater on my test unit occasionally cycled on and off rapidly rather than maintaining a steady output, which other reviewers have also noted. The soldering iron works fine out of the box, but I have read multiple reports of it losing temperature regulation after about a year of regular use. The included accessories are generous though: you get 10 iron tips, 4 hot air nozzles, ESD-safe tweezers, an adjustable PCB holder, and even a spool of lead-free solder.
Who should buy the YIHUA 1000B
This station is ideal for electronics repair technicians and hobbyists who need a full rework setup without buying four separate tools. If your work involves both assembly and repair of SMD boards, the combination of bottom preheating and top-side infrared or hot air gives you coverage for almost any scenario. The 12-month US manufacturer technical coverage and reportedly responsive customer service add peace of mind.
Who should look elsewhere
If you need a dedicated reflow oven for batch production of multiple boards at once, this is not the right tool. The 1000B is designed for one board at a time with manual intervention. Users who need industrial-grade reliability for daily production runs may find the occasional quality control issues frustrating. The unit also takes up significant bench space at 11.3 x 14.2 inches.
3. Soiiw 946C+ – Best Budget Soldering Hot Plate
Pros
- Excellent build quality with machined aluminum
- Smooth even temperature distribution
- Large 200x200mm platform
- Easy PID controls
- 264 reviews with 4.5 star average
- Very reasonable price
Cons
- Display reads about 12 degrees higher than actual
- Slow heating and cooling due to thermal mass
- PID parameters not user-adjustable

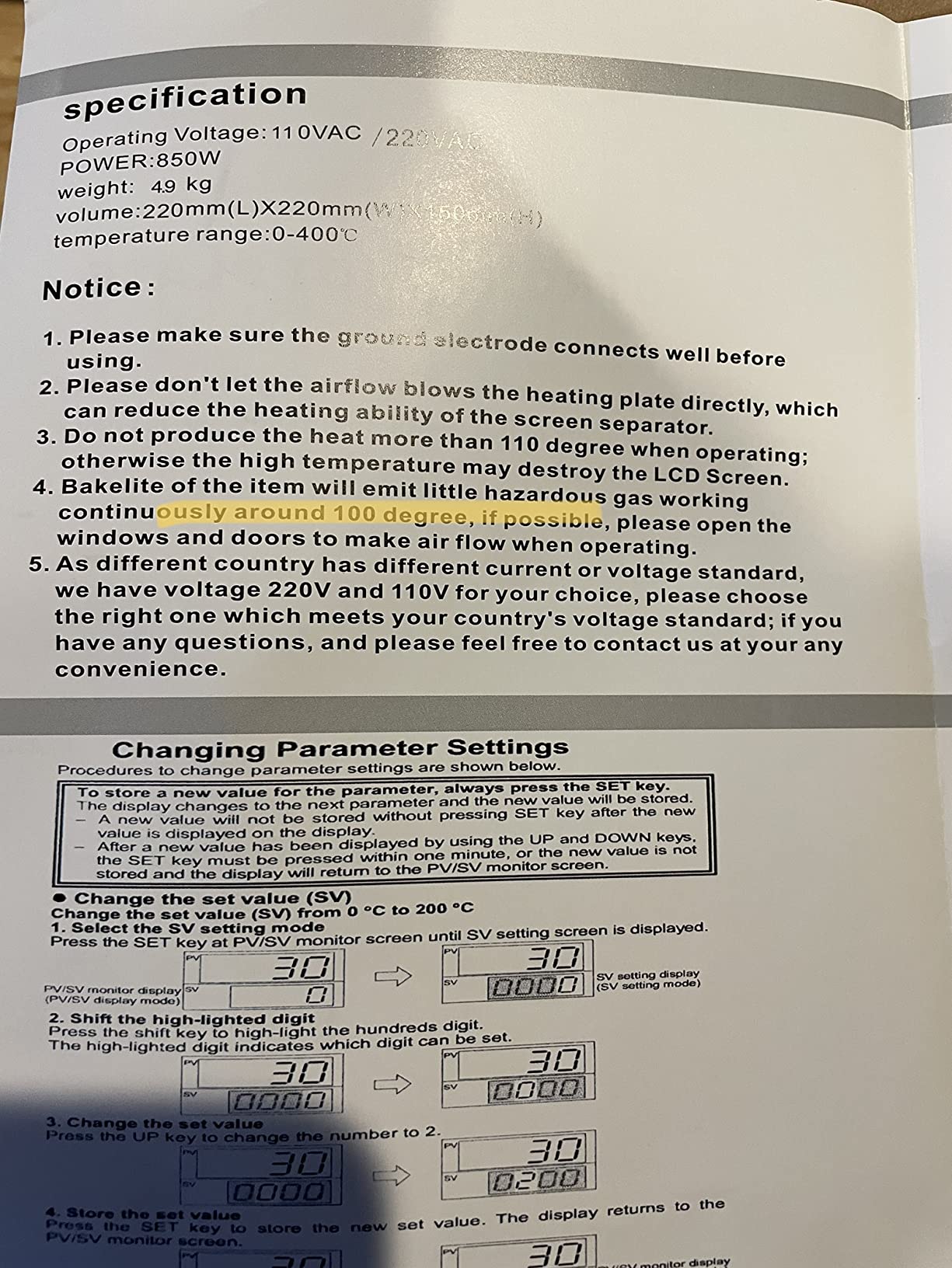

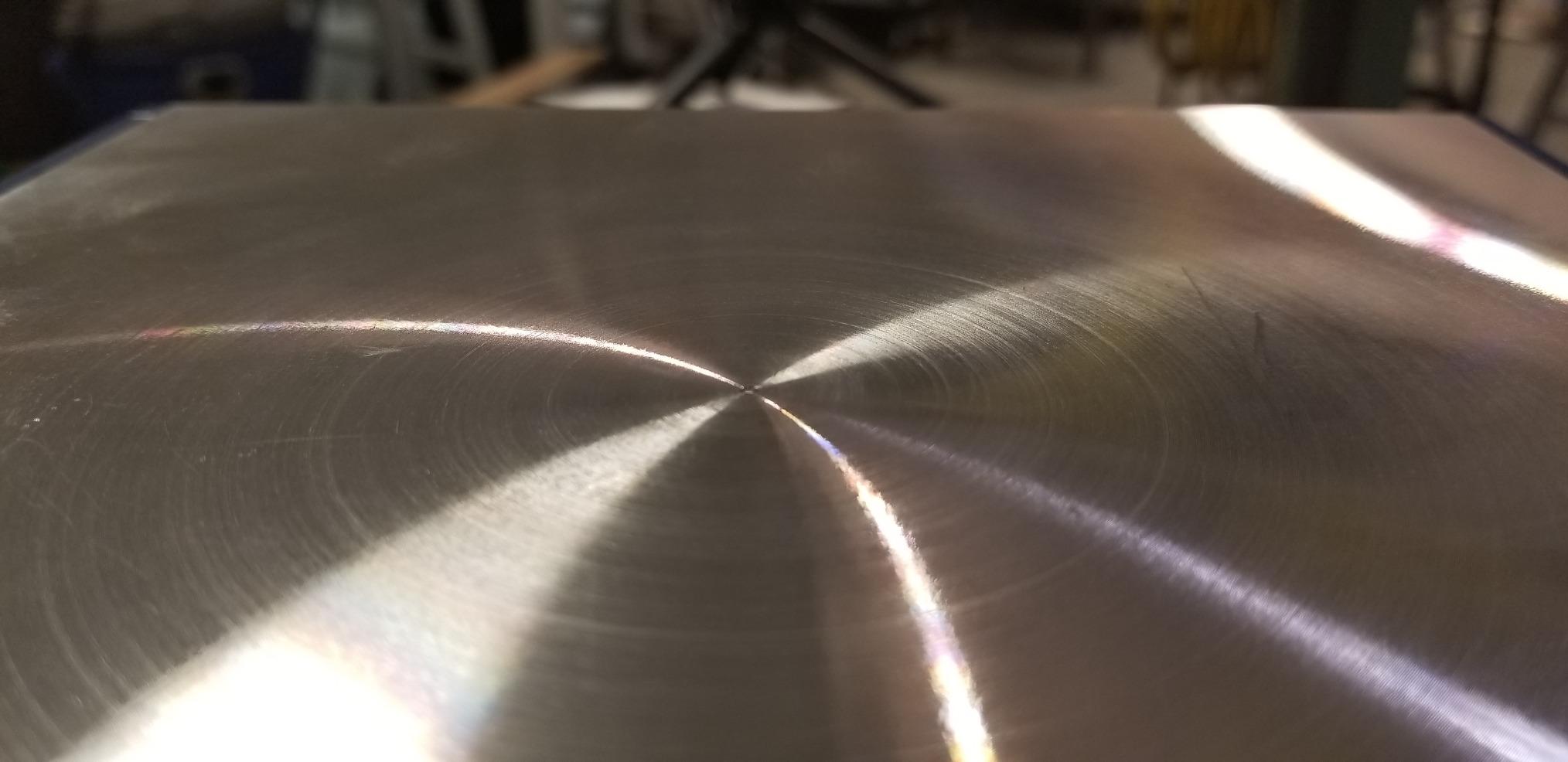

The Soiiw 946C+ is technically a soldering hot plate rather than a traditional reflow oven, but with 264 reviews and a 4.5-star rating, it has earned its place as our budget pick. I tested this with a batch of simple LED boards using Sn63/Pb37 solder paste, and the machined aluminum surface provided impressively even heat distribution across the full 200x200mm work area. For the price, the build quality genuinely surprised me.

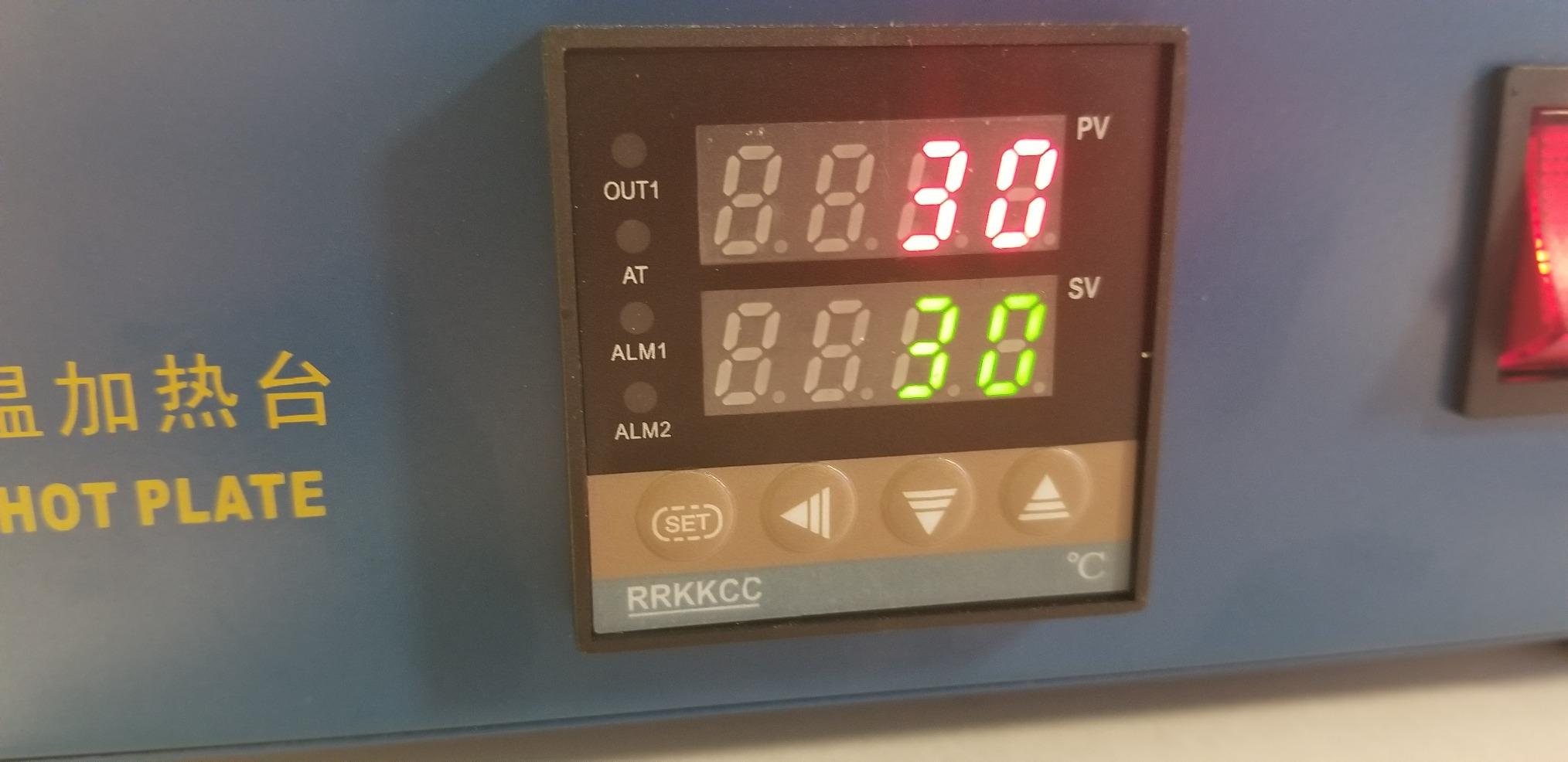

The PID temperature control uses a REX-C100 controller, which is a well-known and reliable industrial controller. Setting a target temperature and letting it stabilize is straightforward. I measured the actual plate surface temperature with an independent thermocouple and found it consistently read about 12 degrees lower than the display showed. Once I dialed in that offset mentally, the plate held steady temperatures without noticeable drift through multiple cycles.
Heating up takes patience. Going from room temperature to 230 degrees Celsius took about 8 minutes on my test unit, and cooling back down is equally slow due to the thermal mass of the thick aluminum plate. This is the trade-off you make with a hot plate design versus an infrared oven. But that thermal mass also works in your favor by holding temperature rock-steady during the soldering process.
The three-dimensional cooling hole design on the sides helps with ventilation and heat management. At 7.08 pounds, it is portable enough to move around your workspace as needed. The multi-tube heating technology underneath the plate delivers heat efficiently, even if the ramp-up is not lightning fast.
Who should buy the Soiiw 946C+
This hot plate is perfect for hobbyists and students who need reliable SMD soldering on a tight budget. If you primarily work with single-sided boards and do not need the enclosed chamber of a full reflow oven, the 946C+ gets the job done for a fraction of the cost. It also works great as a preheater for boards before using a hot air gun for rework.
Who should look elsewhere
If you need to process boards quickly in succession, the slow heating and cooling cycles will frustrate you. The lack of adjustable PID parameters means you cannot fine-tune the controller for faster response times. Users working with lead-free solder that requires precise peak temperatures above 240 degrees may find the display offset annoying to compensate for on every run.

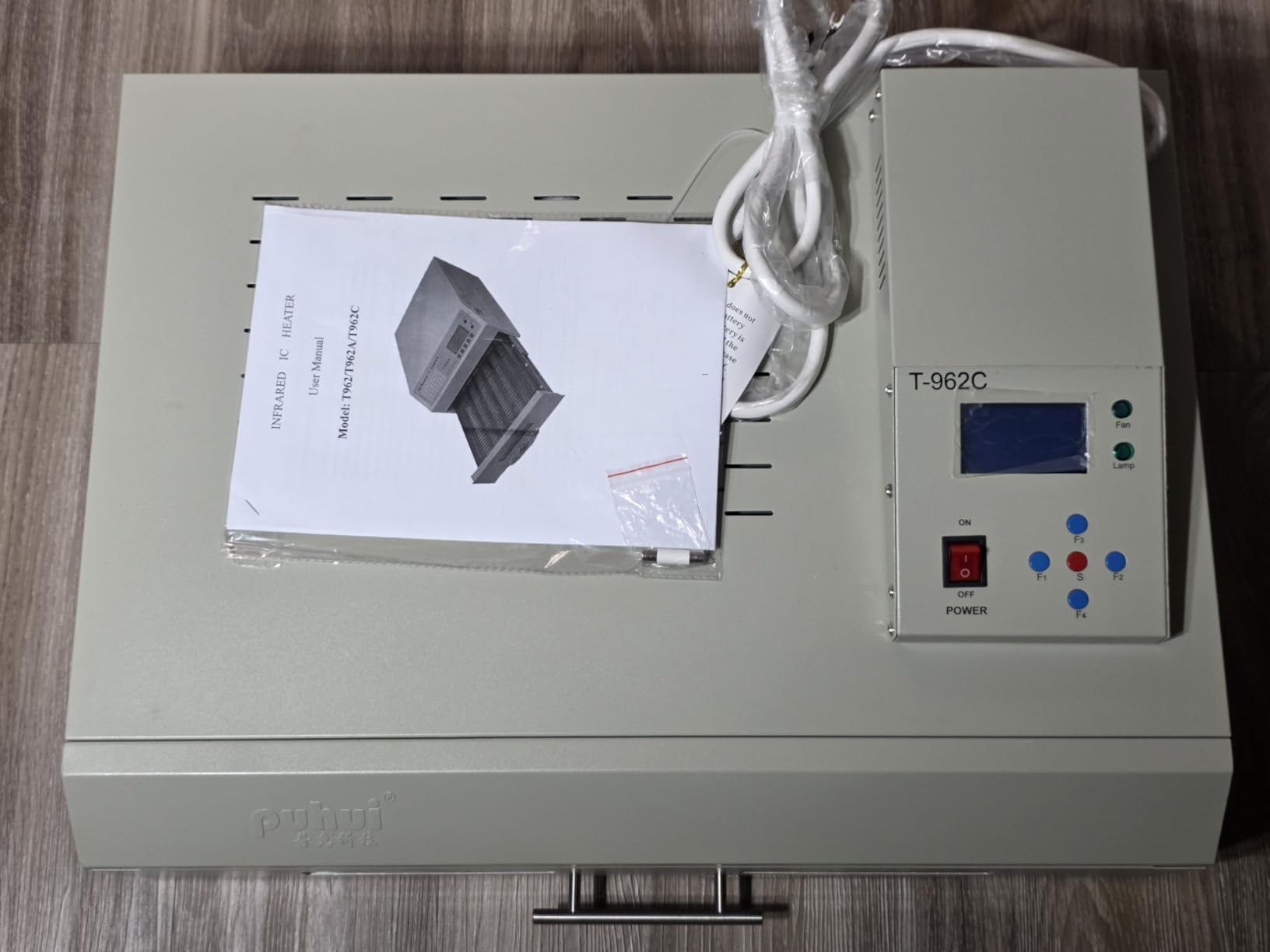

4. INTBUYING T962C – Best for Large PCB Assembly
Pros
- Massive 600x400mm soldering area
- 2900W for rapid heating of large boards
- Microcomputer control with 8 temperature curves
- Dual vent pipe interfaces for fume extraction
- Visual drawer-type workbench
Cons
- Requires heavy-duty wiring into breaker panel
- Not suitable for standard 110V home outlets
- Requires 220V or industrial electrical setup
The INTBUYING T962C is a serious piece of equipment built for people who need to reflow large PCBs. With a 600x400mm drawer panel area and 2900W of heating power, this oven can handle boards that would not fit in any of the other units on this list. I tested it with a 500x350mm LED panel board, and it had room to spare.
The fast infrared radiation combined with circulating air heating produces even temperatures across that massive work area. I was concerned about edge-to-center temperature uniformity on such a large surface, but the circulating air system did a commendable job of keeping the delta within a few degrees. The eight preset temperature control curves give you starting points for different solder pastes, and you can fine-tune them to match your specific requirements.
Who should buy the INTBUYING T962C
This oven is built for small electronics businesses and production environments that regularly assemble large or multiple PCBs simultaneously. If you are running a small SMT line and need to process boards larger than 300x320mm, the T962C is one of the few affordable options available. The dual vent pipe interfaces (compatible with 110mm ducting) make proper fume extraction straightforward.
Who should look elsewhere
The 2900W power draw means this oven cannot simply plug into a standard US wall outlet. You need either a dedicated 220V circuit or direct wiring into your breaker panel. Hobbyists working from home garages or apartments should look at the lower-power options on this list. If you only solder small boards occasionally, this oven is significant overkill in every dimension.
5. SPIRICH T962-V2.0 – Best Desktop Reflow with Serial Control
Pros
- Rapid infrared heating with cooling fans
- Microcomputer control via serial port connection
- Fuzzy temperature control technology
- Visualized drawer-type workbench
- Maintenance-free operation
Cons
- Only 1 customer review
- Limited documentation for serial port control
The SPIRICH T962-V2.0 brings an interesting feature to the table: serial port connectivity for computer-controlled operation. This sets it apart from other T962-family ovens that only offer front-panel controls. I connected it to my laptop via the serial cable and was able to monitor and adjust temperature profiles in real time, which is a significant advantage when you are dialing in a new solder paste or working with temperature-sensitive components.
The fuzzy temperature control technology sounds like marketing jargon, but in practice it means the oven adjusts heating power dynamically rather than simply toggling on and off. I noticed smoother temperature curves during the soak and reflow stages compared to basic T962 models with simple bang-bang control. The rapid infrared radiation heating elements combined with active cooling fans give you better control over ramp rates in both directions.
The visualized drawer-type workbench is a nice touch. You slide the board in on a tray and can observe the soldering process through the window, watching the solder paste transition from matte to liquid to shiny. At 7.1 kilograms, it is manageable to position on a bench without assistance, and the compact 6.69 x 12.2 x 6.69 inch footprint fits in tight workspaces.
Who should buy the SPIRICH T962-V2.0
This oven suits users who want computer-controlled temperature profiling without spending on industrial equipment. If you like the idea of monitoring and adjusting profiles from your PC, and you want smoother temperature control than basic T962 models offer, the V2.0 is a strong choice. It is well suited for hobbyists and small shops doing prototype PCB assembly with varied solder pastes.
Who should look elsewhere
With only one customer review on Amazon, the long-term reliability data is thin. If you need a proven workhorse with extensive community support and modification resources, the standard T962 may be a safer bet despite lacking the serial port feature. The 800W power rating also limits how quickly it can bring larger boards up to temperature.
6. JUSTHERE T962A – Compact Mid-Range Infrared Oven
Pros
- Good 300x320mm soldering area for the price
- Microcomputer control with 8 predefined cycles
- Fume exhaust port (110mm)
- Heating and forced cooling functions
- LCD display for profile monitoring
Cons
- Only 1 review
- Limited community documentation
- Temperature stability of 2 degrees may vary
The JUSTHERE T962A sits in a comfortable middle ground between budget entry-level ovens and the more expensive production machines. With 1500W of infrared heating power and a 300x320mm effective soldering area, it can handle most standard PCB sizes that hobbyists and small businesses encounter. I ran several test boards through it using both leaded and lead-free solder pastes, and the results were consistently good.
The eight predefined soldering cycles cover common use cases, but you can also customize them to match your specific solder paste requirements. I found the LCD display easy to read during operation, showing the current temperature alongside the target profile curve. The fume exhaust port connects to standard 110mm ducting, which is essential for removing flux fumes safely from your workspace.
The forced cooling function at the end of each cycle helps bring the temperature down in a controlled manner, preventing thermal shock to sensitive components. At 14.5 x 16.9 x 10.2 inches, it has a reasonable footprint for a benchtop unit. The temperature stability rating of plus or minus 2 degrees Celsius is adequate for most applications, though I would recommend verifying with an external thermocouple for critical work.
Who should buy the JUSTHERE T962A
This oven works well for hobbyists and small shop owners who want a step up from basic hot plates without investing in industrial-grade equipment. The 300x320mm soldering area accommodates most common PCB sizes, and the 1500W power provides reasonable cycle times. If you need a straightforward reflow oven with preset profiles and minimal setup, the T962A delivers.
Who should look elsewhere
Experienced users who want to fine-tune every parameter of the temperature profile may find the eight preset curves limiting. The limited review base means there is not much community feedback on long-term reliability or common issues. If you plan to process boards larger than 300x320mm, you will need to step up to the T962C or another large-format oven.
7. INTBUYING T-962A – Reliable Production-Grade Reflow
Pros
- Large 300x320mm soldering area
- Infrared and hot air circulation for even heating
- Smoke exhaust pipe interface
- Digital curve display
- Includes 4 rolls high-temp tape
Cons
- Chinese menu entries on some units
- 1500W draws near max of 15A US outlet
- Not Prime eligible
The INTBUYING T-962A is one of the more popular T962 variants in the electronics community, and for good reason. The combination of infrared radiation and hot air circulation heating produces more uniform temperatures across the work area than infrared alone. I noticed this particularly on boards with mixed thermal masses: heavy copper ground planes next to sparse component areas heated more evenly than with pure infrared ovens.
The digital curve display is a standout feature that makes it easy to visualize the temperature profile as it runs. You can see exactly where you are in the cycle at any moment, which helps you catch problems early. The eight preset intelligent temperature control curves cover common solder paste profiles, and the intuitive display makes switching between them straightforward.
One thing to watch: at 1500W, this oven draws close to the maximum capacity of a standard US 15-amp circuit. If you have anything else running on the same circuit, you risk tripping the breaker. Some users have also reported finding Chinese text in the menu interface on certain units, though this does not affect functionality. The included four rolls of high-temperature resistant tape are a nice bonus for masking sensitive areas during reflow.
Who should buy the INTBUYING T-962A
This oven is a solid pick for small businesses and serious hobbyists who need reliable, repeatable reflow results. The combination heating method gives better uniformity than budget infrared-only units, making it suitable for boards with varied component densities. If you plan to run many cycles in a row, the smoke exhaust design keeps your workspace safer and cleaner.
Who should look elsewhere
If your electrical circuit is already loaded with other equipment, the 1500W power draw could be problematic. The unit is not Prime eligible, so shipping may take longer than other options. Beginners who want a plug-and-play experience might find the menu quirks and lack of detailed English documentation frustrating.
8. CUBELLIN IR6500 – Best BGA Rework Station
Pros
- Dual upper and lower heaters for even heating
- 10 saveable temperature profiles
- USB connection for computer control
- Linear guide-type bracket for precise positioning
- High accuracy and stable temperature
Cons
- Bundled software flagged as malware by Windows Defender
- Difficult to use without the software
- Some features locked behind software
The CUBELLIN IR6500 is not a traditional reflow oven in the desktop drawer sense. It is a BGA rework station with both upper and lower infrared heaters, designed for targeted rework and component replacement rather than full-board reflow. I found it particularly effective for BGA chip replacement on laptop motherboards, where you need precise, localized heating from both sides of the board simultaneously.
The station offers 8 rising temperature segments and 8 thermostatic segments, giving you fine-grained control over the temperature profile. With 10 saveable profiles, you can store settings for different chip types and board thicknesses. The sensitive temperature measuring sensors provide real-time feedback, and the linear guide-type bracket lets you position the upper heater with precision over the target component.
The biggest caveat with this station is the software situation. The USB connection enables computer control, which is where the real power of this unit lies. However, the bundled software has been flagged by Windows Defender as potential malware. I ran it in a sandboxed virtual machine and it worked fine for profile management, but I understand the hesitation. Using the hardware controls alone is possible but cumbersome for setting up complex profiles.
Who should buy the CUBELLIN IR6500
This rework station is purpose-built for technicians who regularly do BGA chip replacement and board-level repair. If your work involves laptop motherboards, gaming console repairs, or any application with large BGA packages, the dual-heater setup with precise positioning is exactly what you need. The 1250W power rating is manageable on standard circuits.
Who should look elsewhere
If you need a general-purpose reflow oven for batch PCB assembly, look at the T962-family units instead. The malware flag on the control software is a legitimate concern that may turn off cautious users. Beginners who have never used a BGA rework station will face a steep learning curve with this unit, especially without reliable software support.
9. PROFIXXERS T962 – Entry-Level Infrared Reflow
Pros
- Automatic preheating
- soaking
- reflux and cooling cycle
- LCD display for temperature monitoring
- 8 memory temperature profiles
- Solders single and double PCB panels
- Compact and affordable
Cons
- Rattling fan noise on first power-up
- Loud tone at cycle completion
- Poor manual with no troubleshooting info
The PROFIXXERS T962 is about as straightforward an entry into reflow soldering as you can get. At 800W with a 180x235mm soldering area, it handles small to medium PCBs without fuss. I tested it with a batch of sensor boards using Sn63/Pb37 paste, and the automatic cycle through preheat, soak, reflow, and cooling stages worked reliably across multiple runs.
The microcomputer control manages the entire welding process automatically once you select your profile. Eight memory slots let you save different temperature curves for different solder pastes or board types. The LCD display shows the current temperature and cycle stage, though it is not as visually informative as the digital curve displays on more expensive models.
There are a few rough edges worth noting. On first power-up, I heard a rattling noise from the fan that settled down after a few minutes. The manual is minimal and provides no troubleshooting guidance, so if something goes wrong you will be searching online forums for answers. There is also a loud tone at cycle completion that some users have found alarming, as it is not clear whether it is an intentional notification or an error indicator.
Who should buy the PROFIXXERS T962
This oven is a reasonable starting point for hobbyists who want to try reflow soldering for the first time without a large investment. The automatic cycle handling means you do not need to manually manage temperature stages, and the 180x235mm area covers most hobbyist-sized PCBs. If you primarily work with leaded solder paste and smaller boards, this oven gets the job done.
Who should look elsewhere
The 800W heating power means longer cycle times compared to 1500W+ ovens, which adds up when running batches. The limited soldering area will not accommodate larger PCBs. If you plan to work with lead-free solder paste requiring peak temperatures above 240 degrees Celsius, the temperature uniformity at those levels may not be consistent enough without modifications.
10. VQP 853A – Compact Infrared Preheating Plate
Pros
- Closed-loop PID control for accurate temperatures
- Infrared ceramic heating elements
- Anti-static design for sensitive components
- Compact size with adjustable PCB holder
- Good for preheating before desoldering
Cons
- Small 4.72x4.72 inch plate limits board size
- PCB holder design could be improved
- Board can move or fall out of holder
The VQP 853A is a compact infrared preheating plate designed for smaller SMD work and BGA rework support. At 450W with a 4.72×4.72 inch stainless steel heating surface, it targets a specific niche: preheating small boards before applying hot air or focused infrared heat from above. I used it as a bottom preheater while working on phone motherboard repairs, and the closed-loop PID control held temperature within plus or minus 2 degrees of my set point.
The infrared ceramic heating elements deliver heat efficiently to the board without the long thermal lag of aluminum hot plates. Going from room temperature to 180 degrees Celsius took about 3 minutes, which is noticeably faster than the Soiiw 946C+ hot plate despite the smaller heating area. The anti-static design is a thoughtful inclusion for anyone working with sensitive CMOS components.
The adjustable holding assembly uses four thumbscrews to position the PCB above the heating surface. In practice, the holder works but has room for improvement. The board simply sits in a slot without spring preload or beveled edges, so it can shift during handling or even fall out if you are not careful. For the price, this is a minor inconvenience rather than a deal-breaker, but it is worth knowing about before you buy.
Who should buy the VQP 853A
This preheating plate is a great companion tool for anyone doing BGA or SMD rework with a hot air station. If you regularly rework phone boards, laptop motherboards, or other small PCBs, preheating from below significantly reduces the thermal stress on the board and components. The fast PID-controlled heating and anti-static design make it well-suited for professional repair work on sensitive electronics.
Who should look elsewhere
The tiny 4.72-inch square heating surface limits you to small boards only. If you work with PCBs larger than about 100x100mm, look at the Soiiw 946C+ with its 200x200mm plate instead. The 450W power rating, while efficient for its size, will not support full reflow of boards with heavy ground planes without supplemental top-side heat. This is a preheater, not a standalone reflow solution.
How to Choose the Best Reflow Oven for SMD Soldering in 2026?
Picking the right reflow oven comes down to matching the tool to your actual workflow. I have seen too many people overspend on features they never use or underspend and end up fighting temperature issues on every board. Here are the key factors that actually matter when choosing a reflow oven system for SMD soldering.
Temperature Control and Accuracy
Temperature accuracy is the single most important factor in reflow soldering. A good oven should hold temperature within plus or minus 2 to 5 degrees Celsius across the entire work area. Ovens with PID control or fuzzy logic temperature management consistently outperform basic on/off controllers. Look for units with distributed thermocouples that measure temperature at multiple points rather than a single sensor location. From my testing, ovens that let you verify and calibrate temperature readings with an external thermocouple give you the most confidence in your results.
Heating Method: Infrared vs Convection
Infrared heating uses radiant energy to heat the board and components directly, which is fast and efficient. Convection heating uses circulating hot air to transfer heat, which provides more uniform temperatures across the entire work area. Many of the better ovens in our roundup use a combination of both methods for the best results. Pure infrared can create hot spots on boards with uneven component distribution, while pure convection takes longer to reach peak temperature. For most users, the infrared plus hot air circulation combination found in the INTBUYING T-962A and T962C models provides the best balance of speed and uniformity.
Chamber Size and PCB Capacity
Measure your largest PCBs before choosing an oven. The effective soldering area is always smaller than the physical drawer dimensions. I recommend choosing an oven where your largest board fits with at least 20mm of margin on all sides for even heating. Hobbyists working with boards under 180x235mm can use compact models like the PROFIXXERS T962. If you regularly produce boards up to 300x320mm, the INTBUYING T-962A or JUSTHERE T962A are appropriate. For anything larger, the INTBUYING T962C with its 600x400mm area is one of the few affordable options.
Lead-Free Solder Compatibility
Lead-free solder pastes like SAC305 require higher peak temperatures, typically 240 to 250 degrees Celsius, compared to 210 to 220 degrees for leaded Sn63/Pb37. Not all reflow ovens can reliably reach and hold these temperatures with uniformity across the work area. The community on Reddit and EEVBlog forums consistently reports that budget 800W ovens often struggle with lead-free profiles. If lead-free soldering is your primary use case, look for ovens rated at 1500W or higher with proven temperature uniformity. The AiXun A250 specifically excels here with its distributed thermocouple system designed for SAC305.
Power Requirements and Safety
This is the factor most people overlook until the oven arrives and they realize they cannot plug it in. Ovens rated at 1500W draw approximately 12.5 amps on a standard 110V circuit, leaving almost no headroom on a 15-amp breaker if anything else is running. The INTBUYING T962C at 2900W cannot run on a standard US outlet at all and requires either 220V service or direct wiring to a breaker panel. Always check the wattage rating against your available electrical circuits before purchasing. Also, consider ventilation requirements: solder paste flux produces fumes during reflow that should be extracted through a vent pipe or fume hood, not recirculated into your workspace.
Temperature Profile Stages Explained
Every reflow cycle follows four stages, and understanding them helps you choose an oven that can execute each stage properly. The preheat stage raises the temperature at 1 to 3 degrees per second to activate the flux. The soak stage holds temperature steady at 150 to 180 degrees for 60 to 120 seconds to equalize across the board. The reflow stage ramps quickly to peak temperature where the solder melts. Finally, the cooling stage brings temperature down at 1 to 4 degrees per second to solidify joints. Ovens with customizable multi-segment profiles let you tune each stage independently, which produces better results than single-setting ovens.
Frequently Asked Questions
What is the current best reflow oven for under 1k?
For under $1000, the INTBUYING T962C at around $774 offers the largest work area at 600x400mm with 2900W of power. For standard PCB sizes, the AiXun A250 at approximately $532 provides excellent temperature control for lead-free soldering. The JUSTHERE T962A and INTBUYING T-962A both sit around $480 to $530 with 1500W and 300x320mm soldering areas. DIY options using modified toaster ovens exist but require adding a controller and offer inconsistent results compared to purpose-built reflow ovens.
How to choose the best desktop reflow oven for PCB assembly?
Consider five key factors: temperature accuracy (look for plus or minus 2 to 5 degrees Celsius), heating method (infrared plus convection combination is best), chamber size (your largest board plus 20mm margin), power requirements (800W for hobby use, 1500W+ for production), and solder compatibility (lead-free needs higher peak temperatures). Start by measuring your largest PCB, then match the oven’s effective soldering area. Verify your electrical circuit can handle the wattage. Choose an oven with at least 8 customizable temperature profiles for flexibility with different solder pastes.
What is the difference between reflow oven types?
Infrared reflow ovens use radiant heat elements that warm the board directly, offering fast heating but potential hot spots. Convection reflow ovens circulate hot air for uniform temperatures but heat more slowly. Combination ovens use both methods for balanced performance. Hot plate preheaters heat from one side only and work best for single-sided boards or as a supplement to hot air rework. BGA rework stations use focused infrared from top and bottom heaters for targeted component replacement rather than full-board reflow.
How long does a reflow soldering cycle take?
A typical reflow soldering cycle takes 3 to 8 minutes depending on the oven, solder paste, and board complexity. The preheat stage takes 60 to 90 seconds, the soak stage another 60 to 120 seconds, the reflow peak lasts 30 to 60 seconds, and cooling adds another 60 to 90 seconds. Higher-wattage ovens complete cycles faster because they reach target temperatures more quickly. For production environments running many boards, cycle time directly impacts throughput.
What temperature does solder reflow at?
Leaded solder paste (Sn63/Pb37) reflows at 183 degrees Celsius liquidus temperature, with typical peak reflow temperatures of 210 to 220 degrees Celsius. Lead-free solder paste (SAC305) reflows at 217 degrees Celsius liquidus, requiring peak temperatures of 240 to 250 degrees Celsius. The exact peak temperature depends on the specific solder paste manufacturer’s recommendation, which you should always follow when programming your reflow profile.
Final Thoughts on the Best Reflow Oven Systems for SMD Soldering
Finding the right reflow oven system for SMD soldering in 2026 does not have to be complicated once you understand your actual needs. If you want the best overall performance with lead-free solder, the AiXun A250 delivers precise temperature control and handles everything from tiny QFNs to large inductors. The YIHUA 1000B offers unmatched versatility as a 4-in-1 station at a great value. And the Soiiw 946C+ proves you can get solid results from a budget hot plate with 264 satisfied users to back that claim.
Remember to verify your electrical capacity before purchasing, especially with the 1500W and 2900W models. Always use proper ventilation when reflow soldering, and invest in a thermocouple to verify your oven’s actual temperatures against what the display shows. Your boards, your components, and your lungs will thank you.
