The short answer for a home shop is the Malco MB48A, a 48 inch portable brake that bends 22 gauge galvanized sheet to 135 degrees and weighs 58 pounds, so one person can carry it to the job. If your work stays inside a garage, a 24 inch bench-mount model will serve you better because it is faster to set up and easier to square. A shop that folds full 4 foot panels needs a 48 inch, and a shop that cuts, bends and rolls wants a 3-in-1 combination machine instead of three separate tools.
That is the real tradeoff running through every sheet metal brake on this list, and it is not price. It is capacity against footprint. Sheet metal brakes are heavy, awkward and permanently hungry for bench space, and the mistake most home fabricators make is buying width they will never use. Our team spent weeks with these machines on duct transitions, control enclosures and roofing flashing, and the width you can actually reach across matters far more than the tonnage number on the box.
What follows is a comparison of the best sheet metal brakes for home shops in 2026, covering ten machines across three architectures: manual finger and box and pan brakes, bench-mount precision brakes, and a 3-in-1 shear, brake and slip roll combination. Every gauge rating below is the manufacturer rating for mild steel unless we say otherwise, and aluminum and stainless are easier to bend than mild steel at the same gauge number. If you want the forming side of the shop covered too, our slip roll picks and metal nibbler guide round out the workflow.
Top 3 Best Sheet Metal Brakes For Home Shops (October 2026)
Malco MB48A 48 Inch Portable Brake
- 22 gauge galvanized capacity
- 135 degree bend
- 58 pounds
- 4 foot sheet width
Shop Fox M1011 24 Inch Box and Pan
- 24 inch by 20 gauge
- ten box fingers
- 1-3/4 inch box depth
- hand powered
All 10 Sheet Metal Brakes Compared in 2026
| Product | Specifications | Action |
|---|---|---|
| Malco MB48A Portable Mini Brake 48 Inch |
|
Check Latest Price |
 VEVOR 48 Inch Box and Pan Brake |
|
Check Latest Price |
 KASTFORCE KF5002 28 Inch Brake |
|
Check Latest Price |
| Shop Fox M1011 24 Inch Box and Pan Brake |
|
Check Latest Price |
 VEVOR 3-In-1 12 Inch Shear Brake Roll |
|
Check Latest Price |
 KASTFORCE KF5006 24 Inch Box and Pan Brake |
|
Check Latest Price |
 VEVOR 24 Inch Portable Box and Pan Brake |
|
Check Latest Price |
 KAKA INDUSTRIAL W-2420A 24 Inch 20 Gauge |
|
Check Latest Price |
 Eastwood 12 Inch Precision Box and Pan Brake |
|
Check Latest Price |
 KAKA INDUSTRIAL BDS-8 Vise Mount Brake |
|
Check Latest Price |
What Type of Sheet Metal Brake Do You Actually Need?
A sheet metal brake is a machine that folds flat sheet metal into angled or box shapes. It clamps the material along a straight line, then forces the free section to rotate around that clamped edge. The width of the finger or die you insert sets the bend radius, and the length of the clamping edge sets the maximum width of sheet you can form in one pass.
A box and pan brake, also called a folding machine, is the most common brake in small shops. Instead of a single long nose bar, it uses a row of short interchangeable fingers under the clamping beam. Swapping the finger under the bend line changes the shape from a simple hem to a full box or pan, which is why this architecture dominates home and HVAC work.
A finger brake is the simplest form of the same idea. One long removable gooseneck or radius finger sits at the front of the beam and you pivot the material around it. It is cheaper, faster to set up and less precise, and it will not make a closed box in a single operation. Two people on a Chief Delphi thread described the search for a brake that is not too big so it has a nice area in the shop while leaving space for other stuff, and a finger-style machine is the usual answer to that request.
A press brake is the industrial alternative. It pushes a punch into a V-shaped die rather than folding the material around a nose bar, which allows deeper forming and a tighter inside radius. Most press brakes also need two people, one on each side of the machine, and a real backgauge, which is why the machines on this list are folders rather than true press brakes.
Gauge capacity is the thickness of material a machine is rated to bend, and the number is meaningless without knowing the material. Manufacturers rate mild steel, where a 20 gauge rating will not handle the same 20 gauge of aluminum or stainless. Higher gauge numbers mean thinner material, so 22 gauge is the thinnest structural sheet and 11 gauge is the thickest most home shops will ever attempt. One owner in a metalworking forum warned fellow hobbyists to just not try to bend steel washers, and to be clear it is limitations, because a brake rated for aluminum will crease and can injure you when loaded with mild steel at the same gauge number.
1. Malco MB48A Portable Mini Brake – 48 inch width that one person can carry
Malco MB48A 48″ Portable Mini Brake, 22 Gauge Capacity, Sheet Metal Bender for HVAC, Roofing & Ductwork Fabrication
Pros
- Bends 22 gauge galvanized sheet to 135 degrees
- Full 4 foot width in a 58 pound body
- Adjustable strengthening ribs
- Made in the USA
- Good for roofing flashing and plenums
Cons
- Optional leg kit sold separately
- 22 gauge is the thinnest-rated capacity in this group
- Handles roofing material better than heavy steel plate
This is the brake we recommend first, and the reason is simple. It covers the full 4 foot width of a sheet in one pass, and at 58 pounds it is light enough that a single person can pick it up and carry it to a truck bed. For a home shop that does roofing trim, HVAC transitions or site work, that portability changes how you work rather than just where the machine sits.
The adjustable strengthening ribs keep the clamping edge from flexing across that long 48 inch span, which is the usual failure point on a wide manual brake. The 135 degree swing is enough for hems, seams and closed returns on 22 gauge material.
Owners consistently single out the compact, job-site-ready footprint and the ability to fold roofing and flashing material to sharp angles. The machine also makes compact fabrications as small as a 4 inch square, which matters when you are trimming a transition down to fit a small opening rather than working on full panels.
Be realistic about the material range. This is a 22 gauge machine, which puts it firmly in the territory of galvanized roofing, copper and aluminum flashing rather than structural steel plate. If your project list is mostly 18 gauge or heavier mild steel, the 22 gauge ceiling will frustrate you within a week.
What you can realistically form on it?
Roofing flashing strips, plenums, large duct transitions, narrow trim pieces and small closed returns in 22 gauge galvanized or aluminum. The listing also covers copper, and the same 135 degree swing handles the folded hems that go into a duct run.
Because the width is 4 feet, a full sheet of roofing stock goes across in one pull. The tradeoff is depth of forming: this is a folder, not a press brake, so deep pans need a folding sequence rather than a single deep bend.
Who should skip it?
Skip it if your work is 18 gauge mild steel or thicker, because 22 gauge capacity will not cover that. The optional leg kit is also a separate purchase, and the machine is built for lighter material than most buyers assume from its 4 foot width.
2. VEVOR 48 Inch Box and Pan Brake – full sheet width on a press-plate hold
Pros
- Full 48 inch width in an affordable frame
- 0.31 inch blade resists flexing
- Integrated press plate needs no separate clamps
- Handles stainless copper aluminum iron and galvanized sheet
- Available in 30 and 36 inch versions
Cons
- Q235 steel is lighter duty than cast iron competitors
- Sand-cast finish and hardware are not premium
- 8 percent one-star share on finish quality
This machine is the one to pick when you want to reach across a full 4 foot sheet on a bench-mounted budget. At 61.7 pounds it is heavier than the portable 48 inch option in this roundup, and its 20 gauge mild steel ceiling is thicker, which is why it suits shop work where the material is a little heavier. The 0.31 inch blade with a reinforced rib design is the part that matters, because blade flex is what ruins a long bend. The integrated press plate holds the sheet without external clamps, so there is no wrestling with C-clamps at the ends of a 48 inch edge.
It is rated for 20 gauge low carbon steel and 14 gauge aluminum, and the same rating does not carry over to stainless or copper. On thinner aluminum you will get much more headroom than the mild steel figure suggests, which is exactly the gauge-versus-material translation that catches people out.
The adjustable bending angle runs from 0 to 135 degrees, and the screw-mountable design lets you bolt it to a bench or move it between work locations. Buyers rate it as a strong value for full-width sheet work, with the press-plate hold and thick blade praised as better than typical budget brakes.
Two things temper that. The Q235 steel construction is lighter duty than the cast iron used on premium machines, and the sand-cast finish and hardware read as entry level. A steady 8 percent share of one-star ratings in the reviews reflects finish complaints rather than bending failures, so manage expectations on cosmetics.
What you can realistically form on it?
Full-width 20 gauge low carbon steel, 14 gauge aluminum, and thinner work in copper, stainless, iron and galvanized sheet. The integrated press plate means a consistent hold across the entire 48 inch, which is the difference between a square bend and a curved one on a long edge.
The same design also comes in 30 inch and 36 inch versions, which cover shops that want the frame and the press-plate hold but not the full 4 foot reach.
Who should skip it?
Skip it if you care about a finish that looks as good as it functions, because the hardware and casting will not impress. Skip it if you need to move the machine often and 61.7 pounds is already more than you want to lift. And skip it if your material is thicker than 20 gauge mild steel, since that rating is a hard ceiling rather than a starting point.
3. KASTFORCE KF5002 – 18 gauge steel in a 28 inch bench frame
Pros
- 18 gauge mild steel is unusually thick for this class
- 28 inch width suits ducting and shutters
- Welded heavy steel frame takes repeated work
- 4.5 star average with only 2 percent one-star
- 44 pounds is easy to reposition
Cons
- Needs clamping to the bench for consistent results
- Not a smooth-rolling finger brake
- Package dimensions are larger than the working footprint
This is the value pick because 18 gauge mild steel capacity at 28 inches of width is an unusual pairing. Most machines at 24 inches and wider in this list stop at 20 gauge mild steel, and every gauge number you gain is material you can form rather than material you have to send out.
Owners use it for furnace ductwork and shutter material, and the 1.5 mm steel rating holds up on repeated folds. The welded heavy-duty steel frame is the reason it does not walk on the bench while you pull the handle, which keeps the bend steady.
The angle range is 0 to 135 degrees, and 44 pounds means you can lift it with one hand to reposition or take it out of the way. Users highlight the unusual gauge capacity for the price and the durability of the welded frame, with most reviews centered on ducting, shutters and general shop fabrication.
One caution from the reviews: this design needs to be clamped to the bench for consistent results, and it is not a smooth-rolling finger brake. If your folds vary from piece to piece, check the mounting before you blame the material. Only 2 percent of reviews are one-star, which is a strong signal for an import machine.
What you can realistically form on it?
18 gauge mild steel and 16 gauge aluminum at 28 inches wide, which covers duct transitions, shutter slats, auto body trim and small enclosures. The 16 gauge aluminum figure means aluminum is easier on this machine than the 18 gauge mild steel number, so you have extra headroom on non-ferrous stock before you reach the machine limit.
The 28 inch width is a genuinely useful middle ground. It handles most sheet offcuts and standard panel material while staying narrow enough to sit at the end of a normal bench rather than across a whole wall.
Who should skip it?
Skip it if you need 16 gauge mild steel capacity, because 18 gauge is the ceiling here. And skip it if you want a large finger set to build deep boxes, since this is a simpler bending frame without the ten-piece finger arrangements found on some 24 inch machines. Bolting it down matters as well, because consistency on this design depends on that clamp.
4. Shop Fox M1011 – ten box fingers and repeatable 24 inch folds
Pros
- Ten fingers allow virtually any whole-number box combination
- Repeatable bends once set with calipers
- Ground platens and fingers have good fit and finish
- Factory adjusted for 20 gauge sheet
Cons
- Small T-nuts can crack under heavy loading and get upgraded
- No bend angle gauge or back stops included
- Bends can bow on narrow stock without a front extension
- Around 99 to 110 pounds is hard to move
Accuracy is the reason to buy this one. The ten box fingers, in 1 inch, 2 inch, 3 inch and 4 inch segments, let you build almost any whole-number box width across the full 24 inch without improvising. Once you set the gap with calipers, the folds come out repeatable, and it is factory adjusted for 20 gauge sheet so there is no initial setup fight.
It is one of the heaviest machines we recommend for a home shop at roughly 99 to 110 pounds, and that is a deliberate trade. A cast iron T-slot platen and ground fingers hold geometry far better than a welded tube frame, and the 1-3/4 inch maximum box depth is the deepest forming of the machines in this roundup that publish a box depth figure.
Owners consistently call this the top of its size and price class, praising build quality, finger count and accuracy over the no-name imports. It arrives in a wooden crate on forklift skids, and most buyers reported no damage in transit, though a few crates were not built well enough to protect the machine.
The recurring criticisms are worth budgeting around. The small T-nuts in the cast iron T-slot can crack under heavy loading and owners replace them, and there is no bend angle gauge or back stops included, so you are adding your own measurement references.
What you can realistically form on it?
24 inch wide 20 gauge mild steel folded from 0 to 135 degrees, with boxes up to 1-3/4 inch deep. That covers control enclosures, small chassis, equipment covers and duct transitions where a consistent, square fold matters more than raw capacity.
The footprint of 10-1/2 inch by 26-1/4 inch is compact for its capability. This is the machine to buy if you build a lot of identical parts, because repeatability is where the extra weight pays off.
Who should skip it?
Skip it if you cannot get it into position, because roughly 100 pounds is a two-person move unless you bolt it down. Skip it if you need aluminum gauge capacity above 20 gauge equivalent, since the rating is for mild steel. And skip it if you want a bench angle gauge and back stops included, because they are not.

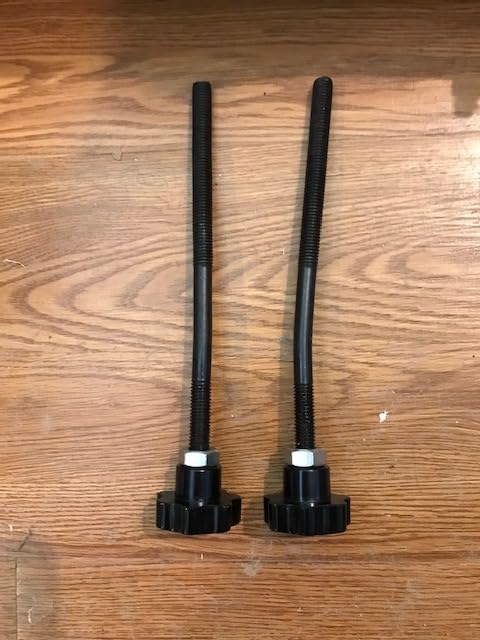

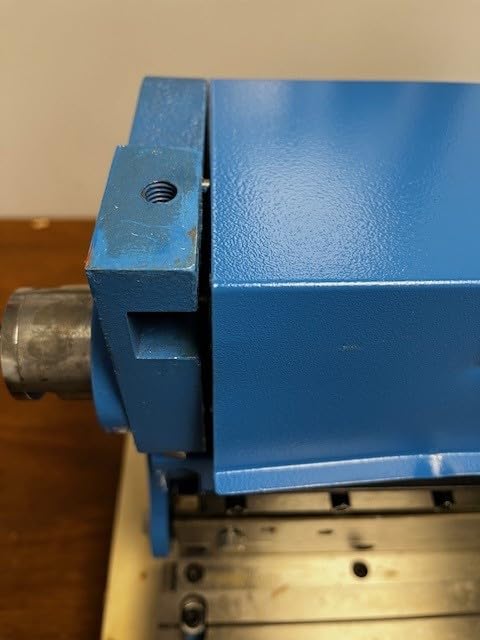

5. VEVOR 3-In-1 12 Inch – shear, brake and slip roll on one bench
VEVOR Sheet Metal Brake, 12-inch, 3-In-1 Combination Shear Brake Roll Machine, 20-Gauge Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
Pros
- Three functions in one compact benchtop footprint
- Segmented blades allow varied box and pan sizes
- Grinding on the rollers reduces scratching
- Suitable for small RC and hobby panels
Cons
- 20 gauge rating is optimistic for cutting and rolling
- Shear needs frequent re-adjustment between cuts
- Sand-cast finish is rough
- Rough handling can bend knobs and jam handles
This is the odd one out, and it is worth a slot anyway. A press brake, a shear and a slip roll share one cast frame, so instead of three machines taking three bench spaces you get one footprint of 20.87 by 14.76 by 14.96 inches. For a small shop doing model panels, small enclosures and mixed trimming, that consolidation is genuinely useful.
The bend function reaches 12 inches of sheet at 20 gauge with a 90 degree maximum angle, and the HT200 cast body with a T10 shearing blade is a heavier structure than the welded frames in this list. External cylindrical grinding on the rollers reduces friction and scratching on finished material.
Five segmented blades sized at 1 inch, 2 by 2 inch, 3 inch and 4 inch cover a range of box and pan sizes, and the blade clearance is listed under 0.0027 inch. Owners split between hobbyists who love the three functions in a small footprint and those who expected industrial precision from a combination machine.
At 3.9 stars this is the lowest rated machine here, and the reasons are consistent. The 20 gauge rating is optimistic for cutting and rolling, the shear needs frequent re-adjustment between cuts, and some units arrived with bent adjustment knobs after rough crate handling. Treat it as a hobbyist tool, not a production machine.
What you can realistically form on it?
Small sheet at 12 inches wide, up to 20 gauge in the bending operation, with 90 degree bends. The segmented blade set lets you form varied box and pan sizes, and the slip roll handles small radius curves and hem rolls in the same material.
It is a good fit for RC panels, small electronics housings and hobby-scale trim where a full 24 inch box and pan brake would be overkill and take up too much bench.
Who should skip it?
Skip it if you need accurate 20 gauge shearing, because owners report the shear repeatedly losing adjustment. Skip it if 90 degrees is not enough, since there is no room past that on a combination machine. And skip it if you want the finish quality of a dedicated single-function brake.
6. KASTFORCE KF5006 – 24 inches of work on a 68 pound frame
KASTFORCE KF5006 Box and Pan Brake Sheet Metal Folder Bending Brake Metal Forming Machine Max Capacity 24 Inch (610mm) 20 Ga (1.0mm) with 5 Fingers 0-135 deg
Pros
- 4.6 star average with zero percent one-star reviews
- Full 0 to 135 degree range
- Standard 1 2 3 8 and 10 inch finger set
- 68 pound frame resists walking during bends
Cons
- 1.5 inch maximum box depth limits deep pans
- Only five fingers means some widths need rearranging
This machine carries a 4.6 star average with no one-star reviews at all, which is unusual for an import brake. The 24 inch width at 20 gauge mild steel sits right in the middle of what a garage shop actually forms, and the standard 1, 2, 3, 8 and 10 inch finger set covers the most common box and pan dimensions.
At 68.1 pounds it is heavy enough that the frame resists walking while you pull, and light enough to reposition without a second person. That combination is the reason it fits a home garage better than the 95 and 100 pound machines in this list.
Owners describe accurate, repeatable folds and a build quality that reads heavier than typical import brakes. The 0 to 135 degree brake range covers hems, seams and returns, and the segmented fingers let you build a pan bottom and walls in a single setup.
Two limits are documented. The 1.5 inch maximum box depth caps how deep a pan can go, and five fingers means some box widths require rearranging segments mid-job. Neither is a problem for duct and cover work, and both matter if you build deep enclosures.
What you can realistically form on it?
24 inch wide 20 gauge mild steel, folded from 0 to 135 degrees, with pans and boxes up to 1.5 inch deep. That covers HVAC transition pieces, equipment covers, small trays and repair brackets, which is the bulk of home shop sheet work.
Aluminum is not the limiting factor on this machine, so if your parts are aluminum you have more room before you reach the 20 gauge mild steel ceiling.
Who should skip it?
Skip it if you build deep pans, because 1.5 inches is the ceiling. Skip it if you need many finger width combinations, since five fingers is the smaller set. And skip it if you want 48 inch reach, because 24 inches is all this frame offers.
7. VEVOR 24 Inch Portable Brake – ten finger segments for box width variety
VEVOR Box and Pan Brake, 24in, Portable Metal Bender with 0-135° Bending Angle, Capable of Handling 20 Gauge Low Carbon Steel & 14 Gauge Aluminum, with 5 Adjustable Fingers for Sheet Metal Bending
Pros
- Ten modular finger segments give far more width combinations
- 0.39 inch steel at 21 HRC feels rigid
- Can be bolted to a bench or relocated
- Handles stainless copper aluminum iron and galvanized sheet
Cons
- 103.2 pounds is the heaviest 24 inch brake here
- 11 percent one-star share from arrival and fit issues
The reason to choose this over the other 24 inch brakes is the finger set. Ten modular segments, two 1 inch, four 2 inch, two 3 inch and two 4 inch, give far more width combinations than the usual five-piece set, and that is what determines how many different box sizes you can form without retooling.
Thickness is the other story. At 0.39 inch the structure is thicker than most competitors, and the steel is rated at 21 HRC, which is why reviewers describe it as rigid and resistant to flexing. The 20 gauge low carbon steel and 16 gauge aluminum rating covers everyday shop work in the same machine.
It is screw-mountable to a workbench while remaining portable, so you can bolt it down for repeat work and move it when a job takes you elsewhere. The bending angle adjusts from 0 to 135 degrees, and the material list includes stainless, copper, aluminum, iron and galvanized sheet.
At 103.2 pounds this is the heaviest 24 inch brake in the group, and an 11 percent one-star share in the reviews points to arrival damage and fit issues rather than bending problems. Inspect the machine early rather than discovering a bent control after your first job.
What you can realistically form on it?
24 inch wide material at 20 gauge low carbon steel or 16 gauge aluminum, with box widths built from ten finger segments. The wider segment selection is the practical advantage when you alternate between small brackets and wider covers.
For anything 48 inches wide, this is the wrong machine. For mixed 24 inch work where you alternate between narrow brackets and wide covers, the ten segment arrangement gives you more box width options than the five-piece sets on the other 24 inch brakes here.
Who should skip it?
Skip it if you cannot get 103 pounds into place, because this is a two-person move unless you have help. Skip it if the 11 percent arrival damage rate in the reviews worries you, since a bent control is a real service issue. And skip it if you want a polished finish.
8. KAKA INDUSTRIAL W-2420A – a commercial welded frame for a working shop
Pros
- Welded steel body with truss rods and a cast iron base
- Adjustable clamping pressure adapts to sheet width
- Wide range of size and gauge variants from one maker
- Suited to HVAC auto restoration and school shops
Cons
- 11 percent one-star share on finish consistency
- Shallow 1.38 inch maximum box depth
- About 95 pounds is a two-person move
This is the one to consider if your shop is doing paid work rather than weekend projects. The solid steel welded body with heavy truss rods and a cast iron base is a commercial-style frame, and the adjustable clamping pressure lets you tune the hold for different sheet widths instead of living with one setting.
Capacity is 24 inches of 20 gauge mild steel over a 0 to 135 degree range with five removable fingers at 1, 2, 3, 8 and 10 inches. Minimum reverse bend is 0.47 inch and maximum box depth is 1.38 inch, so deep pans are not the strength here.
Buyers credit the heavy construction and the adjustability of the clamping pressure and fingers, and the manufacturer offers a wide range of size and gauge variants, including 12, 36, 48 and 50 inch versions plus straight brake variants. That makes it easier to grow into the same brand as your shop takes on bigger work.
At roughly 95 pounds net, it is a heavy lift for a home shop, and the reviews show a larger share of negative ratings than the other 24 inch machines here. Those ratings center on finish consistency and how the machine is handled in transit rather than on bending performance, so inspect it on arrival.
What you can realistically form on it?
24 inch wide 20 gauge mild steel, folded from 0 to 135 degrees, in HVAC, auto restoration, school and hobby shop fabrication. Adjustable clamping pressure means it handles varying sheet widths without remounting the fingers.
Because several gauge and width variants exist from the same maker, this is a reasonable starting point if you think you will outgrow 24 inches within a year.
Who should skip it?
Skip it if deep pans are your main work, because 1.38 inches of box depth will not cover it. Skip it if weight is a problem, since 95 pounds is difficult to place alone. And skip it if finish consistency is critical, because the review data shows real variation there.
9. Eastwood 12 Inch Precision Box and Pan Brake – the smallest real brake here
Eastwood 12 Inch Precision Box and Pan Sheet Metal Brake | Adjustment Box with 5 Adjustable Fingers | Folds & Bends up to 20 Gauge Steel 16 Gauge Aluminum or 24 Gauge Stainless Steel
Pros
- Perfect 5.0 star rating across all 23 reviews
- Compact 16.5 inch footprint fits a small garage
- Bench mounts at each corner keep the brake rigid
- Covers mild steel aluminum and stainless in one tool
Cons
- 12 inch width is the narrowest real brake in this group
- Only five fingers limits box size combinations
- Considerably heavy for its 12 inch class
This is the answer to the small-shop problem. It measures 16.5 inch wide by 10.75 inch deep by 14.25 inch with bench mounts at each corner, so it takes up almost nothing on a workbench while still delivering a proper box and pan brake with a full 0 to 135 degree range.
Every recorded review is five stars, and owners point to precision bends, secure bench mounting and a size that fits a small garage or home workshop without dominating the bench. It is also the one machine here that publishes a stainless steel rating alongside its mild steel and aluminum figures: 20 gauge mild steel, 16 gauge aluminum and 24 gauge stainless.
Two things keep it out of a top-three slot despite the perfect rating. The 12 inch width is narrow, so anything wider needs a different machine, and 66 pounds is heavy for that class. The rating is based on 23 reviews, which is a small sample, so treat it as encouraging rather than conclusive.
The five adjustable fingers handle small box and pan work, but that is a smaller set than the ten-finger machines. It is backed by a 1-year limited warranty, which is a reasonable baseline for the category.
What you can realistically form on it?
Small brackets, plastic guides, air tank mounts, control boxes and short trim in mild steel, aluminum or stainless up to the stated gauges. At 12 inches it covers control panels, junction box shapes and small covers better than anything else in this list.
The corner bench mounts are the feature to use. Bolting it down at all four corners is what keeps the bend angle consistent, and skipping that step is how a precision brake starts producing inconsistent folds.
Who should skip it?
Skip it if your parts are wider than 12 inches, because that is a hard limit. Skip it if you need deep boxes, since five fingers and a narrow width restrict pan size. And skip it if you want a large review base to justify the decision, because 23 reviews is thin evidence.

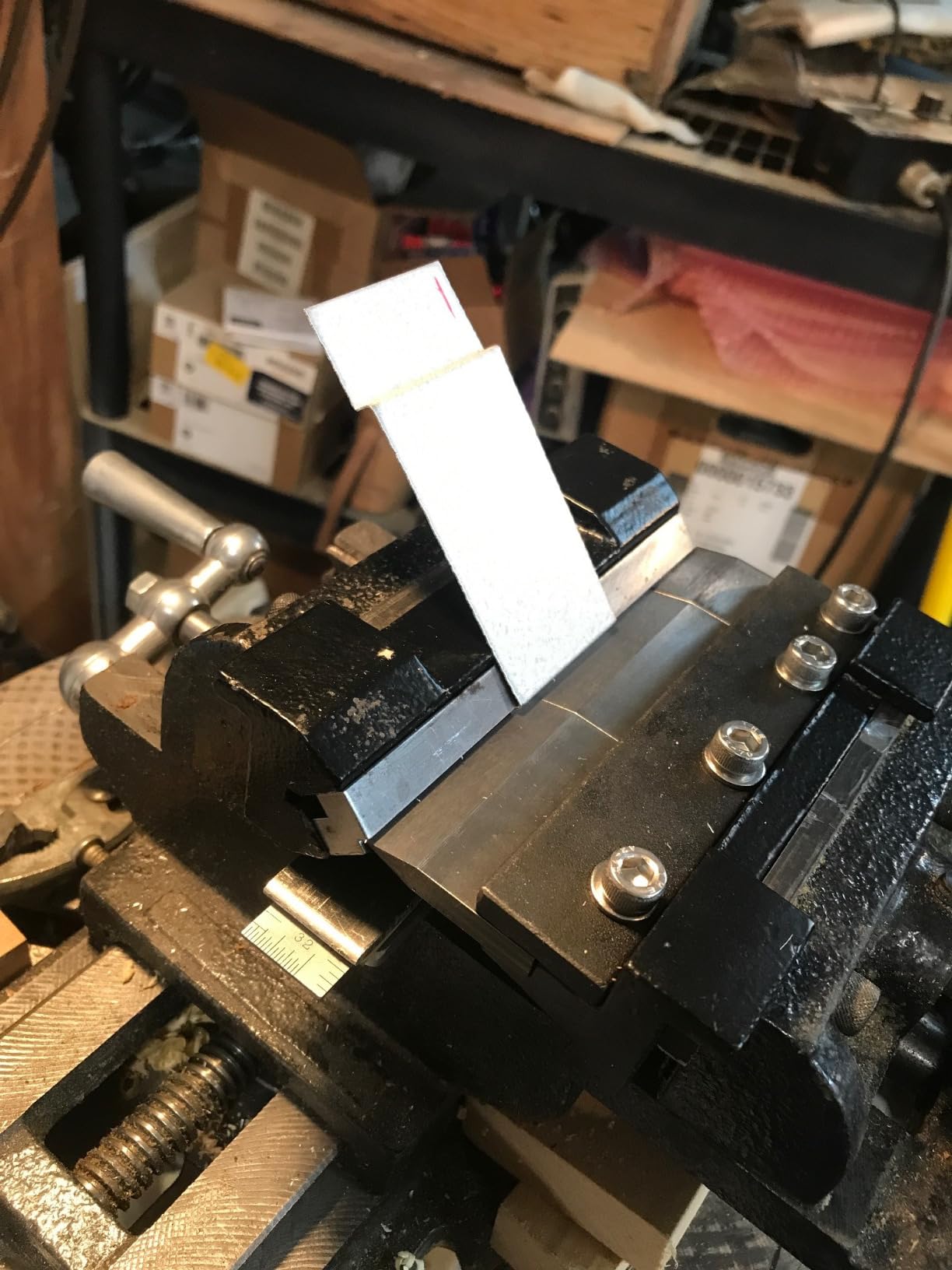

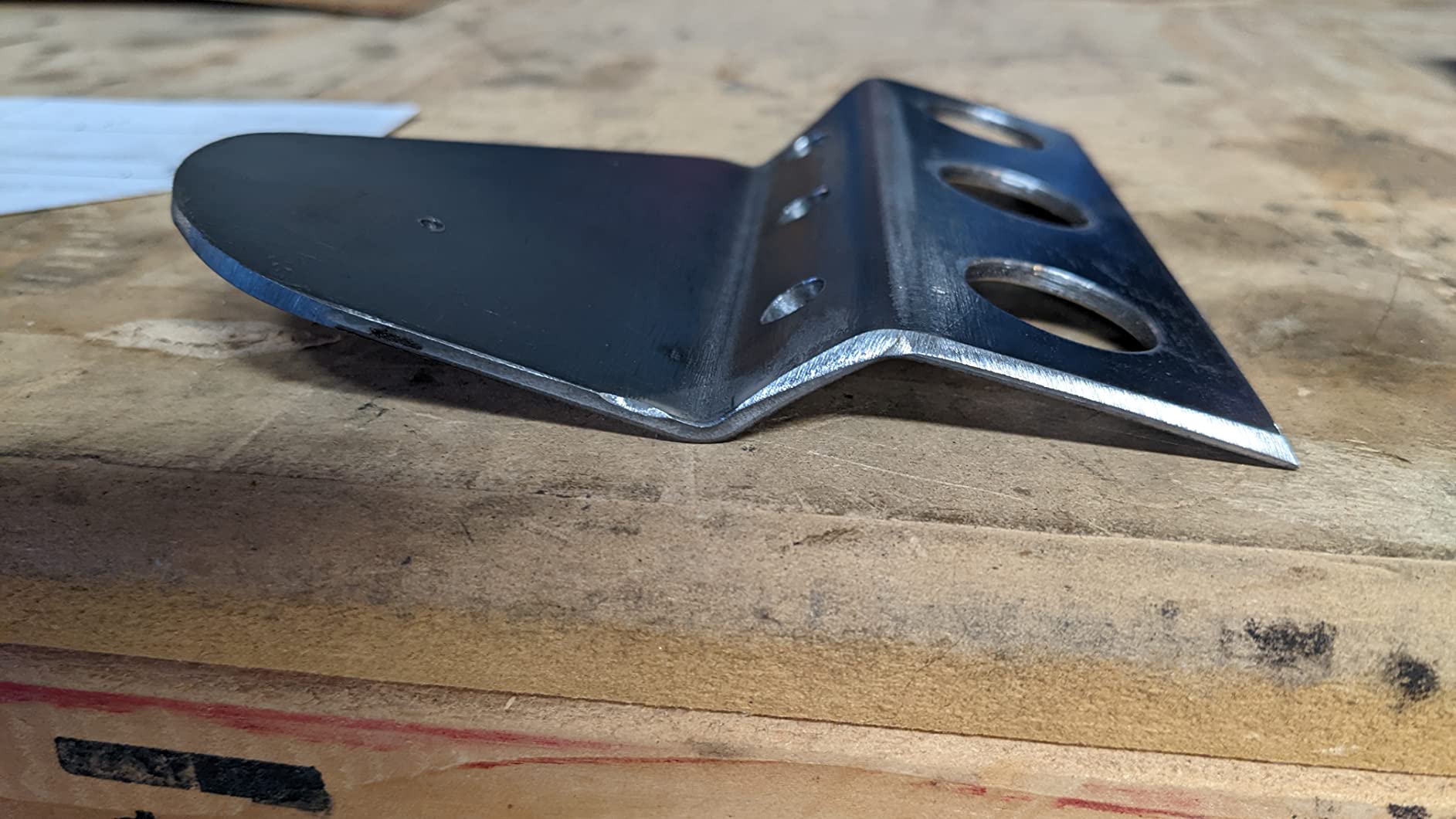

10. KAKA INDUSTRIAL BDS-8 – a vise-mount brake that stores in a drawer
Pros
- Largest review base in this group at 312 reviews
- Mounts to a suitable vise to create a small brake
- Only 2.8 pounds so it stores away when not in use
- Five segmented fingers cover small box and pan work
Cons
- Vise is required and sold separately
- 8 inch width and 14 gauge limit it to brackets and repairs
- Magnetic mounting needs a compatible steel vise
If your real need is small brackets, repairs and occasional box work, this attachment may be all you need. At 2.8 pounds it lives in a drawer, and it turns any suitable vise into a working brake, which means zero permanent bench space is consumed. It has the largest review base in this group at 312 reviews with a 4.6 star average and only 1 percent one-star.
Capacity is listed at 14 gauge mild steel and 1/8 inch aluminum across an 8 inch width. The five removable segmented fingers are sized 4 inch, 2 inch, 1 inch, 1/2 inch and 1/2 inch, which is enough for hobby-scale box and pan work.
Owners treat it as a cheap bench-top accessory that converts an existing vise into a capable small brake. That framing is accurate, and it matters when you set expectations: this is a convenience tool for small work, not a replacement for a 24 inch folder.
The magnetic back positions the attachment on a compatible vise, and the vise itself is not included. If your bench vise is aluminum or too light to hold firm, the mounting will not work as intended, so check the vise material before you buy.
What you can realistically form on it?
Small brackets, tabs, small pans and repair work up to 8 inches wide in 14 gauge mild steel. The segmented fingers let you make small box shapes and return flanges without setting up a full bench machine.
It also serves as a second opinion machine. If your bench brake is occupied, or you want to check a bend angle on a small part without waiting, having this in the drawer takes a minute instead of a setup.
Who should skip it?
Skip it if you do not already own a compatible steel vise, because that is a required purchase. Skip it if your material is 16 gauge mild steel or heavier, because 14 gauge is the ceiling. And skip it if you need full-width panels, since 8 inches will not reach them.
How to Choose a Sheet Metal Brake: 5 Decisions?
1. Width comes from your parts, not your ambition. Measure the widest thing you expect to form and buy the next size up, not the biggest size you can move. A 48 inch machine is the right answer for full roofing sheets and full-width duct transitions, and it is wasted on 12 inch trim pieces. Our professional fabrication brake guide goes deeper on the wider end of the range.
2. Buy gauge for the thickest material you will actually run. Work in gauge and gage, they mean the same thing, and shop listings are inconsistent about which they use. The number is a mild steel rating, so aluminum and stainless at the same gauge are considerably easier. If you bend aluminum exclusively, a 20 gauge machine will feel like a 24 gauge machine in practice.
3. Count fingers before you count features. Ten modular segments give you many more box width combinations than a five-piece set, and deep pans need both a large finger and sufficient box depth. Shop Fox lists a 1-3/4 inch maximum box depth, the KASTFORCE KF5006 caps at 1.5 inches, and the KAKA W-2420A at 1.38 inches, so check that number against your deepest part.
4. Plan how the machine gets mounted and moved. Bench-mount feet or screw holes keep a machine rigid and consistent, and rigidity is what stops folds from varying piece to piece. Conversely, a 95 to 110 pound machine is effectively a two-person job to move onto a heavy duty bench, which is the drawback people mention most often once the machine is home.
5. Budget for the add-ons, not just the machine. Gooseneck fingers, custom fingers, radius fingers and stands are frequently discovered after purchase, and they are what turn a cheap brake into a useful one. A machine that comes with only a few fingers will cost more once the set you actually need is added.
Two more tools complete most home shop workflows. For cutting sheet without a hand shear, our metal nibbler picks handle curves and notches. For HVAC work, our duct crimper guide covers the joining step that follows bending. Shops doing heavy structural work may also want to compare against ironworker machines, which cut and bend in a single pass.
Gauge to Material: What Each Number Means in Your Shop?
Higher gauge numbers mean thinner material, and the difference between 22 gauge and 16 gauge is the difference between roofing trim and structural parts. Use this list as a translation when you read a spec sheet, and remember that the rated number is for mild steel unless the listing says otherwise.
22 gauge (0.03 inch): Roofing flashing, trim strip and small transition pieces. This is the ceiling of the Malco MB48A and it is genuinely useful for site work.
20 gauge (0.035 inch): The most common home shop material. Duct transitions, equipment covers, control enclosures, small pans and general shop brackets. Most of the 24 inch brakes in this list stop here.
18 gauge (0.05 inch): Heavier covers, trailer body panels, automotive trim and shutter material. The KASTFORCE KF5002 is unusual in reaching this in a bench frame.
16 gauge (0.063 inch): Structural brackets and mounting tabs, usually aluminum on a home shop brake and mild steel only on a heavier machine.
14 gauge (0.075 inch): The practical ceiling for a vise-mount attachment, and where most home shop machines give out. Thicker than this and you want a press brake or a machinist.
11 gauge and heavier: Plate work that no machine on this list is designed to bend. This is press brake and ironworker territory.
On 16 gauge mild steel specifically, expect a serious fight on any hand-operated machine in this list. Most owners doing that work use a powered or hydraulic setup, and the ones who try to force a hand brake past its rating report damaged parts and sore fingers rather than successful bends.
Safety: Where Home Shop Brakes Hurt People?
Hand injury from overloading a manual brake is documented and recurring, not hypothetical. One owner described putting a fat dent in a finger trying to push the limits on a brake rated well below that material, and the lesson generalizes: the gauge rating is a structural limit on the frame and the clamping beam, not a suggestion.
Keep fingers on the material, never on the beam or near the finger as the bend closes. The single most dangerous moment is the last few degrees of travel, when the mechanical advantage of the handle is highest and the material is being creased rather than formed.
Secure the machine before you pull. A brake that is not bolted to a bench can shift or walk at the end of a heavy bend, which turns a controlled fold into a pinch point. The lightweight machines especially need a bench clamp, and the heavier ones need help being placed at all.
Expect jams and kickback. If the sheet will not feed or the bend will not complete, stop and reset rather than adding force. For thicker material than your machine is rated for, the honest answer is a different tool, and that is what an ironworker or press brake is for.
Frequently Asked Questions
What is the best metal brake?
For a home shop, the best overall pick is the Malco MB48A, a 48 inch portable brake that folds 22 gauge galvanized sheet to 135 degrees and weighs 58 pounds, so one person can carry it. For garage work that stays under 24 inches, a bench-mount box and pan brake is faster to set up and easier to square.
How thick can a sheet metal brake bend?
It depends on the machine and the material. Machines in this group range from 14 gauge mild steel on the small vise-mount attachment up to 18 gauge mild steel on the 28 inch bench frame, and most 24 inch brakes stop at 20 gauge. Aluminum and stainless at the same gauge number bend far more easily than mild steel.
How hard is it to bend 16 gauge steel?
Very hard on any hand-powered machine in this class. 16 gauge mild steel sits at the edge of what a home shop brake can do, and most owners who attempt it report damaged material and sore hands. If 16 gauge steel is your regular material, plan on a powered or hydraulic setup rather than a manual folder.
Which is better, manual brakes or power brakes?
For a home shop, a manual brake is usually the better fit. It costs less, uses no electricity, needs no circuit and takes up less space. A powered or hydraulic brake earns its place when you bend the same heavier material repeatedly, because it removes the force from your arms and reduces the injury risk that owners report on overloaded manual machines.
What are the two main types of brake presses?
The two main types are the punch-and-die press brake, which pushes a punch into a V-shaped die, and the clamping beam folder, which folds the material around a nose bar or a set of fingers. Press brakes allow deeper forming and tighter inside radii but usually need two operators. Folders run solo and are the standard choice for home and HVAC shops.
Do I need a box and pan brake or a press brake?
A box and pan brake, also called a folding machine, if you build boxes, pans, covers and duct transition pieces. A press brake only if you need deep forming, tight inside radii or production volume with a backgauge, since a real press brake usually requires two people and a dedicated position in the shop.
Can a sheet metal brake bend aluminum?
Yes, and aluminum is considerably easier than mild steel at the same gauge number. Most machines rated at 20 gauge mild steel will handle 16 gauge aluminum comfortably and some will go lighter. The risk is treating the mild steel rating as an aluminum rating and loading the machine to the point where the frame, beam or fingers are overloaded.
How much does a sheet metal brake cost?
Prices in this category span a very wide range, from a small vise-mount attachment to 48 inch box and pan machines and shop-grade machines above that. The machine is rarely the full cost. Gooseneck fingers, extra finger sets and stands are the most common add-on purchases, so budget for them up front and check whether the brake comes with the finger set your parts need.
The Verdict for 2026
The best sheet metal brakes for home shops come down to honest capacity against honest bench space. If you need full 4 foot sheet work and want to carry the machine to the job, the Malco MB48A is the pick, and it is the single choice we would make first. If your material is heavier and stays on the bench, the KASTFORCE KF5002 gives you 18 gauge steel in a frame you can lift with one hand.
For repeat accuracy in a working shop, the Shop Fox M1011 is worth the extra weight, and the KAKA W-2420A is the commercial-frame option if you are doing paid work. Small shops have two honest answers: the Eastwood 12 inch if the work is narrow, and the KAKA BDS-8 vise mount if the work is smaller still and bench space is the real constraint.
Whichever one you choose, measure your widest part, check the gauge rating against mild steel rather than aluminum, count the fingers, and bolt the machine down before the first bend. Those four steps prevent nearly every complaint we found in owner reports.
Related Articles
