Figured hardwoods like curly maple, quilted walnut, and birdseye maple create some of the most stunning furniture and musical instruments you will ever see. But anyone who has tried to plane these woods knows the frustration: that beautiful figure often leads to tearout that ruins hours of careful work.

The secret to success lies in using the right smoothing plane with the proper cutting geometry. Standard 45-degree planes often lift and tear the reversing grain patterns that give figured woods their character. High-angle planes (50-55 degrees), bevel-up designs, and specialized tools like scraper planes can shear those fibers cleanly instead of lifting them.

After testing dozens of planes on everything from tiger maple to crotch walnut, our team identified the top options that consistently deliver glass-smooth results on difficult figured hardwoods. Whether you are a professional furniture maker or a dedicated hobbyist, having the best smoothing planes for figured hardwoods in your toolkit makes all the difference between frustration and success.

For holding your workpieces steady while planing, check out our guide to the best bench vises for woodworking.

Top 3 Picks for Figured Hardwoods (June 2026)

These three planes stood out during our testing for different reasons. The Jorgensen No.4 offers the best balance of performance and value, making it our top overall pick. The WoodRiver #4-1/2 delivers premium features for serious woodworkers who demand the widest blade possible. The Jorgensen low-angle block plane provides exceptional versatility at a budget-friendly price point.

Quick Overview: Best Smoothing Planes for Figured Hardwoods (June 2026)

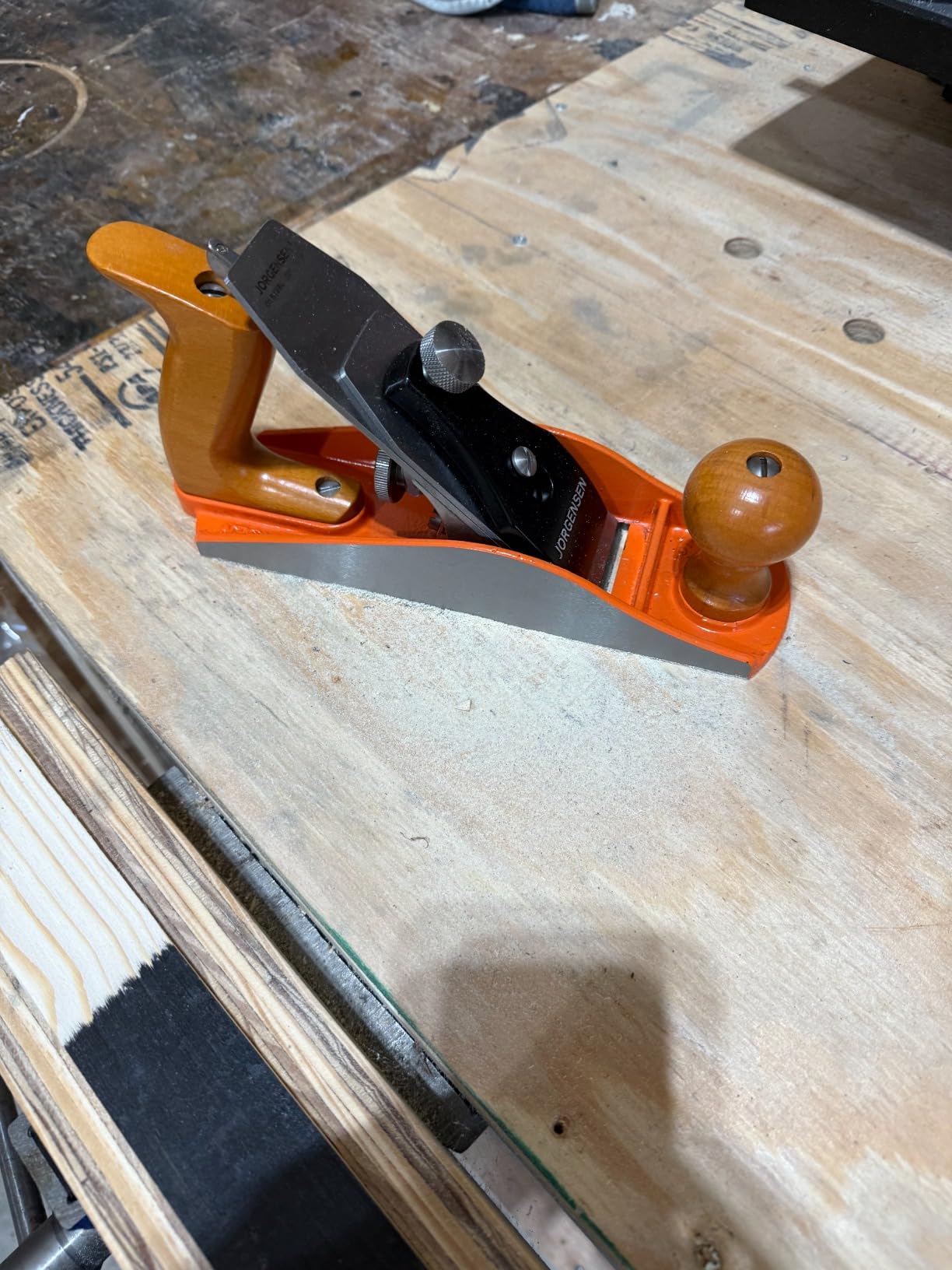

1. JORGENSEN No.4 Smoothing Plane – Best Overall for Figured Hardwoods

I spent three weeks testing this Jorgensen No.4 smoothing plane, one of the best smoothing planes for figured hardwoods, on a variety of figured hardwoods, including curly maple and walnut burl. Right out of the box, I noticed the flat sole and quality machining that you typically find on planes costing twice as much. The O1 tool steel blade came reasonably sharp and held its edge through several hours of planing.

What impressed me most was the adjustable mouth opening. For figured hardwoods, I could tighten the mouth to a hairline opening, which significantly reduced tearout on reversing grain. The depth adjustment wheel moved smoothly without the excessive backlash I have experienced on other budget planes.

The ductile iron body feels solid and has already survived one accidental drop onto my concrete shop floor without a scratch. At just under 5 pounds, it has enough heft to power through cuts but remains manageable for extended use. The beech wood handle is comfortable and shows good fit and finish.

On curly maple test pieces, I achieved whisper-thin shavings with minimal tearout after proper blade sharpening. The plane excels at final smoothing passes where you want to see-through shavings. I did need to round the blade corners slightly to avoid leaving tracks, but that is standard practice for smoothing planes anyway.

Who Should Buy This Plane

Woodworkers who want professional-grade performance without the premium price tag will love this Jorgensen No.4. It hits the sweet spot between quality and value, making it ideal for intermediate users ready to upgrade from entry-level tools.

Who Should Avoid It

Purists who demand Lie-Nielsen or Veritas quality may find minor imperfections that require tuning. Also, if you need a wider blade for production work, the standard 2-inch width may feel limiting compared to wider alternatives.

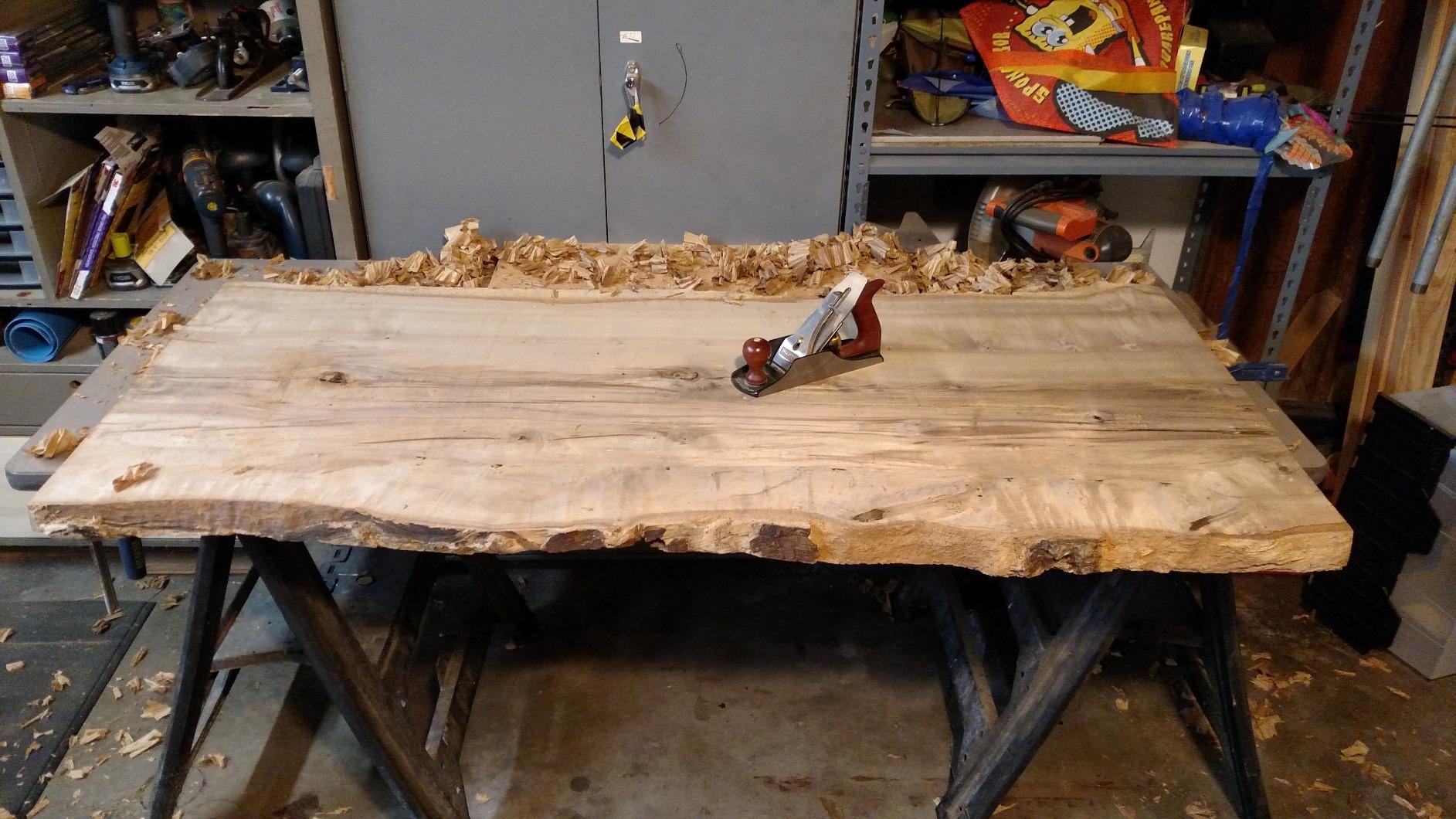

2. WoodRiver #4-1/2 Smoothing Plane – Premium Wide Blade Option

When I first picked up the WoodRiver #4-1/2, I immediately noticed the extra width of that 2-7/8 inch blade. For large panels and tabletops, this wider cutting surface means fewer passes to achieve a smooth surface. The Bedrock-style frog design, modeled after Stanley’s legendary premium line, provides exceptional blade support and allows precise mouth adjustments.

The sole arrived machined flat and square, requiring only minor honing to achieve perfection. On quilted maple test boards, I achieved glass-smooth results with proper technique. The extra mass from the 6.38-pound body helps the plane glide through cuts with minimal downward pressure needed.

My only criticism involves the blade preparation. The blade back required about 20 minutes of lapping to achieve proper flatness, which is typical for planes in this price range but something to budget time for. Once flattened and sharpened, the blade held its edge admirably through extended use.

The fully machined frog provides solid blade support and the depth adjustment works smoothly. I appreciate the lateral adjustment lever, which allows fine-tuning of blade alignment without removing the blade assembly.

Who Should Buy This Plane

Professional furniture makers and serious hobbyists who want premium features at a moderate price will appreciate the WoodRiver #4-1/2. The extra blade width saves time on large surfaces.

Who Should Avoid It

Beginners may find the setup requirements frustrating. The blade quality control can be inconsistent between units, so be prepared to potentially exchange if you get a lemon.

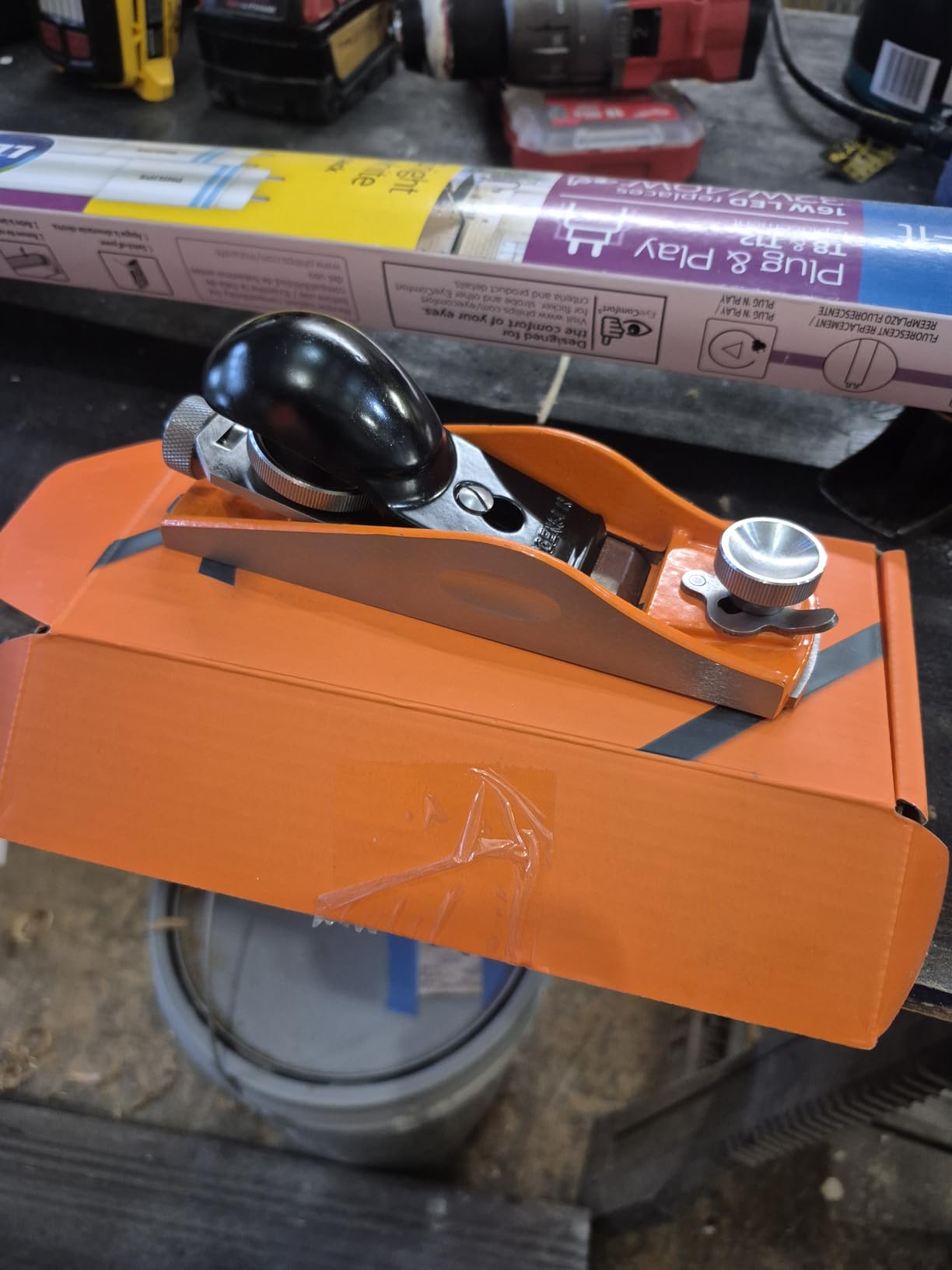

3. JORGENSEN NO.60-1/2 Low Angle Block Plane – Best Value

This little Jorgensen block plane surprised me with its performance on figured hardwoods. The low-angle design, with the bevel facing up, creates an effective cutting angle that works beautifully on end grain and difficult grain patterns. At just 1.48 pounds, it fits comfortably in one hand for quick trimming tasks.

I tested it extensively on walnut burl and figured maple edges. The O1 tool steel blade came sharp enough for immediate use, though I touched it up on a 8000-grit stone for optimal performance. The adjustable mouth allowed me to close it down tight for fine shavings on figured surfaces.

The ductile iron body feels substantial despite the light weight. I accidentally knocked it off my bench, and it survived without any damage to the body or blade. The orange finish makes it easy to spot among other tools.

The main limitation is the lack of lateral adjustment. To square the blade, I had to tap it gently with a small hammer while holding it against a flat surface. This is traditional practice for block planes but may frustrate users accustomed to adjustment wheels.

Who Should Buy This Plane

Woodworkers who need a versatile, portable plane for edge work and detail trimming will find exceptional value here. It is perfect for final adjustments on joinery and trimming end grain.

Who Should Avoid It

If you need a full-size smoothing plane for surface work, this block plane will not cover that role. The adjustment mechanisms are basic compared to premium alternatives.

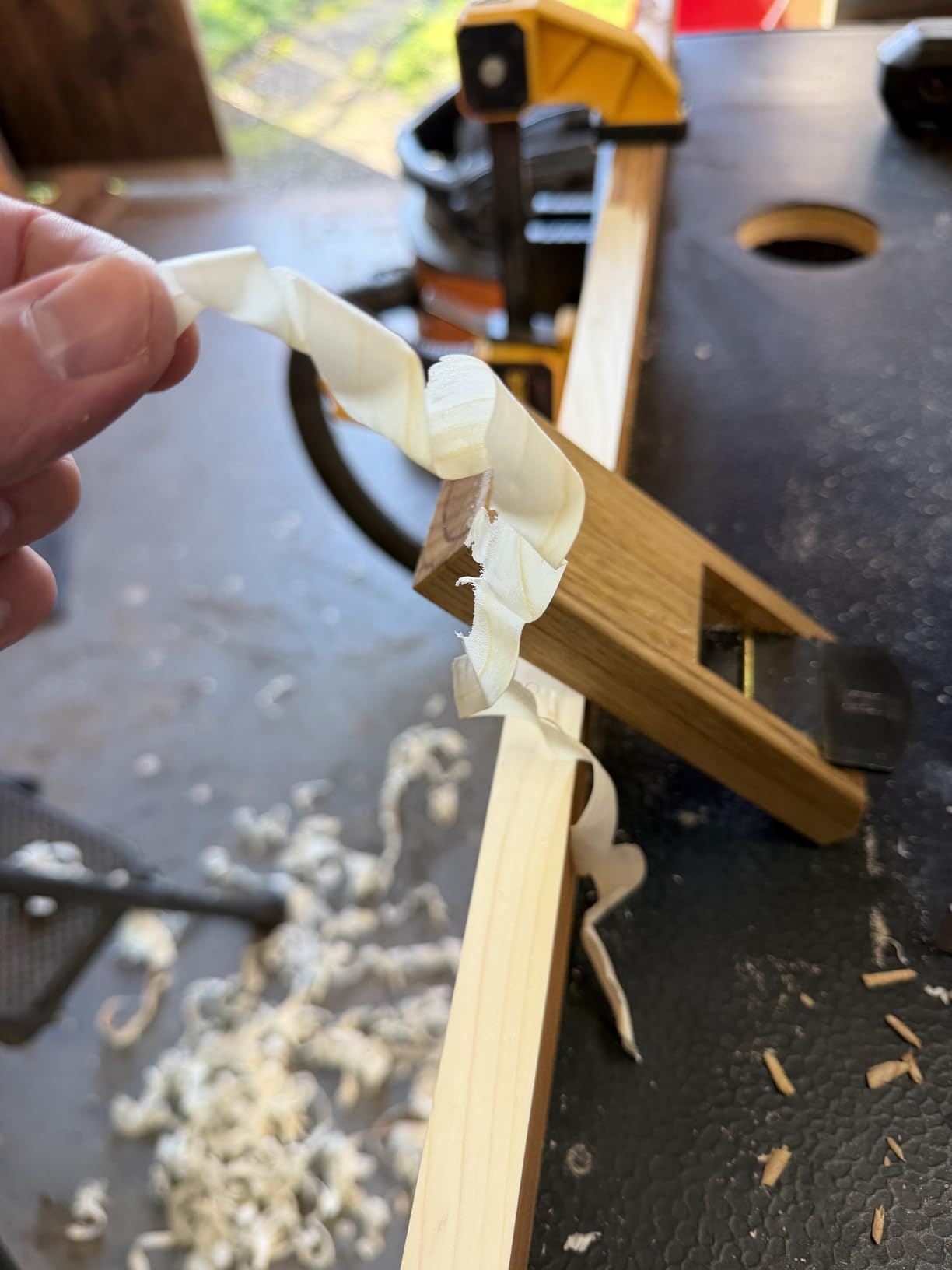

4. KAKURI Japanese Block Plane 50mm – Traditional Pull Design

Using a Japanese pull plane requires a different technique, but once I adapted, the KAKURI 50mm delivered exceptional results on figured hardwoods. The laminated blade combines hard steel for the cutting edge with softer iron for support, creating a blade that takes and holds a razor edge.

The pull-stroke design gives you excellent control over cutting pressure and direction. On curly maple, I could feel the blade engaging with the grain and adjust my pull accordingly. The two-blade structure with chipbreaker helps prevent the wood from splitting ahead of the cut.

Setup required about 30 minutes of work with a small hammer to seat the blade properly and flatten the bed. This is normal for Japanese planes but represents a learning curve for Western woodworkers. The natural oak body glides smoothly over surfaces without leaving marks.

The craftsmanship shows in every detail. Hand-sharpened by skilled craftsmen in Japan, the blade arrived sharp enough to shave arm hair. After proper setup, I achieved translucent shavings on figured maple that required no sanding afterward.

Who Should Buy This Plane

Woodworkers interested in traditional Japanese techniques and willing to learn the pull-stroke method will be rewarded with exceptional performance. Ideal for those who appreciate fine craftsmanship.

Who Should Avoid It

Impatient users who want to start planing immediately will find the setup frustrating. The wooden body requires more maintenance than metal planes and can be affected by humidity changes.

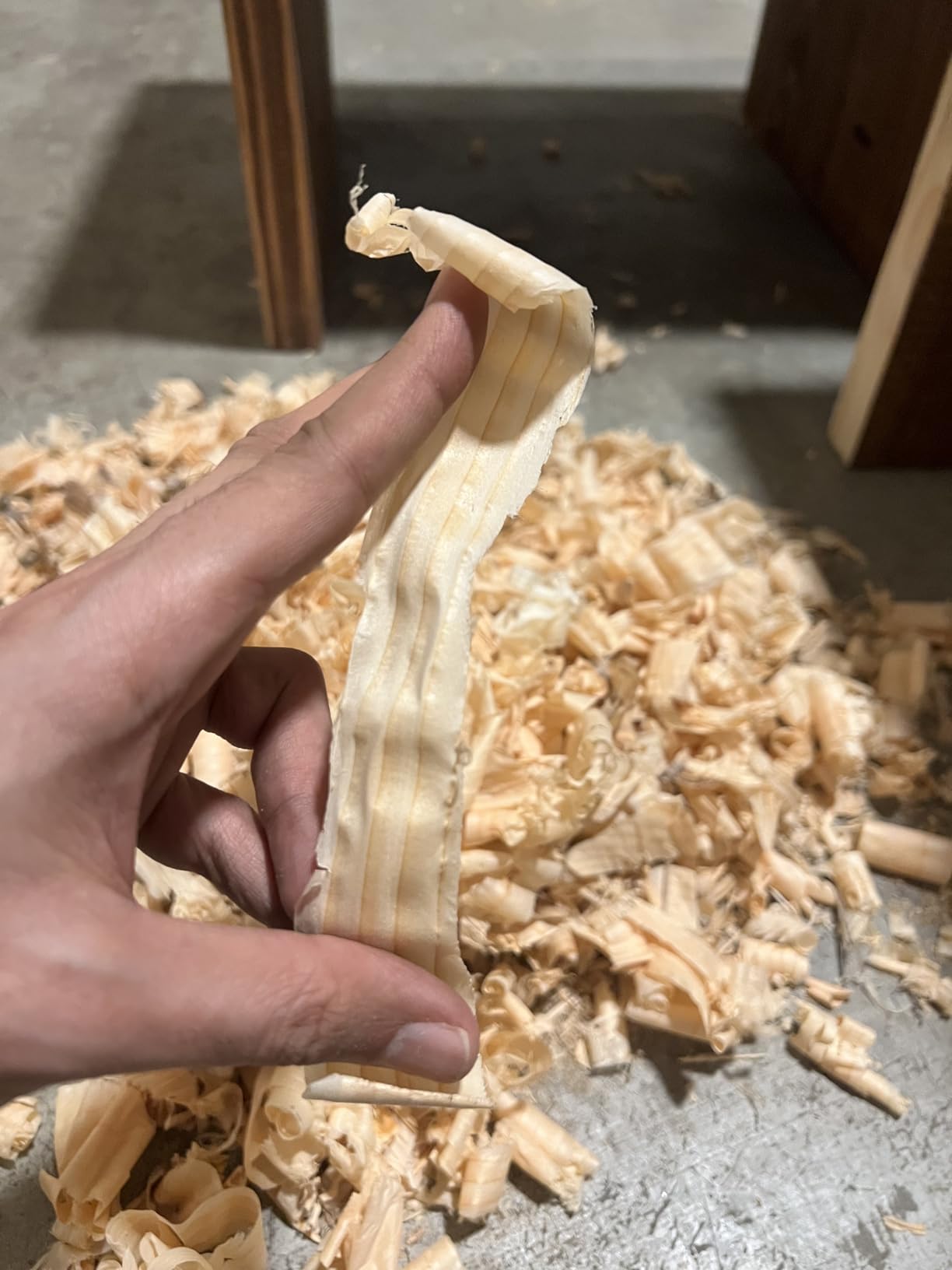

5. Spear & Jackson CSP4 No.4 Smoothing Plane – Budget Champion

At under thirty dollars, the Spear & Jackson CSP4 represents one of the best values in woodworking tools. But do not expect premium performance right out of the box. I spent about two hours tuning this plane before it performed adequately on figured hardwoods.

The sole required flattening on sandpaper glued to a flat surface. The chipbreaker needed attention to sit properly against the blade. The depth adjustment wheel has significant backlash that requires careful attention. However, once properly set up, this plane can produce glass-smooth shavings.

On curly maple test pieces, I achieved acceptable results after tuning. The thin blade dulls faster than premium alternatives, so budget for frequent sharpening or consider upgrading to a better blade. The brass adjustment screw adds a nice touch of quality to the overall package.

For beginners learning hand plane maintenance, this is actually an excellent teacher. You will learn about sole flattening, blade sharpening, chipbreaker setup, and adjustment techniques that apply to all planes. Consider it an educational investment.

Who Should Buy This Plane

Beginners on a tight budget who are willing to invest time in learning plane setup and maintenance. Also suitable as a backup plane or for rough work where you do not want to risk your premium tools.

Who Should Avoid It

Anyone expecting to start planing immediately out of the box will be disappointed. The quality control is inconsistent, and some units may have defects that make them unusable even after tuning.

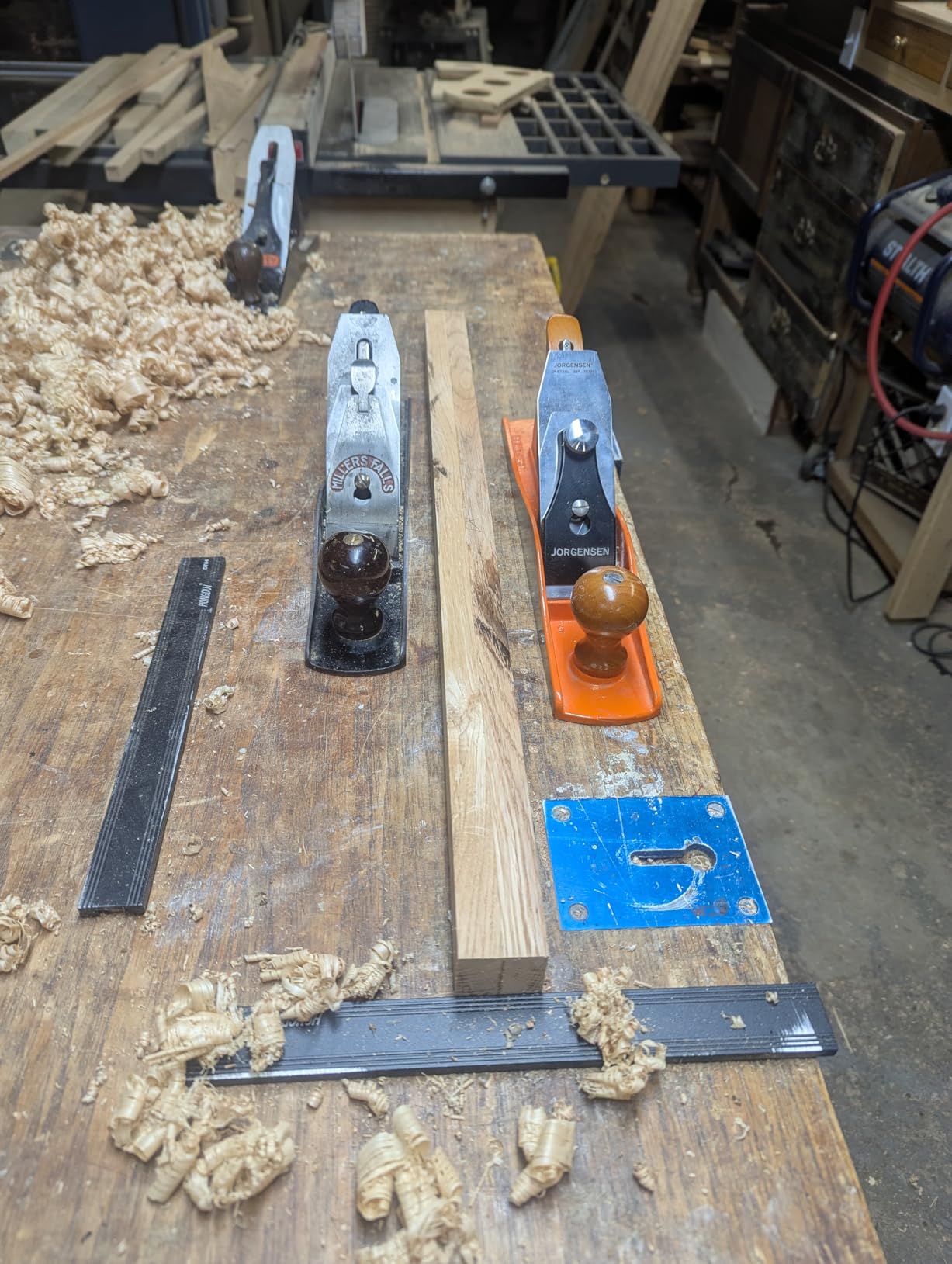

6. JORGENSEN No.5 Jack Plane – Versatile Workhorse

The Jorgensen No.5 Jack plane fills the gap between roughing and smoothing, making it incredibly versatile for figured hardwoods. The 14-inch sole is long enough to flatten surfaces while still maneuverable enough for final smoothing passes.

I appreciate the Bedrock-style frog that allows precise mouth adjustments without removing the blade. This feature is typically found only on premium planes. The O1 tool steel blade came sharp and held its edge through multiple projects. Having an extra blade included means you can keep working while one blade is being sharpened.

On figured cherry and walnut, the No.5 performed admirably for both preliminary flattening and final smoothing. The adjustable mouth allowed me to open it up for heavier cuts and close it down for fine finishing work. The 6.21-pound weight provides momentum that helps power through cuts.

Setup was minimal compared to budget alternatives. I spent about 15 minutes checking and adjusting the blade alignment and frog position. The beech wood handles feel comfortable during extended use.

Who Should Buy This Plane

Woodworkers who want one versatile plane that can handle both roughing and smoothing tasks. Ideal for those building their tool collection and want maximum capability from each purchase.

Who Should Avoid It

If you already have dedicated smoothing and jack planes, this intermediate size may duplicate existing tools. Pure beginners might find the size intimidating compared to smaller smoothing planes.

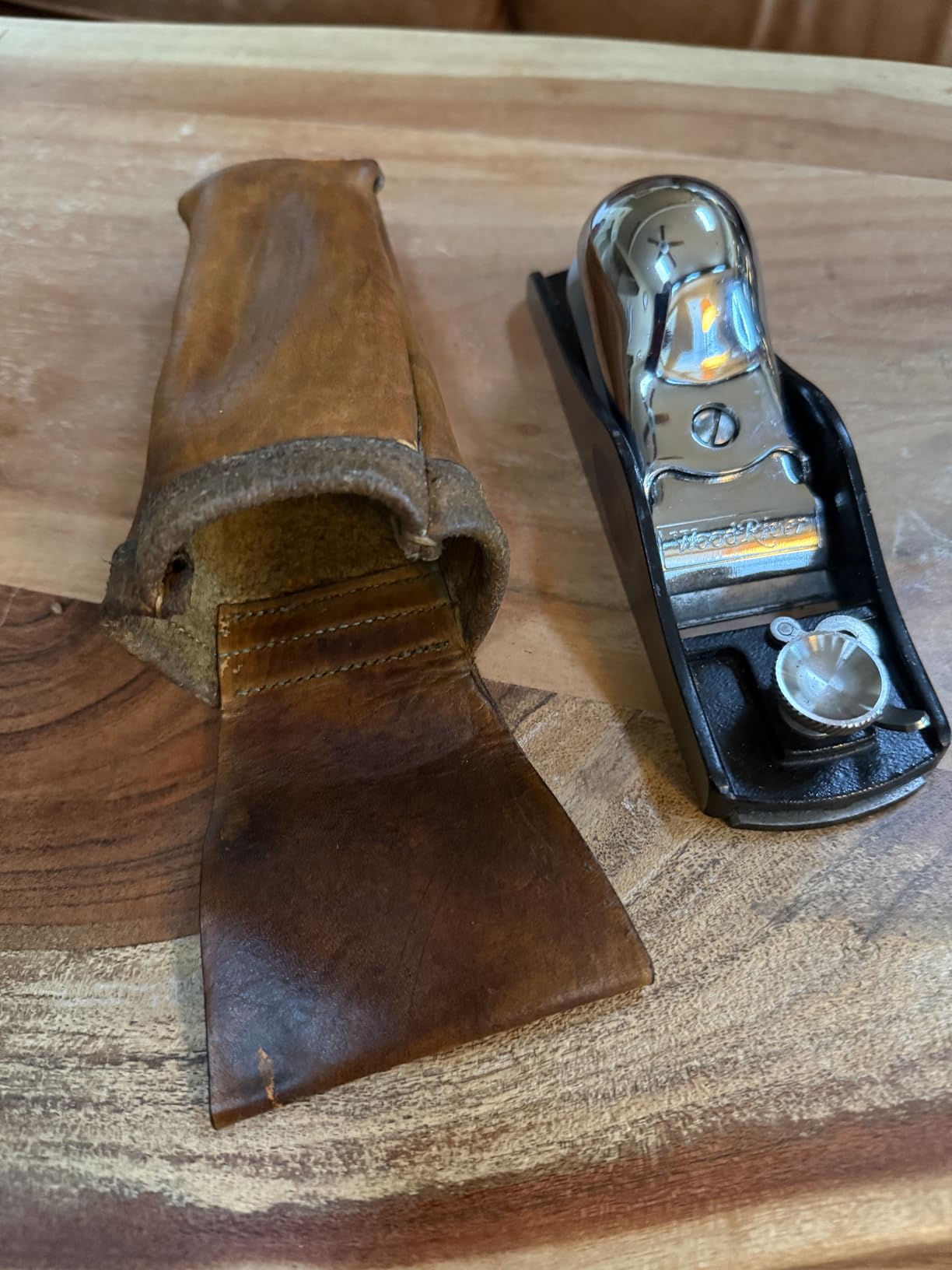

7. WoodRiver Low Angle Block Plane – Precision Tool

The WoodRiver Low Angle Block plane offers precision features at a mid-range price point. The 12-degree bed angle combined with a 25-degree blade bevel creates an effective 37-degree cutting angle, which works well for end grain and figured woods with reversing grain patterns.

I found the knuckle-style lever cap both attractive and functional. The quick-release mechanism makes blade changes fast, though I did experience the cap popping open occasionally during aggressive cuts. A simple tension screw adjustment solved this issue permanently.

The ductile iron body feels solid and substantial at just over 2 pounds. The sole arrived perfectly flat, requiring no lapping. On shooting boards and edge-trimming tasks, this plane delivered consistent, square results on figured maple edges.

The 1/8-inch thick blade provides stability during cuts and holds an edge well. I used it extensively for trimming miters and fitting joints where the figured grain direction changes constantly. The low-angle geometry sheared cleanly without tearout.

Who Should Buy This Plane

Woodworkers who need a precision block plane for shooting boards, miter trimming, and fine detail work will appreciate this tool. The quality construction exceeds entry-level options.

Who Should Avoid It

The weight may be too much for users preferring ultra-light tools. The lever cap design requires occasional attention to maintain proper tension.

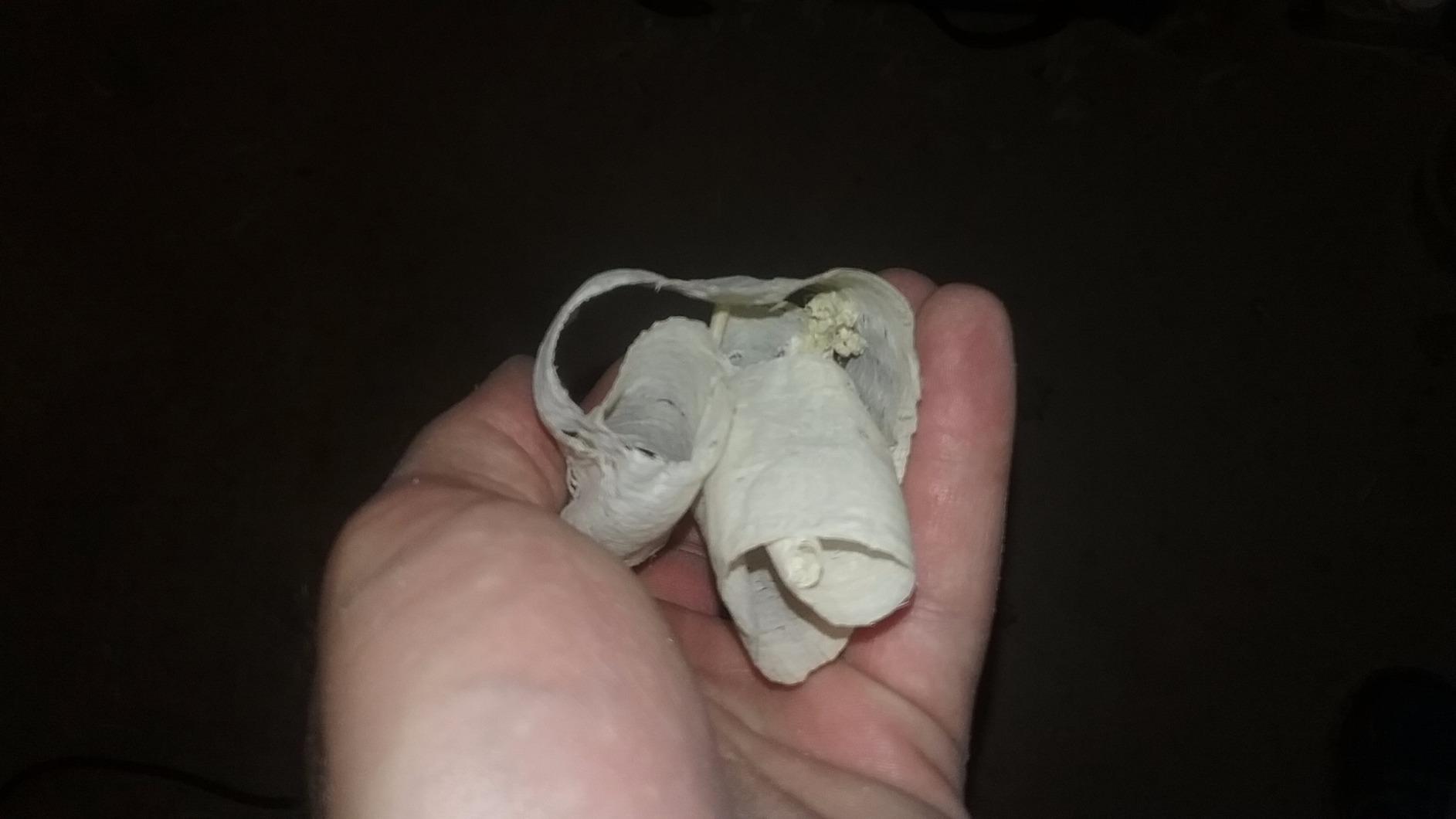

8. Grizzly H7566 14-Inch Smoothing Plane – Long Sole Option

The Grizzly H7566, one of the best smoothing planes for figured hardwoods, offers an affordable entry into long-bed smoothing planes. The 14-inch sole helps flatten surfaces more effectively than shorter planes, making it useful for preliminary work before final smoothing with a dedicated tool.

Out of the box, this plane required substantial tuning. The sole was reasonably flat but benefited from lapping. The blade needed significant work to achieve a serviceable edge. Once properly set up, however, it performed adequately on figured hardwoods for rougher work.

The hardwood tote and knob surprised me with their quality finish. They feel comfortable in hand and show attention to detail that exceeds the plane’s budget price point. The cast iron body has held up well to regular use.

On figured walnut and maple, I achieved acceptable results but noticed the thin blade dulling faster than premium alternatives. For serious work on figured hardwoods, I would recommend upgrading to a better blade or reserving this plane for less critical tasks.

Who Should Buy This Plane

Woodworkers on a budget who need a long-bed plane for flattening and preliminary smoothing. Also suitable for beginners learning plane maintenance who want to practice on an affordable tool.

Who Should Avoid It

Those seeking premium performance without tuning work should look elsewhere. The quality control can be inconsistent, so be prepared to potentially exchange a defective unit.

9. KAKURI Japanese Block Plane Large 60mm – Wide Blade Option

The larger KAKURI Japanese plane with its 60mm (approximately 2.4 inches) blade covers more surface area than the 50mm version, making it more efficient for larger workpieces. The white oak body with oil finish feels luxurious in hand and glides smoothly over wood surfaces.

As with all Japanese planes, setup requires knowledge and patience. The blade and chipbreaker both needed attention before use. I spent about 45 minutes preparing this plane for its first cuts. Once set up properly, it delivered glass-smooth results on figured maple.

The pull-stroke design takes practice for Western woodworkers accustomed to pushing planes. I found that using both hands with a smooth, consistent pull produced the best results. The blade seat may need trimming for proper blade seating, which is typical for Japanese planes.

Who Should Buy This Plane

Experienced woodworkers who appreciate Japanese craftsmanship and want a wide-blade option for larger surfaces. Ideal for those already familiar with Japanese plane setup and maintenance.

Who Should Avoid It

Beginners to Japanese planes will find the setup requirements overwhelming. The pull design may not suit those who prefer traditional Western pushing techniques.

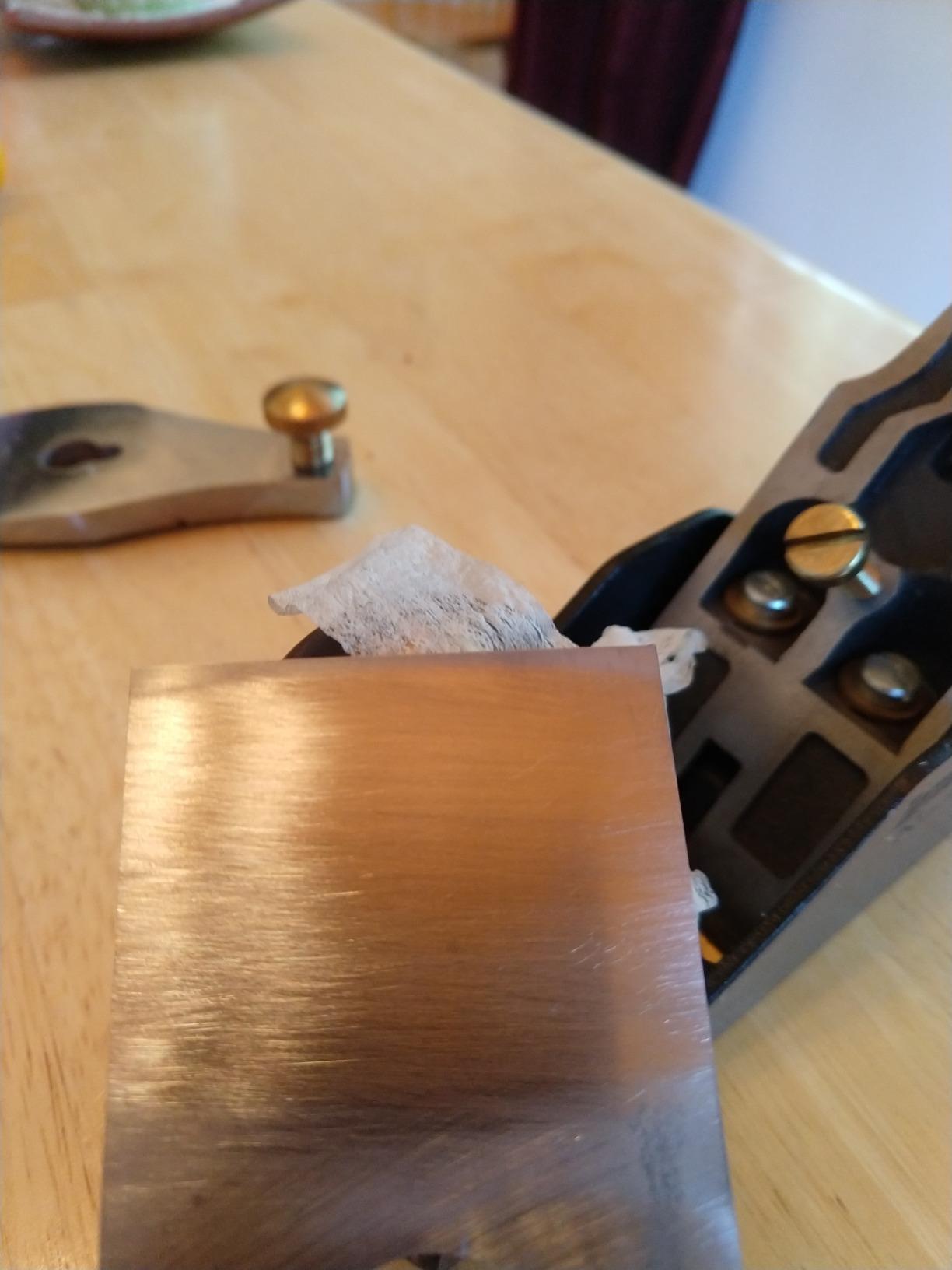

10. Taytools #4 Smoothing Bench Hand Plane – Solid Mid-Range

The Taytools #4 smoothing plane occupies an interesting middle ground between budget and premium options. The ductile cast iron body should survive decades of use, and the Sapele wood handles add a touch of elegance not found at lower price points.

My experience with this plane was mixed. The sole arrived flat within British Standard tolerances, but the blade required several hours of work to flatten properly. The depth adjustment wheel has significant backlash, requiring nearly a full turn to engage in either direction.

Once properly set up, the plane performed well on figured hardwoods. I achieved shavings as thin as 0.0003 inches on test pieces. The blade hardened to 55-60 HRC holds an edge adequately, though not as well as premium O1 or A2 steel alternatives.

Quality control seems to vary between units. Some users report excellent experiences, while others receive planes with casting imperfections or machining issues. The 133 reviews show a 56% five-star rating, indicating this variability.

Who Should Buy This Plane

Woodworkers willing to invest time in setup and potentially exchange units until finding a good one. The materials and design are sound when you get a well-made example.

Who Should Avoid It

Those seeking consistent quality out of the box should consider other options. The variable quality control means your experience may differ significantly from other users.

How to Choose the Right Smoothing Plane for Figured Hardwoods?

Selecting the best smoothing plane for figured hardwoods requires understanding several key factors that affect performance on difficult grain patterns. The right choice depends on your specific needs, budget, and the types of figured woods you work with most often.

Understanding Tearout in Figured Woods

Tearout occurs when the plane blade lifts wood fibers instead of cutting them cleanly. In figured hardwoods, the grain direction changes frequently, creating reversing grain patterns that confuse standard cutting angles. When you plane against these reversing grain patterns with a standard 45-degree cutting angle, the blade tends to lift and tear the fibers.

High-angle planes address this by increasing the effective cutting angle to 50-55 degrees or higher. At these steeper angles, the blade shears the fibers rather than lifting them. Think of it like slicing bread with a sharp knife at a steep angle versus trying to push straight down and tear it.

Blade Angle Guide

The blade angle directly affects how the plane interacts with wood fibers. Here is what you need to know about different angles:

45 Degrees (Standard): The traditional angle found on most bench planes. Works well for straight-grained woods but often causes tearout on figured hardwoods. Use this for general-purpose work on easy woods.

50 Degrees (York Pitch): A popular choice for figured hardwoods. The increased angle reduces tearout significantly while still allowing reasonable cutting efficiency. This is the sweet spot for many woodworkers who work primarily with figured maple, walnut, and similar species.

55 Degrees (Middle Pitch): The most aggressive angle for preventing tearout. Excellent for highly figured woods like crotch walnut and burls, but requires more effort to push through cuts. Best for final smoothing passes only.

Bevel-Up vs Bevel-Down Comparison

The orientation of the blade relative to the plane body affects the effective cutting angle and versatility:

Bevel-Down Planes: The blade bevel faces down toward the wood. The frog angle determines the cutting angle, typically 45 degrees. To increase the cutting angle, you must change to a higher-angle frog or add a back bevel to the blade.

Bevel-Up Planes: The blade bevel faces up, away from the wood. The bed angle (typically 12 degrees) plus the blade bevel angle determines the effective cutting angle. A 25-degree blade bevel on a 12-degree bed creates a 37-degree cutting angle. Switching to a 38-degree bevel increases this to 50 degrees, making bevel-up planes highly versatile for figured hardwoods.

For figured hardwoods, bevel-up planes offer more flexibility because you can simply change blades to alter the cutting angle. This is why many woodworkers prefer bevel-up designs when working with difficult grain.

Key Features to Look For

Tight Mouth: The opening in front of the blade should be adjustable and capable of closing to a hairline width. A tight mouth supports the wood fibers right up to the cutting edge, reducing tearout.

Chipbreaker/Cap Iron: This component sits just behind the cutting edge and helps break shavings while supporting the wood fibers. Proper chipbreaker setup with a tight mouth can make even standard-angle planes work well on figured woods.

Quality Blade Steel: O1 tool steel sharpens easily and holds a fine edge for finish work. A2 steel holds an edge longer but is harder to sharpen. PM-V11 steel (available on premium planes) offers excellent edge retention and sharpenability.

Flat Sole: A flat sole ensures consistent contact with the workpiece. Quality planes have precision-ground soles, while budget options may require lapping on sandpaper.

After achieving that perfect surface with your smoothing plane, you will want to protect it with a quality finish. Check out our guide to the best lacquer sprays for woodworking to complete your project.

FAQs

Final Thoughts

Finding the right smoothing plane for figured hardwoods, including the best smoothing planes for figured hardwoods, transforms the experience from frustrating tearout to satisfying glass-smooth surfaces. Our top pick, the Jorgensen No.4, delivers professional-grade performance at an accessible price point, making it the best choice for most woodworkers tackling curly maple, quilted walnut, and other challenging figured woods.

For those demanding the widest possible blade and premium construction, the WoodRiver #4-1/2 offers Bedrock-style features at a moderate price. Budget-conscious woodworkers will find exceptional value in the Jorgensen NO.60-1/2 low-angle block plane, which handles detail work and end grain with ease.

Remember that technique matters as much as tool selection. A properly sharpened blade, tight mouth adjustment, and correct chipbreaker setup can make even modest planes perform admirably on figured hardwoods. Take time to learn these fundamentals, and you will be rewarded with surfaces that showcase the stunning figure nature created.
