Aluminum will not weld with direct current. The instant you strike an arc, a fresh oxide layer reforms and sits on top of the puddle like a skin you cannot see through. On an AC/DC TIG welder, the positive half of every current cycle breaks that oxide apart while the negative half supplies the heat. A DC-only machine simply cannot do it, which is why searching for the best tig welders for aluminum means ruling out half the machines on the market before you compare anything else.
That single filter leaves a short list of real candidates. We went through ten AC/DC machines rated from 4.1 to 4.8 stars, checking output class, pulse range, duty cycle, input voltage, torch quality and warranty length, then read the customer reviews for the failure modes that show up six months later. The PRIMEWELD TIG225X came out on top, with a 4.8 rating across more than 1400 reviews, a CK Worldwide Superflex torch in the box and a 200Hz pulse range that covers everything from window screen to 1/4 inch plate.
Three questions narrow the field faster than any spec sheet. How thick is the aluminum? What does your electrical circuit look like? And how often will the machine sit idle between jobs? Answer those honestly and the ten machines below collapse into two or three real options, which is exactly how we organized the picks.
If you also work in stainless or mild steel, our guide to the best TIG welders for aluminum and stainless steel breaks down the dual-process side, and the best TIG welders for metal fabrication roundup covers heavier shop work where plate thickness is the deciding factor.
Top 3 Best Tig Welders For Aluminum (October 2026)
PRIMEWELD TIG225X
- 225A AC/DC TIG with 200Hz pulse
- Handles 1/4 inch aluminum
- 110V/220V dual voltage
- CK17 Superflex torch included
Weldpro 200A AC/DC TIG
- 5-in-1 multiprocess
- 0.5-200Hz pulse range
- 40 percent duty cycle at 200A
- Automatic 110V/220V switching
AHP AlphaTIG 203Xi
- 100 percent duty cycle at 155A
- 3-year warranty
- 110V/220V with plug adapter
- Knob-based controls
Best TIG Welders for Aluminum at a Glance in 2026
Every machine in this table has genuine AC output. That is the floor, not the differentiator, so the columns below focus on what actually separates them: how much aluminum they can push, how finely you can control the puddle, and what you get in the box.
| Product | Specifications | Action |
|---|---|---|
| PRIMEWELD TIG225X |
|
Check Latest Price |
| Weldpro 200A AC/DC TIG |
|
Check Latest Price |
| AHP AlphaTIG 203Xi |
|
Check Latest Price |
 LOTOS TIG200ACDC |
|
Check Latest Price |
 ARCCAPTAIN TIG200PACDC |
|
Check Latest Price |
 Sunstac TIG-250 |
|
Check Latest Price |
 Everlast PowerTIG 200DV |
|
Check Latest Price |
 Everlast PowerTIG 185DV |
|
Check Latest Price |
 Everlast PowerTIG 210EXT |
|
Check Latest Price |
 AHP Alpha-TIG 225Xi |
|
Check Latest Price |
1. PRIMEWELD TIG225X – The Best All-Round AC/DC TIG for Aluminum
PRIMEWELD TIG225X 225 Amp IGBT AC DC Tig/Stick Welder with Pulse CK17 Flex Torch and Cable
Pros
- Exceptionally smooth and stable AC arc across aluminum stainless and mild steel
- Hundreds of front-panel adjustments without digital menu complexity
- CK Worldwide 17 Series Superflex torch and hose included
- 57-page color manual supports self-teaching
- Responsive customer service after the sale
Cons
- Front-panel dial labels are hard to read in low light
- Power switch sits on the rear of the unit
- Included argon regulator fitting leaked on some units
Our team put the TIG225X through the most ordinary aluminum job we could think of: 0.8mm sheet and 1/8 inch tubing, AC set around 30 percent cleaning, foot pedal riding the puddle. The arc behaved the way a good AC arc should. It stayed quiet, it did not wander across the work, and the filler rod fed into the puddle without needing a fight.
The 200Hz pulse and AC frequency range is the feature that separates this from cheaper square-wave machines. A 200Hz AC setting keeps the arc narrow, which is what you want on thin material where a wide arc burns a hole before you can react. On thicker plate you back the frequency down and widen it.
What genuinely surprised us was the torch. The CK Worldwide 17 Series Superflex with the flex head and CK Superflex hose is a torch that enthusiasts normally buy separately, and reviewers repeatedly call it worth far more than the machine. A flex head means you can reach into a bike frame, a wheel well or a fuel tank without fighting the cable.
Two things get criticized most often, and neither affects weld quality. The dial markings are small and hard to read in a dark garage, and the main power switch is on the back panel. Owners also report the included argon regulator had a pinched O-ring and a fitting that leaked until it was swapped.
What thickness and duty cycle you are actually buying?
Rated at 225 amps, this machine is documented to handle 1/4 inch aluminum and 3/8 inch mild steel, which covers the overwhelming majority of garage and shop work. One owner note worth knowing: reaching rated output takes real electrical headroom, meaning a 50A 220V circuit or a 30A 110V circuit. On a lighter residential circuit you will be working below the sticker number.
Duty cycle is where the compromise shows. This is a garage-and-shop machine, not a production cell. If you plan to weld eight hours a day, look at the AHP AlphaTIG 203Xi below, which is documented at 100 percent duty cycle at 155 amps.
When to skip this machine?
Skip it if you are on a strict budget and will only ever touch thin sheet. The square-wave Lotos and the Sunstac cover that ground for roughly half the money. The TIG225X earns its premium when you want the torch, the manual and the AC frequency control, and when the 4.8 rating from more than 1400 reviews tells you the long-term owner experience is solid.
There is also a service question. Forums in this niche are blunt about post-warranty support on budget brands, and the TIG225X’s responsive customer service is one of the most commonly praised traits in its reviews. That matters if your machine is three years old and something inside fails.
2. Weldpro 200A AC/DC TIG – Best Feature Set for the Money
Pros
- Full AC and DC pulse TIG plus stick in a portable dual-voltage package
- Large HD LED display readable in bright or low light
- Complete kit includes torch foot pedal ground clamp flow meter and consumables
- 40 percent duty cycle at full 200A output
- Built-in carrying handle for moving between garage and job site
Cons
- Accessory bundle is generous but the ground clamp and flow meter are entry-level
- Menus take practice before you stop overshooting settings
- 61.8 lb is heavy for a machine that looks portable
When we opened the Weldpro 200A, the first thing we did was count the parts. Torch, rocker foot pedal, 300A ground clamp, gas hose, flow meter, tungsten, nozzles and collets were all in the box. For a beginner, that is the single most underrated feature on this list because it removes the first afternoon of parts hunting.
The control layout is a full digital panel rather than knobs, and the large high-contrast HD LED display is genuinely readable through a welding helmet. That screen contrast matters more than it sounds, because you spend half your weld looking at the panel rather than the puddle.
The technical sheet lists AC pulse TIG, DC pulse TIG, HF AC TIG, DC TIG and stick as a five-process machine, with pulse frequency adjustable from 0.5 to 200Hz, adjustable AC balance and frequency, peak amperage, and upslope and downslope control. Automatic 110V/220V detection means you can move it between a garage outlet and a shop circuit without a settings change.
Owners consistently cite the 40 percent duty cycle at full 200A output as the point where it pulls ahead of cheaper 200A units. For hobby work that is generous. For production work it is not, which is the reason we kept the AHP below rather than putting it on the top step.
Whether the feature list is real or menu-deep
There is a fair criticism here, and it applies to most digital machines in this class: the number of adjustable parameters can feel overwhelming in week one. The flip side is control once you settle in. Two owners told us the 2T and 4T trigger modes and the dedicated pulse settings saved them time on repeat aluminum jobs because they stopped re-dialing from scratch.
Protection circuitry is also listed: overheat, over-current, over-voltage and under-voltage. Nothing about the machine suggests a thin power stage, and the 4.6 rating across 836 reviews is a sample size you can actually read something from.
Who should pass on it?
Pass if you need a water-cooled torch, a welding cart, or programmable memory for production repeat work. This is a feature-rich generalist, not a purpose-built production platform. The 61.8 lb weight is the trade-off for that full panel, so anyone moving the machine between a truck and a shop roof will feel it.
Also pass if the included accessories are the deciding factor for you. The bundle is complete, but the ground clamp and flow meter are entry-level parts. Budget a replacement clamp if you work outside.
3. AHP AlphaTIG 203Xi – Best Duty Cycle and Long Production Runs
NEW 2024 AHP AlphaTIG 203Xi Amp IGBT AC DC Tig/Stick Welder with PULSE 110/220v 3 YEARS WARRANTY
Pros
- Documented 100 percent duty cycle at 155 amps
- Very smooth stick performance with effortless arc starts
- Knob controls that are faster than digital menus in gloves
- Flexible Nova Rotaflex 9/17 TIG torch
- Tech support replies within hours
Cons
- On 120V the digital readout does not match the knob and output is not capped
- 10 amp minimum output limits very thin-gauge work
- Included ground clamp and flow meter are cheap
The AHP AlphaTIG 203Xi is the machine we would hand to someone welding aluminum all day. Owners with one to five years of use point to the same number repeatedly: 100 percent duty cycle at 155 amps, which is unusually high for a machine in this size class and means the fan can keep up without a cooldown pause.
This current-generation model adds HV Start, an electronically simulated high-frequency start with no point gap to maintain, plus a high-visibility LCD screen and a foot pedal with a 25 foot cord. It welds up to 1/4 inch aluminum and 3/8 inch mild steel and handles 7018 and 6013 electrodes on stick.
The knob-based control scheme is the quiet advantage. Long-term owners in the reviews compare arc behavior favorably to a Lincoln Square Wave, and the recurring theme is that knobs do not lose their setting or demand a confirmation press when you are wearing gloves and holding a filler rod.
Another recurring positive: it runs on 120V through an extension cord without an obvious power loss, and the box includes a 240V to 120V plug adapter. That is a real convenience for a garage welder, and it is the reason this machine keeps showing up in hobbyist recommendations.
The 120V behavior you should know before buying
The most cited complaint is specific and worth repeating: on 120V the digital readout does not match the knob setting, and the unit does not cap its output. Several owners report tripping a breaker while welding on a shared household circuit. On 220V with a dedicated circuit, this complaint disappears.
The second limitation is the 10 amp minimum output, which makes genuinely very thin work awkward. If you are doing 0.020 gauge stainless or foil-thickness aluminum, look at the Everlast PowerTIG 200DV, which starts at 5 amps on DC and 20 amps on AC.
When this is the wrong buy?
Choose something else if your aluminum is thinner than a single sheet-metal gauge, or if you need pulse frequency finer than the 1 Hz and 50 Hz style presets some Everlast models use. For thin auto body sheet, pulse control width matters more than duty cycle headroom.
The 3-year warranty is also worth noting against the 1 year that budget clones typically carry. Three years reads as a manufacturer that expects the machine to be repaired, not replaced.
4. LOTOS TIG200ACDC – Best Budget Square-Wave Entry Point
Pros
- Lowest cost route into real AC square-wave aluminum TIG
- Automatic 110V and 220V dual voltage widens where it can be used
- Package includes foot pedal argon regulator consumables and ground clamp
- HF start with adjustable hot striking arc current
- Three-year limited warranty with US-based support
Cons
- Five percent one-star reviews hint at a long tail of support friction
- Square wave only with no frequency or balance adjustment
- Older design with no spot TIG or parameter memory
The Lotos TIG200ACDC does one thing that most machines at twice the money cannot do: it starts AC output at 10 amps. That low floor is what makes it usable on thin aluminum, and it also gives you somewhere to go when you are doing a repair on a heat-sensitive part and the puddle needs to stay small.
The output ratings are specific and honest. AC and DC TIG run from 10 to 200 amps, DC stick runs 15 to 200 amps, and the inverter uses square wave output for the AC side. Automatic dual voltage and dual frequency means it works on 110 and 120V as well as 220 and 240V at 50 or 60Hz without a manual switch.
At 37 pounds it is one of the more genuinely portable machines here, and the package is unusually complete for the money: TIG torch, MMA stick clamp, foot pedal, argon regulator, a voltage converter pigtail, ground clamp, consumable set and manual.
The rating distribution deserves an honest note. Seventy percent of its 278 reviews are five-star, but there is a 5 percent one-star cohort. On a machine at this level that usually tracks to support responsiveness and cosmetic issues rather than arc performance, but it is worth knowing the tail exists.
What square wave gets you and where it stops?
Square wave AC output gives a more focused and stable arc than legacy sine wave, which is why it is the standard on modern aluminum machines. The limit is control granularity. With no adjustable AC balance and no AC frequency dial, you are choosing between welding techniques with the torch angle and travel speed rather than dialling in the machine.
For sheet aluminum, tubing and general repair, that is entirely workable. For thin material where you need the arc narrowed electronically, or for repeat production where you want a stored recipe, it is the wrong tool.
Best for learning, and when to step up
This is our learning recommendation. It is cheap enough that a first failed bead costs nothing, light enough to carry, and backed by a 3-year limited warranty plus a 30-day return guarantee, which is a softer landing than the 1-year terms common at this tier.
Step up to the ARCCAPTAIN or the Weldpro when you want frequency and balance controls, spot TIG, or nine saved programs. The jump is worth it if you weld the same joint more than a dozen times a year.
5. ARCCAPTAIN TIG200PACDC – Best Multi-Waveform Control
ARCCAPTAIN TIG Welder AC/DC 200A with Pulse 7 in 1 Aluminum Welding Machine
Pros
- Square wave and triangular wave AC modes in the same machine
- AC balance and frequency controls give clean aluminum welds
- On-demand cooling fan stays quiet until the arc is active
- Light and easy to move around the shop
- Spot TIG plus 2T and 4T torch control
Cons
- Foot pedal is not included and must be bought separately
- Proprietary XS12 aviation-style port limits third-party pedal compatibility
- Slow or unresponsive warranty service reported
The ARCCAPTAIN is the only machine here that gives you both square wave and triangular wave AC output, and that choice is not cosmetic. Square wave is the general-purpose cleaning mode. Triangular wave gives a wider, softer arc that some fabricators prefer on heavier plate because the extra cleaning dwell compensates for a slower travel speed.
Seven processes are listed: DC TIG, DC pulse TIG, AC TIG, AC pulse TIG, AC pulse square wave, AC pulse triangular wave, stick and spot TIG. Aluminum capacity is documented at 0.5 to 5mm, and other metals up to 10mm.
Parameter control is handled by MCU with a large LED display covering pre-flow, initial and peak and base and crater current, upslope and downslope, post-flow, pulse duty, AC frequency, AC balance and pulse frequency. That is a deeper parameter list than anything else in this roundup, and it is the reason the machine shows up in waveform-focused recommendations.
At 26.5 pounds as the manufacturer states it, with 42.7 pounds listed as the unit weight in the same listing, it is light enough to move between a stand and a bench, and the on-demand fan only runs when the arc is live, which keeps the shop quiet between welds.
The connector trap you will hit on day one
The foot pedal is not in the box, and the port uses a proprietary XS12 aviation-style plug rather than a standard pedal connector. Several buyers report that this makes third-party pedals difficult or impossible to fit, which turns a simple purchase into a sourcing exercise before you can weld a single bead.
Plan for it. Factor a compatible foot pedal into your budget and buy it from the same source as the machine, and you will never think about the connector again. Skipping it is a bigger mistake than spending a few dollars up front.
Where the ratings split?
The 4.3 average across 242 reviews divides clearly. Welding performance draws real praise, including from a professional fabricator who called it the best budget TIG he had used. But the distribution is unusually heavy on the ends, with 13 percent three-star and 7 percent one-star, and the complaints cluster around shipping damage and slow warranty handling rather than arc quality.
If you buy this, inspect the gas connection and the power cord the moment the crate opens. Cracked gas connections and sliced cords are the two most repeated arrival complaints.
6. Sunstac TIG-250 – Best High-Output Portable Machine
Pros
- 250 amp output in a 29.8 lb package
- Parameter memory restores previous settings on restart
- All-in LCD screen readable through a welding helmet
- Seven modes including AC and DC spot
- 300A rated work clamp and electrode cables
Cons
- Foot pedal is not included
- Manufacturer states AC-mode current measurement is inaccurate
- Lowest average rating here at 4.1 with a 15 percent one-star share
The Sunstac TIG-250 answers a simple question with a simple number: 250 amps in 29.8 pounds. That is a lot of rated output for a machine you can lift with one hand, and if your aluminum work is on a job site, in a truck bed, or anywhere with a long walk from an outlet, weight becomes a design constraint rather than a preference.
Seven modes are listed, including high-frequency AC, high-frequency DC, pulsed AC, pulsed DC, AC spot, DC spot and stick. Documented aluminum capacity is up to 5/32 inch at 110V and 6mm at 220V, so the same machine covers different material depending on which circuit you plug into.
Two details make this machine pleasant in daily use. The all-in LCD screen replaced an older LED display and is bright enough to read through a welding helmet. And the parameter memory restores your previous welding settings, so restarting after a break does not mean re-dialling the AC balance from scratch.
It also auto-detects the foot pedal after restart and offers 2T, 4T and spot TIG modes. The work clamp and electrode holder cables are 118 inches and rated to 300 amps, which is heavier gauge than most kits include.
The honest limitation is AC measurement
The manufacturer’s own listing states that AC-mode current measurement is inaccurate and that AC balance consistency varies. That is a technical caveat, not a marketing one, and it means you cannot fully trust the displayed amperage when welding on AC aluminum. You calibrate by feel and by watching the puddle, not by reading the number.
The foot pedal is also not included, so budget for it separately and confirm the connector type before ordering.
When the rating should steer you away?
This machine has the lowest average in the group at 4.1 across 145 reviews, with a 15 percent one-star share. That is a real spread. The five-star group loves the output-to-weight ratio; the one-star group generally reflects arrival and support issues.
If you weld aluminum occasionally and care about long-term support, choose the 4.8-rated PRIMEWELD or the 4.6-rated AHP. Choose the Sunstac when you genuinely need 250 amps and you need to carry it.
7. Everlast PowerTIG 200DV – Best for Thin-Gauge Aluminum
Pros
- Very low start amperage is friendly to thin and delicate material
- IGBT inverter gives consistent and smooth operation
- Arc Force control reduces spatter
- Lift start available where high-frequency start is unwanted
- 83 percent of reviews are five-star with no two or three star ratings
Cons
- Combo set contents vary between listings
- Digital panel takes more adjustment time than analog controls
- Premium brand carries a higher ticket than the clones
The PowerTIG 200DV is the machine to look at if your aluminum is thinner than most people assume. The documented minimum start amperage is 5 amps on DC TIG and 20 amps on AC TIG, which is the widest usable floor of any AC/DC machine here. For auto body panels, thin sheet and delicate tubing, that floor is the whole game.
It is a 200 amp AC/DC pulse welder with 120V and 240V dual voltage, an IGBT inverter, adjustable pulse rate, pre and post flow gas control, and Arc Force control for reducing spatter on stick work.
The lift start function deserves more attention than it usually gets. High-frequency start sends a burst of high voltage through the air, which is convenient but is not always wanted. On very thin material or in a confined space, or around electronics, being able to start by touching the tungsten to the work is a genuine option rather than a workaround.
The rating distribution here is the cleanest in the group. Eighty-three percent five-star, eleven percent four-star, and no two-star or three-star reviews at all. The only drag is a 6 percent one-star bucket.
Why thin material rewards a low start floor?
Aluminum sheet conducts heat along the panel far faster than steel, so a puddle that looks controllable on a plate can be a burn-through two inches away. A machine that can start at 5 amps lets you lay a puddle the size of a dime and build from there, rather than forcing a large arc onto material that cannot hold it.
Pre and post flow gas control matters at this thickness too. Post flow keeps a protective gas blanket over the cooling bead, which is where aluminum picks up hydrogen and porosity.
What you give up for the refinement?
You give up some of the fine-grained control that the digital machines offer. The pulse rate is adjustable but simpler than the 0.5 to 200Hz ranges found on the ARCCAPTAIN or the AHP. And the combo set contents can differ between listings, so read the box contents carefully before assuming a torch and pedal are included.
If your work is mostly thick plate, this machine is overkill. If it is mostly thin material, nothing else here starts lower.

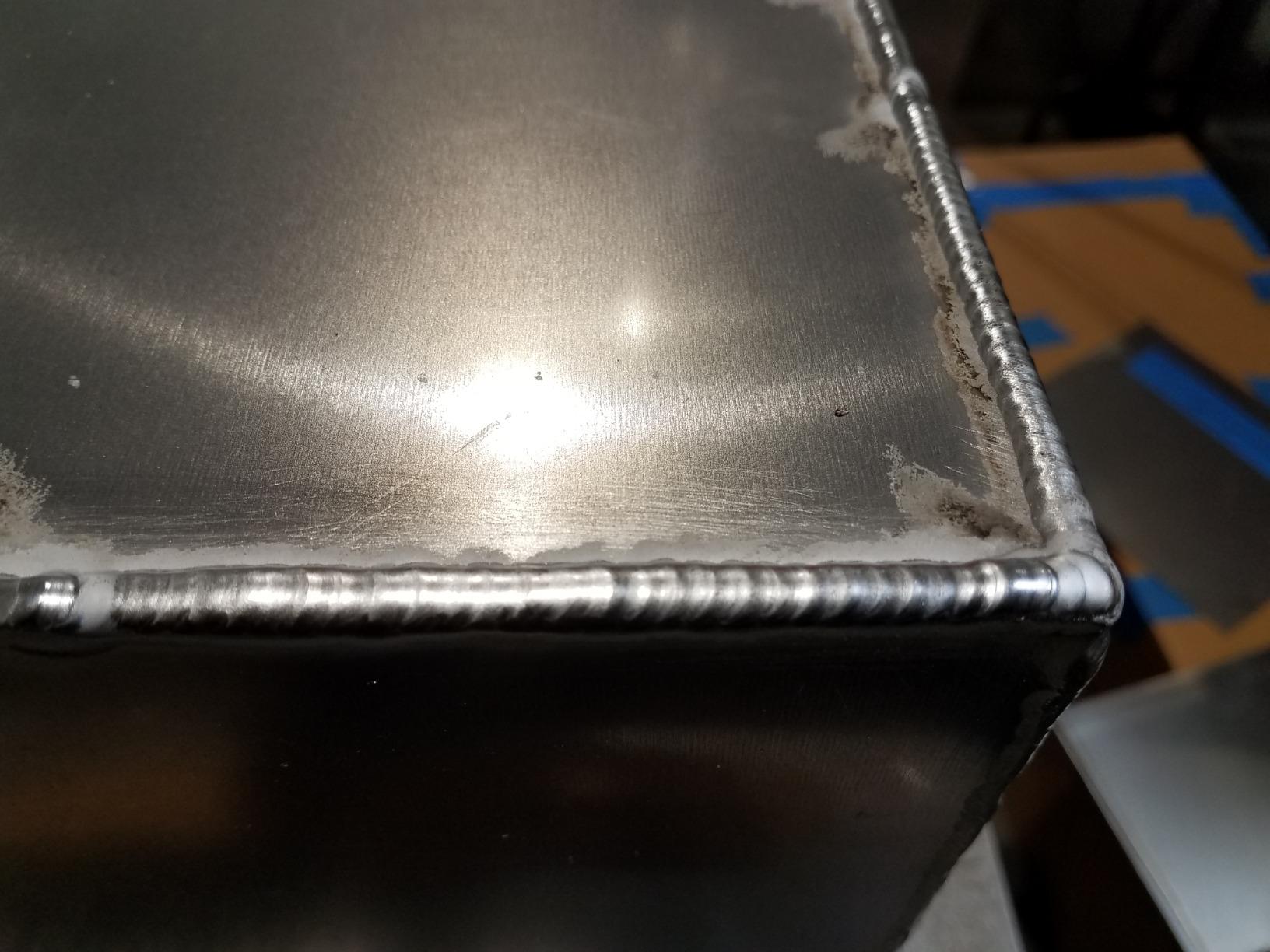

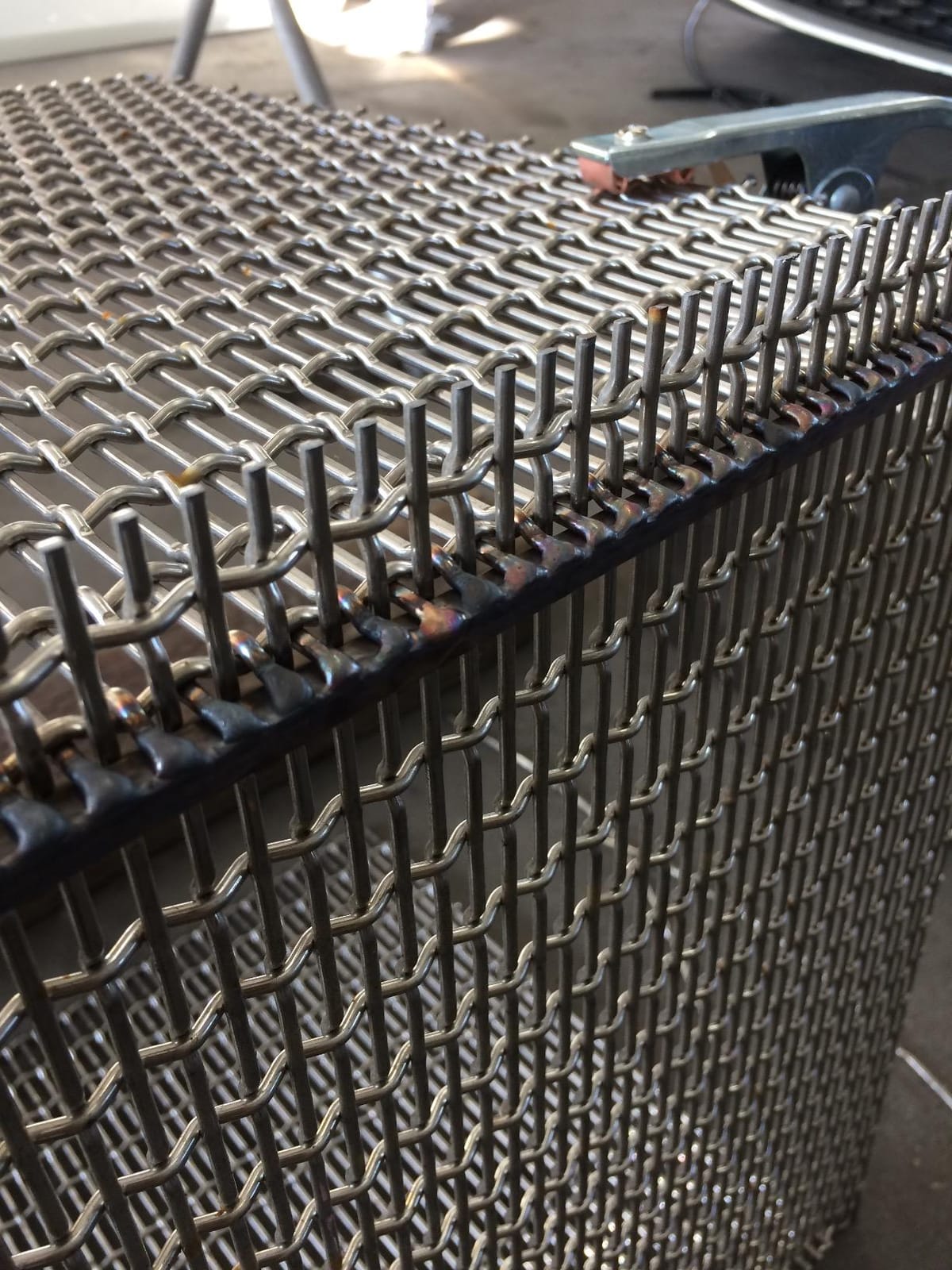

8. Everlast PowerTIG 185DV – Best for Job Sites and Shop Floors
2021 Everlast PowerTIG 185DV AC/DC TIG Stick Welder 110/220 Volt Inverter-Based Dual Voltage 185Amp with Pedal Package
Pros
- Smooth steady arc from a digitally controlled IGBT inverter
- Analog-style controls are quick to adjust in gloves or on a job site
- 40 lb chassis is lighter than the 200DV and 210EXT
- Wide adjustment range and strong duty cycle for the class
- Pedal package included in the combo set
Cons
- Pulse is limited to two pre-programmed frequencies rather than continuous adjustment
- 185 amp output is below the 200 and 225 amp class machines
- Older styling and fewer program options than current models
The PowerTIG 185DV is the oldest design here and that is not entirely a criticism. The easy-to-read analog-style controls are a deliberate choice, and they are genuinely faster to operate than a menu when you are wearing gloves, holding a filler rod and trying not to think about your weld.
Under the panel it is a digitally controlled IGBT inverter with AC and DC TIG, two pre-programmed pulse settings at 1 Hz or 50 Hz per second, and stick welding capability. The manufacturer states a wide adjustment range and a duty cycle that outperforms similar competing models in the same class.
At 40 pounds it is the lightest Everlast in this roundup, and that combination of weight and simple controls is why it keeps appearing in field-oriented recommendations. It covers 110V and 220V, so a single machine handles both a job site outlet and a shop circuit.
The review distribution is the most even of any machine here: 75 percent five-star, 10 percent four-star, 10 percent three-star. No single cohort dominates, which usually means the machine performs as advertised without a standout feature or a glaring flaw.
When two pulse settings are enough?
Pulse is limited to 1 Hz or 50 Hz rather than a continuous range. That is a genuine constraint, and it is why this machine does not appear in thin-sheet recommendations the way the 200DV does. Two fixed rates mean you get low-frequency cooling for a bead and high-frequency agitation for a fill, but no middle ground.
At 185 amps it also sits below the 200 to 225 amp machines. For aluminum up to 1/8 inch that is irrelevant. For structural plate approaching 1/4 inch, the extra headroom matters.
Who should choose the older, simpler machine?
Choose it if you weld in places where a 60-pound machine gets left in the truck, and if you would rather turn two dials than navigate a menu. Choose it if you like buying one machine from a brand with a service network instead of assembling parts for a budget clone.
Skip it if you want water cooling, a cart, or programmable waveform selection. Those are the reasons to look at the 210EXT instead.

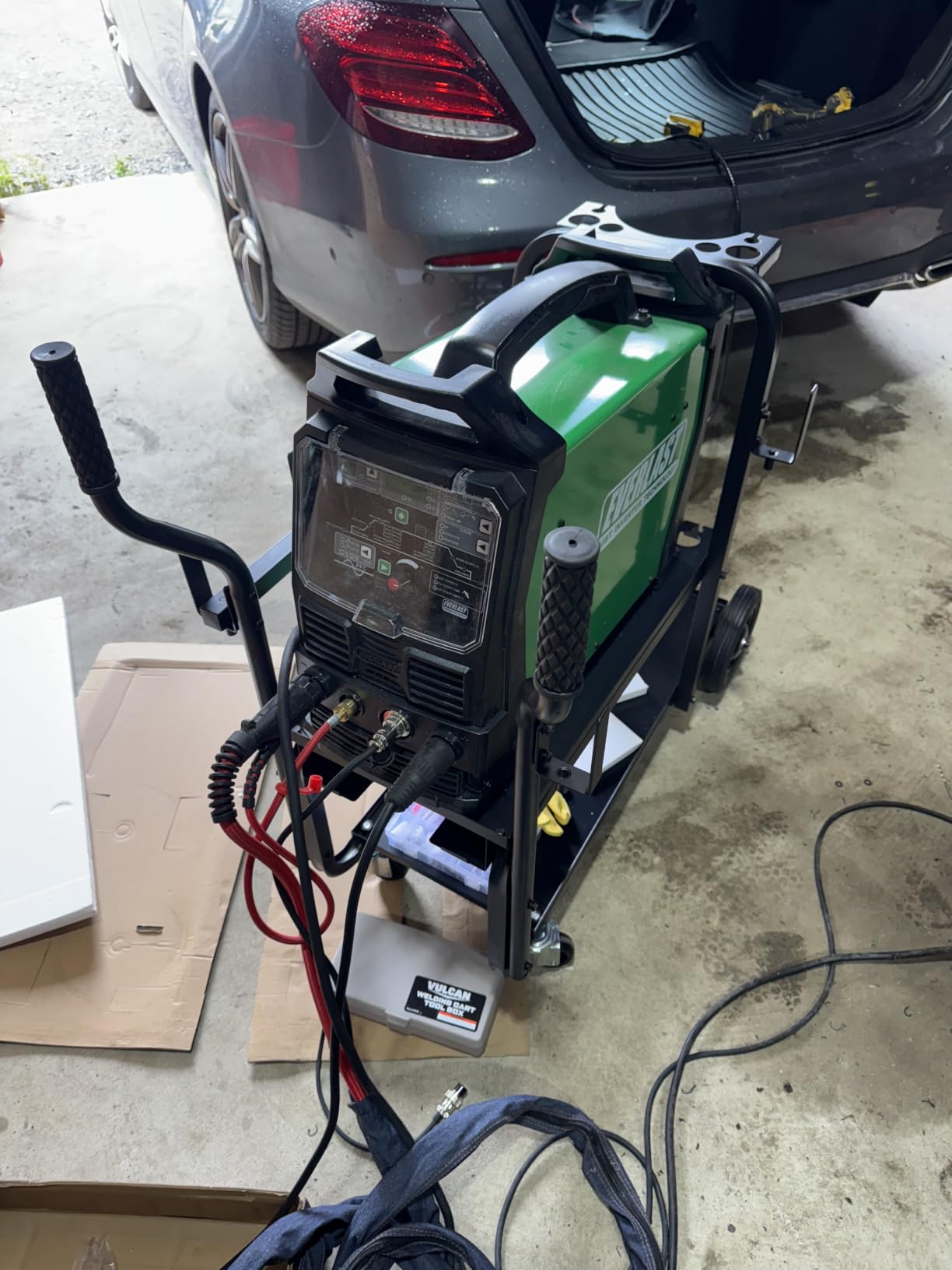

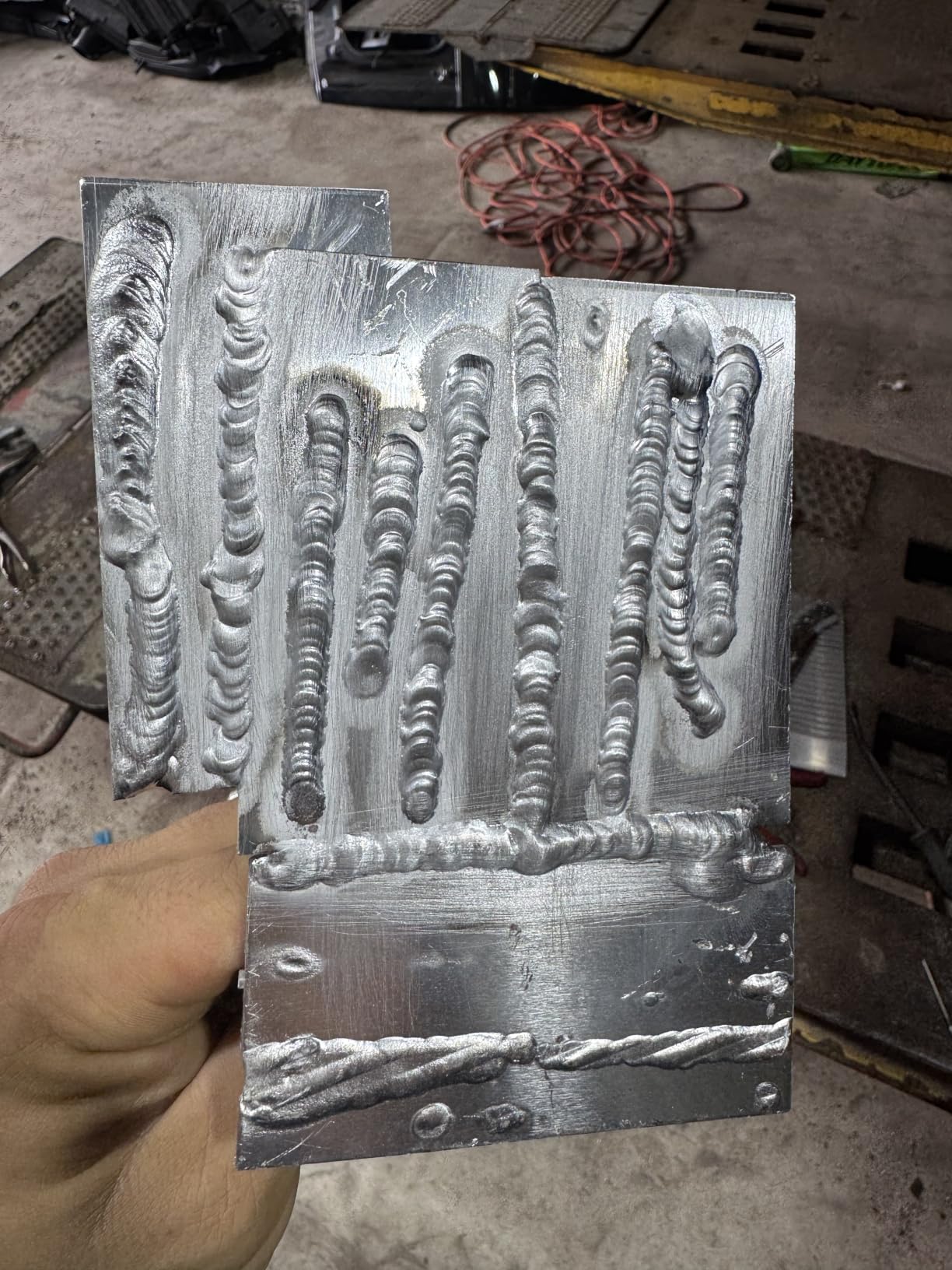

9. Everlast PowerTIG 210EXT – Best Water-Cooled Production Setup
Everlast PowerTIG 210EXT 210Amp Ac Dc Tig Stick Advance Pulse Welder 110/220 Volt Inverter-Based IGBT Technology
Pros
- Three selectable AC waveforms including advanced square wave
- Advanced Pulse mode improves travel speed and cuts warping on thin material
- Nine program memory stores complete parameter sets
- Fan-on-demand cooling keeps the machine quiet at idle
- Comes with a PowerCool 500 water-cooled torch and PowerCart 500 cart
Cons
- Highest cost in the roundup
- Programmable features carry a real learning curve
- Smallest review count of the three Everlast models here
The PowerTIG 210EXT is the only complete production package here. It comes with a PowerCool 500 water-cooled torch and a PowerCart 500 cart, which is the reason it can hold a welding cycle through a long aluminum session without the torch becoming the thing that overheats.
It is a 210 amp AC and DC TIG and stick machine with microprocessor parameter control and three AC waveforms: triangular, advanced square and soft square. That is the deepest waveform selection in this roundup, and it maps directly to three different aluminum jobs rather than being a spec-sheet flourish.
Advanced Pulse mode is the feature that matters most for thin aluminum. It delivers a higher travel speed with reduced warping, which is exactly the problem that ruins a flat aluminium panel. Combined with nine programmable memory slots, you set a joint once and recall it every time.
Start options include HV start with no point gap or lift arc in both AC and DC modes, and programmable stick functions cover hot start time, hot start intensity and arc force. Fan-on-demand cooling starts the fan with the arc and stops it when the arc ends.
Matching each waveform to an aluminum job
Triangular wave spends more of the cycle on the cleaning action, which suits thicker or more heavily oxidized stock. Advanced square wave gives the most concentrated, stable arc and the best balance of cleaning and penetration for general aluminum work. Soft square wave softens the arc corners and reduces spatter on thinner material where the puddle needs to stay quiet.
On top of that, a water-cooled torch changes what you can do in a single session. Air-cooled torches on a 225 amp machine get hot on sustained duty, and torch heat is a real limit on thick aluminum work.
The cost of the deepest feature set
This is the most expensive machine in the roundup, and the learning curve on the programmable features is the reason. If you weld ten different joints twice a year, you will not amortise that time. If you weld the same assembly a few hundred times, the saved programs and the water-cooled torch pay back quickly.
One caution on the ratings: 64 reviews is a thin sample, so treat the 4.6 average as less firmly established than the 4.6 average on a machine with 836 reviews. The 84 percent five-star share is well ahead of the field here, but on a smaller pool.
10. AHP Alpha-TIG 225Xi – Best Rated With a Water Cooler Outlet
New 2024 AHP Alpha-TIG 225Xi 200 Amp IGBT AC/DC Pulse TIG/Stick Welder 110v/220v Dual Voltage
Pros
- 4.7 star average across 42 reviews with no one or two-star ratings
- 225 amp output with 150 amps available on 120V circuits
- Wide 0.5-200Hz pulse frequency range
- Adjustable pre-flow post-flow and down slope
- 2T and 4T with start and end amperage adjustment
Cons
- Smallest review base in the roundup at 42 reviews
- Weight is not published by the manufacturer
- Water-cooled torch is an add-on rather than included
The Alpha-TIG 225Xi carries a 4.7 star average, second only to the PRIMEWELD TIG225X in this roundup, and it is also the machine with the fewest reviews at 42. Both facts matter. The rating is genuinely excellent, with zero one-star and zero two-star reviews, but a sample that small is a promise rather than a track record.
The output numbers are the interesting part. It produces 150 amps on a 120V circuit and the full 225 amps on 240V, which means a 150 amp 120V setup is not a downgrade the way it is on many machines. Pulse frequency adjusts from 0.5 to 200Hz, and minimum start amperage is 5 amps on DC and 20 amps on AC.
Sequencing controls are properly specified: pre-flow adjustable from 0 to 10 seconds, post-flow 0 to 10 seconds, down slope adjustment, and 2T and 4T modes with start and end amperage adjustment in 4T. Those are the controls that determine bead appearance on thin aluminum more than raw amperage does.
The rear-mounted water cooler outlet is the standout. It lets you add a water-cooled torch later for sustained heavy aluminum work without buying a different machine, which is the same upgrade path the 210EXT ships with already fitted.
What the water cooler outlet actually changes?
A water-cooled torch circulates coolant through the torch body, so the heat leaves at the torch rather than in your hand and the tungsten cup. For a hobbyist welding a 1/8 inch tube for an hour, an air-cooled torch is fine. For someone running long seams on plate, torch heat becomes the limit before the machine does.
Because the outlet is there, you can delay that purchase until you actually need it. That flexibility is why this machine suits someone whose aluminum work is likely to grow.
Where the risk sits?
The honest caveat is the review base. Forty-two reviews cannot tell you how the machine behaves at year three, and the manufacturer does not publish a weight figure, so you are planning around an unknown if portability matters to you.
If the rating matters most to you and you can accept the thin evidence, this is the machine to buy. If you want proven long-term ownership, the PRIMEWELD TIG225X with 1426 reviews is the safer read.
How to Choose an AC/DC TIG Welder for Aluminum in 2026?
AC or DC: the only question that matters first
Aluminum forms an oxide layer that melts at roughly 3700F while the metal beneath it melts near 1200F. On an AC machine, the positive half of each cycle delivers the cleaning action that breaks the oxide apart and the negative half delivers the heat. A DC-only TIG welder cannot weld aluminum at all, regardless of how good it is at steel or stainless. If a listing says TIG welder without saying AC, treat that as a DC machine and skip it.
AC balance and AC frequency controls
AC balance sets the percentage of the positive half-cycle spent cleaning. Around 30 to 35 percent cleaning is the standard starting point for aluminum, with more cleaning for heavily oxidized or thick stock and less for thin material where you are already risking burn-through. AC frequency controls how many times per second the current reverses, typically across a 20 to 300Hz range. Higher frequency narrows and focuses the arc for thin sheet, lower frequency widens the cleaning action for thick plate. A machine with neither control forces you to compensate with torch angle and travel speed, which works but costs you control.
Pulse TIG and thin aluminum
Pulse TIG alternates between a peak amperage that melts and a background amperage that lets the puddle cool. That cooling cycle is the difference between a flat panel and a warped one on material under 1/8 inch. Ranges of 0.5 to 200Hz give you room to work both ends of the spectrum, while two fixed presets give you almost nothing. Pulse also reduces burn-through on thin sheet because you are not holding full heat on the puddle continuously.
Amperage and aluminum thickness
Match the machine to the thickest material you intend to weld, not the thinnest. As a starting guide: 1/16 inch aluminum typically runs 20 to 40 amps, 1/8 inch runs 40 to 80 amps, 3/16 inch runs 80 to 120 amps, 1/4 inch runs 120 to 160 amps, and 3/8 inch runs 160 to 200 amps. Forum users describe 235 amps as a good ballpark for general TIG aluminum, and confirm that 1/8 inch, about 4mm, welds fine on a 180 to 200 amp machine. Machines in this roundup are documented from 1/4 inch aluminum on the 200 amp class up to 6mm on the 250 amp Sunstac at 220V.
Duty cycle, input voltage, and shop circuits
Duty cycle is the percentage of a ten-minute cycle you can weld at the rated amperage before needing a cool-down. The AHP AlphaTIG 203Xi is documented at 100 percent at 155 amps, the Weldpro is documented at 40 percent at full 200 amps, and the rest fall somewhere between. Duty cycle matters only if you weld for hours at a time. On input voltage, a 200 amp machine is a 50A 220V machine in practice, and running it on a 110V outlet costs you real output. Machines listed here with automatic 110V and 220V detection include the Weldpro, the Lotos and the Sunstac.
HF start versus lift start
High-frequency start initiates the arc without touching the tungsten to the work, which is faster and more consistent. Lift start has you touch the tungsten and lift to break the circuit. HF start sends a burst of high voltage through the air, which is not wanted in every situation. On very thin material, in tight spaces, or near electronics, a machine offering both, as the PowerTIG 200DV and the 210EXT do, gives you the option. The AHP 203Xi current-generation model uses a solid-state simulated HV start with no point gap to maintain.
Foot pedal control
For aluminum the foot pedal is close to non-negotiable. AC aluminum welding is about heat control, and a pedal lets you raise and lower current continuously through the second half of a bead to avoid crater cracks and burn-through. A rocker pedal gives finer control than a simple on/off foot switch. Check what is included carefully: the ARCCAPTAIN and the Sunstac do not include a pedal, and the ARCCAPTAIN uses a proprietary XS12 aviation-style connector that limits which third-party pedals will fit. Many hands-on writers here treat the pedal as a purchase you should make deliberately rather than accept whatever is in the box.
Shielding gas, tungsten, and filler rod
Use pure argon for aluminum TIG, flowing at roughly 15 to 20 CFH through a number 6 or number 7 gas cup. An argon-helium blend appears in some settings, but straight argon is the standard answer for the metal itself. For filler, ER4043 flows easily and is forgiving on thin material, while ER5356 is stronger and preferred for structural and higher-stress work. For tungsten, pure or zirconiated is the safe general choice for AC aluminum, and 2 percent lanthanated works well for DC steel and stainless as well as AC. Never use a tungsten that has been ground for steel on an aluminum AC weld without regrinding it clean.
Metal preparation before the first bead
The single most cited cause of failed aluminum TIG welds is contaminated metal, not a faulty machine. Degrease the joint with acetone or a dedicated aluminum cleaner, then scrub it with a stainless wire brush reserved for aluminum only, never one that has touched steel. Fit heat sink bars along the seam to pull heat away from thin panel. Clamp the work piece on a sacrificial surface so the arc cannot arc through to the table. Users with three decades of TIG experience describe aluminum as unforgiving and technique-driven, and the prep work is where most of that technique gets decided.
TIG versus MIG with a spool gun for aluminum
Choose MIG with a spool gun when you are doing long seams on material over 1/8 inch, when filler rod feeding is getting tiring, or when the job does not need the finish that hand-fed TIG gives you. Choose TIG when the joint is thin, the heat input needs to be controlled precisely, the material is a visible finished surface, or you are working on something where cosmetic quality matters. Many fabricators own both and use MIG for fit-up and TIG for finish, because a spool gun removes the single biggest ergonomic complaint about TIG on aluminium.
Connector standards buyers miss
Most budget machines use Dinse 9 connectors, most mid and premium machines use Dinse 13, and the standard is not interchangeable. A machine with a proprietary aviation-style pedal port may accept nothing else at all. Before you buy any torch, ground clamp or foot pedal as a spare, check the connector type. It is a small detail that turns into a frustrating afternoon, and it is the kind of thing that only surfaces after the machine is on the bench.
While you are choosing, it is worth checking the protective gear. Our picks for the best TIG welding gloves cover the heat and abrasion range that TIG work on aluminum actually demands.
Frequently Asked Questions
Is AC or DC better for TIG welding aluminum?
AC is required, not merely better. Aluminum forms an oxide layer that melts at roughly 3700F while the metal beneath melts near 1200F. On an AC/DC TIG welder the positive half of each cycle delivers the cleaning action that breaks the oxide apart and the negative half delivers the heat that melts the aluminum. A DC-only machine cannot weld aluminum at all, so AC capability is the first filter when choosing among the best tig welders for aluminum.
How thick can a 200 amp TIG weld aluminum?
A 200 amp AC/DC TIG typically handles aluminum up to 1/4 inch comfortably, and machines in this roundup are documented at that thickness. For reference, 1/16 inch usually runs 20 to 40 amps, 1/8 inch runs 40 to 80 amps, 3/16 inch runs 80 to 120 amps, and 1/4 inch runs 120 to 160 amps. Forum users confirm 1/8 inch, about 4mm, welds fine on a 180 to 200 amp machine.
What type of welder is best for welding aluminium?
An AC/DC TIG welder with adjustable AC balance, AC frequency, pulse control, a foot pedal and dual voltage. AC output is mandatory because DC cannot weld aluminum. Pulse control matters most on material under 1/8 inch, dual voltage matters if you only have a 110V outlet, and a foot pedal is close to essential for controlling heat on an AC bead.
What’s a good starter TIG welder?
The LOTOS TIG200ACDC is our starter recommendation: real AC square wave output from 10 amps, 37 pounds, automatic 110V and 220V, a foot pedal and argon regulator in the box, and a 3-year limited warranty. It is cheap enough that a first failed bead costs little, and the 10 amp floor lets you work thin sheet. The AHP AlphaTIG 203Xi is the better second machine once you outgrow it.
What shielding gas and tungsten do you use for TIG welding aluminum?
Use pure argon at roughly 15 to 20 CFH through a number 6 or number 7 gas cup, with pure or zirconiated tungsten for the AC work. ER4043 filler rod flows easily and suits thin material, while ER5356 is stronger for structural work. For the torch, our complete u003ca href=u0022https://findingdulcinea.com/best-tig-welders-for-metal-fabrication/u0022u003eTIG welder guide for metal fabricationu003c/au003e covers the setup choices in more detail.
Final Verdict: Which TIG Welder for Aluminum Should You Buy?
The PRIMEWELD TIG225X is the best tig welders for aluminum pick for almost everyone. A 4.8 rating across 1426 reviews, 225 amps of real AC output, 200Hz pulse and AC frequency control, dual voltage and a CK Worldwide Superflex torch in the box is a combination nothing else in this roundup matches. Its weaknesses are cosmetic: small dial labels and a rear power switch.
Buy the Weldpro 200A AC/DC if you want the most features and the most accessories in the box. Buy the AHP AlphaTIG 203Xi if you weld aluminum for hours at a time and duty cycle is your bottleneck. Buy the Lotos TIG200ACDC if you are learning and want square wave AC from 10 amps without spending much. Buy the ARCCAPTAIN if you want both square and triangular waveforms. Buy the Sunstac TIG-250 if you need 250 amps you can carry.
Whatever you choose, confirm genuine AC output in the listing, budget for a foot pedal if one is not included, and plan your argon, tungsten and ER4043 rod before the first bead. The machines all work. The prep and the practice are what make the weld.
Related Articles
