If your trailer has three or four axles, most brake controllers on the market are the wrong size for the job. A 20,000 lb gooseneck or a triple-axle dump trailer puts 8 to 12 amps of demand on the brake circuit per braked axle, and a controller rated for two axles simply cannot feed them. That is where the search for the best trailer brake controllers for heavy loads usually stalls: the listings all look similar, but the axle rating printed in small type is what decides whether the trailer stops in a straight line.
We spent weeks matching controllers to axle counts, brake output and wiring demands across the 10,000-30,000 lb class, then read what owners report after real towing. The short version before we get into the details: our top awards go to the Tekonsha Primus IQ 90160 as Best Overall, the CURT Spectrum 51170 as Best Value for four-axle capability, and the REDARC Tow-Pro Elite as Premium Pick for the cleanest factory-style install. Every controller below is proportional, and every one is rated for at least three braked axles unless we say otherwise.
Two things get left out of most roundups, so we cover both here. First, the trailer side: brake magnets, breakaway battery, 7-pin condition and 12 AWG wiring decide real braking performance as much as the controller does. Second, troubleshooting, because that is the single densest topic in the towing forums and no competitor page on the search results covers it. We updated this guide for 2026 and included the fuse and stop lamp switch fixes that solve most reported faults.
If you are still narrowing down the basics rather than the axle class, start with our broader trailer brake controller picks for towing, then come back here once you know how many brakes you are running.
Top 3 Trailer Brake Controllers For Heavy Loads (October 2026)
Tekonsha Primus IQ 90160
- Proportional control for 2
- 4 or 6 brakes
- Three-level boost
- LED diagnostics and alerts
CURT Spectrum 51170
- Controls 1-4 axles and 2-8 brakes
- Hidden module with dash knob
- Triple-axis accelerometer
REDARC Tow-Pro Elite
- Proportional plus user-controlled mode
- 1-3 axles
- 12V and 24V compatible
Best Trailer Brake Controllers for Heavy Loads in 2026
| Product | Specifications | Action |
|---|---|---|
| Tekonsha Primus IQ 90160 |
|
Check Latest Price |
| CURT Spectrum 51170 |
|
Check Latest Price |
 HRepair 90195 Universal Controller |
|
Check Latest Price |
 Timilge BC06 Proportional |
|
Check Latest Price |
| REDARC Tow-Pro Elite |
|
Check Latest Price |
 briidea BR-122 |
|
Check Latest Price |
 Tekonsha Prodigy iD 90920 |
|
Check Latest Price |
 CURT TriFlex NEXT 51146 |
|
Check Latest Price |
 Kohree KR3588 Split Kit |
|
Check Latest Price |
 Lrichy 8508211 Upgrade |
|
Check Latest Price |
1. Tekonsha Primus IQ 90160 – Best Overall for Three-Axle Heavy Loads
Pros
- Smooth inertia-sensed braking
- Three levels of boost for loaded trailers
- Removable electrical connector for quick trailer swaps
- LED display with real-time diagnostics
- Very large verified review base
Cons
- Vehicle-specific wiring kit sold separately
- Needs a sensitivity tuning period after install
- Applies slight output even when fully stopped
The Primus IQ is the unit most heavy-load owners already have on their dash, and after reading through thousands of reports the reason is plain: it is boring in the best way. The internal inertia sensor delivers brake output that tracks your foot, so a 20,000 lb trailer stops with the truck instead of pushing against it. Forest River Forums threads from recent seasons describe an “overwhelming consensus” in favor of the Tekonsha Prodigy line, with the P3 singled out for its display, and the Primus IQ shares that diagnostic approach at a step below the flagship.
On the heavy-load side of the ledger, three levels of boost let you add stopping power after the brake pedal is already down, which matters when the trailer outweighs the tow vehicle. Owners running tandem and triple-axle trailers note the braking is smooth once set, and the removable electrical connector means swapping between a dump trailer and a horse trailer takes under a minute.
The honest catch is the tuning period. Fresh out of the box it tends to come in too sensitive, and you will spend the first drive dialing the sensitivity down before it settles into the trailer. Reviewers also flag that it puts a small amount of output on the brakes at a full stop, which is a minor parasitic draw if you leave it connected for months at a time.
Because the wiring kit is sold separately, budget a vehicle-specific install kit before you order. Our heavy-duty brake controller guide covers the wiring side of that install in more detail.
How It Handles a Three-Axle Load?
This is the spec that matters most for heavy trailers: the Primus IQ is rated for 2, 4 or 6 brakes, which covers one, two or three braked axles. Three braked axles on a 10,000 to 15,000 lb trailer is the sweet spot for this controller, and owners towing tandem-axle light commercial cargo report even braking with the gain set around the middle of the range.
For a four-axle or gooseneck above 15,000 lb, look at the four-axle units further down this list instead. The Primus IQ is the safe pick for the most common heavy class, not the ceiling of the category.
Who Should Skip It?
Skip it if you need Bluetooth phone configuration or a dash that reads like a factory unit rather than an add-on. It also suits owners with a factory-installed tow package who want the same unit their truck was designed around, rather than something with a hidden module or an app.
If you tow a genuine four-axle trailer, the brake count ceiling is the deciding factor. Pairs with a general towing guide if you are still deciding between controller and brake upgrade.

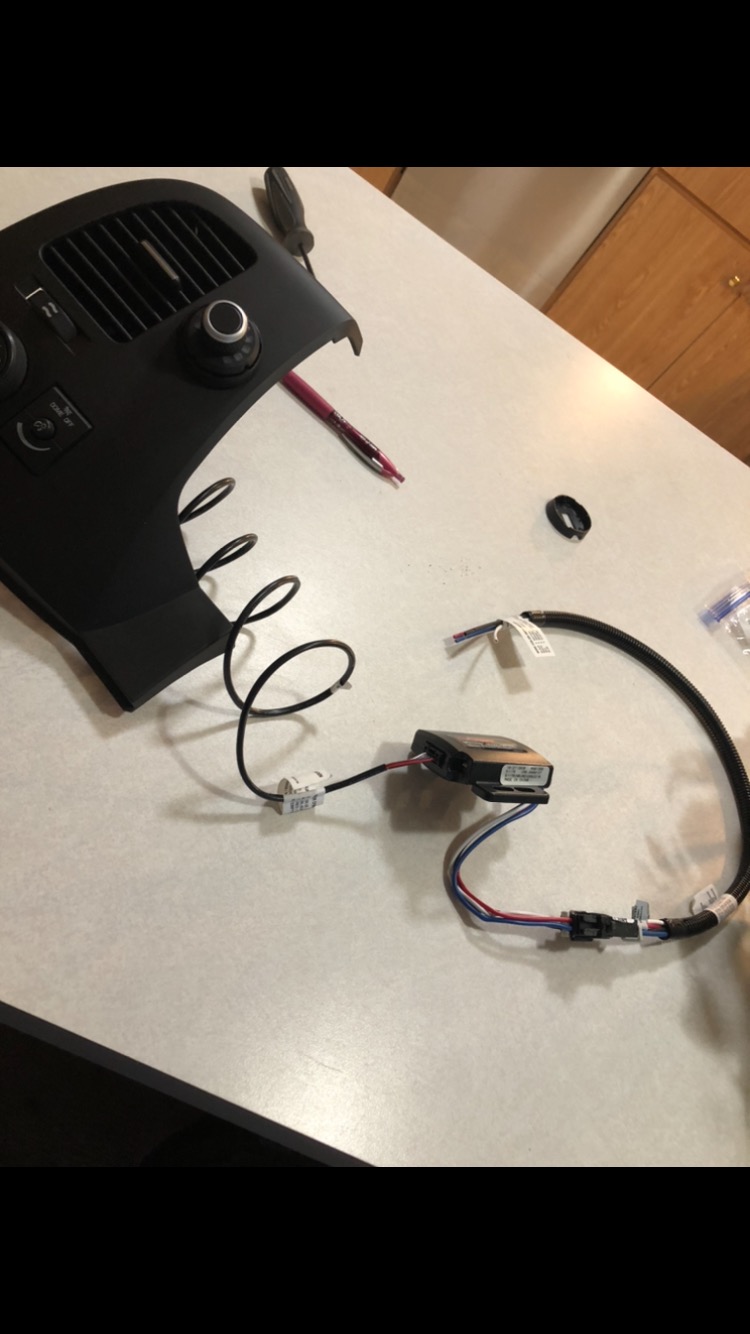

2. CURT Spectrum 51170 – Best Value Four-Axle Controller
Pros
- Controls 1-4 axles and 2-8 brakes
- Power module hides out of sight
- Triple-axis motion sensor
- Limited lifetime manufacturer warranty
- Easy manual override at the knob
Cons
- Quick-plug wiring kit sold separately
- LED states can look random while setting up
- No native truck display integration
The Spectrum is the answer when axle capacity is the deciding factor on a budget. It controls 1-4 axles and 2-8 brakes, so it covers a four-axle flatbed or a triple-axle dump without stepping up to the flagship tier, and it carries a limited lifetime manufacturer warranty that most of the field cannot match. At 10.4 ounces and 11 x 9 x 4 inches, the power module tucks behind the dash and out of knee space, which matters in a big truck.

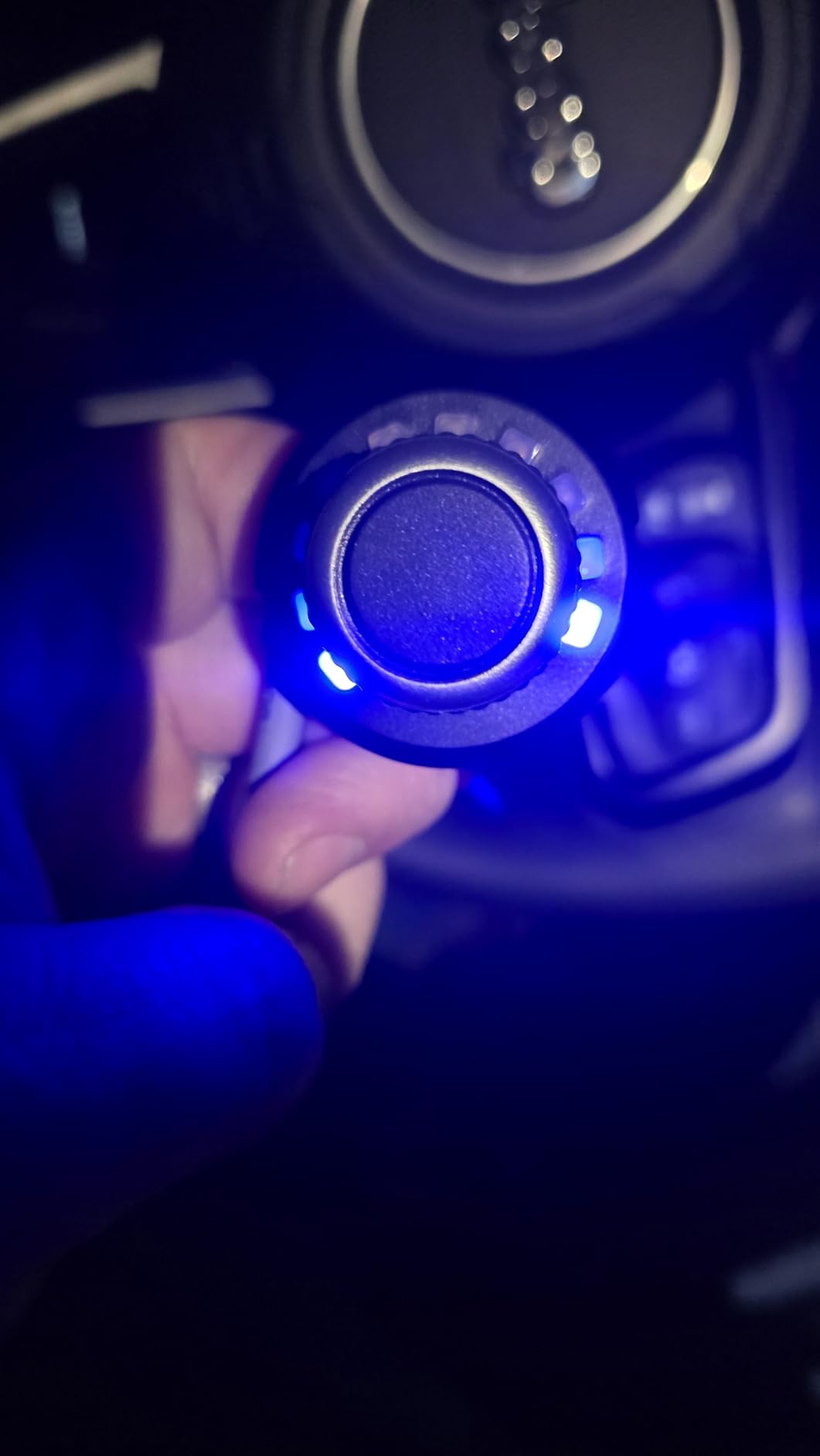

What you see on the dash is a single knob with 10 tri-color LEDs. Inside, a triple-axis motion-sensing accelerometer adjusts output as the trailer’s weight shifts, which is why owners describe stops as smooth even when the load is uneven. The manual override sits right at the knob, which is the right place for quick sway recovery.
The recurring complaint is the setup interface. The LED states can look like random blinking while you are navigating buttons, and the knob does not talk to your truck’s native center display, so a fault code lives on the CURT unit alone. A few owners also report needing to re-tune after a major load change, which is normal inertia-sensor behaviour rather than a fault.
Expect to buy the quick-plug wiring kit separately for your vehicle. The kit is what makes the swap between trucks painless, and the unit is transferable between vehicles if you have the right kit for each one.
Why It Handles Four Axles Well?
Eight brakes is the real number here, and that is the configuration most heavy flatbeds and goosenecks actually need. Because the module is a single hidden box rather than a visible dash controller, you can mount it in any orientation that keeps it clear of the steering column, and the accelerometer recalibrates for the position you chose.
For a 15,000 lb-plus load, treat the brake count as the pass mark and then verify your tow vehicle’s brake output can supply roughly 8 to 12 amps per braked axle. The controller rating is only half of it.
Where It Falls Short?
Owners who want phone-based tuning or a display integrated into the truck’s own screen will be disappointed, since this is a self-contained system. Reviewers who prefer the extra-long manual lever for emergency sway control also mention the knob-mounted override takes more of a deliberate press.
It is a strong middle-of-the-road pick rather than a premium one. If you tow a single-axle light trailer, this is more controller than you need.
3. HRepair 90195 – Best for Four-Axle Capacity With Stored Settings
HRepair Universal Trailer Brake Controller for Trailers with 1-4 Axles Compatible with Ford GM Chevy Dodge RAM Toyota Jeep & More Replacement for Curt Tekonsha P3 90195 Brake Controller
Pros
- Supports 1-4 axles and 8 brakes
- Three boost levels plus five stored profiles
- Plug-and-play wiring kit included
- Manual override lever included
- Compact body mounts out of the way
Cons
- Small dim display hard to read at a glance
- Menu navigation pulls your eyes off the road
- Included pigtails are short on some vehicles
This is the unit owners moving up from a Primus or a P3 tend to land on when they want the same job done for less. It is a proportional controller rated for 1-4 axles, with three boost levels and up to five stored trailer or driver profiles, which matters if you swap between a loaded dump trailer and a lighter one without re-tuning each time. The plug-and-play wiring kit and manual override lever are both in the box, which is unusual at this level.
The LCD reports brake voltage output, diagnostic status and error codes, and you can run it in English, Spanish or French. The compact 6.93 x 4.45 x 2.99 inch package mounts out of the way easily, and the 1.23 pound weight means it stays put on a firm bracket without sagging.
The display is the weak point. Owners consistently describe it as a step down from a Primus IQ or P3 screen: small, dim, and slow to navigate, with menu steps that ask you to look away from the road for a moment. If you drive a lot at night in a cab with a lot of glare, plan on dimming the dash instead of relying on this screen.
A second practical note: the included pigtails are short on some vehicle wire runs, so a heavy install may need extra length. And while the feedback is mostly positive, a few buyers report the display or braking behavior degrading after about a year of use, so treat the warranty period as the real test window.
Five Stored Settings for a Multi-Trailer Household
Storable profiles are the feature that separates this from cheaper budget units. You can save a setting per trailer, so a 12,000 lb dump trailer with forward weight distribution and a 5,000 lb utility trailer each keep their own gain and boost values, and switching is a couple of button presses rather than a full recalibration.
For heavy work where the same trailer is loaded differently across the week, three boost levels let you add front-brake bite on the heaviest trips without touching the base gain.
Is It Right for a Gooseneck?
At 1-4 axles, yes, the brake count is right for a gooseneck flatbed with three braked axles. The caveat is the interface: a heavy-load owner spends a lot of time reading that display, and this one asks more of you than a Primus IQ or a CURT Spectrum does.
Pair it with a solid trailer brake assembly on the axle end, since the controller only supplies what the magnets and drums can use.

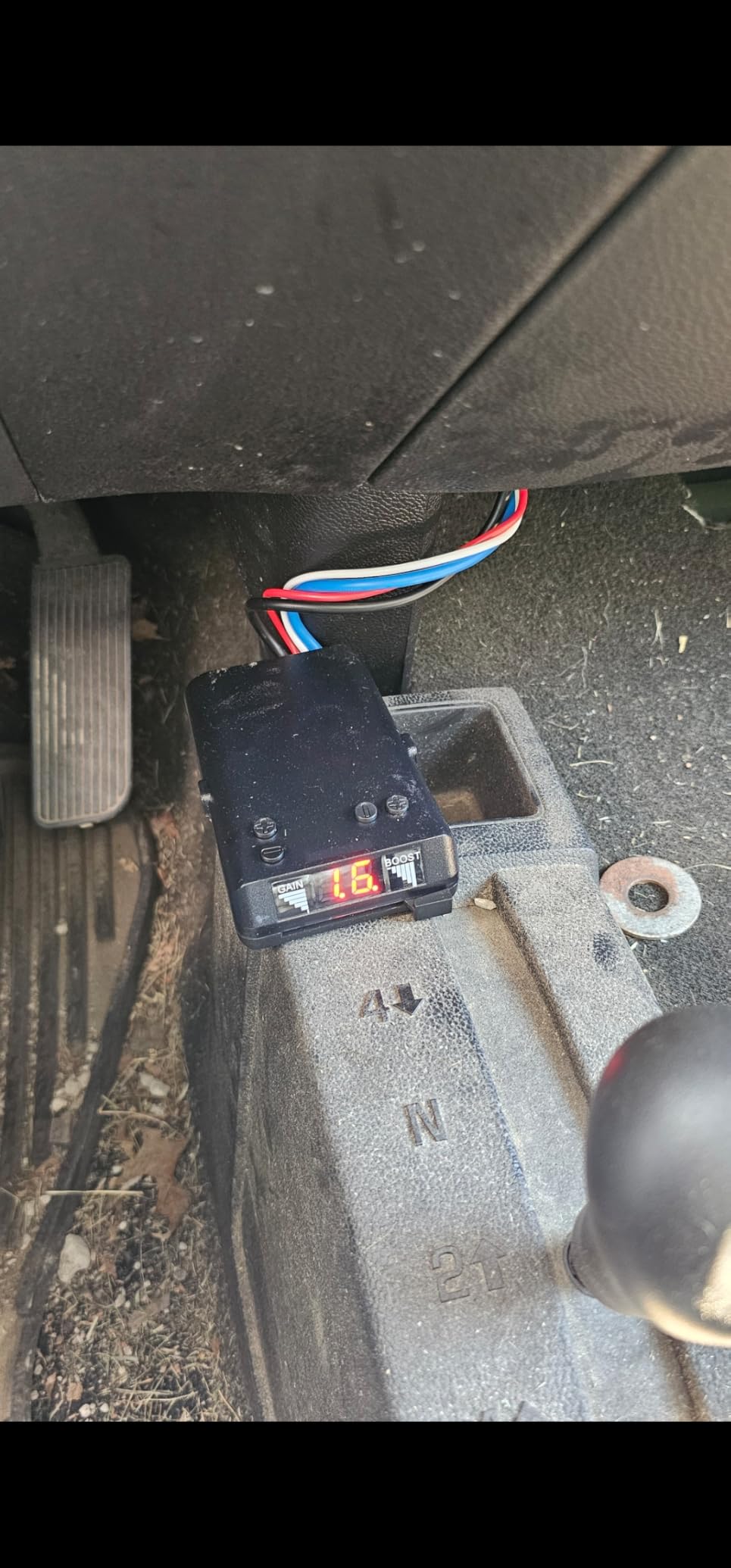

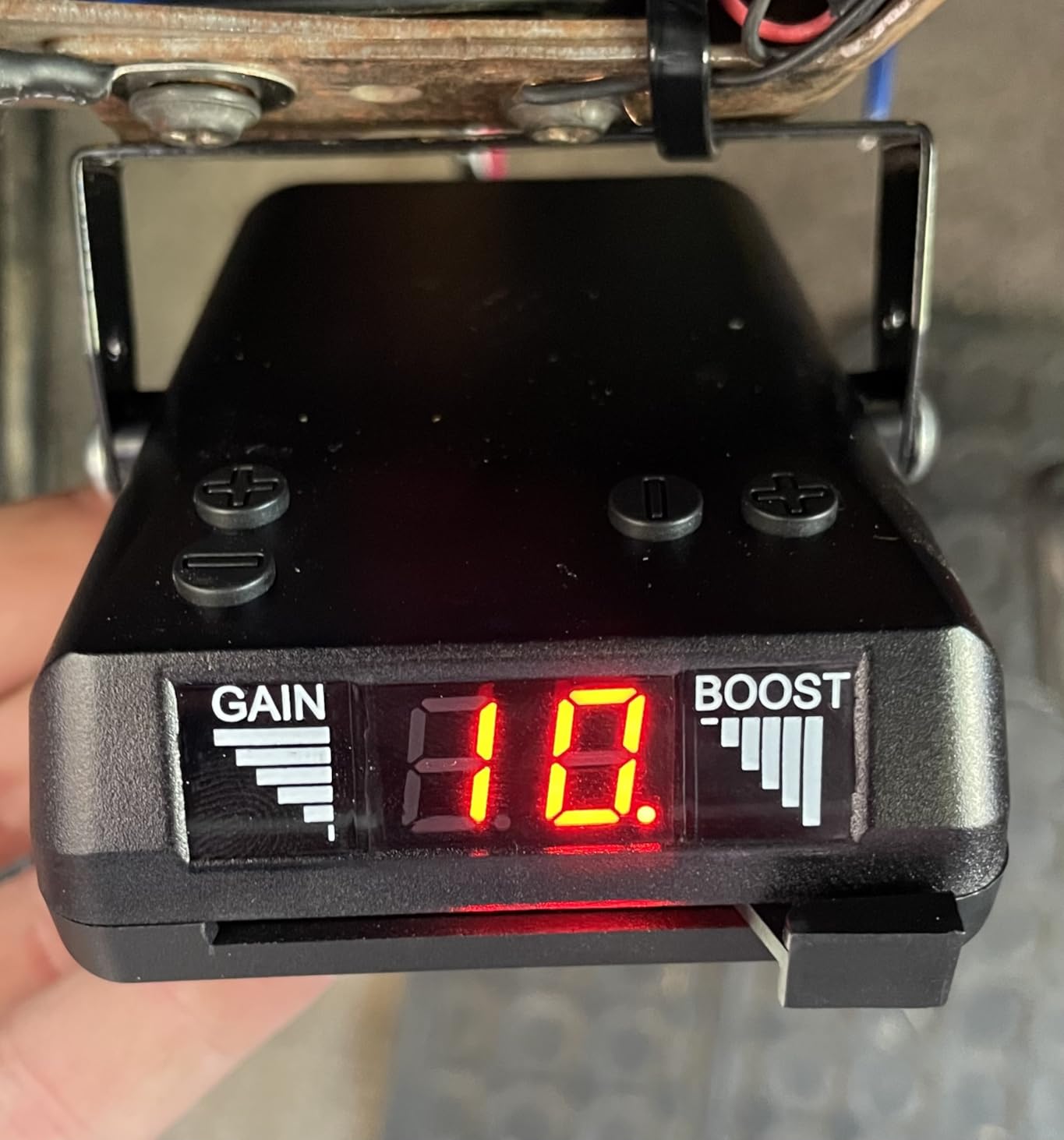

4. Timilge BC06 – Best for Quick Installs and No-Guesswork Setup
Proportional Trailer Brake Controller 8508211 Digital Electric LED Display
Pros
- Handles 1-4 axles and 2-8 brakes
- Self-adjusting so no levelling step
- LED shows live brake voltage to the trailer
- Adjustable power and sync rate
- Installs in under 15 minutes in most vehicles
Cons
- Wiring colour codes are confusing without a diagram
- Some units arrive needing calibration time
- No vehicle-specific wiring kit included by default
The Timilge BC06 is the one to buy if you are doing your first controller install and do not want a levelling ritual. It runs 1-4 axles and 2-8 brakes, uses proportional control rather than a timed delay, and skips the levelling step entirely: power and sync rate are adjustable, but the internal sensors set the braking level for you. At 8.4 ounces and 4.33 x 2.76 x 1.1 inches, it is one of the smallest proportional units that still handles a heavy axle count.
The LED display showing real-time brake voltage is more useful than it sounds. When you are dialing gain on a triple-axle trailer you can watch the number climb and stop before a wheel locks, instead of guessing from a numbered dial. Owners also report fast installs, with many completing the wiring in a single session.
The compromises are installation-related. Wiring colour codes are not self-explanatory, and without a diagram you will spend time tracing leads. There is no vehicle-specific kit in the box either, so budget for that separately, and expect some units to need a calibration period before they settle.
There is also a report pattern worth noting: a few owners find the brakes hold harder than expected on steep descents. On a loaded mountain descent that is a setting problem, not a failure, and you can dial gain back or use boost in moderation rather than maxed out.
Where This Fits in a Heavy-Load Setup?
This is a good match for a three-axle trailer around the 10,000 lb class where the owner wants a proportional controller without the installation fiddliness of a premium unit. The eight-brake ceiling means it also covers four axles, though at this size the tow vehicle’s brake output becomes the real limit.
The no-levelling design also makes it a good second controller for a second truck, since nothing has to be re-leveled when the mounting angle changes.
What You Give Up?
There is no storable profile memory and no boost-stage control on the dial, so multi-trailer households will re-tune more often. Diagnostics are basic: a voltage readout, not a fault-code list that names a short or a missing brake.
It is the practical choice rather than the refined one. If diagnostics matter to your operation, the briidea or Tekonsha options further down cover that.
5. REDARC Tow-Pro Elite – Premium Pick for Clean Factory-Style Installation
Pros
- Dual braking modes for road and off-road use
- Power module hides behind the dash
- Mounts in any orientation and self-calibrates
- Works with electric and electric-over-hydraulic brakes
- Two-year limited warranty
Cons
- Universal switch insert needs modification on some vehicles
- Small push knob is fiddly to adjust
- Vehicle-specific wiring kit sold separately
The Tow-Pro Elite is the one that disappears once it is installed. The power module mounts behind the dash in any orientation, and all that is left on the knob is a compact head with a bezel that looks like it came off the truck at the factory. Caravan and Camping Australia put it plainly in a comparison thread: the REDARC “looks great and gives the appearance it was fitted by the factory.”
It is rated for 1-3 axles and works on 12V and 24V systems, with dual braking modes so you can switch from proportional on-road control to a user-controlled mode when you need it. Active calibration and sway control keep stops repeatable, and owners report set-and-forget behavior after the first setup. It also supports electric-over-hydraulic trailer brakes, which matters if your trailer runs a surge or hybrid system.
Two things get mentioned repeatedly. The universal switch insert plate does not fit every dash without trimming, so check your vehicle before you commit. And the knob itself is small, which owners who like a big manual lever for emergency sway recovery call fiddly to adjust on the fly.
The wiring kit is a separate purchase here too. The included remote head cable and main unit wires cover the dash portion, but the vehicle-specific pigtail is what you add, and it is a real line item for a heavy install.
Why the Hidden Module Matters on Heavy Work?
On a triple-axle commercial trailer the dash space argument is not cosmetic. A box-style controller in the lower dash interferes with knees and pedals in a big truck, and reading a display down near the shifter costs you a glance every time you check output. Moving the module behind the dash leaves only the knob in your sightline, and because it mounts in any orientation, the internal sensor calibrates for wherever you put it.
Owners on Jeeps, Toyotas and Chevy trucks report identical smooth, repeatable braking across very different vehicles, which is a good sign for a wide install base.
Where the Three-Axle Ceiling Bites?
Three axles is the hard limit here, so this is not the pick for a four-axle gooseneck even though everything else about it is excellent. If your trailer has four braked axles, go to a 1-4 axle unit instead.
It is also the premium spend for a trailer class that a mid-range unit handles fine. On a tandem-axle travel trailer the extra cost buys the clean install, not extra braking capability.
6. briidea BR-122 – Best for Fault Detection on a Working Trailer
briidea Proportional Trailer Brake Controller, Digital Electric Brake Control for 1-4 Axle Trailers, Smooth Stop Technology with Boost Mode, Compatible with Ford/GM/Chevy/Dodge/RAM/Toyota
Pros
- Drives 1-4 braked axles and 2-8 brakes
- Built-in overcurrent and short-circuit protection
- LED shows settings output voltage and boost level
- Mounting bracket works at any angle or position
Cons
- Housing feels inexpensive

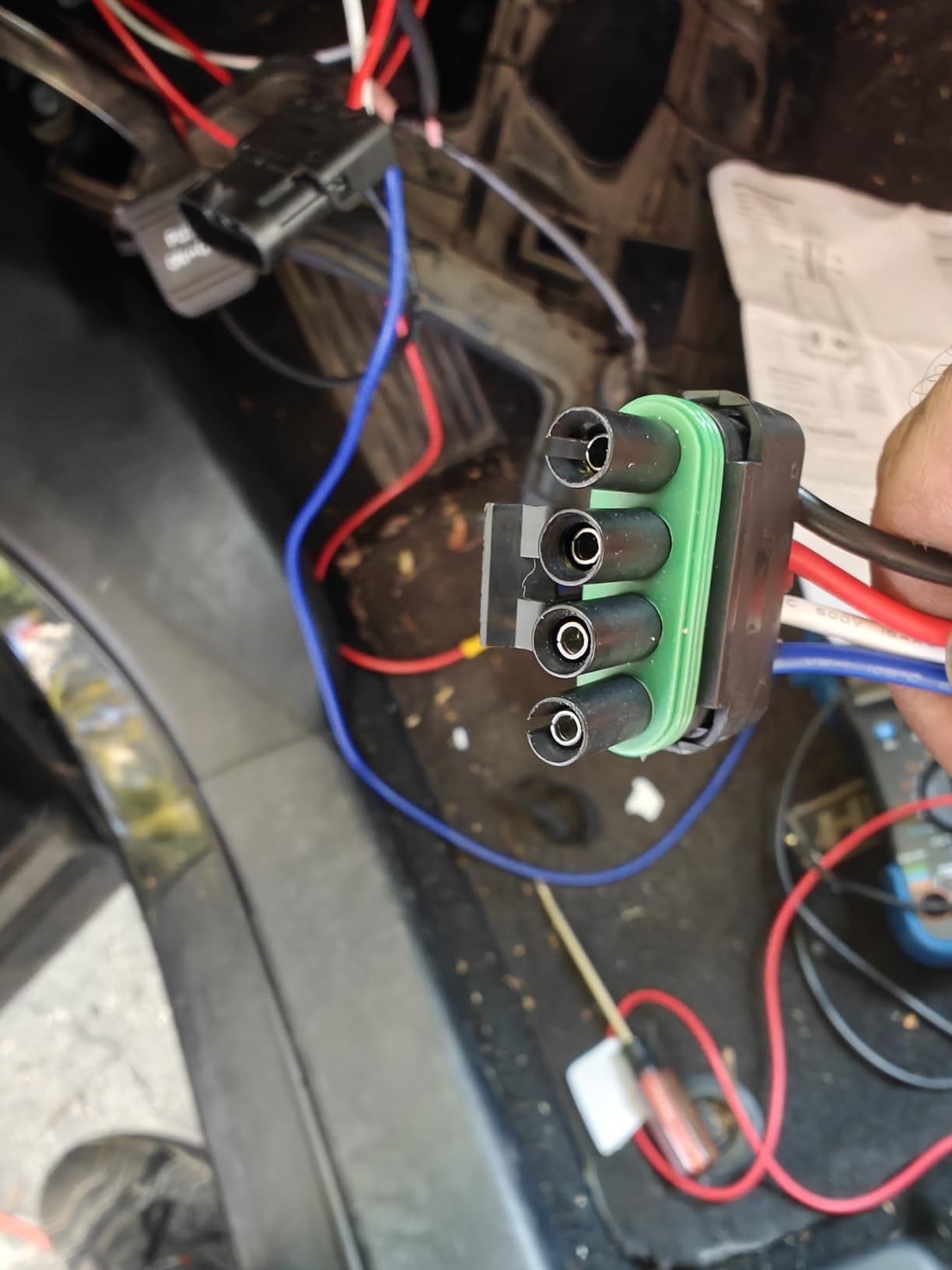

- Supplied plug is non-standard and needs a connector block
- Occasional dead-on-arrival units
The briidea BR-122 is the only unit in this group that names the electrical failure modes in its spec sheet: overcurrent, short-circuit and fault protection. For someone running a triple-axle work trailer through rain and gravel every week, that is a real advantage, because a magnet ground down to the drum or a corroded 7-pin will light the display instead of quietly leaving you with partial braking. The LED shows settings, live output voltage and boost level.
Braking is handled by high-precision motion sensors, rated for 1-4 braked axles and 2-8 brakes, with a boost function for tuning response to trailer weight distribution. The mounting bracket allows any position or angle, and the 5.63 x 3.58 x 2.83 inch package at 11.6 ounces mounts without crowding a dash.
The build quality is where the budget shows. Owners describe the housing as inexpensive next to the price, and the supplied plug is not a standard four-prong connection, so you may need a connector block to join it to your vehicle wiring. A meaningful share of reviews are one-star dead-on-arrival reports, which is the main reason this sits lower in the rankings despite solid features.
Boost is present but simple. If you want nine discrete boost levels or storable per-trailer profiles, this is not the unit; it is a straightforward controller with unusually good fault reporting.
When Fault Alerts Matter More Than Polish?
Anyone towing a work trailer daily has a brake failure at some point, and the expensive part is usually finding out late. A controller that reports short-circuit and fault conditions converts a vague “brakes feel weak” into a specific line to chase, and the live output voltage readout tells you in seconds whether all three axles are being fed.
For a 10,000 to 15,000 lb trailer with three braked axles, the capacity is right. Pair it with a routine check of the trailer side hardware so the alerts mean something.
Where It Is the Wrong Choice?
If your tow vehicle is newer and pre-wired, the non-standard plug means extra adapter work that a vehicle-specific kit would have avoided. And for a daily hauler where downtime is expensive, the failure reports argue for a unit with a longer service record.
It is a good secondary or backup controller rather than a first choice for a primary heavy trailer.

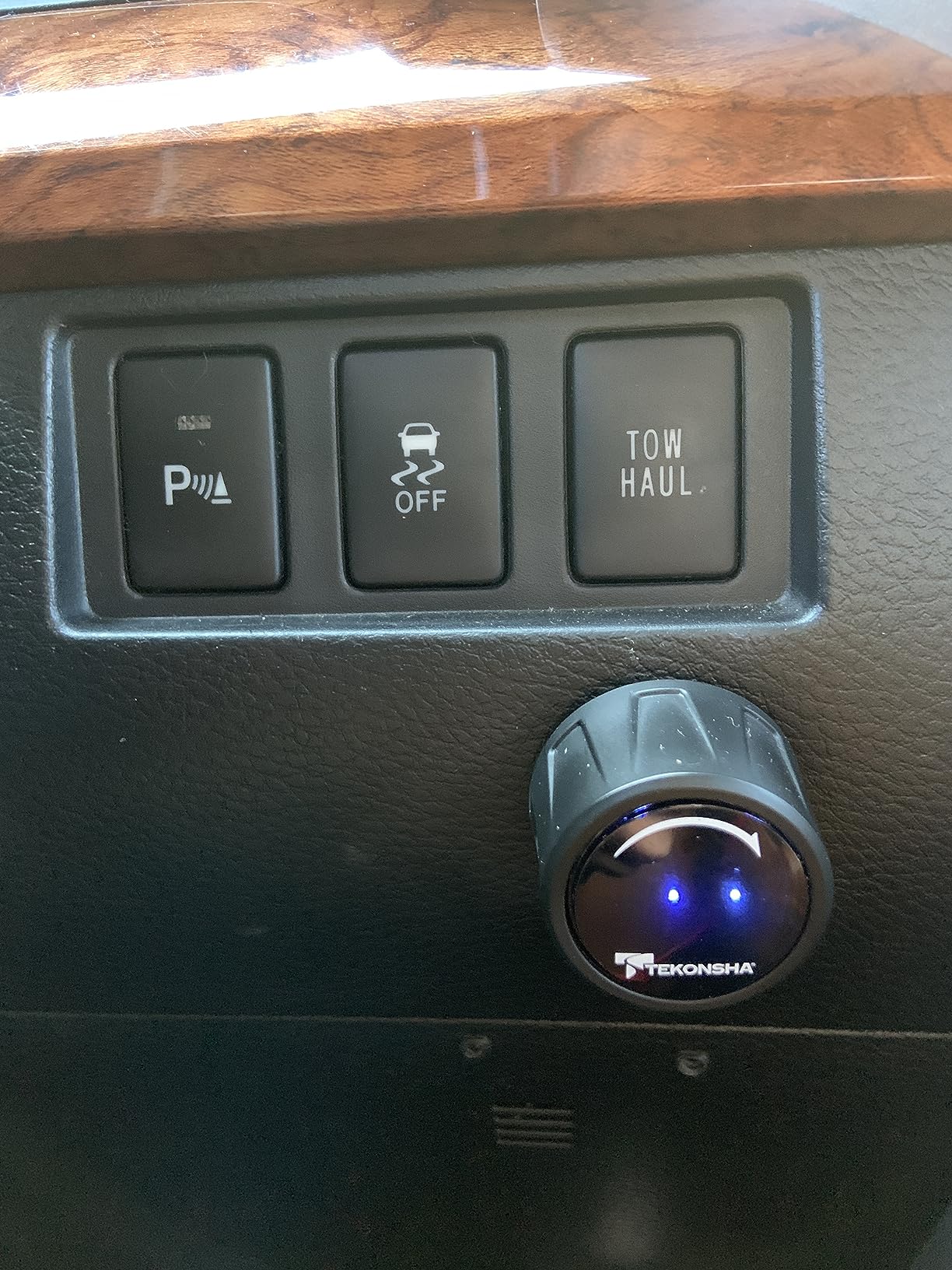

7. Tekonsha Prodigy iD 90920 – Best for Phone-Based Setup
TEKONSHA 90920 Prodigy iD Smart Phone Configured Brake Controller for Trailers with 1-4 Axles, Compatible with Ford, GM, Chevy, Dodge, RAM, Toyota, Jeep (Please Verify Vehicle Compatibility
Pros
- Handles 2-8 brakes across 1-4 axles
- Program power boost and braking type from the app
- Color LED faces the driver
- Power module hidden behind the dash knob
- Shareable diagnostic alert logs
Cons
- Vehicle-specific wiring kit sold separately
- Needs a compatible phone or tablet
- Smaller review base than Tekonsha mainstream models
The Prodigy iD moves setup to your phone through the Tekonsha EDGE app, and that is the whole point. You set power output, boost level and braking type from a screen instead of climbing through a button menu in a dark cab, which is a real advantage on a four-axle unit that you will re-tune as loads change. Owners with multiple trailers and multiple drivers value being able to save and recall a configuration in seconds.
Brake capacity is 2-8 brakes across 1-4 axles, so it covers the heaviest standard configurations in this guide. The front-facing color LED shows settings, diagnostics and alerts without you moving your head, and the power module hides behind the OEM-style rotary knob in the dash, keeping the install looking factory. Tekonsha also builds in technical support that can read your shared alert logs.
The trade is dependency. Full configuration needs a compatible smartphone or tablet, and the vehicle-specific wiring kit is a separate purchase. The review base is also much smaller than the Primus IQ, so long-term feedback is thinner, and you should verify vehicle fitment before ordering because the list is not universal.
One more consideration for a working truck: if your phone is mounted in a dash cradle with the screen facing you, changing settings at speed is a distraction risk. Set it before the trip, not during.
App Setup on a Four-Axle Load
For a gooseneck at 16,000 lb or more with four braked axles, the eight-brake capacity is the requirement that rules most controllers out, and this one clears it. Because the app exposes both gain and boost as separate values, you can carry a base setting for highway towing and bump boost for a loaded descent without re-running calibration.
Diagnostic alerts are shareable, which matters if your trailer is used by several drivers who need to report a fault rather than describe it.
Where the Phone Dependency Bites?
Offline capability is the weak spot. If the app is the only way to reach some settings, a dead phone at a trailhead can leave you with a controller you cannot fully reconfigure. Know the physical override and the basic gain control before you rely on it.
It is also a premium spend for a trailer class that a wired unit like the CURT Spectrum covers at a lower tier.

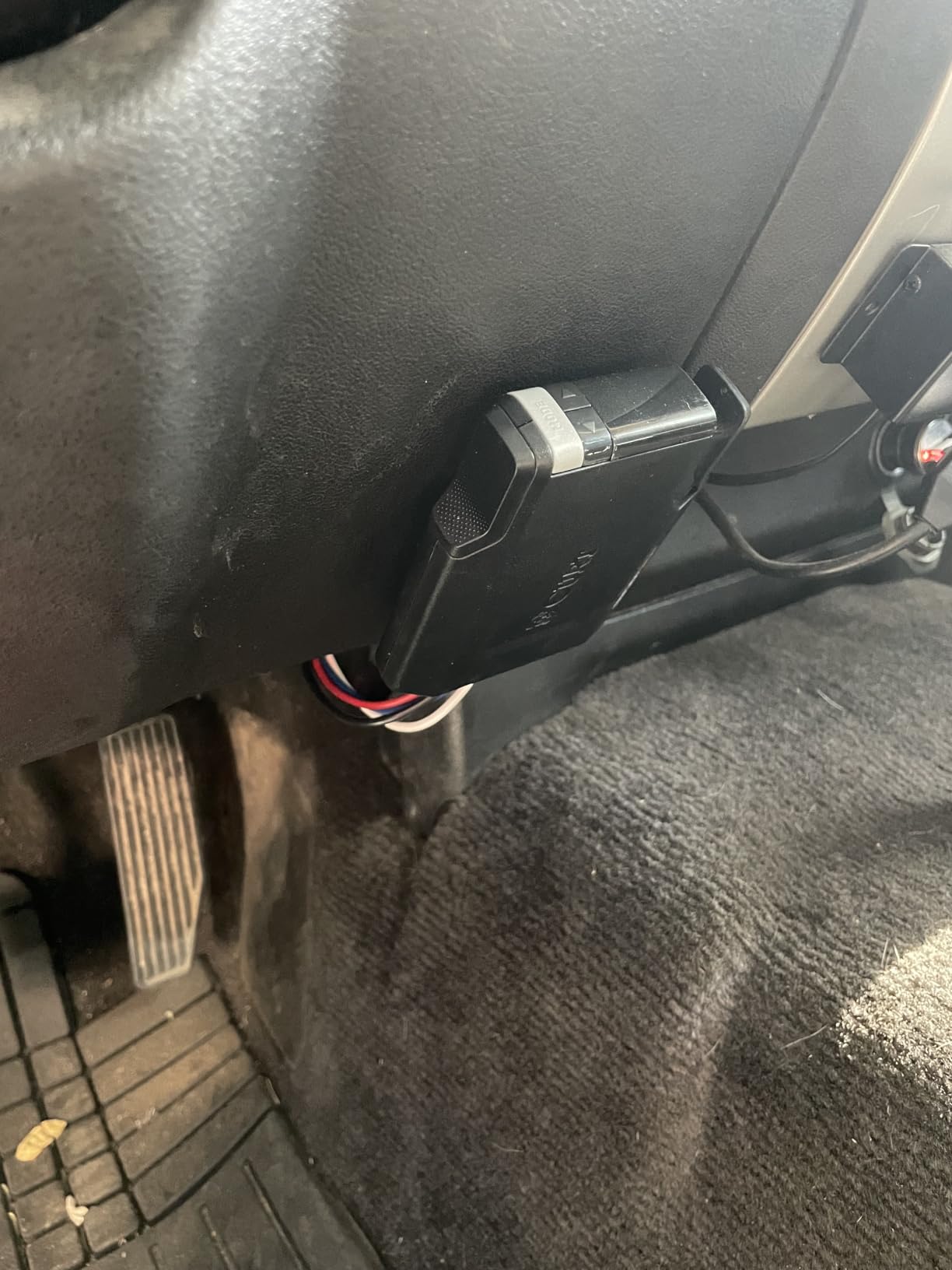

8. CURT TriFlex NEXT 51146 – Best for Dash Clearance in a Big Truck
CURT 51146 TriFlex Next Proportional Inertia Electric Trailer Brake Controller, Fully Adjustable, Low Profile, 2-4 Axles, Plug-and-Play
Pros
- Slim profile clears the dash in large trucks
- Bracket system improves mounting position
- Triple-axis accelerometer adjusts output on grades
- Operates 2-8 brakes at once
- Plug-and-play with the correct wiring kit
Cons
- Needs the correct CURT wiring kit for plug-and-play
- Inertia unit requires proper mounting and initial calibration
- Smaller review base than Tekonsha units
Reading a brake controller you cannot see is one of the complaints that comes up repeatedly in owner threads, and the TriFlex NEXT is built around that problem. The slim 8.13 x 5.38 x 2.75 inch body and its bracket system give real clearance between the controller and the dash, so the display and buttons stay in your line of sight instead of down near your knees. It handles 2-8 brakes across 1-4 axles.
Underneath, a triple-axis accelerometer makes dynamic power adjustments when you are driving up or down a hill, which is exactly when a heavily loaded trailer changes its braking behavior. Brake sensitivity and output are fully adjustable, and review descriptions call the finish modern and well made.
Fitment is the caveat. True plug-and-play depends on having the correct CURT vehicle-specific wiring kit, so check the kit list before you buy the controller. As an inertia-sensed unit, it also needs solid mounting and an initial calibration pass, and a loose bracket will make the output wander.
The review base is small at this point, so there is less long-term data than the Tekonsha units carry. Functionally, though, owners are consistent about the same thing: smoother stops on grades and a cleaner dash than older designs.
Why Clearance Matters at Heavy Weight?
In a one-ton truck the lower dash space is already taken by the steering column and the factory trailer brake port. A conventional controller that mounts low and deep either blocks a knee brace or forces you to look down mid-traffic, and on a descent with a loaded trailer that is the worst possible moment to lose the display.
The bracket system lets you choose the angle, which matters because a poorly oriented inertia controller misreads pitch changes on a grade. Getting the mounting angle right is part of the setup, not an afterthought.
Where It Falls Short?
There is no app, no storable per-trailer profiles and no remote display option. If you run several trailers with different weights and want one-touch recall, this is a manual-tune controller instead.
It is also priced as a premium unit despite a shorter service history, so the value case rests on the mounting system rather than the feature list.

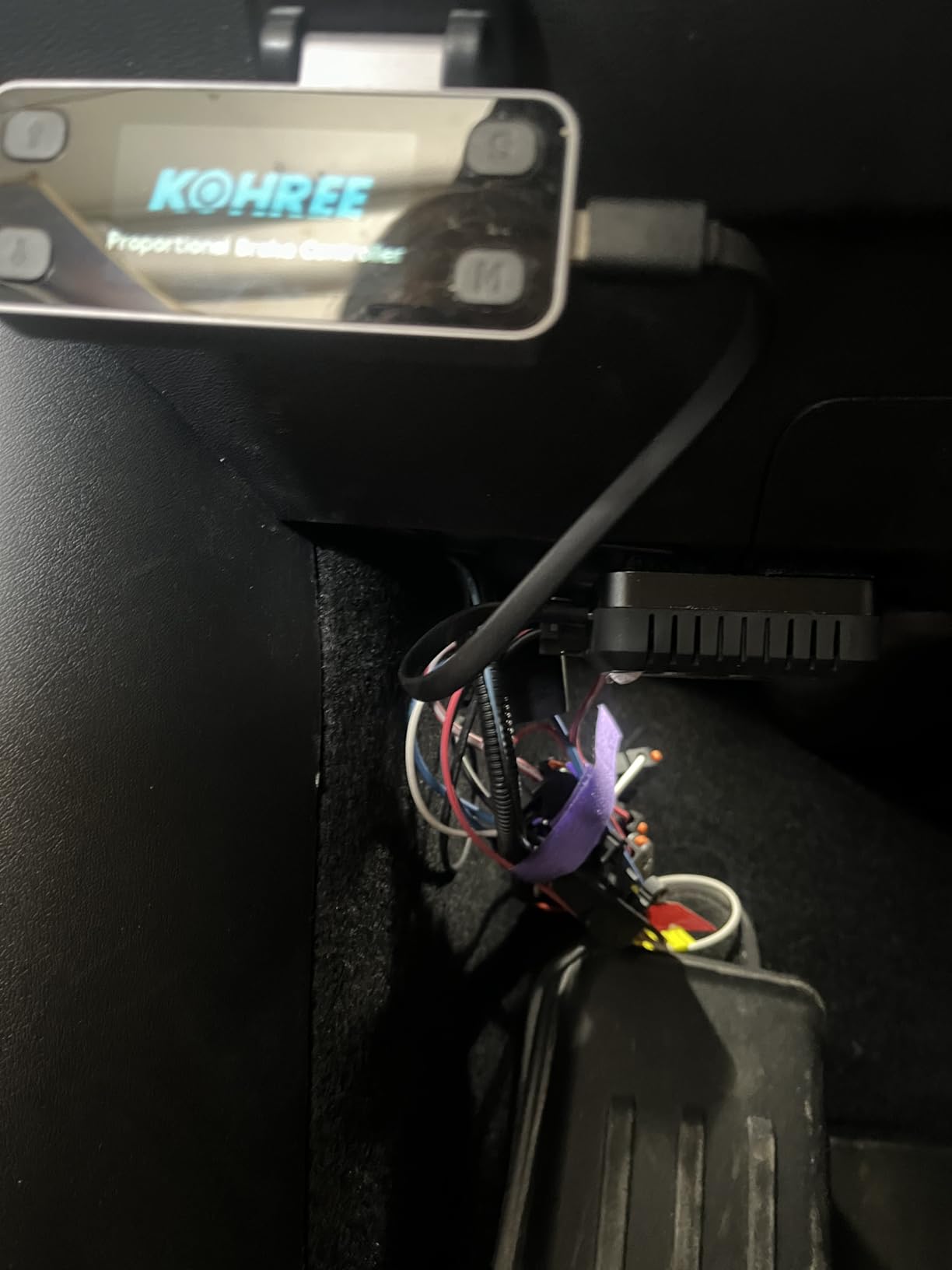

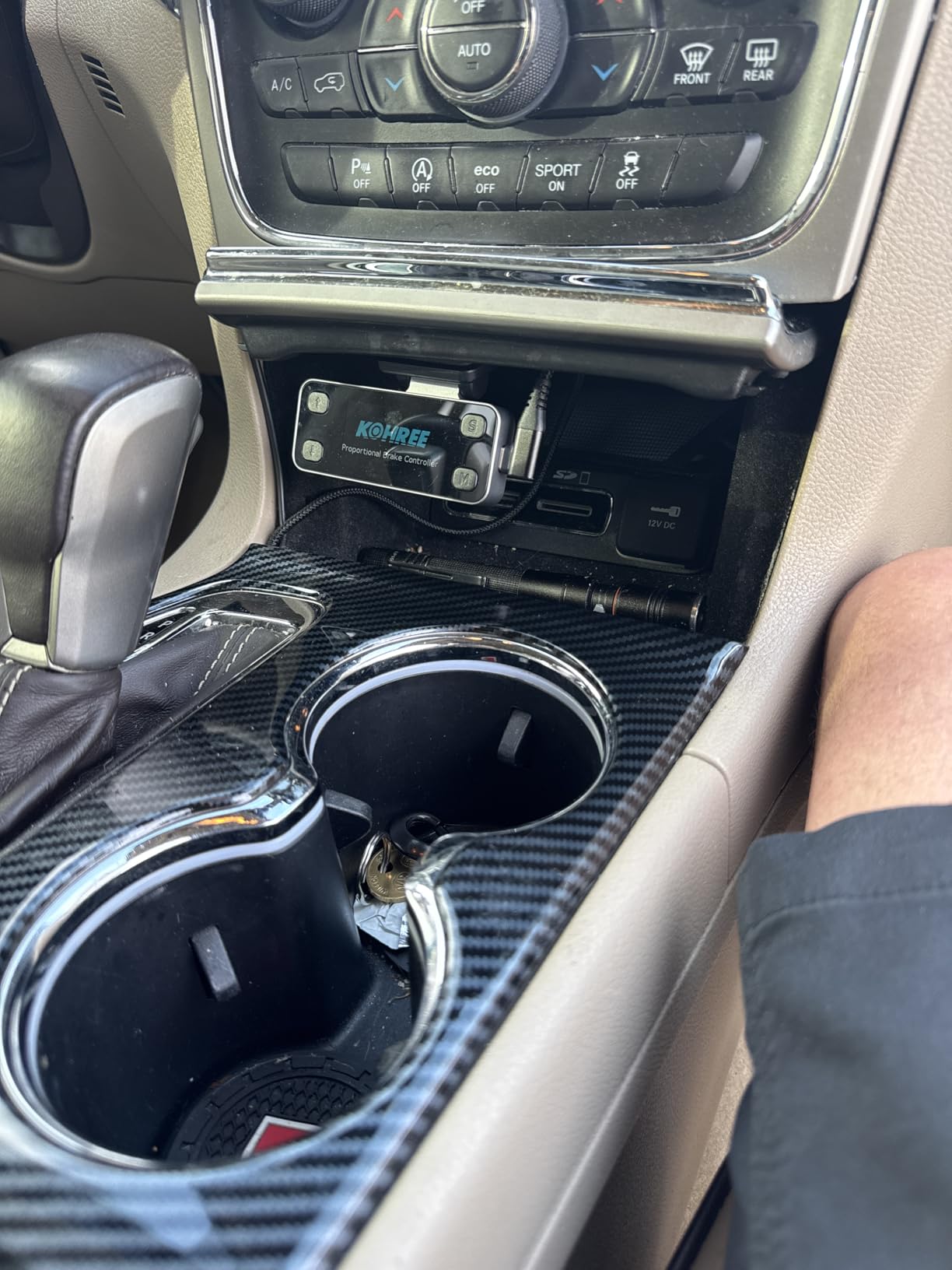

9. Kohree KR3588 – Best for a Separate Display and Module Mount
Kohree Upgraded Trailer Brake Controller Kit, Split Design, LCD Screen, Smart Chip, Proportional Braking, Electric Brake Controller for Trailers with 1-4 Axles
Pros
- Split design frees up dash space
- Proportional braking with automatic levelling
- Nine boost levels for fine tuning
- Module installs in the rear interior panel at any angle
- Display repositions to the driver's line of sight
Cons
- Display cannot be switched off at night
- USB-C cable needed for a windshield-mounted display
- Display adhesion can suffer in high heat
- Fewer included mounting consumables
The Kohree splits the controller into an LCD display and a control module, which is the most flexible mounting arrangement here. The module goes in the rear interior panel at any angle while the screen sits wherever you can actually see it, so the display and the controller no longer compete for the same square inch of lower dash. Owners installing in newer heavy-duty trucks particularly like how clean the layout looks next to an old box-style unit.
Braking is proportional with automatic levelling, so there is no manual levelling step, and there are nine levels of boost for fine-tuning response to trailer weight. It handles 1-4 axle vehicle and trailer combinations, and both the display and the controller carry 32-bit processor chips. The package includes the display, controller, wiring connections, a Type-C data cable and a manual.
The display staying lit is the most repeated complaint, and it is not a small one on a night run. There is no setting to switch the screen off, so you either cover it or plan to dim your dash lighting. If you mount it on the windshield, the included Type-C cable has to reach the module, and that run is the part owners most often have to re-plan.
Heat and sun are worth watching too: display adhesion can let go in a hot cab. The box also includes fewer mounting consumables, so expect to pick up your own zip ties and heat-shrink splices for a permanent install. The warranty is one year, the shortest of the group.
Nine Boost Levels on a Weighted Load
Boost is the feature that decides whether a loaded trailer can be stopped before it starts pushing your hitch. Nine discrete levels is finer control than the typical three-stage setting, and on a trailer whose tongue weight is on the low side it lets you add front-axle bite without rebuilding the base gain every trip.
Automatic levelling removes the step where you drive forward and back to set the sensor, which is worth it if the module is mounted off-axis in a rear panel.
When the Split Design Is the Wrong Call?
If you dislike a permanently lit screen or you would rather not run a cable across the dash, a single-body unit is simpler. And for anyone who wants storable trailer profiles, this one saves settings through the app-free menus rather than one-touch recall.
It is a good fit for a truck where the factory brake port is in an awkward spot. Pair the install with a check of the jack and hitching hardware while the trailer is level.

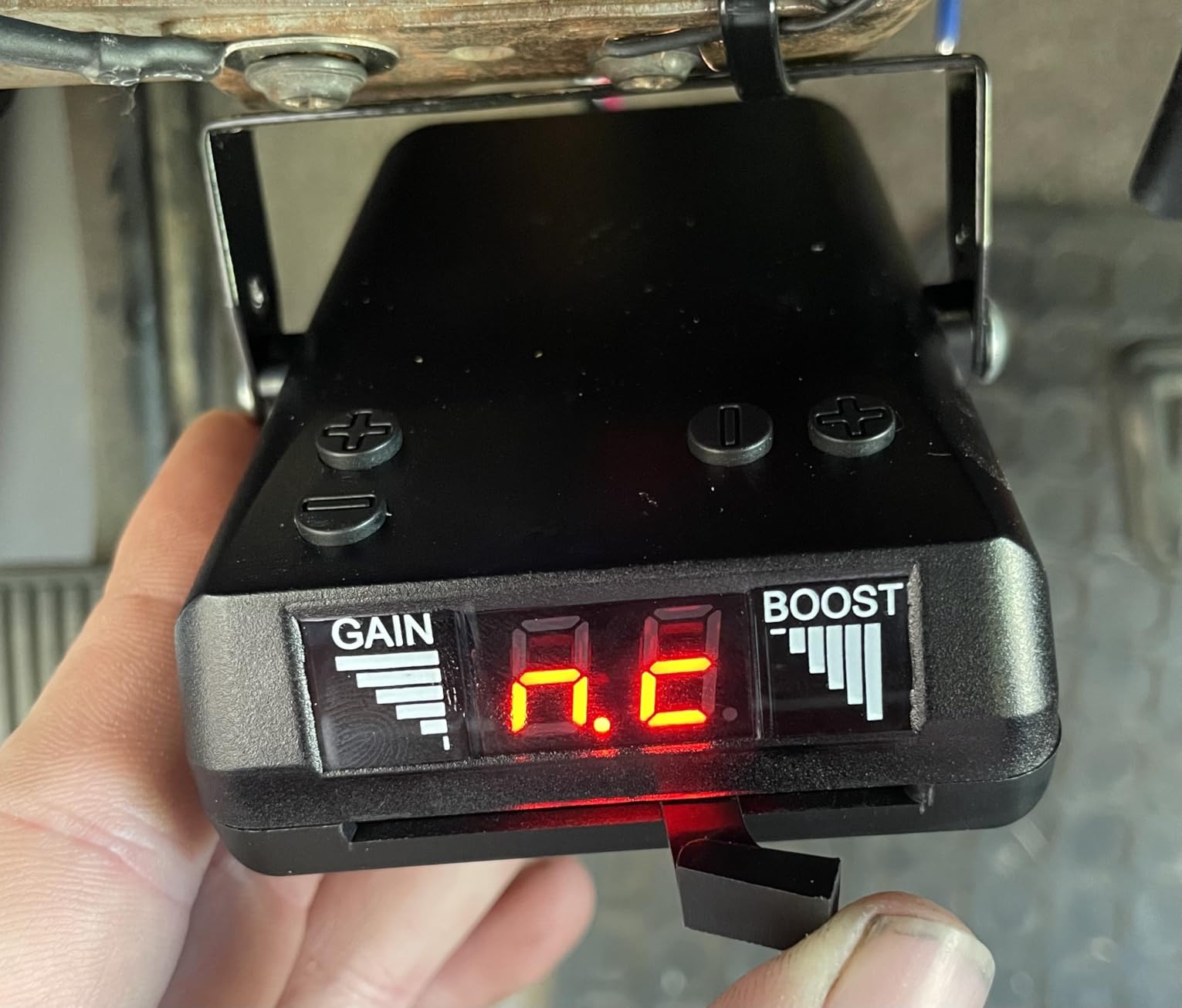

10. Lrichy 8508211 – Most Versatile for a Four-Axle Drop-In Upgrade
Pros
- Handles 2
- 4
- 6 and 8 brakes
- Direct replacement for Brake-EVN 8508220
- Internal sensors auto-set level and adjust for hills
- LED display with diagnostics and alarms
- Brackets screws and disconnect port included
Cons
- Vehicle-specific wiring kit not included
- Mounting holes are a loose fit and screws strip
- Calibration can be lost after a couple of months
The Lrichy 8508211 makes sense in one specific situation: replacing an old Brake-EVN 8508220 or stepping up from a 8507111 time-delay unit on a trailer that already runs 8 brakes. It is proportional rather than time-delayed, drives 2, 4, 6 or 8 brakes across 1-4 axles, and owners report noticeably even braking on multi-axle trailers after the swap. It also carries a two-year warranty.
The internal sensors set the braking level automatically and adjust as you work up and down hills, and the LED display shows real-time diagnostics and alarms. Mounting brackets, screws and a plug-and-play disconnect port are all in the box, and owners cite installs under the dash of a GMC 3500 as a realistic fit.
It is a budget unit with budget-unit caveats. The vehicle-specific wiring kit is not included, the mounting holes are a loose fit and the supplied screws strip easily, so do not overtighten them into the housing. The bigger issue is consistency: a meaningful share of owners report the unit losing calibration after a few months and needing to be re-angled, and some report brakes engaging unpredictably while driving.
The 4.1 rating reflects that spread. If you tow a heavy trailer every week and cannot afford a midstream failure, the value calculation changes quickly.
When a Drop-In Replacement Is the Right Buy?
If your existing controller is already undersized for the trailer, a proportional four-axle unit is a genuine safety upgrade, not a convenience item. The 2, 4, 6 and 8 brake settings let you run the same box on a lighter trailer when you borrow one, and the automatic level setting means you are not re-running calibration each time the load changes.
Two-year warranty coverage is also longer than several controllers above it, which softens the calibration complaints a little for a temporary or secondary trailer.
Why We Would Not Put It on a Primary Heavy Trailer?
Unpredictable brake engagement and lost calibration are exactly the two failure modes that make a heavy-load owner stop trusting a controller. On a primary work trailer, predictability matters more than the entry point price.
Use it on a secondary trailer, a seasonal camper or as a stopgap before a permanent install.
What Weight Trailer Needs a Brake Controller?
In the United States, federal rules require electric brakes on a trailer with a GVWR of 3,000 lb or more, which is why so many light utility trailers still have brakes. California draws the line lower at 1,500 lb, and Canada sets the threshold at 2,000 kg. Below those numbers, a controller is optional; above them, it is mandatory.
Weight bands tell you which type of controller to buy:
Under 1,000 lb: not required. 1,000 to 2,999 lb: a time-delay unit is workable, though you lose proportional feel. 3,000 to 5,999 lb: required, proportional strongly preferred. 6,000 to 9,999 lb: required, proportional with boost. 10,000 to 14,999 lb: required, proportional rated for 6 brakes minimum with 12 AWG or heavier wiring. 15,000 lb and above: required, proportional rated for 8 brakes and 3 or 4 braked axles.
The jump from two axles to three is where roundups usually mislead you. Most forums treat two axles as the practical ceiling for everyday trailers, but a triple-axle dump or a gooseneck flatbed needs six brakes driven from one controller, and that is exactly the class where an undersized unit gets returned.
How to Size a Controller for a Heavy Load?
Start with brake count, because it is the one spec that cannot be worked around. Three braked axles means six brakes, four braked axles means eight brakes. Count the axles with brake hubs on the trailer, not the axles on the label, because plenty of heavy trailers carry an unbraked tag axle.
Next, confirm the tow vehicle can actually supply the current. Plan for roughly 8 to 12 amps of brake output per braked axle, which on a triple-axle trailer means a brake circuit sized in the 24 to 36 amp range. A factory-installed trailer brake port on a one-ton truck usually handles this; a half-ton without a factory port frequently does not, and that is where the install cost jumps.
Wiring matters as much as the controller. Use at least 12 AWG on a loaded trailer circuit, keep the blue brake output lead short and well-supported, and confirm the breakaway battery is charged and its switch is functional. A corroded 7-pin connector or a bent pin will defeat an excellent controller completely.
Boost is not a luxury on a heavy load. If the trailer’s tongue weight is light relative to its total weight, boost gives you front-brake bite after the pedal is already applied, and controllers without it are one of the deal breakers owners name in forum threads.
Why Heavy Loads Need a Proportional Brake Controller?
Proportional means the controller measures how fast the tow vehicle is decelerating and applies a matching signal to the trailer’s brake magnets. A light pedal press gives light trailer braking, an emergency stop gives full braking, and the trailer moves with the truck instead of against it.
Time-delayed units apply a fixed amount of power after a preset delay regardless of how hard you pressed. On a 3,500 lb camper that is tolerable. On a 14,000 lb triple-axle it produces push-pull, trailer sway and brake heating on every stop, which is why we left time-delay units out of this list entirely.
Every controller here is proportional and inertia-sensed, which is a hard filter for the heavy-load class rather than a preference.
How to Set Gain and Boost on a Heavy Trailer?
Setting a controller correctly on a loaded trailer takes about ten minutes on a level, empty lot. Do it every time the load changes significantly.
Step one: connect the trailer with the engine running, park on level ground in an empty lot, and set the gain to the lowest position. Step two: roll to about 15 mph and press the brake pedal lightly. The output should hold without the trailer pushing back.
Step three: increase gain one position at a time, repeating the 15 mph test each time, until the brakes are firm just before you would feel a wheel start to lock. Step four: back off one position from that point, which leaves margin for a loaded trailer on a grade.
Step five: set boost to level one and test again on a mild downgrade. Add a level only if the trailer still pushes at the start of the stop, and never rely on boost to compensate for a gain setting that is too low.
If a wheel locks during any of this, back gain down immediately and repeat. Locking one wheel on a heavy trailer is how you end up with a sway event.
Are Wireless and RF Controllers Good Enough for Heavy Loads?
Wireless and RF controllers remove the wiring run between the cab and trailer, which is genuinely convenient on a gooseneck or a fifth wheel. The trade is that the link sits between your brake pedal signal and the brakes themselves, and for a 20,000 lb load on a long descent you want the shortest possible path.
For most heavy-load setups, a wired unit remains the more predictable choice, and a forum owner running a Prodigy RF reports great success, which tells you the technology works. The deciding factor is how critical the trailer is and whether your tow vehicle is already pre-wired, because on a heavy truck a factory brake port makes the wiring argument mostly irrelevant.
If your tow vehicle has no factory brake port and the trailer is on a fifth wheel, RF removes a long, expensive cable run. Otherwise, wired wins on reliability of signal.
Troubleshooting a Brake Controller That Will Not Detect the Trailer
Across the towing forums, the consensus on a brake controller that quits working is that the fault is almost never the module. A Powerstroke.org reply puts it directly: “Usually it is in the wiring more than in the module, but anything is possible.” Check in this order before you replace anything.
Start with the brake stop lamp switch. Brakes that engage only when you pull the manual override, and never on pedal input, almost always point to a worn brake light switch rather than a failed controller. Replace the switch before touching the module.
Next, find the fuse. Brake controller fuses are scattered across multiple locations in a tow vehicle, including the trailer-brake circuit fuse and the factory brake output fusible link, so check every one rather than assuming a single box covers it. A blown fuse usually means a short somewhere in the trailer wiring, so find the cause before replacing it.
Then inspect the 7-pin connector. Corroded contacts and bent pins cause intermittent trailer lights and intermittent brake failure, and they are the most common cause of a controller that recognized the trailer yesterday and not today. Clean the pins, check the ground, and reseat the connector firmly.
Finally, check the red power wire to the controller. A loose or broken red lead is a simple fix and a common finding, and an untested breakaway battery is a trailer-side trap that mimics a controller fault exactly.
One diagnostic step worth knowing: most controllers with a display show a short-circuit or no-brake alert when output is being demanded and the circuit is open. If your unit reports a fault and the brakes still work on manual override, that is a strong signal the trailer side has a problem, not the controller.
Frequently Asked Questions
What weight trailer needs a brake controller?
In the US, electric brakes are required at 3,000 lb GVWR or more, and California requires them from 1,500 lb. Canada sets the threshold at 2,000 kg. For 10,000 lb and above, choose a proportional controller rated for 6 brakes minimum, and for 15,000 lb and above you need 8 brakes and 3 or 4 braked axles.
Who makes the best trailer brake controller?
For heavy loads, the Tekonsha Prodigy line comes up most often in owner forums, and the Primus IQ 90160 is our pick for three-axle trailers up to about 15,000 lb. For four-axle capacity, the CURT Spectrum 51170 and the Tekonsha Prodigy iD both control 8 brakes.
Is Tekonsha a good brake controller?
Yes. Tekonsha dominates owner feedback for a reason: the Prodigy models pair inertia-sensed proportional braking with onboard diagnostics that can flag a real brake fault. The trade-off is that the vehicle-specific wiring kit is sold separately on most models, and the Primus IQ needs a tuning period after installation.
What kind of brake controller do I need for electric brakes on my trailer?
A proportional, inertia-sensed controller. Time-delay units apply fixed power after a preset delay, which causes push-back and sway on a heavy trailer. Match the brake count to your braked axles: 3 axles is 6 brakes, 4 axles is 8 brakes. Surge and hydraulic-only trailers do not use an electric controller.
Why is my brake controller not detecting my trailer?
The cause is usually wiring, not the module. Check the brake stop lamp switch first, since brakes that work only on manual override almost always mean a worn switch. Then check every brake controller fuse, inspect the 7-pin connector for corroded or bent pins, confirm the ground, and verify the red power wire is tight.
The Best Trailer Brake Controller for Your Heavy Load
The Tekonsha Primus IQ 90160 is our pick for the best trailer brake controllers for heavy loads, because the 2, 4 and 6 brake rating covers the three-axle class that most heavy trailers fall into, the three boost levels are genuinely useful when the trailer outweighs the truck, and the diagnostic display has the longest service record of anything we reviewed. For four braked axles, step up to the CURT Spectrum 51170, which controls 8 brakes and hides its module behind the dash, or the Tekonsha Prodigy iD if you would rather configure from your phone.
Whichever you pick, check three things before the first tow: the brake count against your actual braked axles, the tow vehicle’s brake output against 8 to 12 amps per axle, and the wiring gauge on the trailer circuit. We will keep this list updated through 2026 as new models land.
Related Articles
