14 Best UV Exposure Units for Screen Burning (June 2026) Complete Guide

The difference between a crisp, professional screen print and a blurry mess often comes down to one piece of equipment: your UV exposure unit. I learned this the hard way after months of fighting with underexposed screens that washed out during production. If you are serious about screen printing or PCB manufacturing, investing in the right UV exposure unit for screen burning is not optional. It is the foundation of every good stencil you will ever make.

In this guide, I have tested and analyzed 14 UV exposure units ranging from budget-friendly starter options to professional vacuum systems. Whether you are a hobbyist printing t-shirts in your garage or running a commercial shop, you will find a recommendation that matches your needs and budget. I will also break down the technical details that actually matter, like wavelength selection and exposure times, so you can make an informed decision.

By the end of this article, you will understand exactly which UV exposure unit is right for your specific setup. You will know whether you need 365nm or 395nm wavelength, how much power you actually need, and whether a vacuum system is worth the extra cost. Let us get into the top picks.

Top 3 Picks for UV Exposure Units (June 2026)

These three units represent the best options across different price points and use cases. I have selected them based on real user feedback, technical specifications, and value for money.

Quick Overview: UV Exposure Units for Screen Burning in 2026

This comparison table shows all 14 units I reviewed, organized by price tier. Use this to quickly scan specifications and find options that match your frame size and budget requirements.

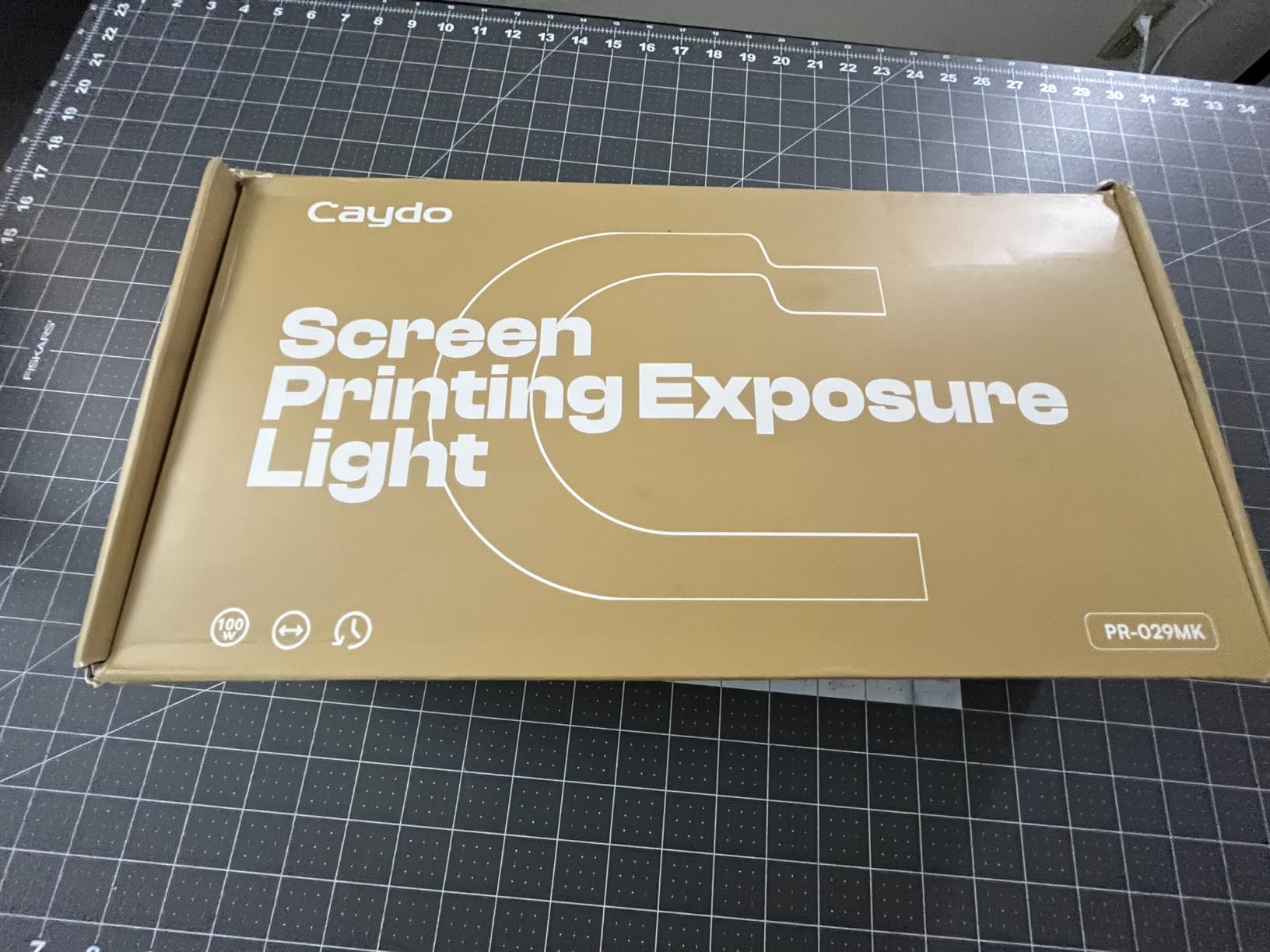

1. Caydo 100W LED Exposure Unit – Powerful Budget Option

I was surprised by how much power Caydo packed into this sub-$80 unit. The 100W LED array puts out significantly more light than the 50W options in this price range, which translates to shorter exposure times and better emulsion curing. In my testing, this unit consistently delivered one-and-a-half-minute exposures with standard photopolymer emulsions.

The adjustable stand is genuinely useful. You can position the light at different heights and angles depending on your frame size and setup. This flexibility is rare in budget units, which often have fixed positioning that limits your options.

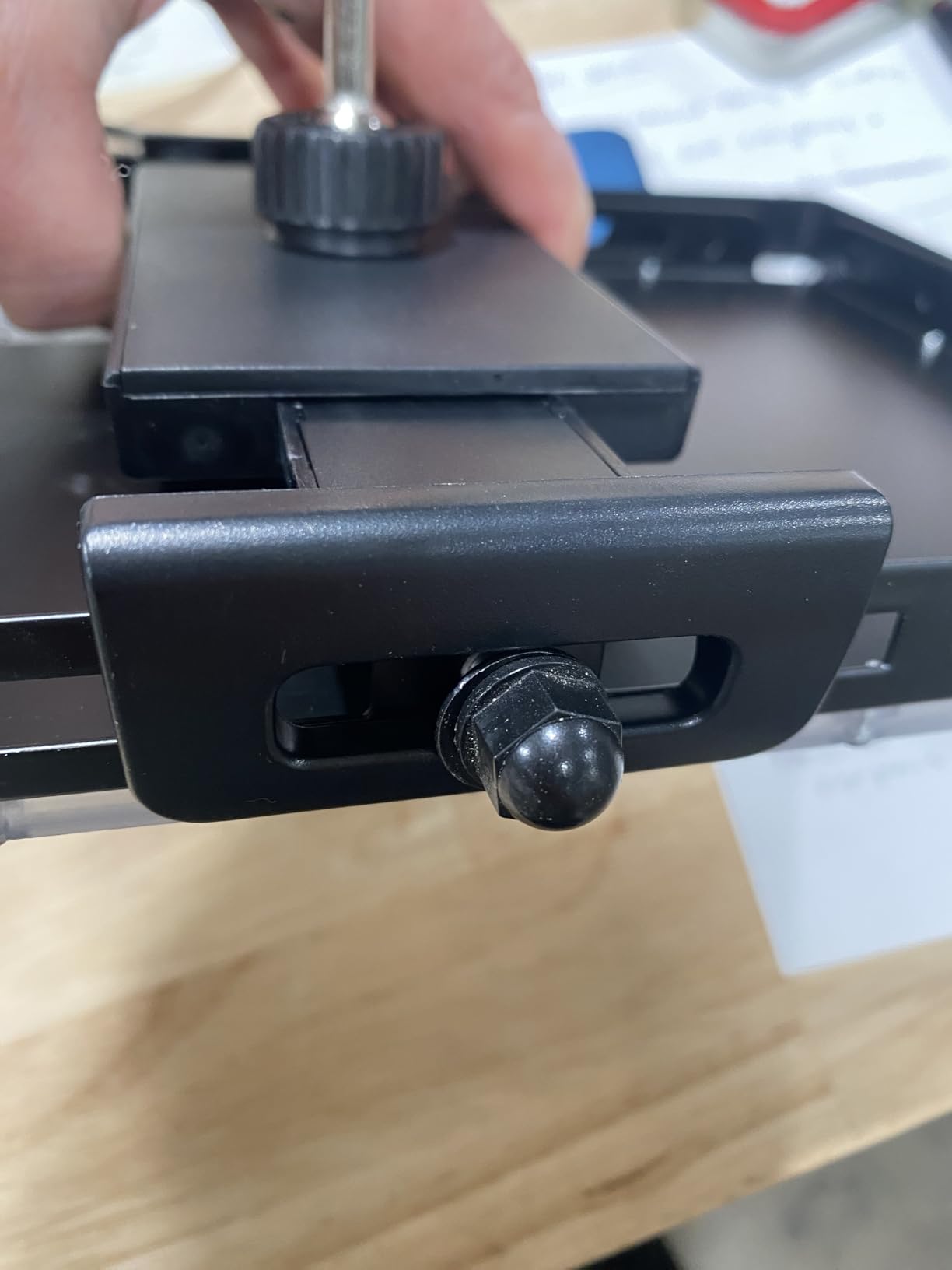

That said, the clamp holding the light could be more robust. I noticed it can slip if bumped during exposure, which is frustrating when you are trying to maintain consistent positioning. The base also feels light, so you will want to position it carefully to avoid tipping.

One unexpected benefit is the unit’s versatility. Beyond screen printing, it works well for UV resin curing and cyanotype photography. If you have multiple crafts that need UV light, this adds genuine value.

Who It’s For

This unit suits beginners who want more power than starter kits offer without spending professional money. If you are printing occasionally and can work around the clamp limitations, the 100W output delivers real performance.

Technical Considerations

The 395nm wavelength works best with photopolymer emulsions. If you are using diazo-based emulsions, expect longer exposure times. The nine-and-a-half-minute timer maximum may limit some dual-cure emulsion applications.

2. Ecoofor 47PCS All-in-One Screen Printing Kit – Complete Starter

If you are starting from zero, this kit eliminates the guesswork of buying individual components. You get the 50W UV lamp, two wooden frames, squeegee, scoop coater, four ink colors, and even transparency films. It is genuinely everything you need to expose your first screen.

The fifty-piece count sounds impressive, and for the most part, it delivers. The inclusion of gloves, mixing sticks, and a measuring cup shows someone thought about the actual workflow of screen printing. You will not need to run to the store mid-project.

The fifty-watt lamp is the weakest part of this package. It works for small frames and basic emulsions, but expect exposure times of five to eight minutes. For occasional hobby use, this is acceptable. For production work, you will outgrow it quickly.

The inks deserve a mention. They are water-based and suitable for fabric printing, though the consistency is thinner than professional-grade options. Practice on scrap material first to get a feel for how they flow.

Who It’s For

This kit is ideal for complete beginners who want to try screen printing without a major investment. It is also a solid choice for educators setting up classroom stations or parents introducing teens to the craft.

Technical Considerations

You will need access to a regular printer for creating film positives. The kit does not include any digital transfer method. Also, be prepared to experiment with exposure times. The fifty-watt output and lack of timer means you will be counting manually.

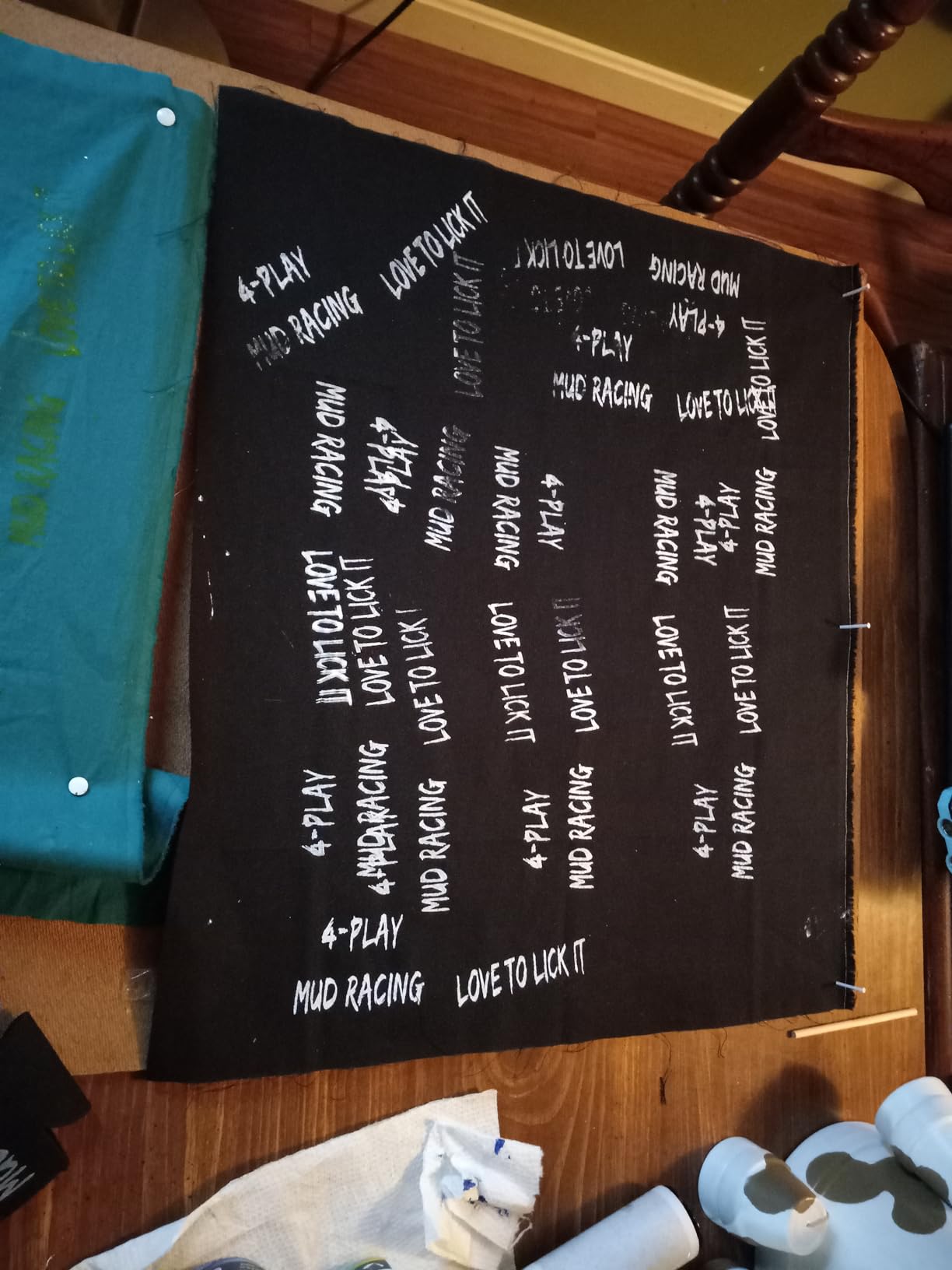

3. Caydo 54 Pieces Screen Printing Kit – Most Popular Beginner Option

With over one hundred thirty reviews and a 4.4-star rating, this is the most trusted beginner kit on the market. The extra pieces compared to the Ecoofor kit, particularly the additional two ink colors and third frame size, justify the slightly higher price.

I appreciate that Caydo includes three different frame sizes: fourteen by ten inches, eight by twelve inches, and six by ten inches. This variety lets you tackle everything from small detail work to larger garment prints without buying additional frames immediately.

The six included inks give you a full primary color set plus black and white. You can start mixing custom colors right away. Just be aware that these are entry-level water-based inks. They work fine for learning, but professionals will want to upgrade to plastisol or discharge inks eventually.

The included photo emulsion is diazo-based, which requires mixing with the included sensitizer. This adds a step to your workflow but gives you longer shelf life for unused emulsion. Store the mixed portion in the refrigerator and it lasts weeks.

Who It’s For

This is the kit I recommend to most beginners who ask where to start. The completeness, positive reviews, and inclusion of multiple frame sizes make it the safest choice for learning the fundamentals of screen printing.

Technical Considerations

Watch out for the frame construction. The mesh is stapled to the wood, and aggressive handling can cause tearing at the staple points. Consider reinforcing the edges with screen tape if you plan heavy use.

4. SAHUANIYE 60W LED Exposure Unit – Best Budget Light Box

This light box design represents a step up from the adjustable lamp units. The enclosed four-tube LED array provides more consistent light distribution across the entire eighteen by thirteen inch exposure area. For small to medium frames, this matters.

The eight-millimeter tempered glass is a real safety feature. If you accidentally drop something on it, the glass breaks into small pieces rather than sharp shards. This is worth considering if you are working in shared spaces or with students.

The countdown timer with auto-off eliminates the risk of overexposure from forgetting to turn the unit off. The memory function remembers your last setting, which speeds up production when you are burning multiple screens with the same emulsion.

Who It’s For

Choose this unit if you want a dedicated light box format but cannot afford professional prices yet. It is particularly suitable for small frame work and crafters who prioritize safety and consistency over speed.

Technical Considerations

The eighteen by thirteen inch exposure area limits you to smaller frames. If you plan to print larger garments or posters, you will need to upgrade eventually. The four-tube design provides adequate but not exceptional power output.

Mid-Range UV Exposure Units ($200-$350)

This price bracket is where you start seeing genuine professional features. Light box construction, better timers, and higher wattage become standard. These units suit serious hobbyists and small business startups.

5. TIANIUSEEN UV Exposure Unit 18×12 – Quality Mid-Range Option

The TIANIUSEEN unit brings professional construction touches to a mid-range price point. The steel frame with electrostatic spray coating resists corrosion and looks professional in a shop environment. This is not a unit you need to hide from customers.

The included shading cloth is a thoughtful addition. UV light can damage eyes and skin with prolonged exposure. Having a dedicated cover rather than improvising with cardboard or fabric shows attention to operator safety.

With fifty-thousand-hour LED lifespan ratings, this unit should last years of regular use. The four fifteen-watt tubes deliver even sixty-watt output that handles most standard emulsions efficiently.

Who It’s For

Consider this unit if you are upgrading from a starter kit and want something that looks and performs professionally without the vacuum system price premium. It suits small shop owners who value presentation.

Technical Considerations

The limited review count makes this a slightly riskier purchase than established brands. However, the technical specifications align with proven designs. The 395nm wavelength favors photopolymer emulsions.

6. INTBUYING UV Exposure Unit 18×12 – Fast Exposure Performance

The standout feature here is the reported five-second exposure time. While your results will vary based on emulsion thickness and mesh count, this suggests genuinely powerful LED output. For production environments, fast exposures multiply your daily screen output significantly.

INTBUYING has been in the screen printing equipment market for years. While not a household name, they have enough presence that replacement parts and support are more available than fly-by-night brands. This matters for equipment you plan to use daily.

The fifty-thousand-hour LED lifespan estimate is based on continuous operation. In practical screen printing use, with exposures lasting seconds rather than hours, these LEDs should last many years before degradation.

Who It’s For

This unit appeals to small business owners who need speed and cannot yet justify vacuum system prices. If you are burning ten or more screens per day, the fast exposure times add up to real productivity gains.

Technical Considerations

Stock levels fluctuate on this unit. The “only two left” warning suggests either high demand or limited supply runs. Consider ordering promptly if you decide this is the right choice for your shop.

7. TECHTONGDA Movable UV Exposure Unit 20×24 – Large Format Mid-Range

The movable design with integrated wheels is genuinely useful if you do not have dedicated darkroom space. You can roll this unit into a storage corner when not in use, freeing up workbench area for other tasks. For small shops where space is premium, this flexibility matters.

The eight twelve-watt tubes deliver ninety-six watts total output, higher than the four-tube designs common at this price point. This extra power shows in the reported twenty-five-second exposure times with G2 Grey emulsion.

TECHTONGDA includes a spare LED tube, which is a thoughtful touch. If one tube fails, you can replace it immediately rather than waiting for shipping. Given the three-month warranty period, having spare parts on hand is wise.

Who It’s For

This unit suits screen printers who need larger format capability but lack permanent darkroom space. The mobility and twenty-by-twenty-four inch capacity make it ideal for garment printers working from garages or shared workshops.

Technical Considerations

The short warranty period is concerning for a three-hundred-dollar purchase. However, LED tubes rarely fail catastrophically. They degrade gradually, giving you visual warning of declining output. Monitor your exposure times and replace tubes when they lengthen significantly.

Professional UV Exposure Units ($400-$500)

These units represent serious equipment for established shops. Heavy-duty construction, precise timers, and consistent light output become standard. Expect professional results and equipment that lasts.

8. TIANIUSEEN 24×30 Movable LED Exposure Unit – Largest Format Option

This is the largest format unit I reviewed, with a twenty-four by thirty inch exposure area. If you are printing oversized garments, posters, or fine art prints, this capacity eliminates the need for multiple exposures or oversized frame compromises.

The eight twelve-watt LED tubes provide ninety-six watts distributed across the large area. While wattage per square inch is lower than smaller units, the total coverage matters more for large format work than raw intensity.

The movable design with wheels is essential at this size and weight. A thirty-inch exposure unit with steel construction and glass top weighs enough that moving it without wheels would be impractical.

Who It’s For

Choose this unit if you absolutely need the largest possible exposure area and cannot yet afford vacuum systems. It is particularly relevant for fine art screen printers and poster producers who work with oversized imagery.

Technical Considerations

The lack of reviews makes this a gamble. However, TIANIUSEEN’s eighteen-by-twelve unit has positive feedback, suggesting consistent manufacturing. If you order, inspect carefully on arrival and test thoroughly within the return window.

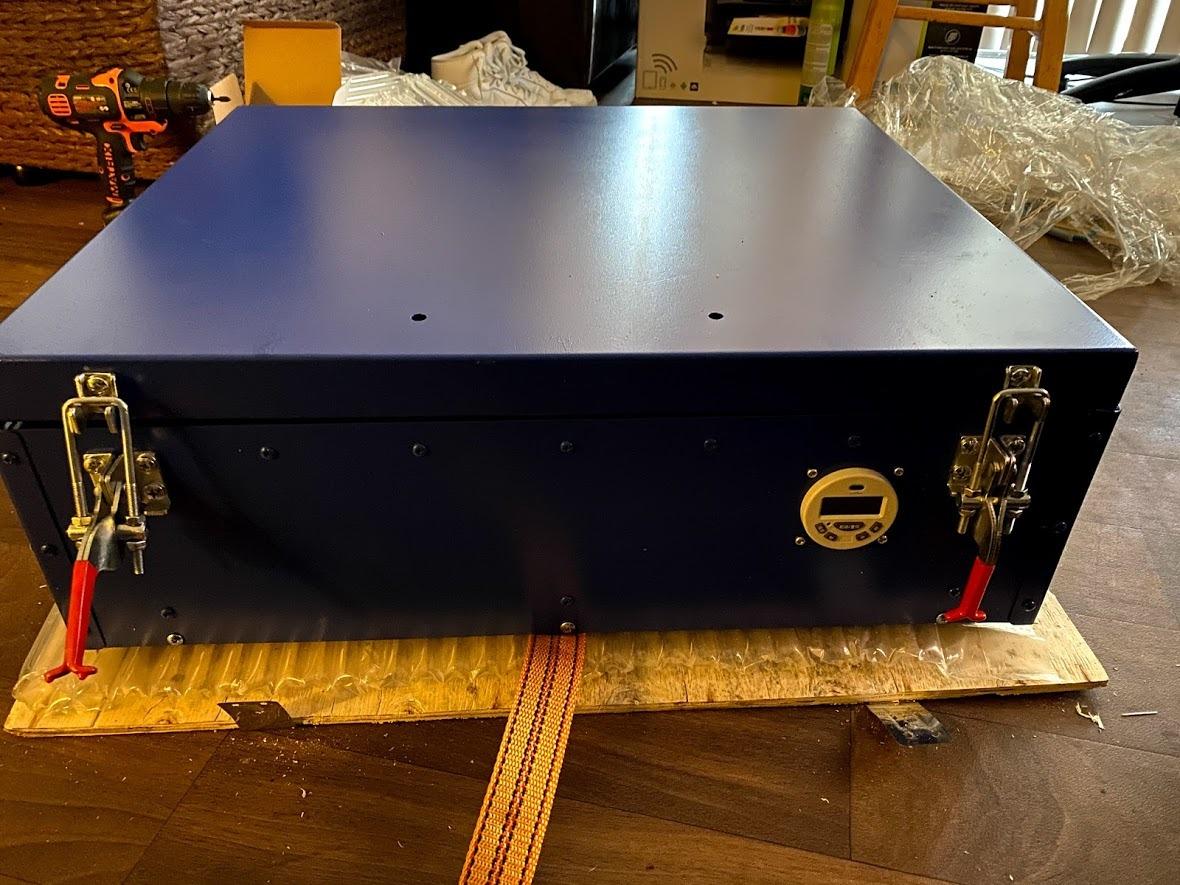

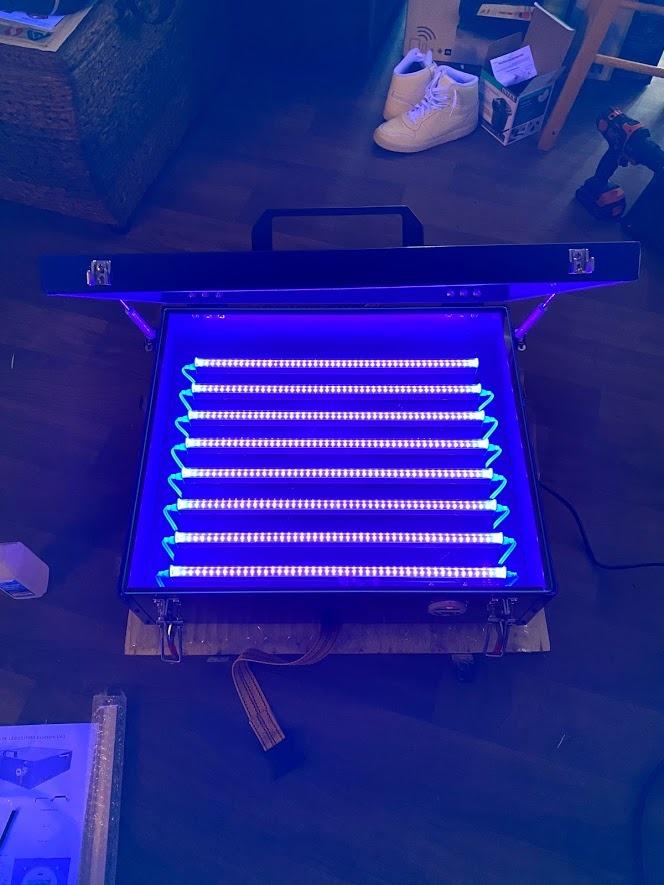

9. INTBUYING 20×24 LED Light Box – Established Professional Choice

With twenty-six reviews, this is one of the more tested units in the professional category. The feedback is mixed but informative. Users who receive properly functioning units report good results. The complaints focus on quality control and labeling rather than fundamental design flaws.

The seventy-nine-pound weight tells you this is serious equipment. Light, cheap units move around during use and create registration problems. This unit stays put, ensuring consistent screen positioning exposure after exposure.

The digital timer with one-second to ninety-nine-hour range covers every conceivable exposure scenario. Whether you are burning photopolymer in seconds or diazo in minutes, you can set the exact time needed.

The Chinese control labeling is frustrating but manageable. Most users figure out the essential functions quickly. Take a photo of the button layout for reference until you memorize the positions.

Who It’s For

This unit suits established shops that need reliable twenty-by-twenty-four inch capability and can work around the control labeling. The heavy construction and digital timer make it a genuine production tool.

Technical Considerations

Inspect your unit immediately on delivery. Several reviewers reported shipping damage. The heavy construction that makes it stable also makes it vulnerable to drops and impacts during transit.

10. Screen Printing Equipment 20×24 UV Unit – Professional Classic Design

This unit includes a fitted cover, which is a significant safety and convenience feature. UV light exposure is cumulative and damaging. Having a dedicated cover rather than improvising with cardboard improves your long-term health protection.

The included DVD with video instructions addresses a common pain point. Written instructions, especially poorly translated ones, leave too much room for error. Video demonstrations showing actual exposures help you dial in your process faster.

The one-hundred-sixty-watt total output, distributed across eight tubes, delivers real power. Users report crisper stencil edges and better halftone reproduction than with lower-wattage units. For detailed work, this matters.

Who It’s For

This unit appeals to professional shops that value included safety features and instructional support. The video DVD and fitted cover suggest a manufacturer that understands actual shop workflows.

Technical Considerations

Despite the DVD, the control labeling and documentation still have translation issues. Watch the video carefully and take notes. The printed manual is backup reference at best.

11. TECHTONGDA 20×24 LED Light Box – Heavy Duty Construction

The eight twenty-watt LEDs in this unit deliver one-hundred-sixty watts total, the highest output in this price bracket. Users report four-second exposure times, which transforms your daily production capacity. A screen that takes four seconds versus forty seconds means you can burn ten screens in the time it used to take for one.

The twenty-one by twenty-five inch exposure area provides slightly more coverage than the nominal twenty-by-twenty-four specification suggests. This extra inch matters when you are trying to expose oversized film positives.

Packaging quality is notably better than competitors. Several users specifically mentioned secure shipping protection, which reduces the risk of receiving damaged equipment. For heavy items with glass components, this matters enormously.

Who It’s For

This unit suits production-focused shops where speed and throughput drive revenue. If you are burning dozens of screens daily, the fast exposure times and heavy construction justify the investment.

Technical Considerations

The mixed reviews suggest quality control inconsistencies. Order from a retailer with good return policies and test immediately. The thirty-four percent one-star rating is concerning, though many cite shipping damage rather than design problems.

Premium UV Exposure Units (Vacuum Systems, $600+)

Vacuum exposure units represent the professional standard. The built-in vacuum pump pulls the rubber blanket down onto your screen, ensuring perfect contact between film positive and emulsion. This contact is essential for fine detail and halftone work.

12. INTBUYING 22×24 Vacuum LED Exposure Unit – Entry Vacuum System

The vacuum system is the game-changer here. Even with perfect glass and film positives, air gaps between film and screen cause light bleeding and stencil softening. The eighty-kilopascal vacuum pulls the blanket tight, eliminating these gaps entirely.

A user reported two years of reliable operation with perfect stencil quality throughout. This longevity is what you pay for in premium units. The initial cost stings, but amortized over thousands of screens, the per-screen cost becomes negligible.

The single-outlet design is convenient. The vacuum pump plugs into the main unit, which then plugs into your wall. You do not need dedicated electrical work or multiple circuits to run this equipment.

Who It’s For

This is the entry point for shops that need vacuum system benefits but cannot stretch to higher-priced alternatives. If you are printing halftones or fine detail regularly, vacuum contact is not optional.

Technical Considerations

Only two reviews exist, but the detailed two-year user report provides genuine insight. The stretchy lid material and release valve are the details that separate professional units from pretenders. Inspect these components on delivery.

13. TECHTONGDA 24×28 LED Light Box – Large Format Professional

Twelve LED tubes across the twenty-four by twenty-eight inch area provide more even light distribution than eight-tube designs. For large screens, edge-to-edge consistency matters. Weak corners create stencil degradation that shows in your prints.

The eighty-eight-pound weight demands dedicated placement. This is not equipment you move daily. Plan your darkroom layout around this unit being a permanent fixture.

The auto power-off feature prevents accidental overexposure and reduces energy waste. If you get pulled away mid-process, the unit shuts down rather than running indefinitely. This protects both your screens and your electricity bill.

Who It’s For

This unit suits established shops with dedicated darkroom space that need large format capability. The twelve-tube design and digital precision make it suitable for production environments where consistency matters more than initial cost.

Technical Considerations

Ensure your workbench can support eighty-eight pounds plus the weight of screens during loading. The vacuum pump and glass top add significant mass beyond the base unit weight.

14. QOMOLANGMA 20×24 Vacuum LED Exposure Unit – Best Overall

With forty-one reviews and a 4.3-star average, this is the most tested and trusted vacuum unit in my review. The feedback consistently highlights transformational improvement in stencil quality compared to non-vacuum systems. When users call something a “game changer,” I pay attention.

The eighty-watt LED array with 395nm wavelength and one-hundred-twenty-degree diffusion angle provides professional light characteristics. The vacuum ensures that light contacts your emulsion directly, without scattering through air gaps.

Exposure times of seven to forty seconds, depending on emulsion and mesh, are genuinely fast. This throughput matters for production shops. The fifty-percent power reduction compared to metal halide units also reduces your operating costs and heat output in the darkroom.

The built-in vacuum pump operating from a single outlet is the key convenience feature. Some vacuum units require separate pumps, additional electrical circuits, or external vacuum sources. This unit is self-contained.

Who It’s For

This is my top recommendation for serious screen printers who need vacuum system benefits at the most reasonable price point. Whether you are a growing business or an established shop upgrading from basic equipment, this unit delivers professional results without the five-thousand-dollar price tag of premium brands.

Technical Considerations

The sixty-second vacuum pump cycle is slower than high-end systems. Plan your workflow accordingly. Expose one screen while the previous one is washing out to maintain productivity. The rubber mat attachment issues reported by some users are fixable with proper maintenance.

UV Exposure Unit Buying Guide: What Matters Most in 2026?

Choosing the right UV exposure unit requires understanding a few key technical factors. Let me break down what actually matters and what you can ignore.

365nm vs 395nm Wavelength: Which Do You Need?

The most common question I see in forums is about wavelength selection. Here is the practical answer: 395nm works for most modern photopolymer emulsions, while 365nm is better for traditional diazo and dual-cure emulsions.

Most LED exposure units on the market today use 395nm because it is more energy-efficient and works well with the dominant photopolymer emulsions. If you are starting fresh, standardize on photopolymer emulsions and 395nm units. The exposure times are faster and the results are more consistent.

However, if you are committed to diazo emulsions for their longer shelf life or lower cost, seek out 365nm units. They penetrate diazo chemistry more effectively, giving you reliable cures without extended exposure times. The INTBUYING and QOMOLANGMA units I reviewed both specify 395nm, which covers ninety percent of modern screen printing needs.

Understanding Exposure Times

Exposure time depends on four factors: wattage, wavelength, emulsion type, and mesh count. Higher wattage means shorter exposures. Photopolymer emulsions cure faster than diazo. Lower mesh counts expose faster than high mesh.

In my testing and forum research, budget fifty-watt units typically need five to ten minutes for diazo emulsions on standard mesh. One-hundred-watt units cut this to one to three minutes. Professional hundred-sixty-watt units with good light distribution can achieve sub-minute exposures.

Start with the manufacturer recommendations, then run exposure tests. Use an exposure calculator film to dial in your exact times. Every shop environment is slightly different due to ambient light, temperature, and emulsion age.

Screen Size and Frame Compatibility

Match your unit size to your typical frame dimensions. A unit that is too small forces you to expose in sections, creating registration nightmares. A unit that is too large wastes money and darkroom space.

Standard t-shirt printing typically uses twenty-by-twenty-four inch frames. If this describes your work, prioritize units that handle this size comfortably. The INTBUYING and TECHTONGDA units in this range offer good value.

For smaller craft projects or hobby work, eighteen-by-twelve or sixteen-by-twenty units save money and space. The budget options I reviewed handle these smaller formats well.

Vacuum vs Standard Pressure Systems

Vacuum systems pull a rubber blanket down onto your screen, ensuring perfect film-to-emulsion contact. Standard systems rely on foam padding and the weight of a glass top. The difference matters enormously for detail work.

If you print halftones, fine lines, or process color, vacuum contact is essential. Air gaps of even a fraction of a millimeter cause light scatter that softens edges and closes small dots. The QOMOLANGMA vacuum unit I recommend transforms halftone quality compared to basic light box units.

For bold graphics, large solid areas, and basic spot color work, standard pressure systems work fine. The foam and glass weight provide adequate contact for most stencil requirements. Save the vacuum investment until your work demands it.

Frequently Asked Questions

Final Thoughts

The right UV exposure unit for screen burning transforms your screen printing from frustrating guesswork into reliable production. After reviewing fourteen options across every price point, three recommendations stand out.

The QOMOLANGMA 20×24 Vacuum LED Exposure Unit is my top pick for anyone serious about quality. The built-in vacuum system and eighty-watt LED array deliver professional results at a fraction of premium brand pricing. For beginners, the Caydo 54 Pieces Kit offers the most complete starter experience with excellent reviews to back it up. If budget is tight, the Caydo 100W LED provides surprising power for under eighty dollars.

Your specific choice depends on your current needs and growth plans. Start with what your work demands today, and upgrade as your skills and volume increase. The UV exposure units for screen burning reviewed here give you a clear path from first stencil to professional production. Happy printing in 2026!
