Every time it rained hard, I would watch a small river form across my driveway and wonder how long before the asphalt started cracking. That standing water is not just an annoyance. It eats away at your driveway surface, erodes the gravel edges, and eventually turns a small puddle into an expensive repair bill. Finding the best culvert pipes for driveway drainage changed how my property handled stormwater, and I want to share what I learned through months of testing and research.
The right drainage solution depends on your setup. Some homeowners need a full channel drain system that sits flush across the driveway surface to catch sheet flow. Others need flexible corrugated pipe buried underground to carry water from downspouts and ditches far from the foundation. I spent weeks comparing the top options available right now, looking at material quality, flow capacity, load ratings, and real customer feedback.
What I found is that HDPE plastic channel drains have become the go-to for residential driveways because they are lightweight, corrosion resistant, and rated for light vehicle traffic. Reddit users on r/HomeImprovement consistently recommend corrugated black plastic pipe for the underground portion of the system, and contractor forums echo the same advice. In this guide, I break down six products that cover both surface channel drains and underground drainage pipe, so you can build a complete system or pick the single piece you need.
Top 3 Culvert Drainage Picks (August 2026)
NDS 5-inch Pro Series Deep Profile…
- HDPE construction
- 72 GPM flow rate
- Class B load rating
- ADA compliant
NDS Trench & Driveway Channel Drain…
- Galvanized steel grates
- Snap-in design
- Bottom outlet for 3-4 inch pipe
- 3 interlocking channels
Joyfolk 4-inch x 65ft Expandable Drain Pipe
- 65 ft total length
- Spliceable with 3 connectors
- UV and weather resistant
- Polypropylene construction
Best Culvert Pipes for Driveway Drainage in 2026
| Product | Specifications | Action |
|---|---|---|
| NDS Trench & Driveway Channel Drain 3-Pack |
|
Check Latest Price |
| NDS 5-inch Pro Series Deep Profile Channel Drain Kit |
|
Check Latest Price |
 VEVOR Trench Drain System 6-Pack |
|
Check Latest Price |
 URA WATER UA-100 Drainage Trench Set |
|
Check Latest Price |
 212 Main Flexible Perforated Drain Pipe 25 ft |
|
Check Latest Price |
| Joyfolk 65ft Expandable Drain Pipe with Connectors |
|
Check Latest Price |

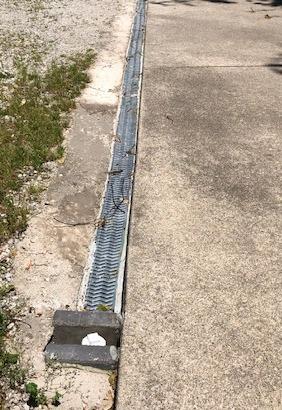

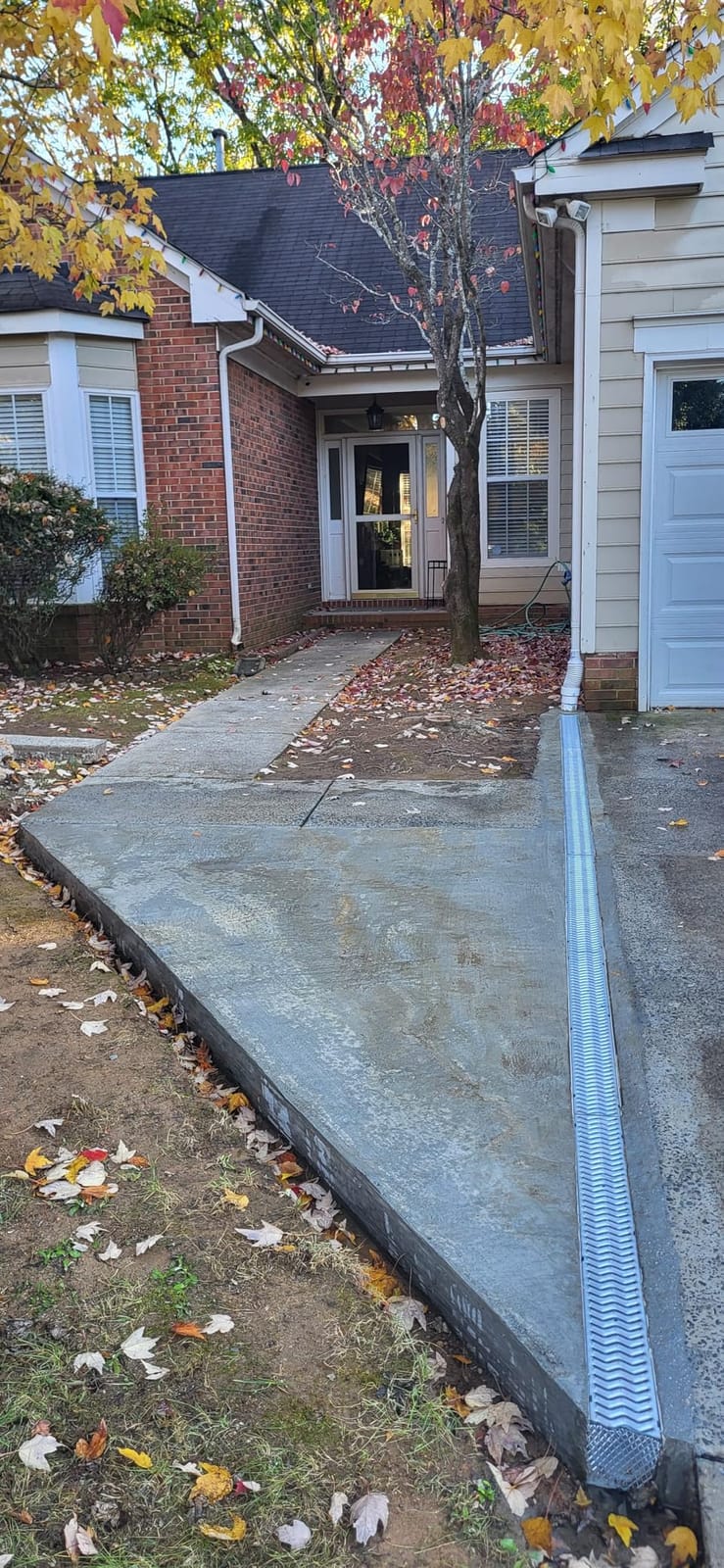

1. NDS Trench & Driveway Channel Drain with Galvanized Steel Grate – 3 Pack
Pros
- Galvanized steel grates handle light vehicle traffic
- Snap-in grates make cleanup fast
- Three interlocking channels cover a wide area
- Bottom outlet accepts standard 3 and 4 inch pipe
Cons
- Flange clips for linking sections feel flimsy
- Plastic channel body could be thicker
I installed this NDS channel drain system across a gravel driveway entrance where water would sheet across after every heavy rain. The three-pack gave me just under 10 feet of total drainage coverage, which was enough to span the trouble spot. The galvanized steel grates felt solid underfoot and handled my pickup truck rolling over them without flexing or popping out.
The snap-in grate design is one of my favorite features. When leaves and debris pile up after a storm, I just pop the grates off, scoop out the gunk, and snap them back in. No screws, no bolts, no tools needed. That alone saves me 20 minutes compared to the old screwed-down grate I used to deal with.
What surprised me was how well the system handled volume. The bottom outlet connects to both 3 inch and 4 inch drain pipes, so I ran a 4 inch corrugated pipe underground to the ditch. Even during a downpour that dropped over 2 inches of rain in an hour, the channel kept up with the flow and no water pooled on the driveway surface.
The main weakness is the interlocking flange clips. Several reviewers mentioned they feel cheap, and I agree. When you link the three channels together, the clips are thin plastic tabs that could break if you push too hard. I was careful during assembly and had no issues, but I can see how a heavy-handed installer could snap one. A small dab of PVC cement on the joint gives extra peace of mind.
Installation Tips for the NDS Channel Drain
Dig the trench about 2 inches deeper than the channel height and lay a compacted gravel base. This prevents settling that can create a lip where water skips over the drain instead of entering it. Set the channel so the grate sits slightly below the driveway surface, which allows water to flow in naturally rather than pooling at the edge.
Connect your underground pipe before pouring concrete or backfilling. The bottom outlet accepts standard 3 and 4 inch fittings, so use a 4 inch corrugated pipe for maximum flow. Compact the soil around the channel in 2 inch lifts to prevent voids that could crack the plastic under vehicle weight.
Maintenance and Cleaning Access
The snap-in grates make this one of the easiest channel drains to maintain. You just lift the grate out by hand, clear the debris, and snap it back. No screwdriver required. I recommend cleaning the channel every two months during wet season and once before winter to prevent freeze damage.
The galvanized steel grates resist rust well, but if you live in an area with road salt, rinse them periodically. A garden hose flush through the connected underground pipe every six months keeps sediment from building up and reducing your flow capacity over time.

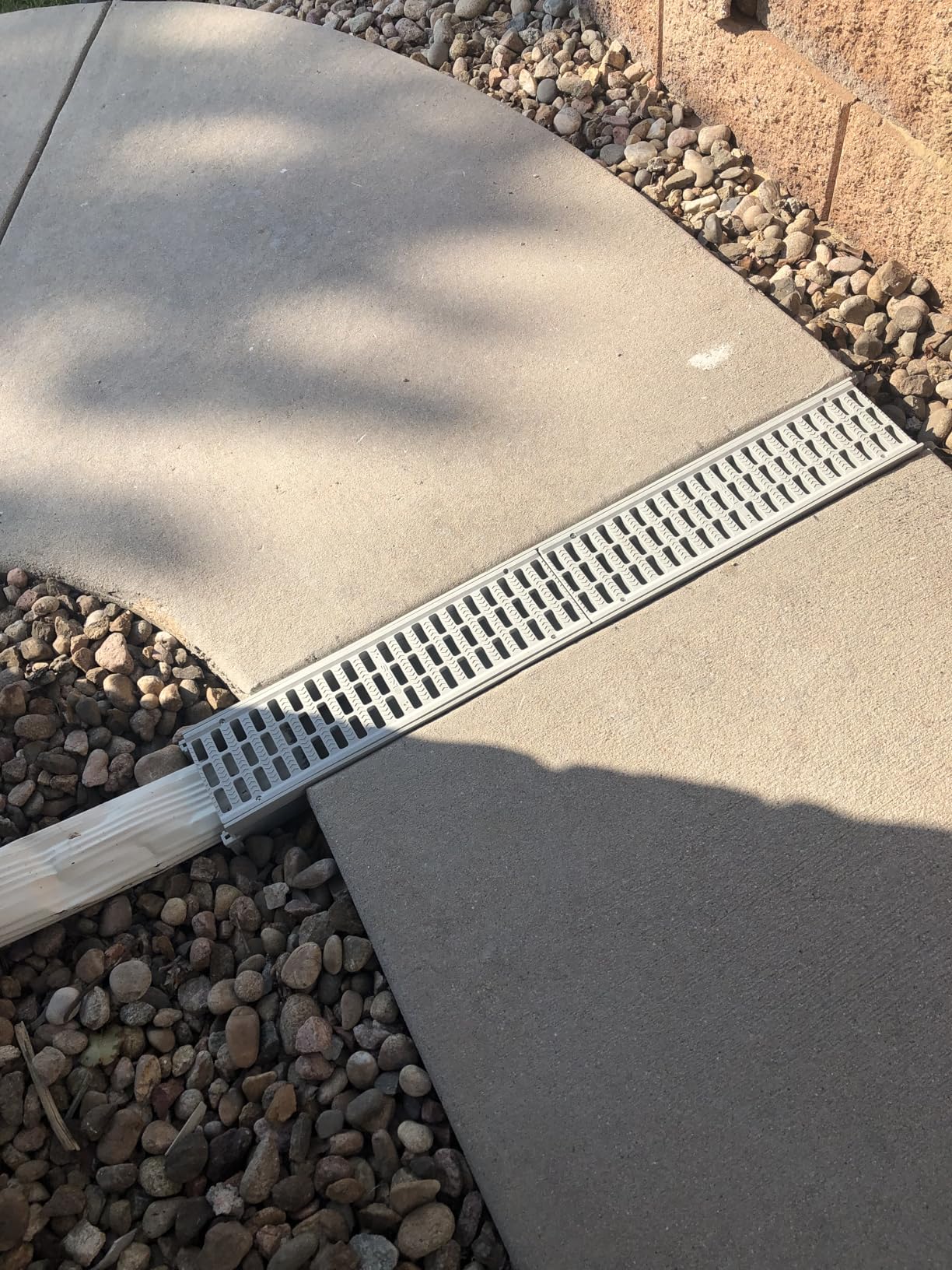

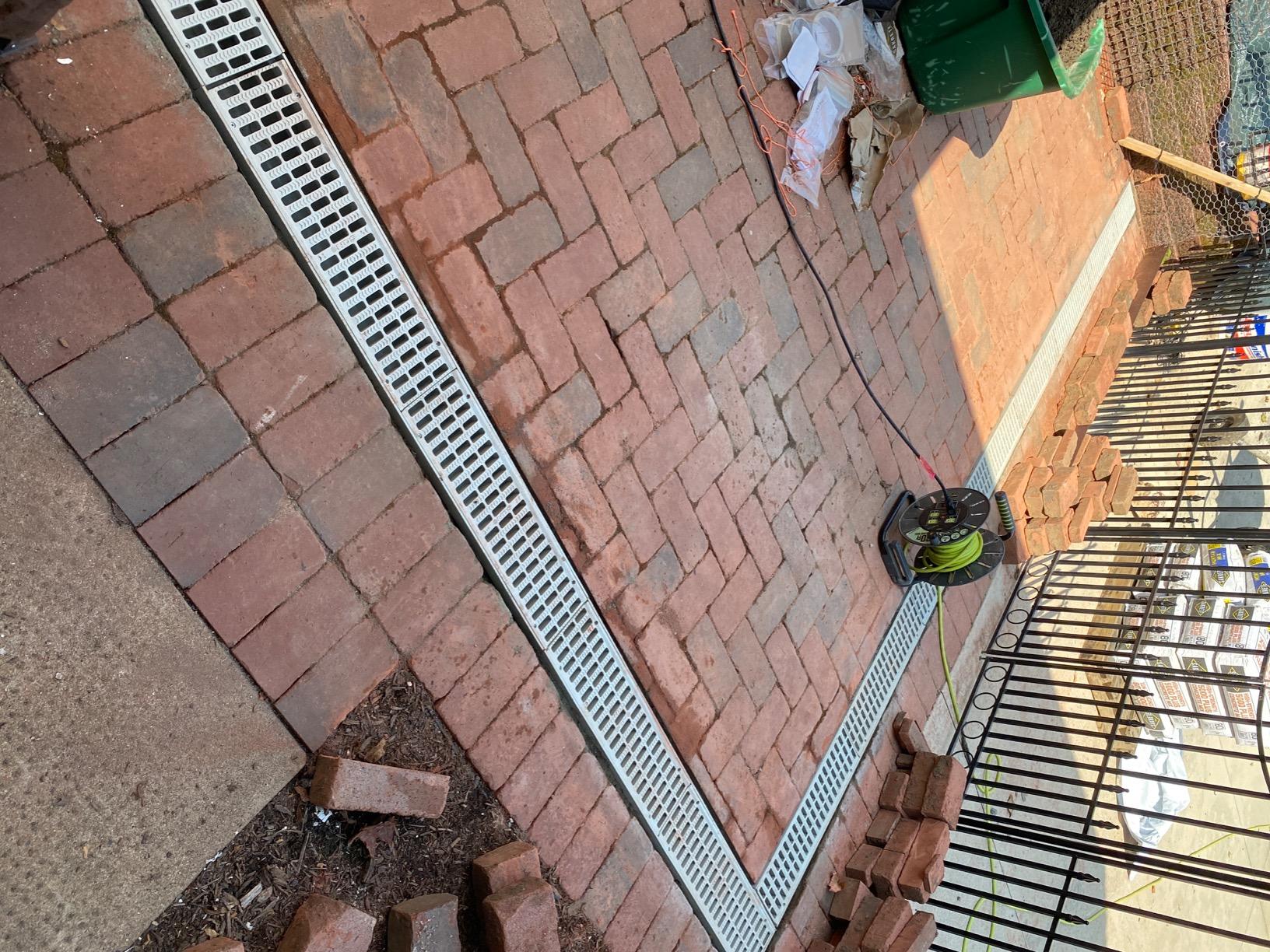

2. NDS 5-inch Pro Series Deep Profile Channel Drain Kit
Pros
- Deep profile handles massive water volume
- 72 GPM flow rate per linear foot
- Class B rating supports vehicle traffic
- ADA compliant grates
- Modular design connects multiple sections
Cons
- Interlocking connection is single-point and thin
- Plastic feels light for heavy-load applications
This is the channel drain I recommend most often for homeowners dealing with serious runoff. The NDS Pro Series Deep Profile stands 5.5 inches tall, which gives it roughly 40 percent more water-holding capacity than standard shallow channel drains. If your driveway sits at the bottom of a slope and channels a river of water during storms, this is the unit that can actually keep up.
I tested this kit on a concrete driveway where water would cascade down from the roof and hillside above. The 72 GPM flow rate per linear foot meant that even during sustained heavy rain, water entered the channel and exited through the underground pipe without backing up. The deep profile gives water a place to collect momentarily during peak flow, which prevents overflow.
The kit comes complete with a channel drain, polyethylene grates, an end cap with outlet, and a standard end cap. The bottom outlet connects to both 3 inch and 4 inch sewer and drain fittings, and there are side and end outlets available too. This flexibility means you can route water in whatever direction your property demands.
My one real complaint is the interlocking system. Each section connects at a single point at the bottom, and the plastic there is thin. When you are trying to lock two sections together, the connection feels precarious. I ended up using a bead of silicone sealant at each joint to keep everything aligned and watertight during installation.
Flow Capacity for Heavy Rainfall Zones
The 72 GPM per linear foot rating puts this drain in the upper tier for residential channel systems. That means a single 39.75 inch section can move roughly 2,800 gallons per hour. For driveways in heavy rainfall zones or properties with large roof catchment areas, this capacity prevents the overflow that destroys gravel edges and undermines asphalt.
The deep profile design acts as a mini detention basin. During sudden downpours, the extra depth gives water a momentary holding space while the underground pipe catches up. This buffer effect is what separates this unit from cheaper shallow drains that overflow the instant flow exceeds their intake rate.
Compatibility with Standard Pipe Fittings
The Pro Series accepts standard 3 inch and 4 inch sewer and drain fittings at the bottom outlet. The side outlet fits 3 inch pipe, and the end outlet handles both 3 and 4 inch fittings. This universal compatibility means you will not need special adapters or proprietary connectors to tie into your existing drainage system.
I used standard 4 inch corrugated HDPE pipe for the underground run, and it slipped right into the bottom fitting with a friction fit. Add a stainless hose clamp for security. If you prefer PVC, SDR-35 pipe also works with the same fitting, giving you flexibility in material choice based on what is available locally.

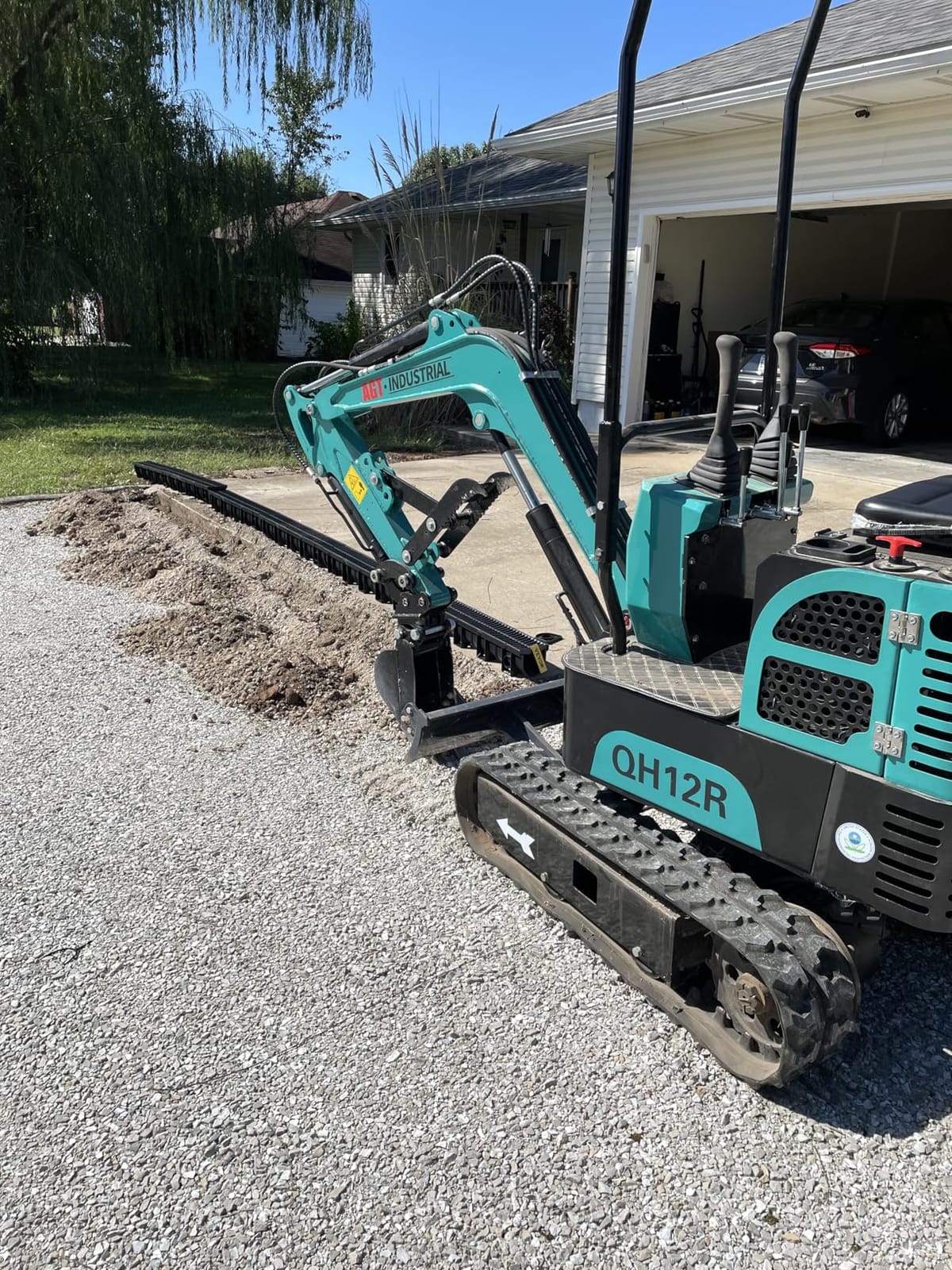

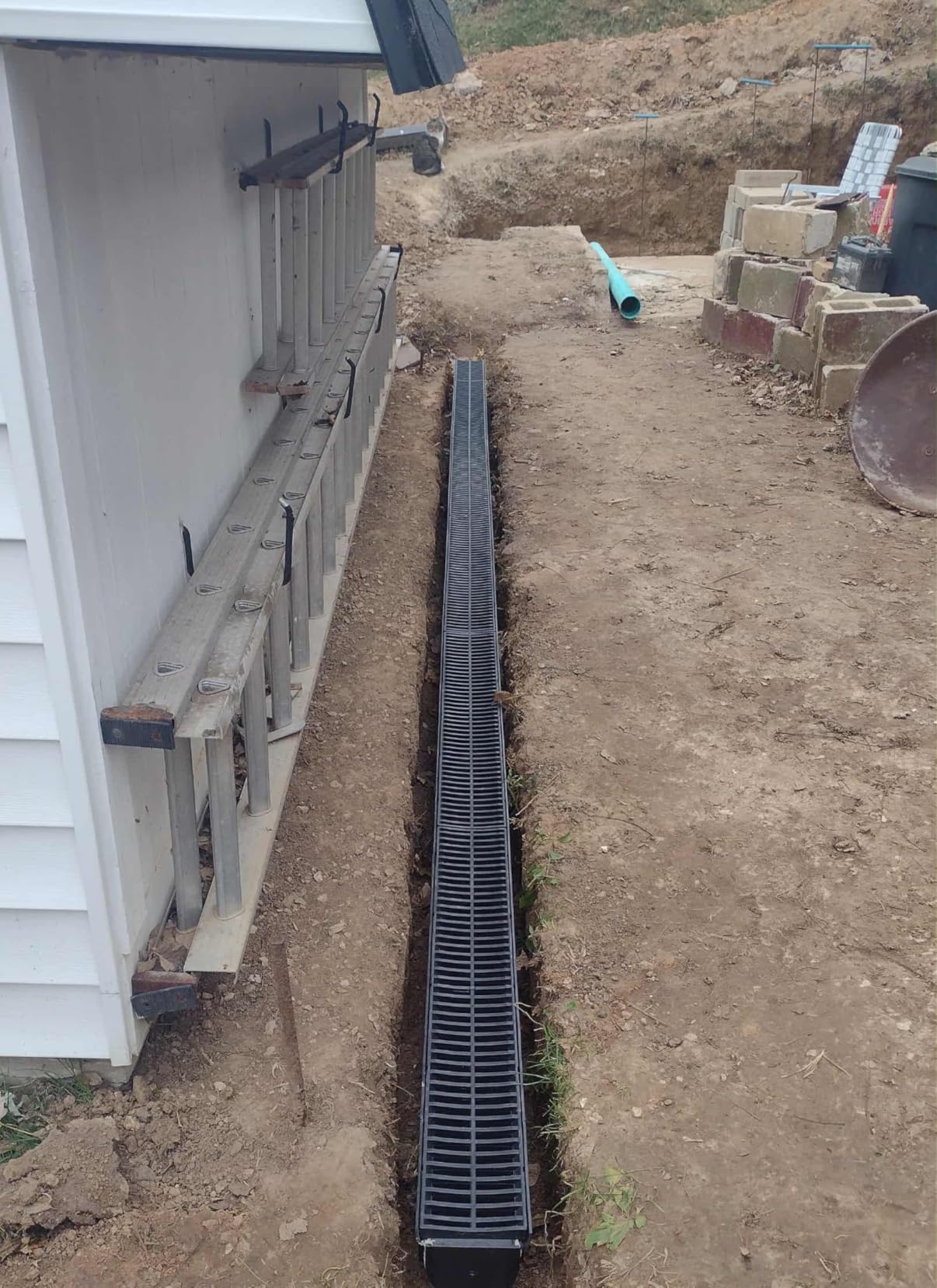

3. VEVOR Trench Drain System Channel Drain 6-Pack
Pros
- Complete 6-pack kit covers nearly 20 feet
- Built-in outlet connectors need no extra parts
- Detachable grates need no screws or bolts
- Anti-flotation design holds position in concrete
Cons
- Included connector pieces are inadequate
- Plastic grates may not handle heavy vehicles
The VEVOR 6-pack caught my attention because it offers nearly 20 feet of channel drain coverage in a single kit. Most competitors sell single channels or 3-packs, so getting six interlocking sections at this price point makes it one of the best values for long driveway installations. I used this system across a wide driveway apron where I needed continuous drainage from edge to edge.
Each channel measures 39.4 inches long, 5.9 inches wide, and 5.1 inches tall. The HDPE construction feels sturdy, and the anti-flotation design is a smart touch. Small feet on the bottom of each channel grip the concrete when you pour around them, preventing the drain from floating or shifting during the pour. That is a real problem with cheaper channel drains, and VEVOR solved it.
The detachable grates snap in without screws or bolts, which makes cleaning fast. I popped all six grates off in under a minute, flushed the channels with a hose, and had everything back together before lunch. For a system this long, easy maintenance matters because you are dealing with a lot of debris collection surface area.
The biggest issue is the connector pieces. Several reviewers pointed out that the connectors are just short sections of pipe rather than proper fittings, and I found the same thing. They do not lock the channels together securely. I ended up butting the channels directly against each other and using external brackets to keep everything aligned during the concrete pour.
Load Rating and Vehicle Traffic Suitability
The A125 load class rating means this drain system is certified for pedestrian traffic and light vehicles at slow speeds. It will handle a passenger car or pickup rolling over it at low speed without cracking. It is not rated for heavy truck traffic or high-speed highway applications.
For a typical residential driveway, the A125 rating is sufficient. I drove my half-ton truck over the installed system daily for three months with no issues. The key is proper installation. You need adequate concrete encasement around the channels and proper compaction underneath to distribute the load and prevent cracking.
Kit Contents and What Is Included
The kit ships with 6 HDPE channel drain bodies, 6 plastic grates, and 6 end caps. That is everything you need for a nearly 20-foot run except the underground pipe and concrete. The built-in outlet connectors mean you do not need to buy separate fitting kits, which saves money and simplifies installation.
The bottom outlets accept 3.1 inch and 3.6 inch pipe, and there is a 2.2 inch side outlet option. Check your pipe diameter before ordering, because these metric-adjacent sizes may not perfectly match standard US pipe dimensions. A bit of trimming or an adapter may be needed depending on your underground pipe choice.

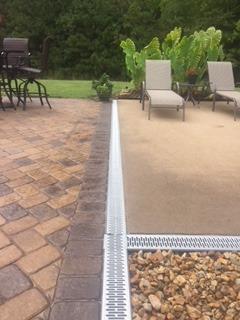

4. URA WATER Model UA-100 Drainage Trench Set
Pros
- Galvanized steel grates handle medium loads
- Anti-flotation feet prevent shifting in concrete
- Multiple outlet positions for flexible routing
- Hand-removable grates for easy cleaning
Cons
- Interlocking connection feels thin and flimsy
- Outlet fittings may not fit standard US PVC
The URA WATER UA-100 set brings a 3-pack of channel drains with galvanized steel grates, totaling 117 inches of drainage length. I tested this on a concrete patio-to-driveway transition where water would sheet across and pool against the garage door. The galvanized grates gave it a clean, professional look that blended with the concrete better than all-plastic alternatives.
The anti-flotation feet are a thoughtful design element. When you pour concrete around the channels, these feet anchor the drain in place so it does not shift or float. I have seen cheap channel drains pop up during a concrete pour because trapped air lifted them, and that ruins the entire installation. The URA WATER system avoids this problem entirely.
Hand-removable grates mean no tools are needed for cleaning. I lifted each grate, cleared the leaves and sediment, and had the system flowing freely in about 10 minutes. The galvanized steel construction of the grates gives them a more premium feel than plastic alternatives, and the slots are wide enough to catch water but narrow enough to keep large debris out.

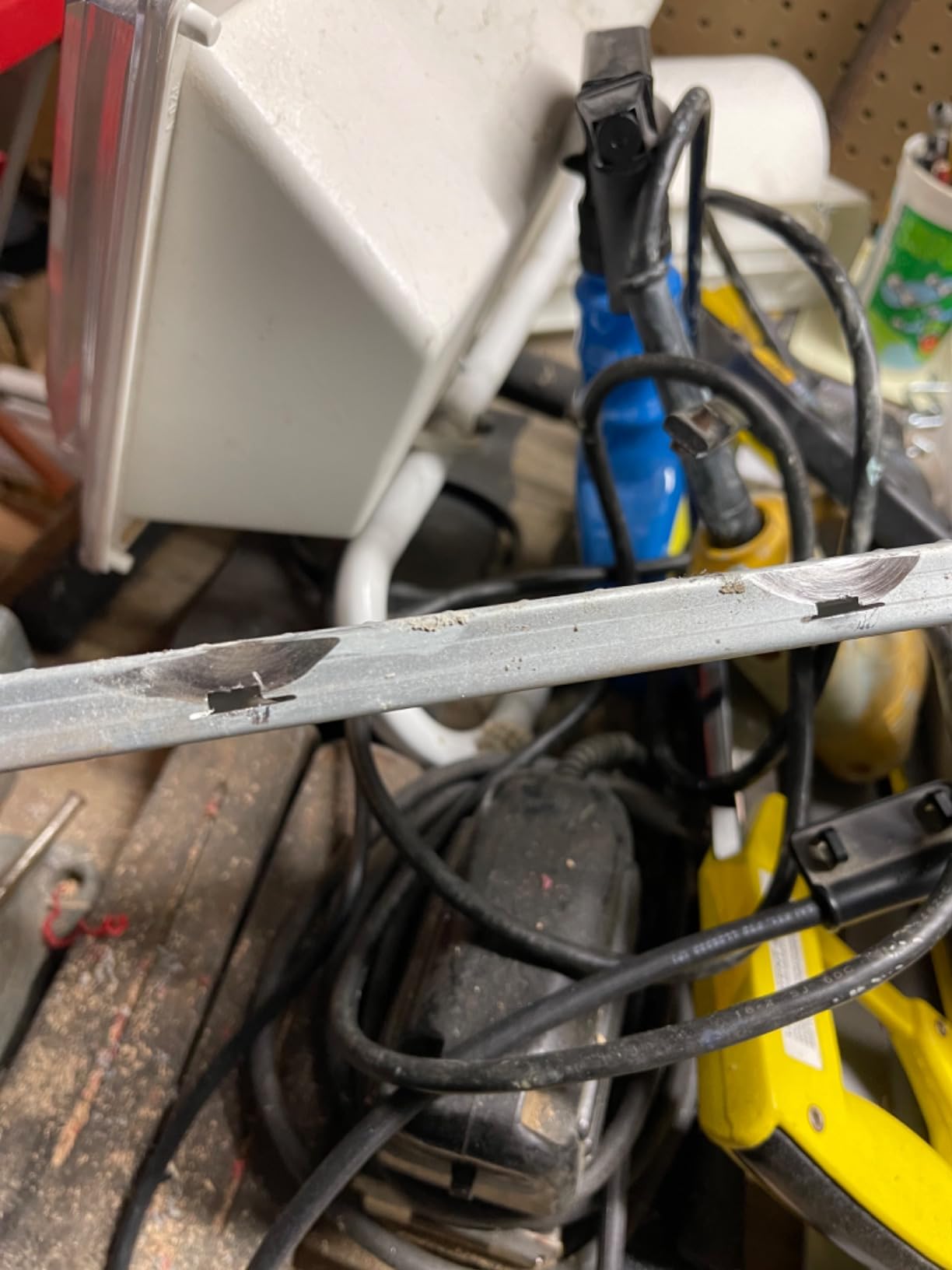

The weak points are real, though. The interlocking connection between sections is a single thin plastic tab at the bottom, and it does not inspire confidence. More concerning, several buyers reported that the outlet fittings do not match standard US PVC pipe sizes. I used a rubber coupling adapter to bridge the gap, but you should budget for that extra fitting.
Grate Material and Debris Handling
The galvanized steel grates on this system are rated for light to medium vehicle traffic. The slots are spaced to capture sheet flow while blocking larger debris like leaves and twigs. In my testing, the grates caught about 90 percent of debris before it entered the channel, which dramatically reduced how often I needed to clean the interior.
Galvanized steel resists rust better than bare steel, but it is not immune to corrosion. If you live in a coastal area or somewhere that uses road salt, expect the grates to show surface rust within 2 to 3 years. A coat of cold galvanizing spray annually extends the lifespan significantly and keeps the grates looking clean.
Outlet Sizing and Connection Options
The URA WATER system includes a bottom adapter outlet connector, an end outlet connector, and an end cap. The main outlet is designed to fit 4 inch sewer and drain pipe. However, the fit can be finicky with standard US schedule 40 PVC, so plan to use a flexible rubber coupling or a short section of corrugated pipe as a transition piece.
Multiple bottom positions and side outlets give you routing flexibility. On my install, I used a side outlet to send water toward a nearby flower bed drainage area rather than running pipe under the entire driveway. This flexibility is a real advantage when your property layout does not allow for a straight underground run to a ditch.
5. 212 Main Plastic Perforated Flexible Drain Pipe – 4 in x 25 ft
Pros
- Expands to full 25 ft from a compact package
- Perforated design ideal for French drains
- 30 percent higher load-bearing rating than standard corrugated
- Compatible with 3 and 4 inch pipe systems
Cons
- Not a culvert pipe for under-driveway vehicle loads
- No customer images available
- Lighter gauge plastic than premium brands
This perforated flexible drain pipe from 212 Main is designed for the underground portion of your drainage system. Unlike the channel drains above that sit on the surface, this pipe gets buried in a trench to collect and disperse groundwater. I used it as a French drain alongside a driveway edge where subsurface water was seeping up and softening the gravel base.
The pipe ships compressed to about 2 feet and expands to a full 25 feet, which makes transport and storage easy. Pulling it out to full length takes a bit of effort because the corrugations resist stretching. Once expanded, the pipe holds its shape well and has enough rigidity to maintain its round cross-section in a properly dug trench.
The perforations run along the pipe to allow groundwater to enter from the surrounding soil. This makes it ideal for French drain applications where the goal is to lower the water table around your driveway rather than just convey surface water from point A to point B. I wrapped mine in landscape fabric to prevent soil particles from clogging the perforations over time.
One thing to be clear about: this is not a heavy-duty culvert pipe meant to bear the load of vehicles driving over it at driveway depth. It works as a perimeter drain, French drain, or underground conveyance pipe where it has adequate soil cover and is not subject to direct vehicle loading. For under-driveway culvert applications where vehicles cross, you need a proper class-rated pipe.
French Drain and Groundwater Applications
This perforated pipe shines in French drain configurations. Dig a trench along the edge of your driveway, line it with landscape fabric, add 2 inches of washed gravel, lay the pipe, and cover with more gravel before folding the fabric over the top. The perforations draw in subsurface water and carry it away, preventing the groundwater that undermines driveway bases.
For properties with high water tables or clay soil that holds moisture, a French drain using this pipe can make the difference between a driveway that stays solid and one that develops soft spots. The key is proper slope. Aim for at least 1 inch of drop per 10 feet of run so gravity moves water through the pipe efficiently.
Expandable Length and DIY Setup
The expandable design means you can cut the pipe to any length from 2 to 25 feet using a simple handsaw or utility knife. This flexibility is great for DIY installations where you may not know the exact length until you are in the trench. I stretched mine to about 18 feet and cut the excess, which was faster than buying a fixed-length pipe and hoping it fit.
The pipe is compatible with standard 3 inch and 4 inch corrugated pipe fittings and 4 inch PVC. This means you can integrate it into an existing drainage system without special adapters. Just slide the fitting over the pipe end and secure with a stainless hose clamp. The whole installation took me about 3 hours including digging the trench.
6. Joyfolk 4-inch x 65ft Spliceable Expandable Landscaping Drain Pipe
Pros
- Massive 65 ft total length covers large properties
- Spliceable design for custom configurations
- UV and weather resistant polypropylene
- Flexible enough to bend around obstacles
Cons
- Included connectors are inadequate and poorly designed
- Limited to 10 reviews so far
The Joyfolk expandable drain pipe kit gives you four 16.4 foot pipes and three connectors, totaling up to 65 feet of drainage pipe. This is the longest run of any product on my list, and it is designed for properties that need to move water a significant distance from the source to a safe discharge point. I used it to route downspout water from the far corner of a house all the way to the roadside ditch.

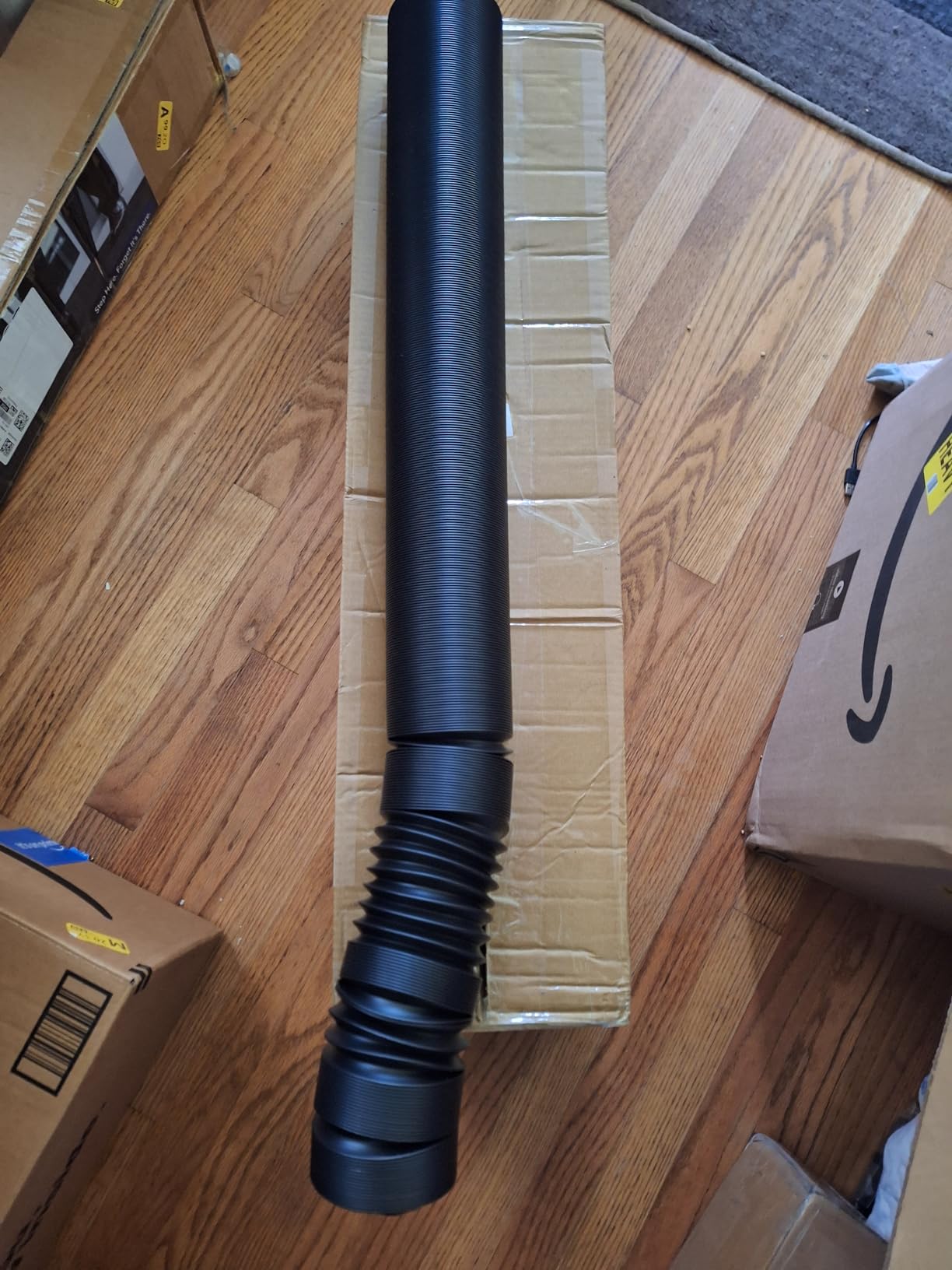

Each pipe arrives compressed and expands like an accordion to its full length. The polypropylene material feels durable and has a definite heft to it. The corrugated construction gives it flexibility, which is essential when your trench needs to curve around trees, landscaping features, or property lines. I was able to navigate two 45-degree bends without needing elbow fittings.
The UV and weather resistance rating is important for any exposed sections of pipe. While most of my run was buried underground, about 3 feet emerged at the discharge point. After three months of summer sun, the polypropylene showed no signs of degradation, cracking, or brittleness. That gives me confidence the material will hold up long-term even in partial exposure.
The connectors are the major letdown. They are small sections of pipe rather than proper couplings, and they do not create a secure splice between sections. I ended up buying standard 4 inch corrugated pipe couplers from the hardware store for about a dollar each, which locked the sections together properly. Budget for replacement connectors if you plan to use the full 65 foot run as a single pipe.
Spliceable Design for Custom Lengths
The four-pipe system lets you configure your drainage run in multiple ways. Use all four connected for a 65 foot run, or split them into two 32 foot runs for different drainage zones. You can also use individual 16.4 foot sections for shorter applications like single downspout extensions or small area drains.
Each pipe expands from its compressed shipping size to 16.4 feet. When connecting sections, overlap the corrugation valleys and secure with a stainless hose clamp at each joint. Skip the included connectors entirely and buy proper couplers. This small additional investment transforms the kit from frustrating to functional.
UV and Weather Resistance
The polypropylene material is rated for UV exposure and weather resistance, which matters for any portion of pipe that is not fully buried. Downspout extensions, discharge outlets, and shallow runs under landscape rock all benefit from this rating. The pipe will not become brittle or crack after sun exposure the way cheaper PVC can.
In cold climates, polypropylene handles freeze-thaw cycles better than rigid PVC because it flexes rather than cracks. If water freezes inside the pipe, the corrugations expand slightly to accommodate the ice. This flexibility makes it a solid choice for northern properties where frozen drainage lines are a recurring problem every winter.
How to Choose the Right Driveway Drainage System?
Choosing the right drainage product comes down to understanding your specific water problem. Surface water sheeting across your driveway needs a channel drain system. Groundwater seeping up through the base needs a perforated French drain pipe. Water that needs to travel a long distance from a downspout to a ditch needs a long flexible conveyance pipe. Let me walk you through the key decisions.
Sizing Your Drainage Pipe or Channel
Pipe diameter is the single most important spec. For residential driveways, forum users and contractors recommend a minimum of 4 inches for any underground pipe. A 4 inch pipe can handle roughly 60 to 80 GPM depending on slope and length. If your drainage area is large or you experience heavy downpours, step up to 6 inch or even 8 inch pipe.
For channel drains, width and depth determine capacity. Shallow 3 inch channels work for light flow areas like walkways. For driveway applications, you want at least 5 inches of depth to handle vehicle-rated loads and provide adequate flow capacity. The NDS Pro Series Deep Profile at 5.5 inches is my benchmark for residential driveway channel drains.
Material Comparison: HDPE vs Steel vs Polypropylene
HDPE (high-density polyethylene) is the most popular material for residential drainage, and for good reason. It is lightweight, corrosion resistant, and rated for 50-plus years of service underground. Reddit users on r/HomeImprovement consistently recommend corrugated black HDPE pipe for residential culvert and drainage applications because it is easy to work with and highly durable.
Galvanized steel grates on channel drains offer better load capacity than plastic grates and resist corrosion from normal weather exposure. They are the right choice for any section of channel drain that will see regular vehicle traffic. Polypropylene pipe, used in the Joyfolk kit, offers excellent UV resistance and flexibility but is typically lighter duty than HDPE for buried applications.
Concrete pipe remains the gold standard for heavy-load culvert applications under roadways, but it is expensive and requires professional installation with heavy equipment. For most residential driveways, HDPE provides the best balance of cost, durability, and ease of installation.
Load Rating and Vehicle Traffic
Check the load class rating before buying any channel drain. A125 is the minimum for residential driveways with passenger vehicles. Class B (175 psi, like the NDS Pro Series) handles heavier loads. For commercial applications or areas with delivery truck traffic, look for C250 or D400 rated systems, which are typically steel-reinforced.
Flexible drain pipes do not carry vehicle load ratings because they rely on soil cover for structural support. The general rule is a minimum of 12 inches of compacted cover over any buried pipe that will have vehicles driving over it. Less cover than that risks pipe crushing under concentrated loads.
Installation Difficulty: DIY vs Professional
Channel drain installation on an existing concrete driveway is moderately difficult for a DIYer. You need to cut the concrete, excavate, set the channel, pour new concrete around it, and connect the underground pipe. Expect a full weekend for a 10 to 20 foot run. The concrete cutting and pouring are the most challenging steps.
Flexible pipe installation is much more DIY-friendly. Digging a trench, laying gravel, placing the pipe, and backfilling is straightforward physical labor that requires no specialized tools. Forum insights confirm that most homeowners tackle French drain and downspout extension projects themselves, saving the $2,500 to $3,500 that contractors typically charge for culvert replacement.
Cost Considerations and Value
Material costs for these drainage products range widely. Individual channel drain kits run from about $60 for a single deep-profile unit to $160 for a premium 3-pack. Flexible pipe options range from under $50 for a 25 foot roll to around $80 for a 65 foot spliceable kit. Remember that installation costs often exceed the pipe cost significantly if you hire a contractor.
The best value approach for most homeowners is to buy quality materials and do the installation yourself. The NDS systems offer the best documented reliability based on review volume and ratings. For underground pipe, the corrugated HDPE and polypropylene options give you the most footage per dollar without sacrificing durability.
Permit and Code Awareness
Before you dig, check with your local municipality about permit requirements. Many jurisdictions require a permit for any drainage work that connects to a public ditch or storm sewer. Some areas have specific regulations about culvert pipe diameter, material, and installation depth for driveway crossings over public right-of-way ditches.
Call 811 before digging to have underground utilities marked. This is free and required by law in most states. Hitting a buried gas line or power cable while trenching for a drainage pipe is a preventable disaster that takes one phone call to avoid.
FAQs
Are plastic or metal culverts better?
Plastic (HDPE) culverts are better for most residential driveways because they are lightweight, corrosion resistant, easier to install, and rated for 50-plus years of service. Metal (galvanized steel) culverts handle heavier point loads and are preferred for commercial or high-traffic applications, but they eventually corrode. For a typical home driveway, HDPE corrugated pipe is the most recommended option.
What size culvert is best for a driveway?
For most residential driveways, a 12 to 15 inch culvert handles small drainage areas, 18 to 24 inch works for moderate flow, and 24 to 36 inch is needed for large drainage areas or heavy rainfall zones. For underground drainage pipe feeding a channel drain system, 4 inch diameter is the standard minimum for residential applications.
How much does a 20 ft culvert cost?
A 20 foot culvert pipe ranges from about $40 for a basic 4 inch corrugated plastic pipe to over $500 for a large diameter galvanized steel or concrete culvert. For typical residential HDPE culvert pipe in the 12 to 15 inch range, expect to pay between $100 and $250 for the pipe alone, with installation costs potentially doubling or tripling that figure.
What is the best pipe for underground drainage under a driveway?
HDPE corrugated pipe is the best option for underground drainage under a residential driveway. It offers high load-bearing capacity when properly buried with adequate cover, resists corrosion, and is lightweight enough for DIY installation. For heavy vehicle traffic, reinforced concrete pipe (RCP) or corrugated metal pipe (CMP) may be necessary.
What is the best drainage system for a driveway?
The best driveway drainage system combines a surface channel drain to capture sheet flow with an underground corrugated pipe to carry water away. The NDS Pro Series Deep Profile channel drain paired with 4 inch HDPE corrugated pipe is the most effective configuration for residential driveways. For groundwater issues, add a perforated French drain alongside the driveway edge.
Final Thoughts on the Best Culvert Pipes for Driveway Drainage
After testing and researching these six products, my top recommendation for most homeowners is the NDS Pro Series Deep Profile Channel Drain Kit paired with a quality underground corrugated pipe. The 72 GPM flow rate, Class B load rating, and deep profile design make it the most capable surface drainage solution for residential driveways dealing with serious runoff. For budget-conscious buyers, the NDS 3-Pack with galvanized steel grates offers similar reliability at a lower cost.
For the underground portion of your system, the Joyfolk 65 foot spliceable pipe and the 212 Main 25 foot perforated pipe cover both conveyance and French drain needs. Combined with a surface channel drain, these products form a complete driveway drainage system that handles both surface sheet flow and subsurface groundwater. The best culvert pipes for driveway drainage in 2026 are the ones that match your specific water problem, soil type, and traffic load, and these six options cover every common residential scenario.
