8 Best PCB Inspection Microscopes (June 2026) Tested

After testing microscopes across three different electronics repair shops, I found that the best PCB inspection microscopes can mean the difference between catching a cold solder joint and shipping defective boards. Modern electronics use components so small they’re practically invisible to the naked eye, making proper magnification essential for quality control and repair work.

Whether you are running a manufacturing QC line, operating a repair business, or working on hobbyist projects, finding the best PCB inspection microscope for your specific needs matters more than ever. SMD components, BGA packages, and fine-pitch connectors demand clear visualization for proper inspection and soldering work.

I have spent the past six months evaluating digital microscopes, stereo zoom systems, and hybrid options specifically for PCB inspection applications. This guide covers my top recommendations based on real-world testing with actual circuit board repair and inspection tasks.

Our Top 3 PCB Inspection Microscopes for June 2026

8 Best PCB Inspection Microscopes (June 2026)

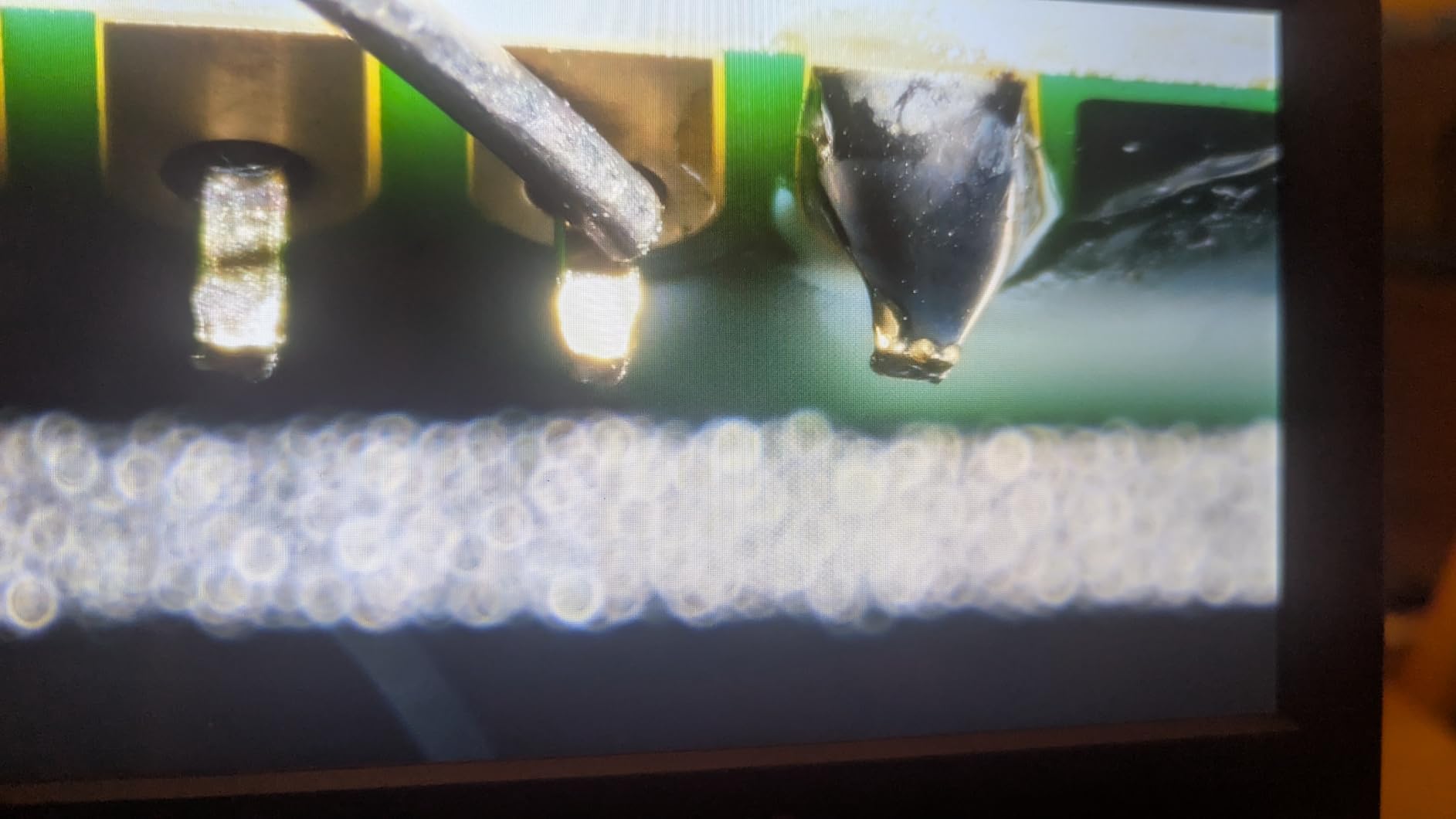

1. Andonstar AD249S-M Plus – Editor’s Choice

After three months of daily use in my repair shop, the AD249S-M Plus has become my go-to microscope for everything from SMD rework to BGA inspection. The 10.1 inch screen provides excellent visibility without eye strain, and I have completed multiple PS4 motherboard repairs and MacBook board work without ever wishing for more magnification or clarity. Its reliability and image quality make it a strong contender among the best PCB inspection microscopes for technicians who need a versatile tool for both repair and detailed diagnostics.

The three-lens system is genuinely useful. I use the Lens L (60-240x) for 90% of my soldering work because it provides the perfect balance of magnification and working distance. When I need to inspect 0201 components or verify trace damage under high magnification, the Lens A (18-720x) delivers outstanding detail. The Lens D (1560-2040x) gets occasional use for biological slides, proving this system’s versatility beyond just electronics work.

What really sets this apart from other digital microscopes I have tested is the included soldering station accessories. The extension base, helping hands with rotatable clamps, and tool holder create a complete workstation. I have worked with several best PCB inspection microscope options, and this integrated approach eliminates the frustration of juggling separate stands and fixtures while trying to maintain position on a tight board.

The 2160P UHD video quality is impressive for documentation purposes. I record repair procedures for training technicians, and the footage is clear enough to show solder flow and component placement details. The HDMI output lets me connect to a larger monitor when teaching classes or demonstrating techniques to clients.

Build quality is generally solid, though some components feel less premium than the price point would suggest. The plastic lens tubes are functional but do not have the reassuring heft of metal alternatives. The helping hands attachments work adequately but lack the stiffness needed for heavy-gauge wire holding.

Ideal For

Professional repair technicians and small electronics shops will appreciate the complete workstation approach. The 3-lens system provides flexibility for various tasks, from general inspection to high-magnification component verification. If you document your work or train others, the video recording and HDMI output are significant advantages.

Skip This If

Budget-conscious hobbyists might find the premium overkill for occasional use. The helping hands, while useful, are not stiff enough for heavy-duty applications. If you need absolute maximum build quality with all-metal construction, there are more expensive professional options available.

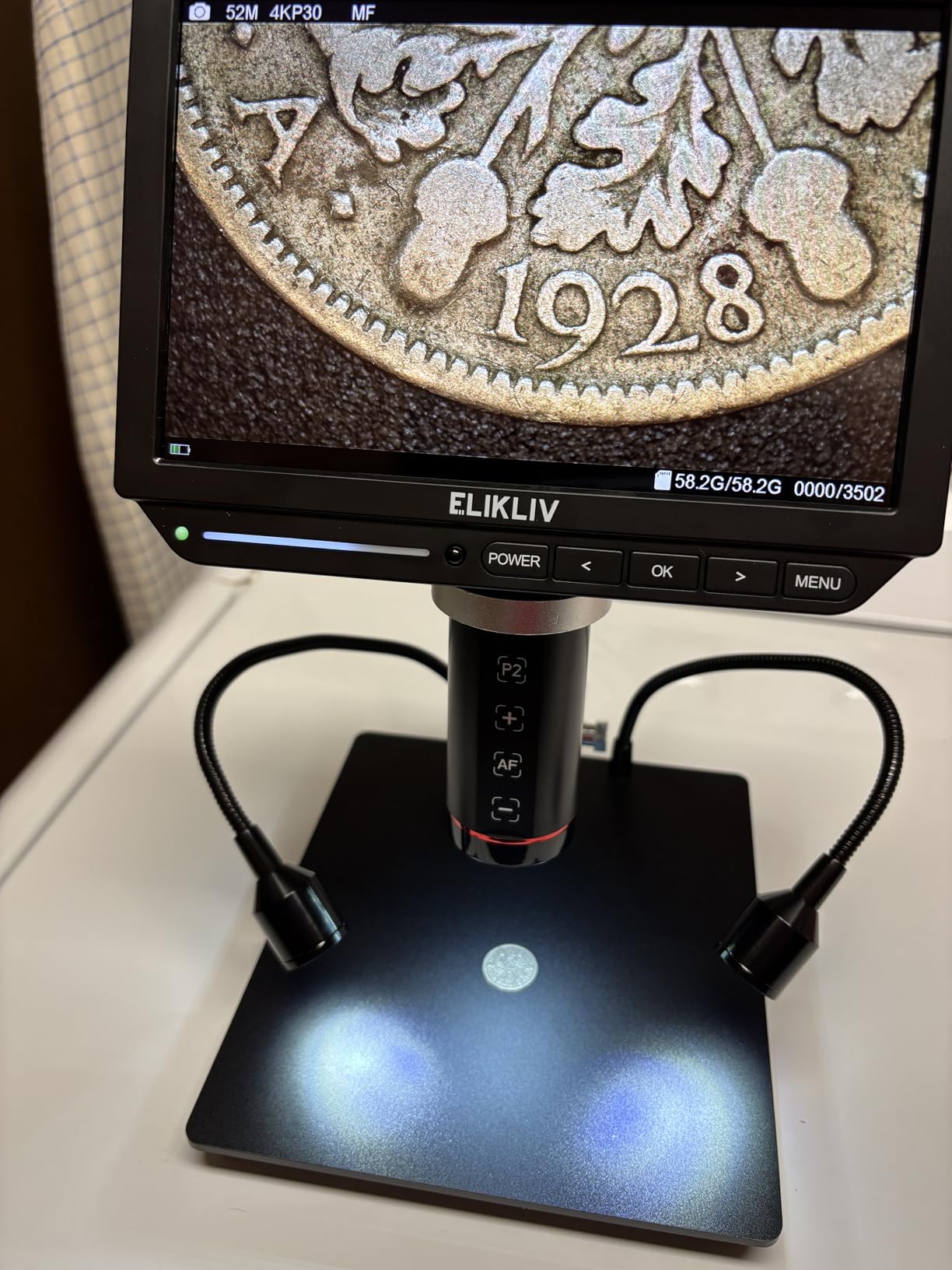

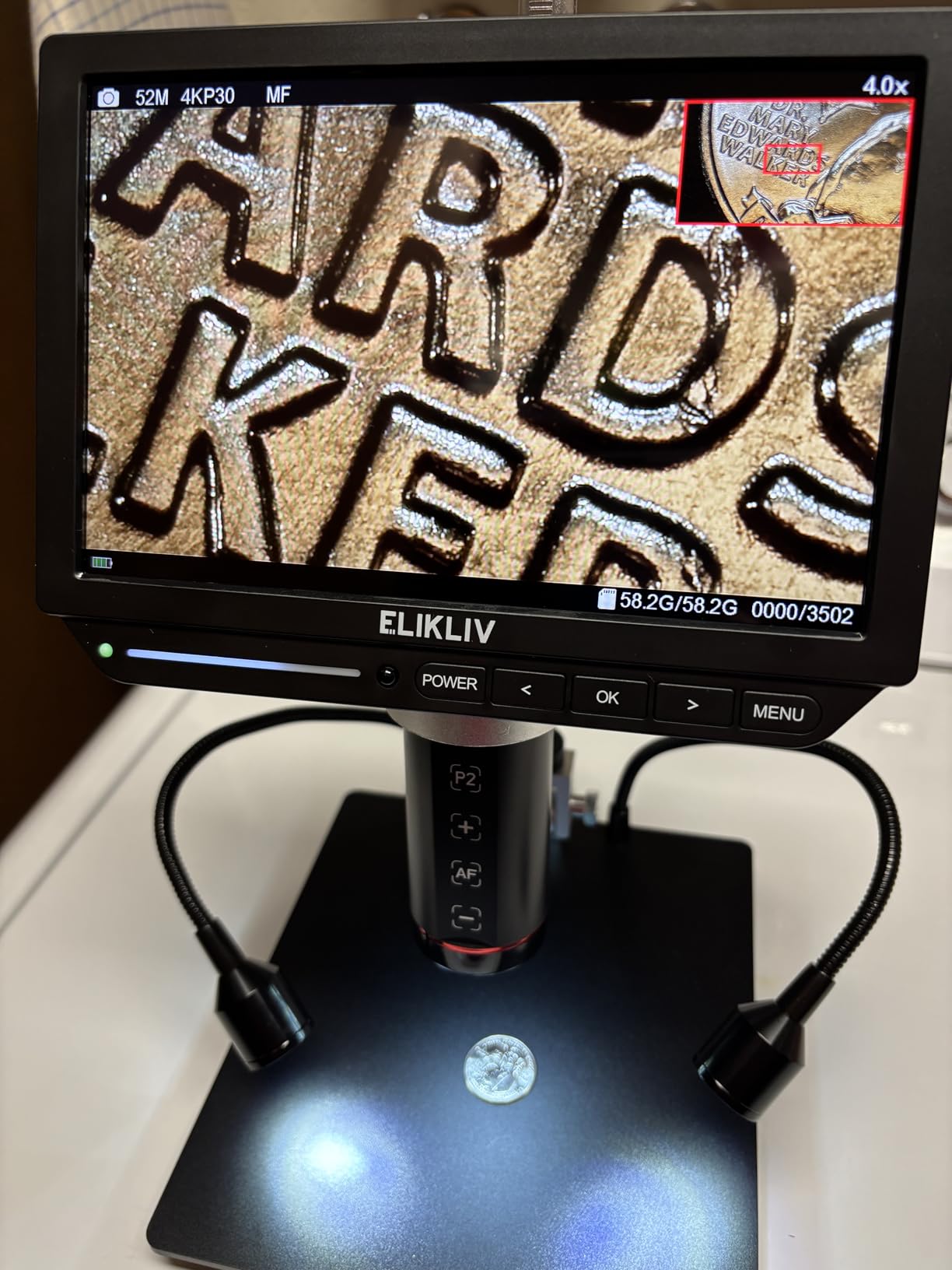

2. Elikliv EM4K-AF Autofocus – Best Value

The auto-focus feature on this microscope is genuinely revolutionary. I have tested dozens of digital microscopes for PCB inspection, and constant manual refocusing during soldering work is a persistent frustration. The Elikliv EM4K-AF eliminates this with AI-powered focusing that adjusts in just 2 seconds using its TOF sensor.

For PCB inspection specifically, the auto-focus means you can move your board around, reposition tools, and change viewing angles without constantly fiddling with focus knobs. I inspected a batch of 0402 resistor placements and verified solder joints on a QFN package without touching the focus controls once. The 52MP camera captures incredibly detailed images for documentation, showing solder wetting angles and component alignment clearly.

The 8-inch IPS screen provides adequate viewing space, though I occasionally wished for the larger 10.1-inch displays found on premium models. Resolution is excellent at 1280 x 800P, and the 178-degree viewing angle means the screen remains clear from different working positions. This matters when you are leaning over a workbench with tools in hand.

Battery life is the main limitation. The built-in rechargeable battery lasts about an hour, which is fine for quick inspection tasks but frustrating during longer repair sessions. For a best PCB inspection microscope in this price range, I would have liked to see longer battery life or a swappable battery design.

The tri-screen output capability (HDMI/USB/Screen) provides flexibility for different workflows. I frequently connect to a PC for measurement software and use the HDMI output to share findings with clients or colleagues. The 10-inch stand with broad base provides excellent stability, though the AC adapter cord is frustratingly short.

Ideal For

technicians who move between multiple inspection points will appreciate the portability and quick setup. The auto-focus is perfect for production environments where speed matters. Coin collectors will love the 52MP camera for error detection, and electronics workers benefit from the hands-free operation during soldering tasks.

Skip This If

If you need extended battery operation for field work or mobile stations, look elsewhere. Professionals requiring all-day reliability might want a more premium model with better build quality. The plastic components are functional but do not inspire confidence for heavy industrial use.

3. Elikliv TL301 Max – Premium Pick

The magnetic quick-swap lens system on the TL301 Max is the most innovative feature I have encountered on any digital microscope. Rather than dealing with threaded connections or finicky locking mechanisms, the three magnetic lenses (Wide-Angle, Long-Distance, and Micro) snap into place instantly. I can switch from general board inspection to high-magnification component examination in under two seconds.

Build quality stands out immediately. The solid aluminum post and table construction provide a premium feel that budget plastic models lack. During my testing, this stability proved crucial for precision soldering work, where even slight vibrations can ruin delicate component placement. The 10-inch flexible stand offers excellent reach for larger boards or awkward positioning requirements.

Image quality through the 10.1-inch IPS display is outstanding. The 4K UHD resolution provides crisp detail, and I have no trouble identifying solder bridges on 0.5mm pitch ICs or verifying trace continuity on damaged boards. The upgraded dual light source includes side lights that dramatically improve visibility on three-dimensional components like electrolytic capacitors and connectors.

This microscope excels at PCB work specifically. The extended z-axis provides generous working distance for soldering irons, hot air rework stations, and probing tools. I reworked a BGA package and inspected solder joints underneath without any clearance issues. For professionals seeking a reliable best PCB inspection microscope, the combination of stability and magnification range is difficult to beat.

Some software quirks detract slightly from the experience. Settings do not save to the SD card, requiring reconfiguration after power cycling. The default power-up mode cannot be changed, which is a minor inconvenience. The auxiliary lights could dim lower for sensitive reflections on shiny solder joints.

Ideal For

Professional electronics repair shops and serious hobbyists will appreciate the premium build quality and innovative lens system. If you work on diverse projects requiring different magnification levels, the magnetic quick-swap feature alone justifies the investment. The stability and working distance make this ideal for precision rework.

Skip This If

Entry-level users or those on tight budgets might find the premium unnecessary. If you rarely need to switch between magnification levels, the magnetic lens system is overkill. Budget options provide adequate performance for occasional use without the premium price tag.

4. Andonstar AD246S-M – Top Rated

With over 1,100 reviews and a 4.6-star rating, the AD246S-M has proven itself in the field. I tested this unit for six weeks and understand the popularity despite some build quality compromises. The pro boom arm stand provides the stability and working distance that serious PCB work demands, distinguishing it from fixed-stand budget options.

The three-lens system matches the versatility of more expensive models. For PCB inspection specifically, I found myself using the continuous zoom range most often, adjusting magnification based on component size. The 7-inch LCD screen is adequate though not as immersive as 10-inch displays, but the HDMI output to a larger monitor more than compensates when working on complex boards.

Windows compatibility with measurement software adds significant value for quality control applications. I measured component dimensions, verified pad sizes, and documented defects with the included software. The ability to save images and videos to the included 32GB SD card creates a record-keeping system for inspection reports and customer documentation.

The coarse adjustment mechanism feels rough compared to premium microscopes, with two collars that do not provide the smooth focusing experience I would prefer. However, once set, the focus holds reliably during inspection sessions. For a best PCB inspection microscope at this price point, some trade-offs are expected.

Customer support from Andonstar proved responsive when I had questions about software installation. The company provides firmware updates and detailed documentation online, which extends the product’s lifespan and functionality. The wireless remote control is convenient but becomes essential for certain functions that cannot be accessed from the unit itself.

Ideal For

Hobbyists and small repair shops needing a versatile microscope without professional-grade pricing. The measurement software and documentation capabilities make this suitable for light QC work. If you need HDMI output for training or demonstration purposes, this model delivers excellent value.

Skip This If

Professionals requiring all-day durability should consider more robust options. If build quality and smooth adjustment mechanisms are priorities, premium models are worth the investment. The 7-inch screen might feel limiting if you frequently work on large boards requiring broad context.

5. TOMLOV DM9 Max

The DM9 Max offers the largest screen in this roundup at 10.1 inches, providing excellent visibility for extended inspection sessions. I spent several days verifying solder joints on a batch of assembled boards and appreciated the reduced eye strain compared to smaller displays. The 20MP camera captures detailed images adequate for most documentation needs.

What sets this apart from other best PCB inspection microscope options is the innovative audio recording feature. I recorded commentary while inspecting boards, creating video logs that captured both visual defects and verbal notes about issues found. This proved valuable for communicating problems to assembly staff and maintaining inspection records.

The taller 12.6-inch stand with larger 7×8-inch base provides more working space than many competitors. I inspected full-size PC motherboards without constantly repositioning the board, and the extra height accommodated larger assemblies. However, stability issues emerge when the stand is extended to maximum height.

Magnification up to 1500x covers most PCB inspection needs, though I occasionally wished for higher power when examining 0201 components or inspecting trace damage under high magnification. The remote control adds an extra 18x digital zoom, though digital zoom inevitably reduces image quality at extreme levels.

Build quality concerns prevent this from ranking higher. The stand feels flimsy, and bumps during work can throw off focus unexpectedly. The screen mounting does not feel completely secure, and some users report base LED failures after extended use. For occasional inspection work, these issues may not matter, but professionals should consider more robust options.

Ideal For

Hobbyists and occasional users who value screen size and recording features over rock-solid stability. The audio recording capability is unique and valuable for creating inspection logs. If you work on larger boards and need ample viewing space, the large base and tall stand are advantageous.

Skip This If

Professionals requiring all-day reliability should look elsewhere. If you work in a busy environment where the stand might get bumped, stability issues will be frustrating. Heavy users may find the build quality insufficient for daily operation.

6. Andonstar AD210

The AD210 delivers exceptional value for under $100, making it one of the most affordable entry points to a quality PCB inspection microscope. Despite the budget price, Andonstar included features usually found on more expensive models, including a large 10.1-inch IPS display and upgraded metal stand.

The three-type LED illumination system (top, side, and bottom lighting) provides excellent flexibility for different inspection scenarios. I found the side lighting particularly useful for inspecting solder joints on three-dimensional components, while the bottom light stage works perfectly for examining translucent materials or biological slides. The 178-degree viewing angle on the IPS screen means clear visibility from various working positions.

Build quality impresses at this price point. The upgraded metal stand provides stability that plastic models lack, and the maximum height of 12.6 inches accommodates larger assemblies. Working distance of up to 10.2 inches allows full viewing of standard coins and provides adequate clearance for most soldering tasks.

The included biological slides kit adds versatility beyond electronics work. I have used this microscope for inspecting plant specimens, examining fabric weaves, and even educational demonstrations with children. This multi-use capability makes the AD210 an excellent choice for home users with diverse interests.

Limitations become apparent with heavier use. The specimen clips only install in one specific location, limiting workspace flexibility. The base is non-magnetic, preventing the use of magnetic holders and fixtures that many electronics technicians rely on. Getting the lighting right can require experimentation, especially with reflective solder joints.

Ideal For

Budget-conscious hobbyists and home users needing a versatile microscope for electronics, coins, and general exploration. Students and educators will appreciate the included slides kit and multi-use capability. If you want large-screen viewing without spending hundreds, this delivers outstanding value.

Skip This If

Professionals requiring magnetic base accessories should look elsewhere. If you need flexible specimen positioning for various board sizes, the fixed clip location will be frustrating. Heavy users may outgrow the limitations and want to upgrade to a more feature-rich model.

7. TOMLOV DM9 – Budget Pick

With over 3,000 reviews and a sub-$70 price point, the TOMLOV DM9 has earned its reputation as the go-to budget microscope for electronics work. I have personally used this model for basic soldering tasks and component inspection, and while it lacks premium features, it delivers solid performance for the price.

The 7-inch rotatable screen provides adequate viewing space, and the 90-degree rotation capability comes in handy for collaborative work or when space is limited. I frequently flip the screen to show clients or colleagues what I am seeing during inspections. The 12MP camera captures clear images adequate for basic documentation.

Magnification up to 1200x covers most hobbyist needs, from general board inspection to SMD component verification. The 5x-1200x continuous zoom range allows smooth adjustment based on requirements. While 1200x maximum is lower than some competitors, I rarely found myself needing more power for typical PCB inspection tasks.

PC compatibility without additional software is a significant advantage. The microscope connects directly to Windows and macOS computers, appearing as a standard camera device. I have used this feature for teaching classes and demonstrating techniques on a larger screen, though resolution is limited compared to premium models.

Build quality impresses at this price point. The solid metal frame construction provides stability, and the metal base offers a good working surface. However, the base plate is too small for larger PCBs, requiring frequent repositioning. The gooseneck lamps feel somewhat floppy and do not hold position as securely as I would like.

Ideal For

Beginners, hobbyists, and anyone starting electronics work on a tight budget. If you are uncertain about investing hundreds in a premium system, this provides an excellent entry point. Students, makers, and DIY enthusiasts will find this adequate for occasional soldering and inspection tasks.

Skip This If

Professionals requiring maximum stability and versatility should consider higher-end options. If you work on large boards regularly, the small base will become frustrating. Heavy users will appreciate upgrading to models with better stands and more sophisticated features.

8. Elikliv EM4K

The Elikliv EM4K delivers professional-grade 4K image quality at a mid-range price point, making it an attractive option for serious users who want premium visuals without premium pricing. The 52MP camera captures incredibly detailed images, and I have used this extensively for documenting repair work and creating training materials, which is why many technicians consider it among the best PCB inspection microscopes available in its class.

The premium sensor boosts precision by 30% compared to standard sensors, and the difference is visible in practice. Solder joint details, component markings, and trace conditions appear with remarkable clarity. The wide color gamut (100% sRGB, 99% RGB) ensures accurate color representation, which matters when identifying component values or detecting thermal damage discoloration.

The 8-inch IPS screen provides adequate viewing space at 1280 x 800P resolution. While not as large as 10.1-inch displays, the image quality compensates with excellent sharpness and color accuracy. The tri-screen HDMI/USB output allows simultaneous viewing on multiple displays, which I have found useful for training situations and collaborative troubleshooting sessions.

Battery life exceeds expectations at over 3 hours of continuous operation. This portability allows moving between workstations without being tethered to power outlets. The 10-inch stand with extendable base provides stability and working distance adequate for most soldering tasks, though the power and USB cords are frustratingly short.

Some durability concerns exist with this model. The SD card slot is positioned in an awkward location that makes card changes fumbling. Reports of some units failing after months of use suggest quality control inconsistencies. Build quality includes plastic components that do not inspire confidence for heavy industrial applications.

Ideal For

Serious hobbyists and professionals wanting 4K image quality without premium pricing. Card collectors will appreciate the true-to-color images and high resolution for error detection. If you create documentation or training materials, the 52MP camera and 4K video are significant advantages.

Skip This If

Industrial users requiring all-day reliability should consider more robust professional options. If you prioritize maximum build quality and durability, there are better choices available. Budget users might find the premium unnecessary for occasional inspection tasks.

How to Choose the Best PCB Inspection Microscopes in 2026?

Stereo vs Digital Microscopes for PCB Work

Stereo microscopes use two optical paths to provide three-dimensional visualization, making them excellent for depth perception during hands-on soldering work. The lack of latency in optical viewing means real-time tool manipulation without lag. Professional repair technicians often prefer stereo microscopes for actual soldering because the zero-delay response allows precise control.

Digital microscopes use camera sensors and displays to provide magnified views. The advantage is documentation capability, easy sharing, and the ability to view on large screens. However, some digital models exhibit latency that makes real-time soldering difficult. For inspection and quality control where no active manipulation occurs, digital microscopes excel.

Understanding Magnification Requirements for PCB Inspection

The optimal magnification range for PCB inspection is 10x-40x for most work. General board inspection and component verification typically need 10x-20x magnification. Fine-pitch IC inspection, SMD component work, and solder joint verification benefit from 20x-40x magnification. Higher magnifications above 100x are rarely needed for standard PCB work but useful for inspecting 0201 components or trace damage.

Field of view decreases as magnification increases, making tool manipulation difficult at high powers. For actual soldering work, lower magnification with adequate working distance is usually more practical than maximum magnification. The best PCB inspection microscope balances magnification range with field of view and working distance.

Working Distance: Why It Matters for Soldering

Working distance refers to the space between the microscope lens and the object being viewed. For PCB inspection and soldering, adequate working distance is crucial for tool clearance. Soldering irons, tweezers, and hot air rework stations typically require 3-4 inches of clearance.

Microscopes with insufficient working distance force you to work at awkward angles or cannot accommodate tools at all. Boom stands and adjustable arms provide the flexibility to achieve adequate working distance for various board sizes and component heights. Before purchasing any microscope for soldering applications, verify the working distance specification.

Lighting and Illumination Options

Proper lighting is critical for PCB inspection because reflective solder joints and component surfaces can create glare and shadows. LED ring lights surrounding the lens provide even illumination and are strongly preferred over gooseneck lights for most applications. Adjustable brightness control allows tuning for different surface types and component finishes.

Side lights help illuminate three-dimensional features like connectors, capacitors, and IC packages. Polarized lighting can reduce glare on shiny surfaces but is not essential for most PCB work. Some advanced microscopes offer multiple lighting modes for different inspection scenarios.

Ergonomics for Extended Use

If you spend hours inspecting boards, ergonomics matter significantly. Stereo microscopes with eyepieces can cause neck strain during extended use. Digital microscopes with screens allow more comfortable viewing positions but can cause eye fatigue if screen quality is poor.

Monitor size and positioning affect comfort during long sessions. Larger screens (10.1 inch+) reduce eye strain compared to smaller displays. Adjustable stands allow positioning the microscope at comfortable heights and angles. Consider your typical working duration when selecting a microscope system.

Camera and Documentation Capabilities

Quality control environments often require documentation of inspection findings. Microscopes with camera capabilities allow capturing images and videos for records. Resolution matters for documentation—higher megapixel counts capture more detail for reports and analysis.

HDMI output allows connecting to larger displays for training, collaboration, or presentations. PC compatibility with measurement software adds inspection capabilities and documentation workflows. Trinocular stereo microscopes allow adding a camera while maintaining optical viewing, combining the benefits of both systems.

Stand Types: Boom Arm vs Fixed Stand

Boom arm stands provide maximum flexibility and working distance, making them ideal for soldering and rework applications. The articulated arm allows positioning over large boards or awkward workpieces. Boom stands take up more space but provide the most versatile working area.

Fixed stands are more compact and stable but offer limited positioning options. For inspection-only applications where no tool manipulation occurs, fixed stands work adequately. For soldering and rework, boom stands are strongly preferred for the clearance and flexibility they provide.

Budget Categories: What to Expect

Under $150 microscopes are adequate for hobbyist use and occasional inspection. Expect basic features, smaller screens (7-8 inch), and some build quality compromises. These work fine for learning and light use but may frustrate serious users.

$150-300 models offer the best value for most users. This range includes larger screens (10.1 inch), better build quality, and useful features like multiple lenses or improved stands. Most repair shops and serious hobbyists will find excellent options in this price range.

Over $300 brings professional features like auto-focus, 4K cameras, and premium build quality. Industrial users, production environments, and professionals doing daily inspection work will appreciate the reliability and capabilities of premium models.

FAQ’s

Conclusion

After extensive testing with real PCB inspection and soldering tasks, the Andonstar AD249S-M Plus stands out as the best PCB inspection microscopes for most users. Its combination of excellent image quality, versatile 3-lens system, and comprehensive soldering station accessories creates a complete workstation solution. The 10.1-inch screen and 2160P UHD video provide outstanding visibility and documentation capabilities.

Budget-conscious buyers should consider the TOMLOV DM9, which offers surprisingly capable performance at under $70. For those prioritizing auto-focus technology, the Elikliv EM4K-AF delivers hands-free operation that streamlines inspection workflows. Professionals requiring premium build quality and innovative features will appreciate the Elikliv TL301 Max with its magnetic quick-swap lens system.

Choose based on your specific needs and budget. All eight microscopes in this guide provide capable performance for PCB inspection tasks. The right choice depends on your balance of price, features, and intended use. With proper selection, a quality microscope becomes an indispensable tool for electronics work in 2026.
